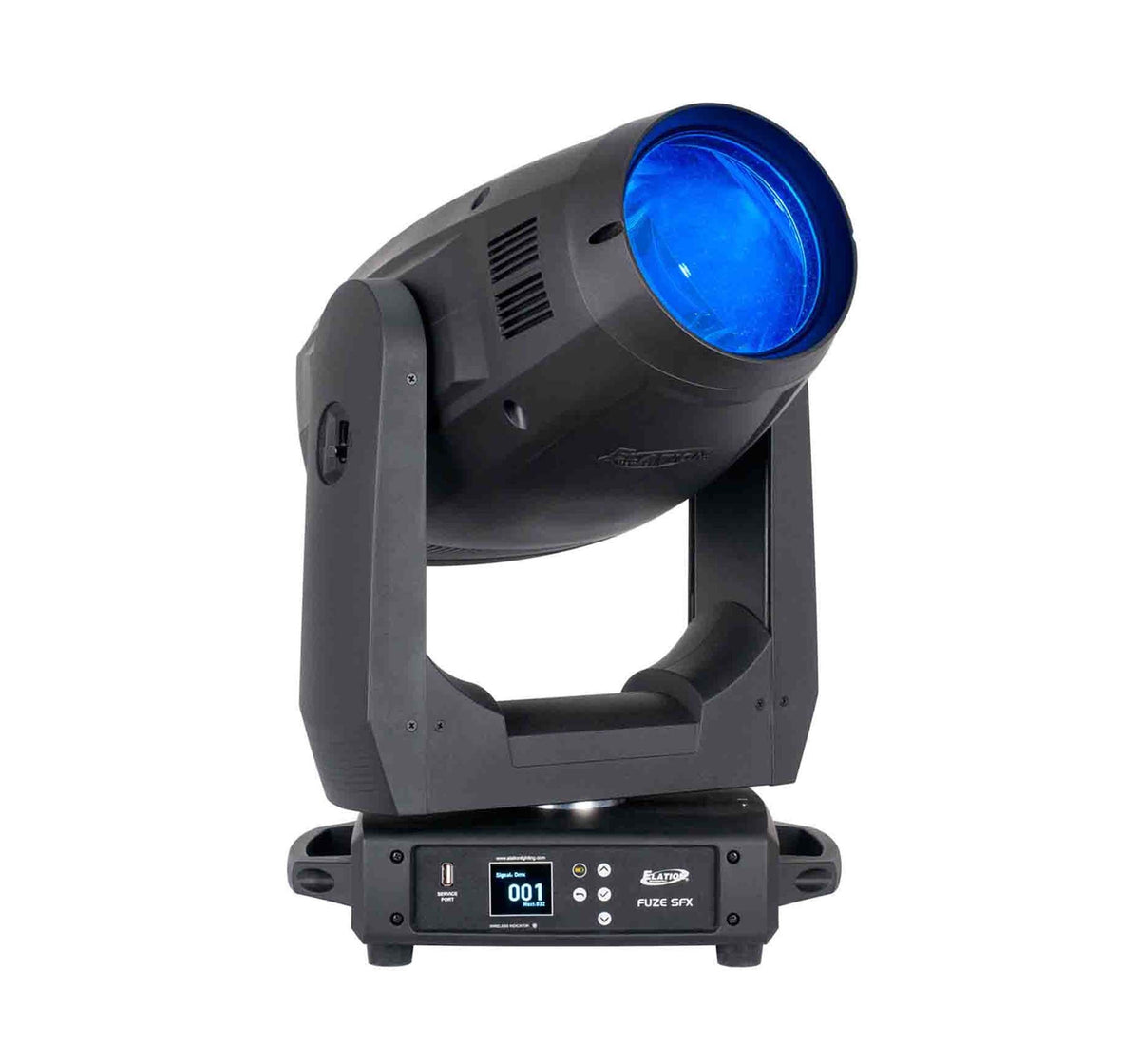

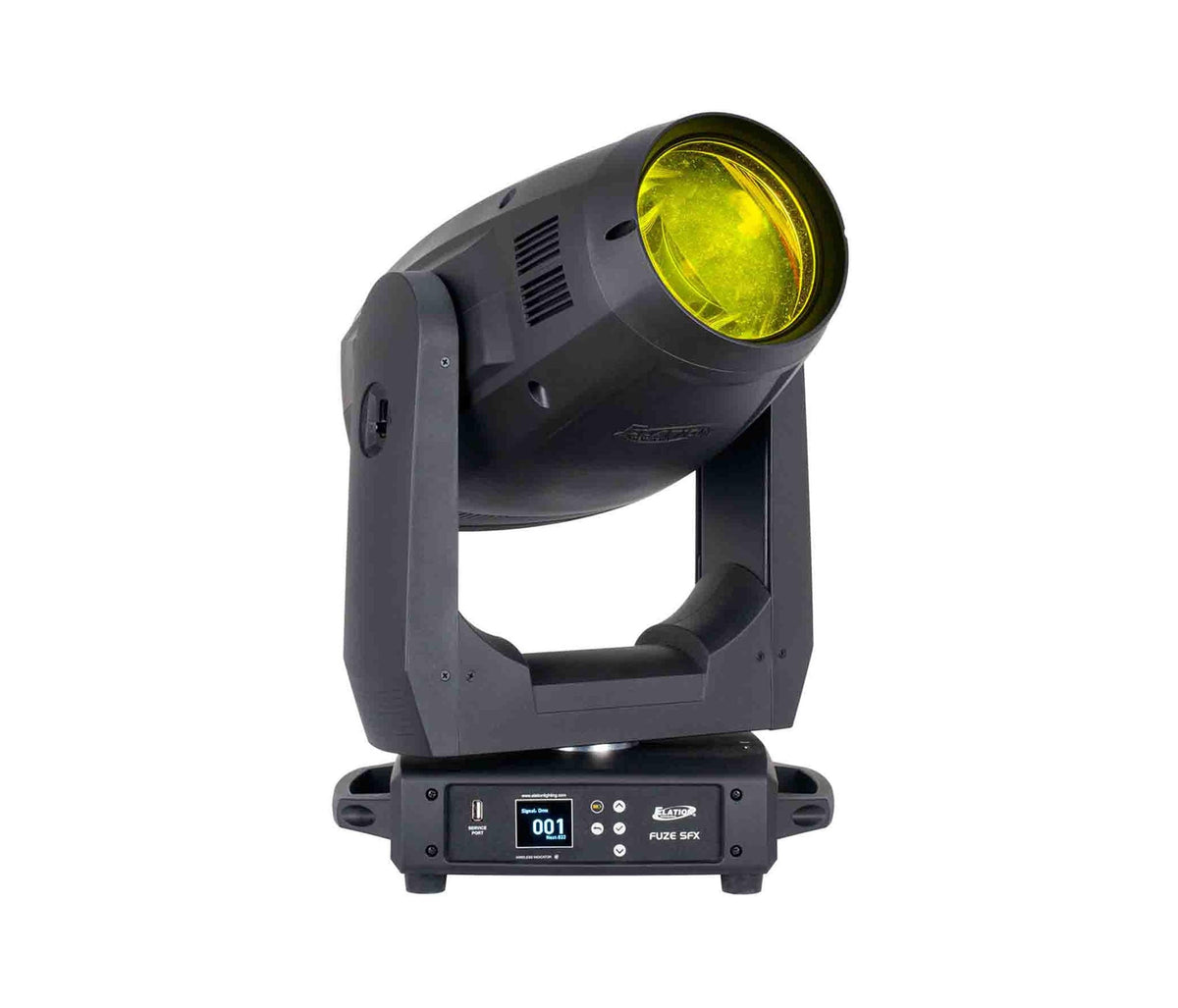

The Elation FUZ406 Professional Fuze SFX Spot Fixture - 300-Watt is a new concept LED Spot FX fixture designed for a variety of applications requiring a compact and powerful multi-purpose luminaire. The SFX is capable of projecting tight beams to wide washes using a highly efficient optical design while providing over 12,000 lumens of output from its 300W white LED engine.
Housing 18 carefully designed gobos and a 4.5° to 38° zoom, the FUZE SFX can create stunning mid-air FX as easily as precise image projections. The SFX allows for even stage washes utilizing its variable frost filter while a wide array of beautiful colors is possible from a seamless CMY color-mixing system plus color wheel. Dual independent rotating and overlaying prisms plus a fast iris round out the comprehensive feature set. A truly remarkable compact powerhouse for any application, the FUZE SFX is sure to create amazing effects, outstanding projections and beautiful bright washes on any stage.
Product Specifications:
Source:
300W 6,600K Bright White LED Engine
20,000 Hour Average LED Life
Photometric Data:
12,135 Total Lumen Output
CRI 68+
Zoom Range 4.5° - 38°
Beam Angle 4.6° - 38.2°
Field Angle 5.6° - 42.2°
Effects:
Motorized Zoom
Remote Focus
Variable Frost Filter
Dual Independent Prisms (6 Facet linear & 6 Facet round)
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Pan Angle: 540°/630°
Tilt Angle: 270°
Color:
CMY Variable Color Mix
7 Position Color Wheel
High CRI Filter, CRI 84
CTO Filter, 3200K, CRI 77
Gobos:
2 Gobo Wheels
Wheel #1 with 8 Rotating / Interchangeable Glass Gobos
Wheel #2 with 10 Static Gobos
Control / Connections:
31 DMX Channels
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM, E-FLY Wireless, Art-Net, sACN Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display

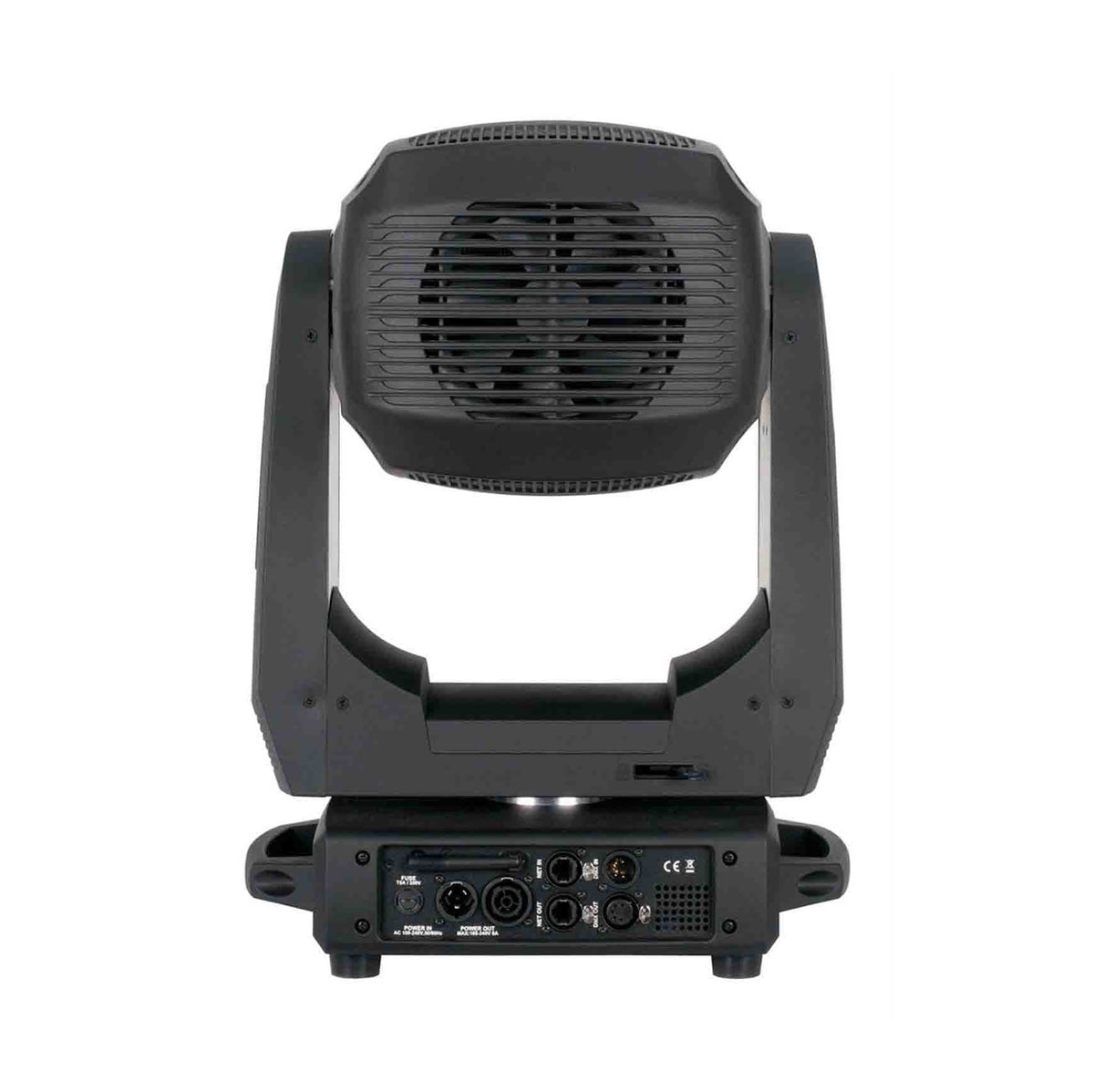

Locking 5pin XLR Connector In/Out
Locking RJ45 Ethernet Connector In/Out
IP65 Locking Power Connector In/Out
USB Connection (Firmware Updates)
With Wired Digital Communication Network
Shipping Dimension:
Length: 15.41”
Width: 10.20"
Vertical Height: 24.14"
Shipping Weight: 48 lbs.
