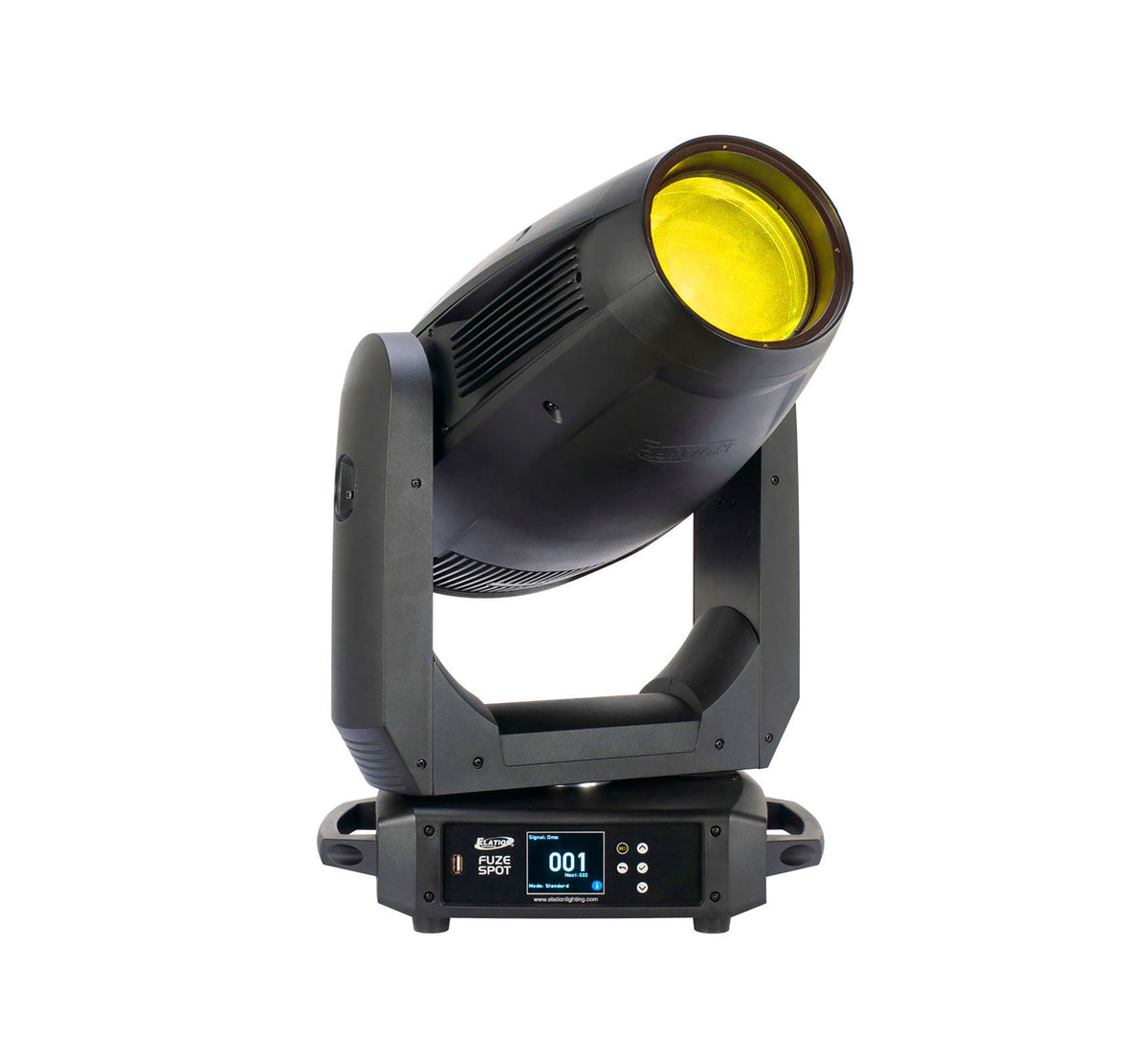

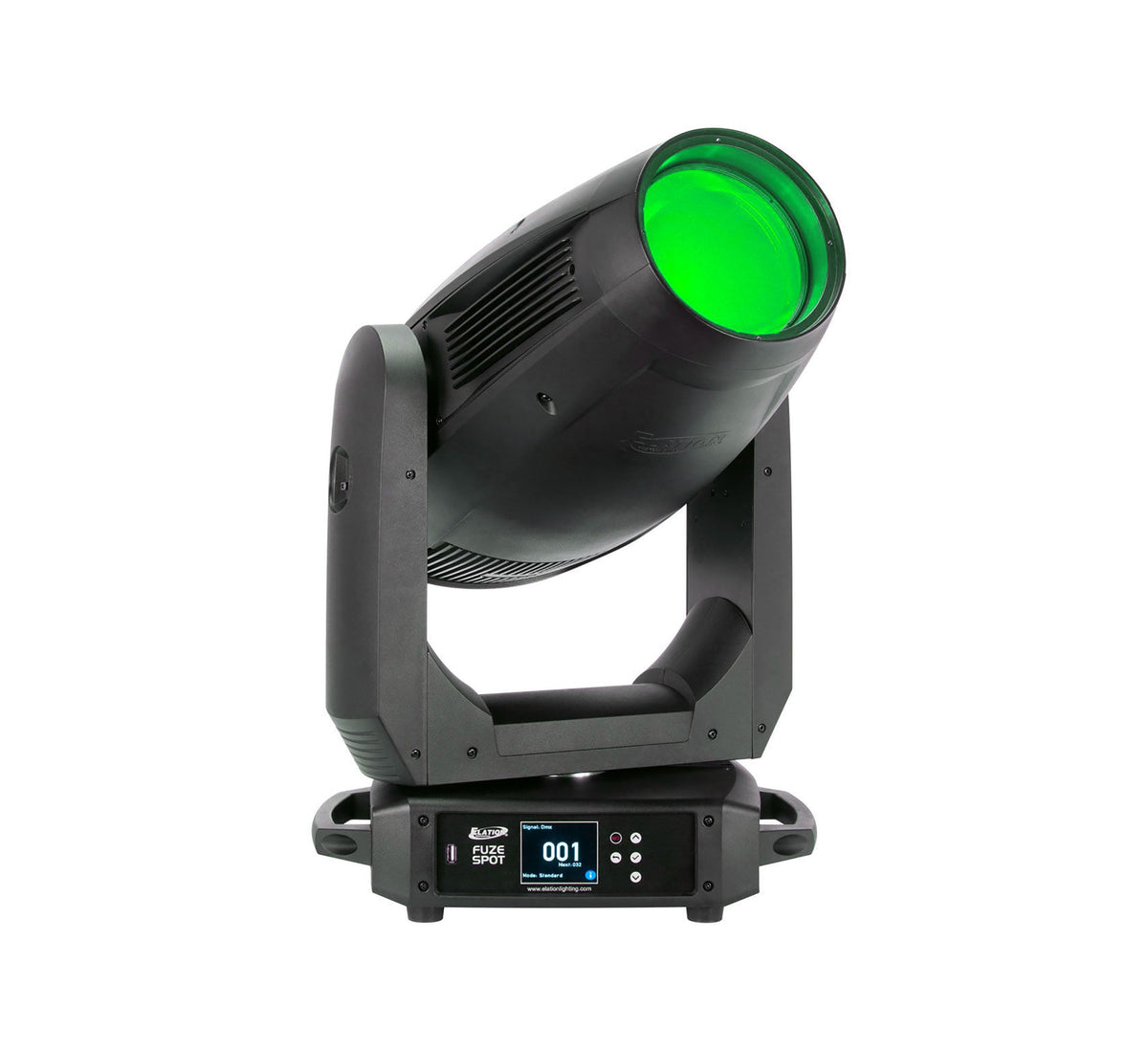

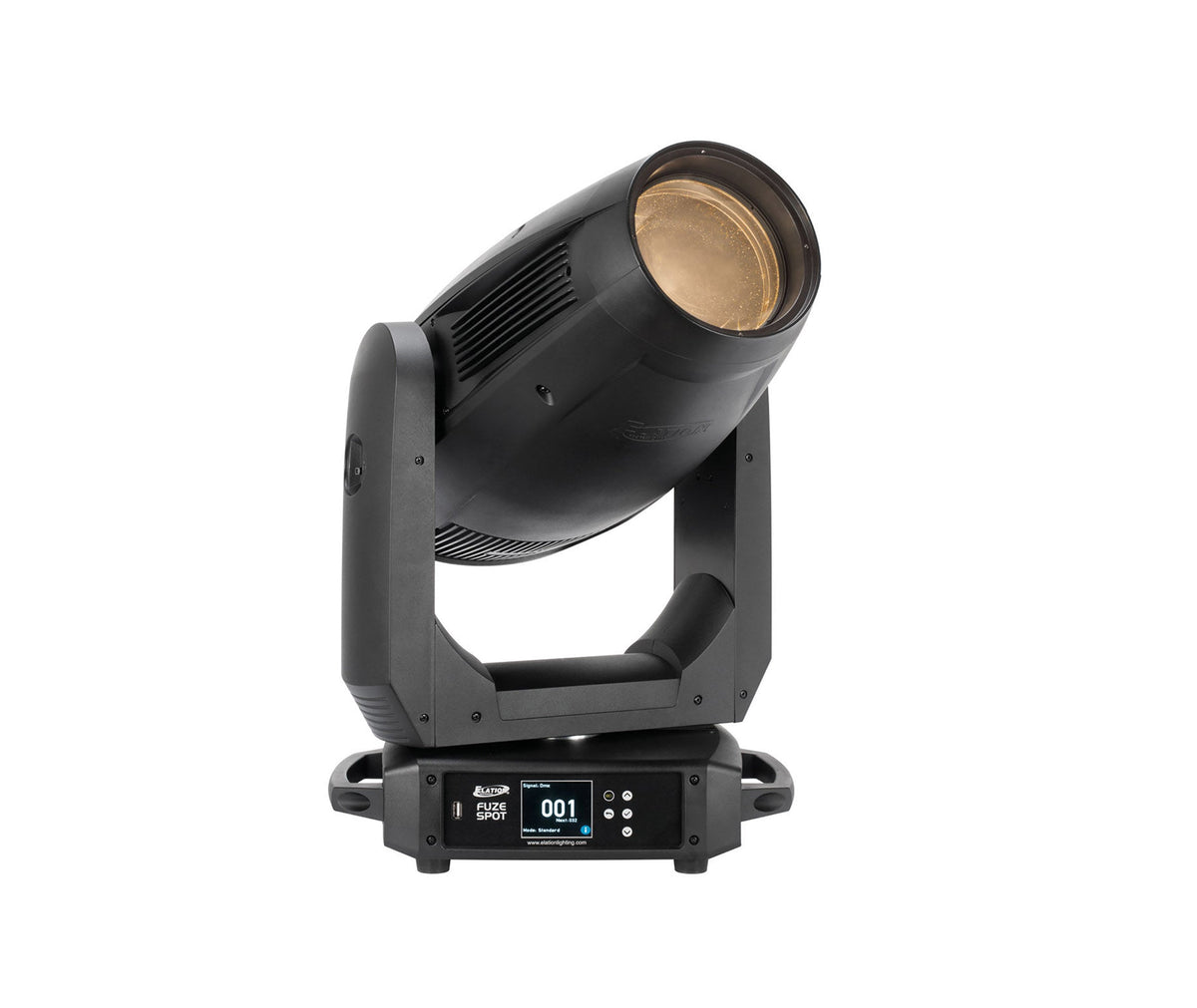

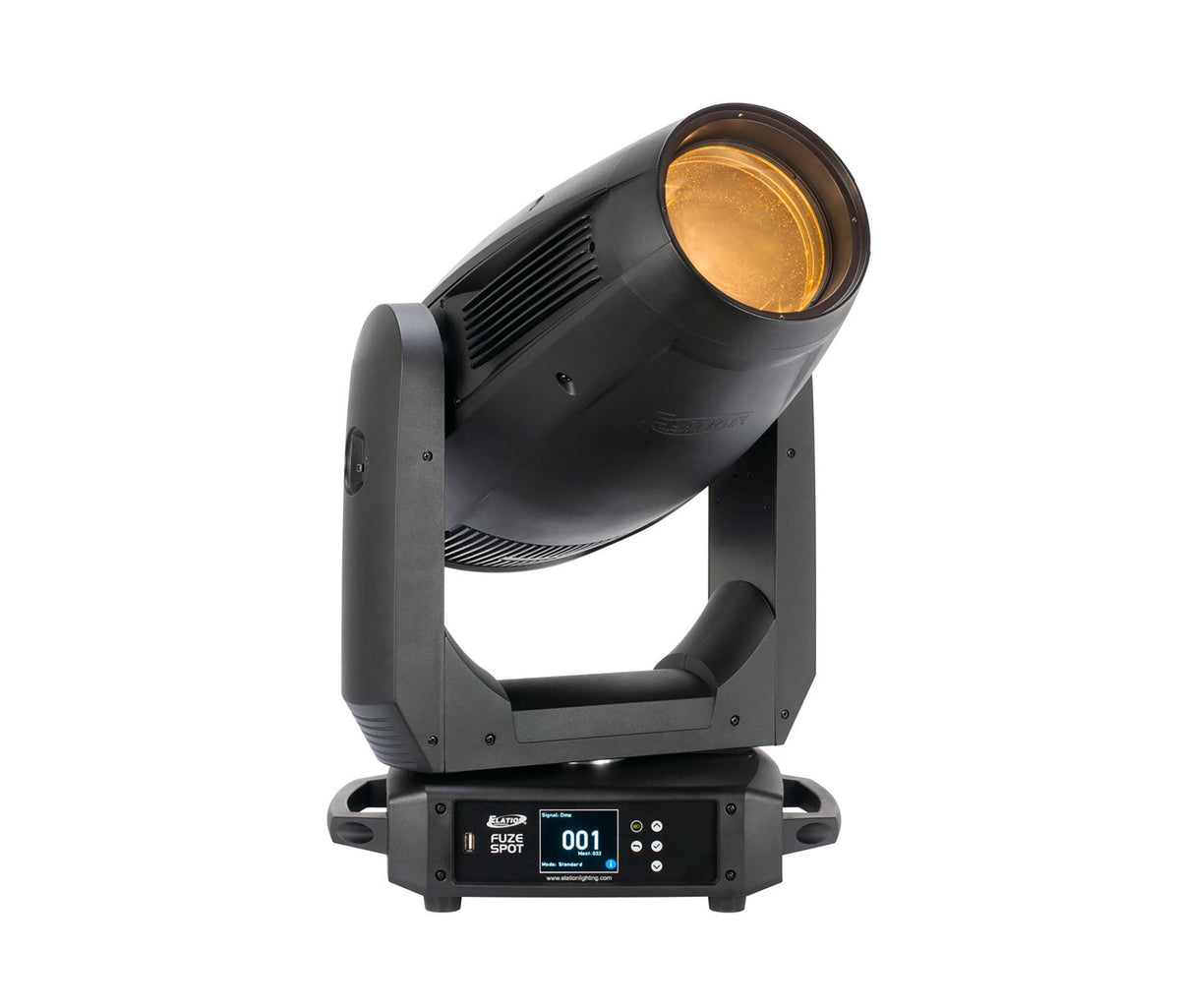

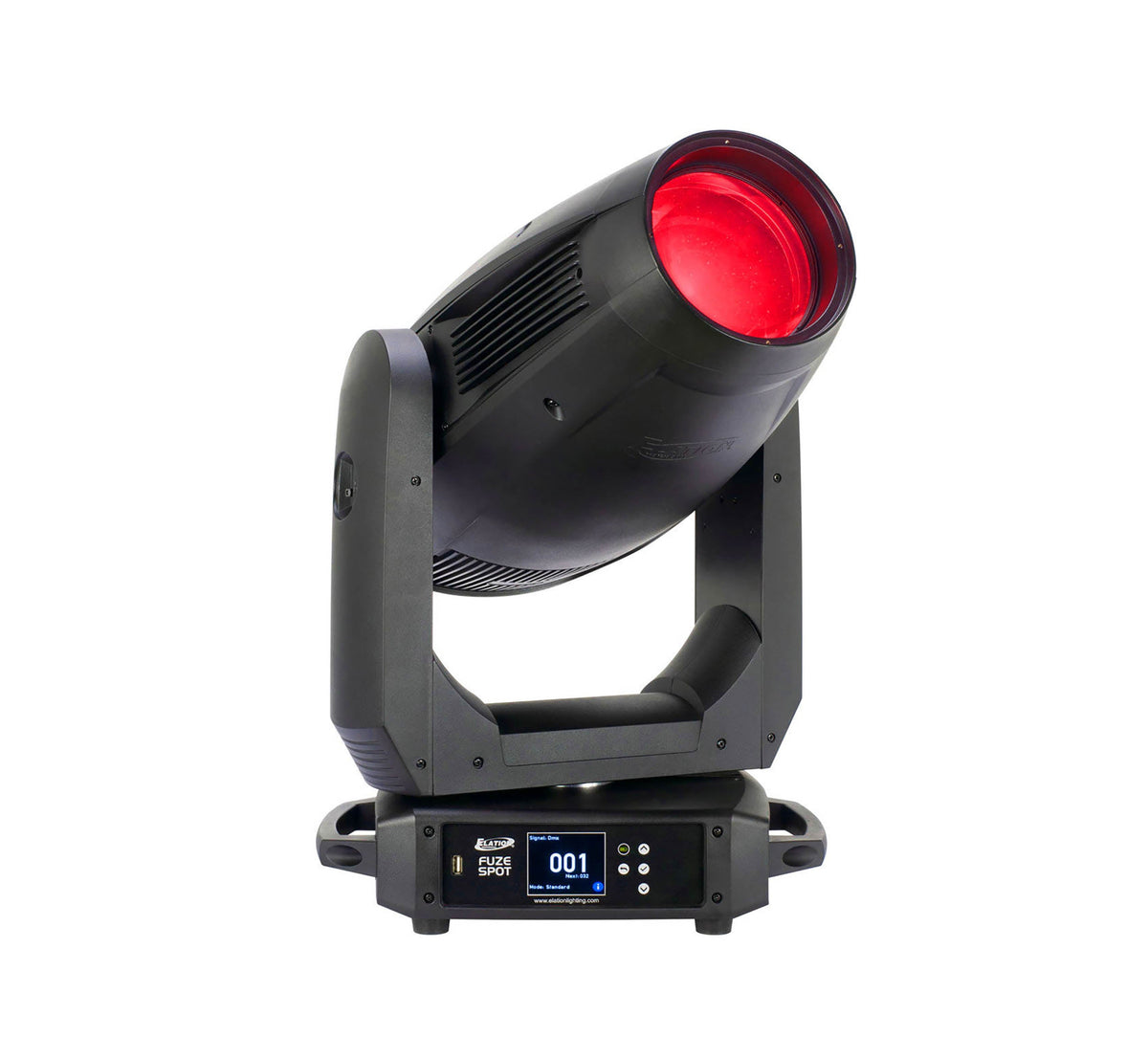

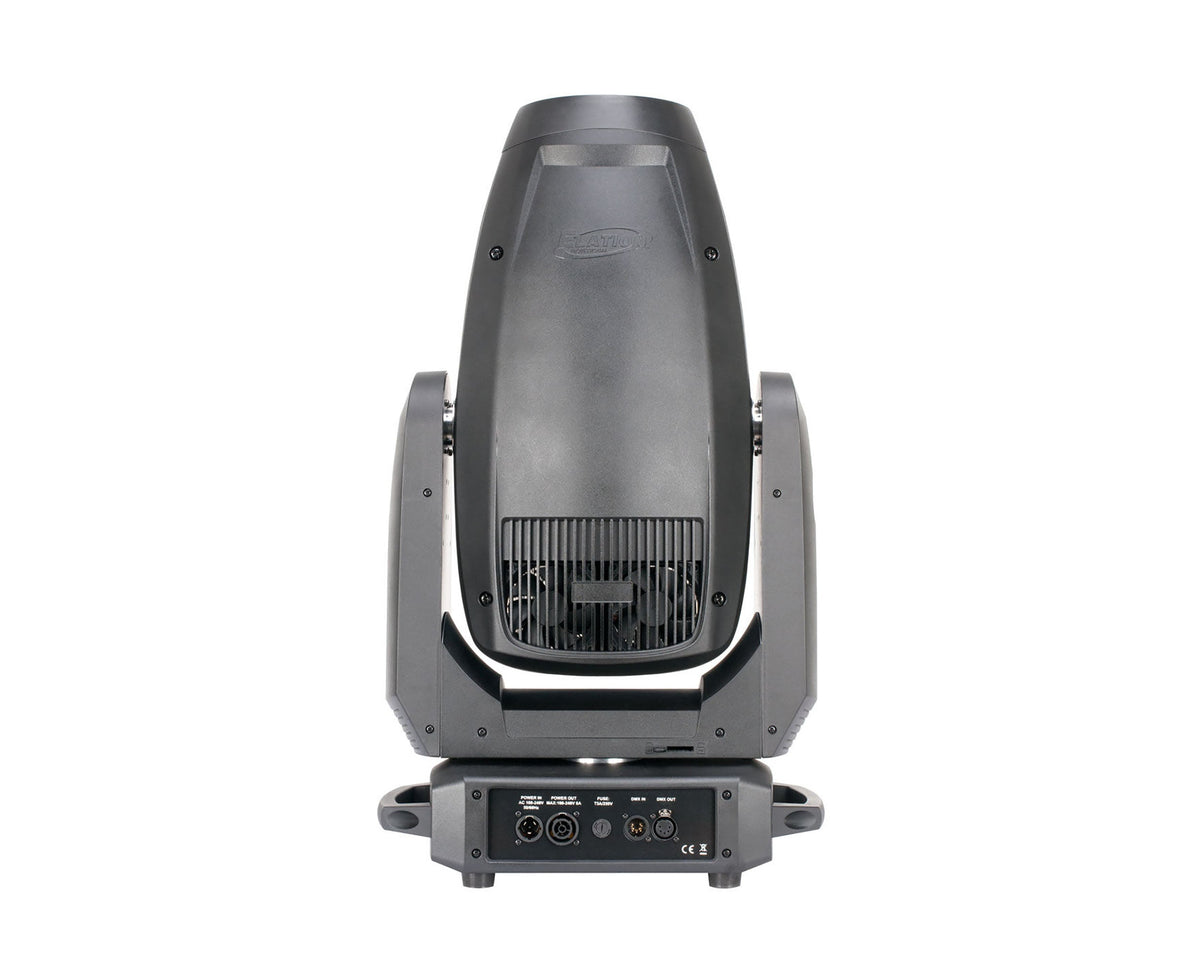

The Elation Fuze SFX, Full Spectrum RGBMA LED Spot Fixture - 305W is a powerful, full-spectrum LED spot fixture designed for theater, broadcast, and precision lighting applications. Featuring a 305W RGBMA (Red, Green, Blue, Mint, Amber) LED engine, the FUZE SPOT delivers over 10,000 lumens with a high CRI of 92, ensuring vibrant and accurate color rendering.
Ideal for applications requiring an automated ellipsoidal fixture, it includes dual rotating gobo wheels, animation effects, motorized zoom, iris, frost, and prism, all housed in a compact and quiet chassis.
Product Specifications:
Control & Interface:
DMX & RDM Protocol Support
4 DMX Channel Modes (RGBMA 31/41, CMY 29/37)
16-bit control: Pan, Tilt, Dimming
Full-color LCD menu with 180° reversible display
DMX Adjustable LED Frequency

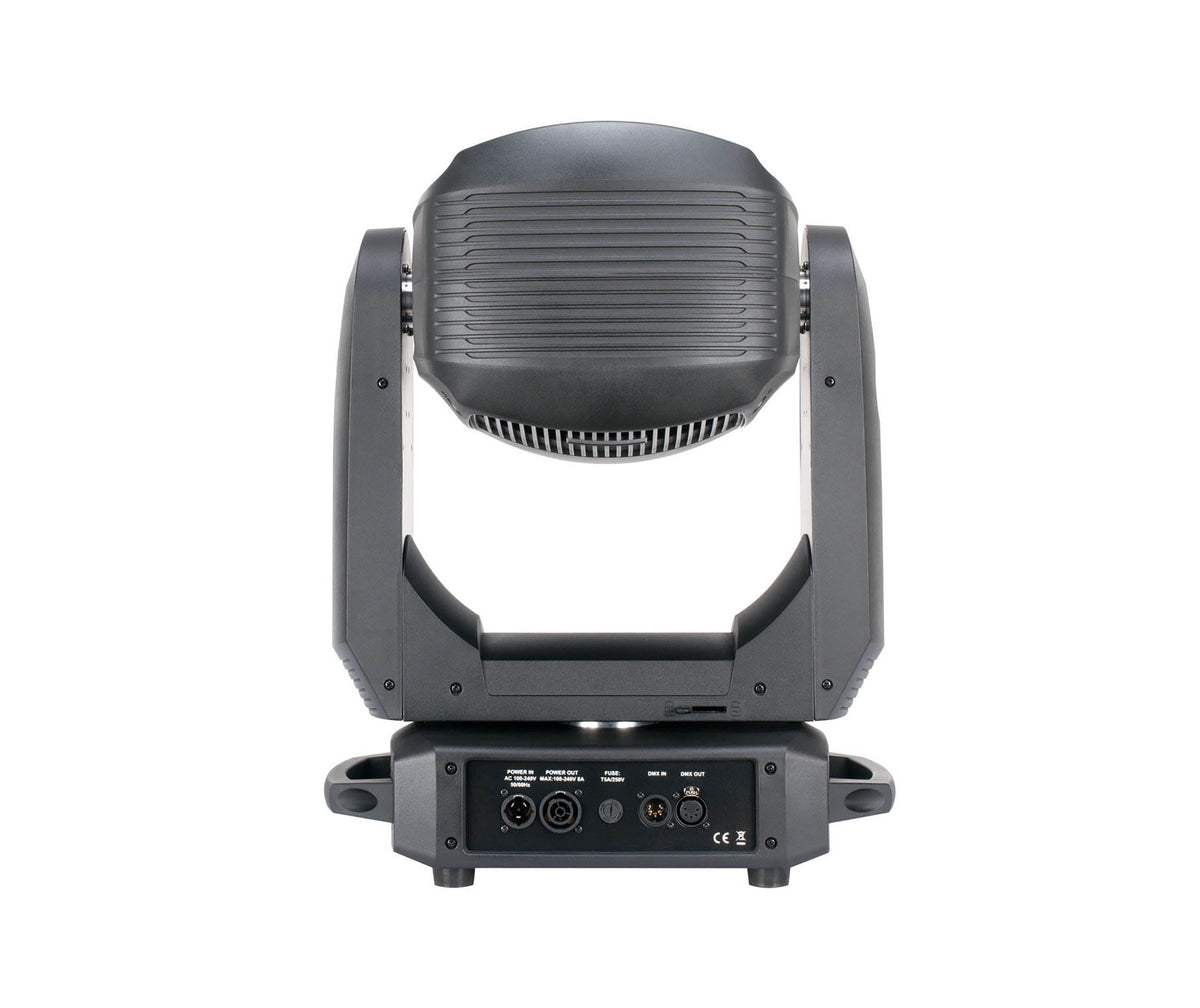

Locking 5pin XLR and IP65 locking power in/out
Electrical & Thermal:
Voltage: AC 100-240V, 50/60Hz
Max Power: 466W
BTU/hr: 1589.06
Operating Temp: -10°C to 45°C (14°F to 113°F)
Approvals / Ratings:
CE, cETLus, IP20
Included Resources:
User Manual, Spec Sheet, DMX Traits
Photometric Data (IES Files, Test Report)
2D/3D CAD Drawings and Vectorworks Symbol
Dimensions & Weight:
Length: 16.0" (407mm)
Width: 10.1" (256mm)
Height: 27.4" (698mm)
Weight: 46.3 lbs (21 kg)
