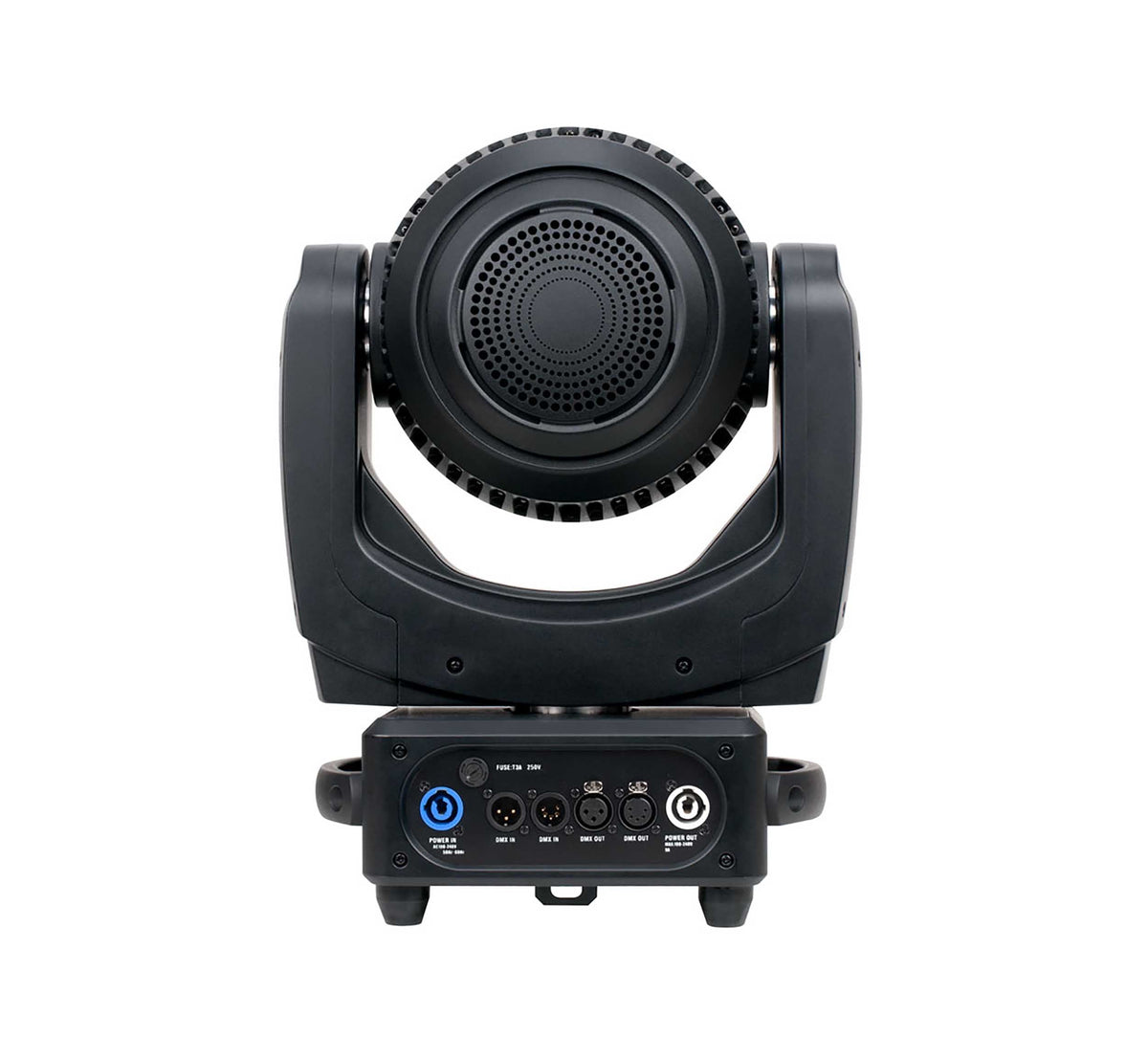

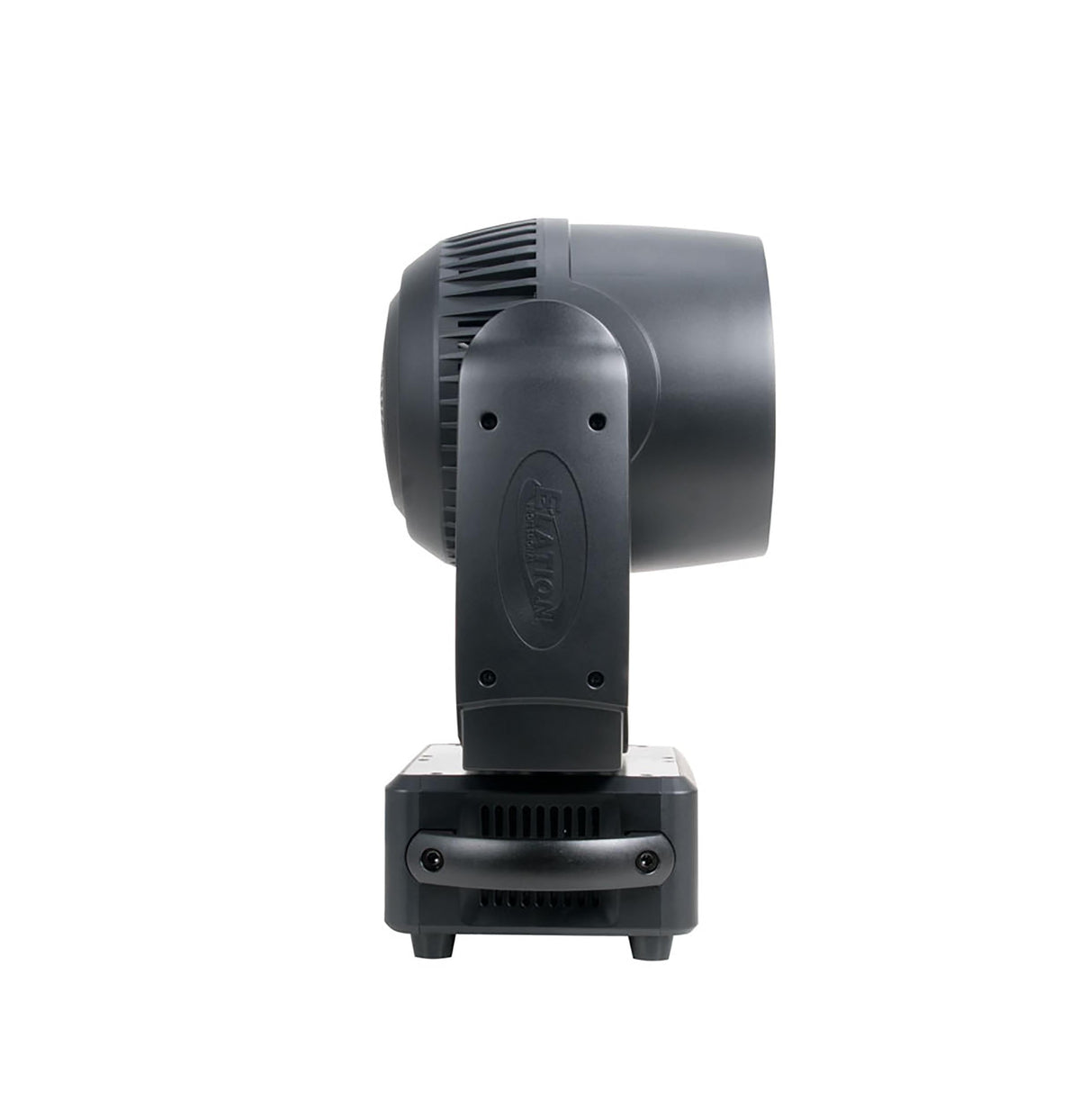

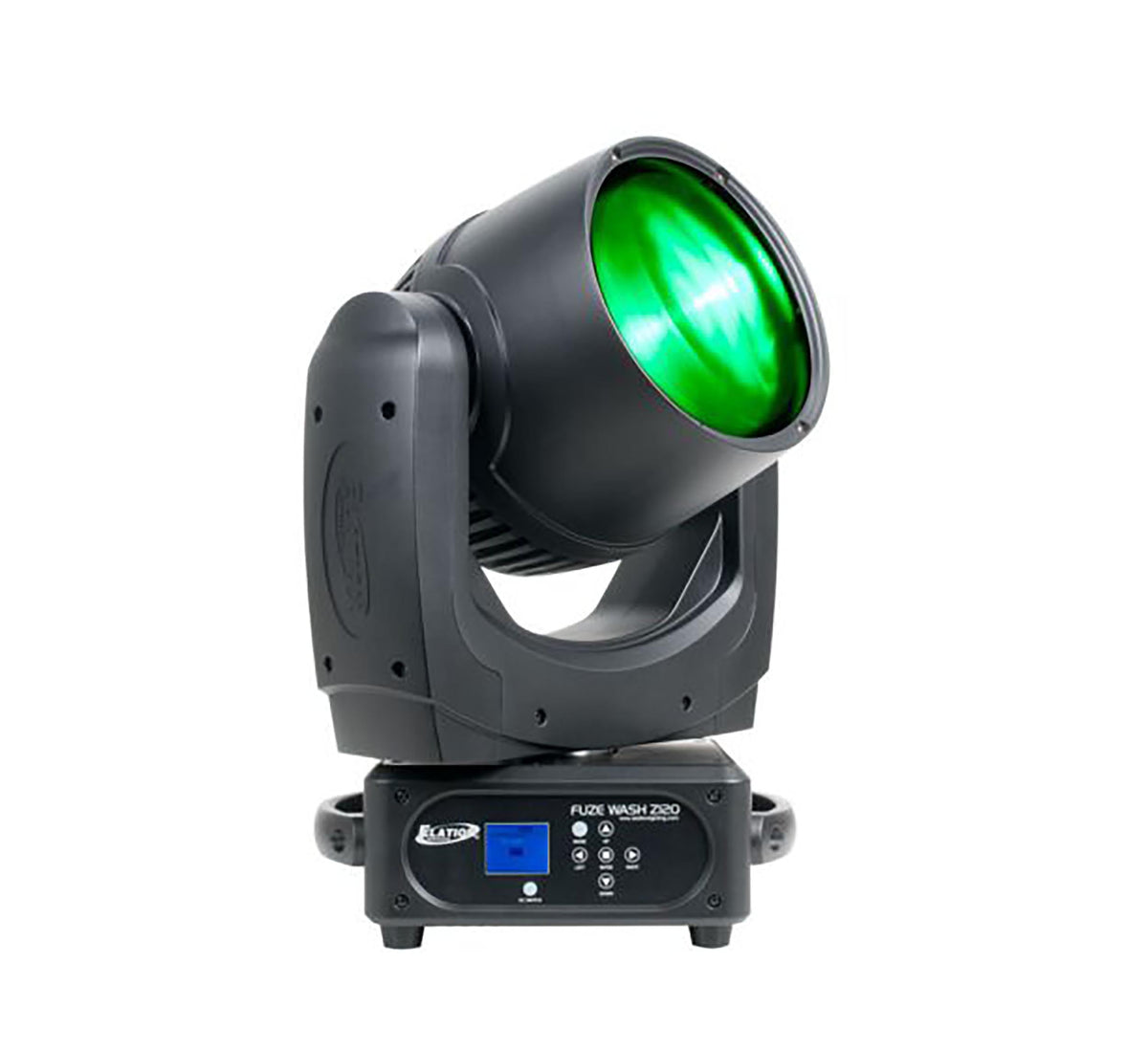

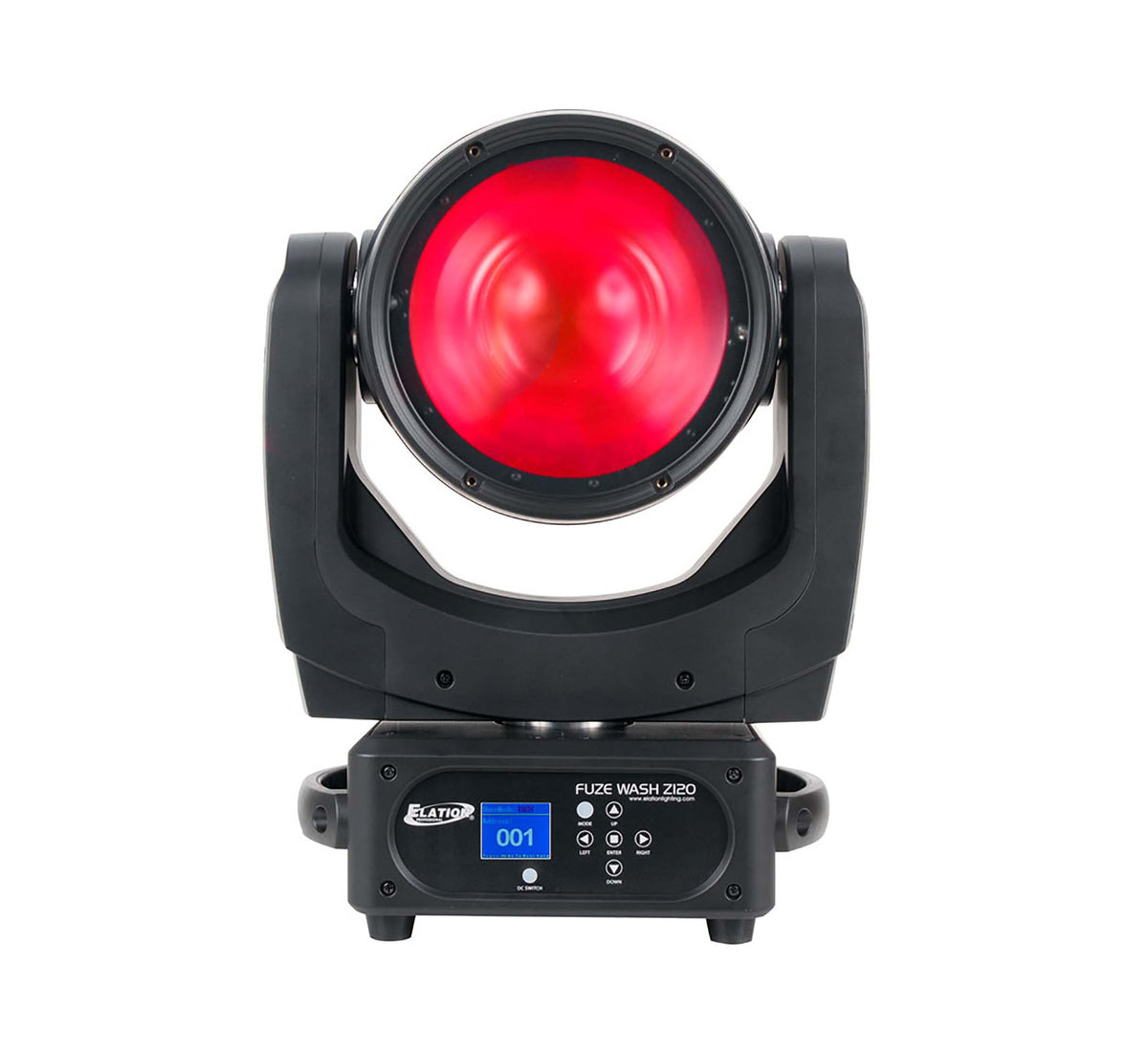

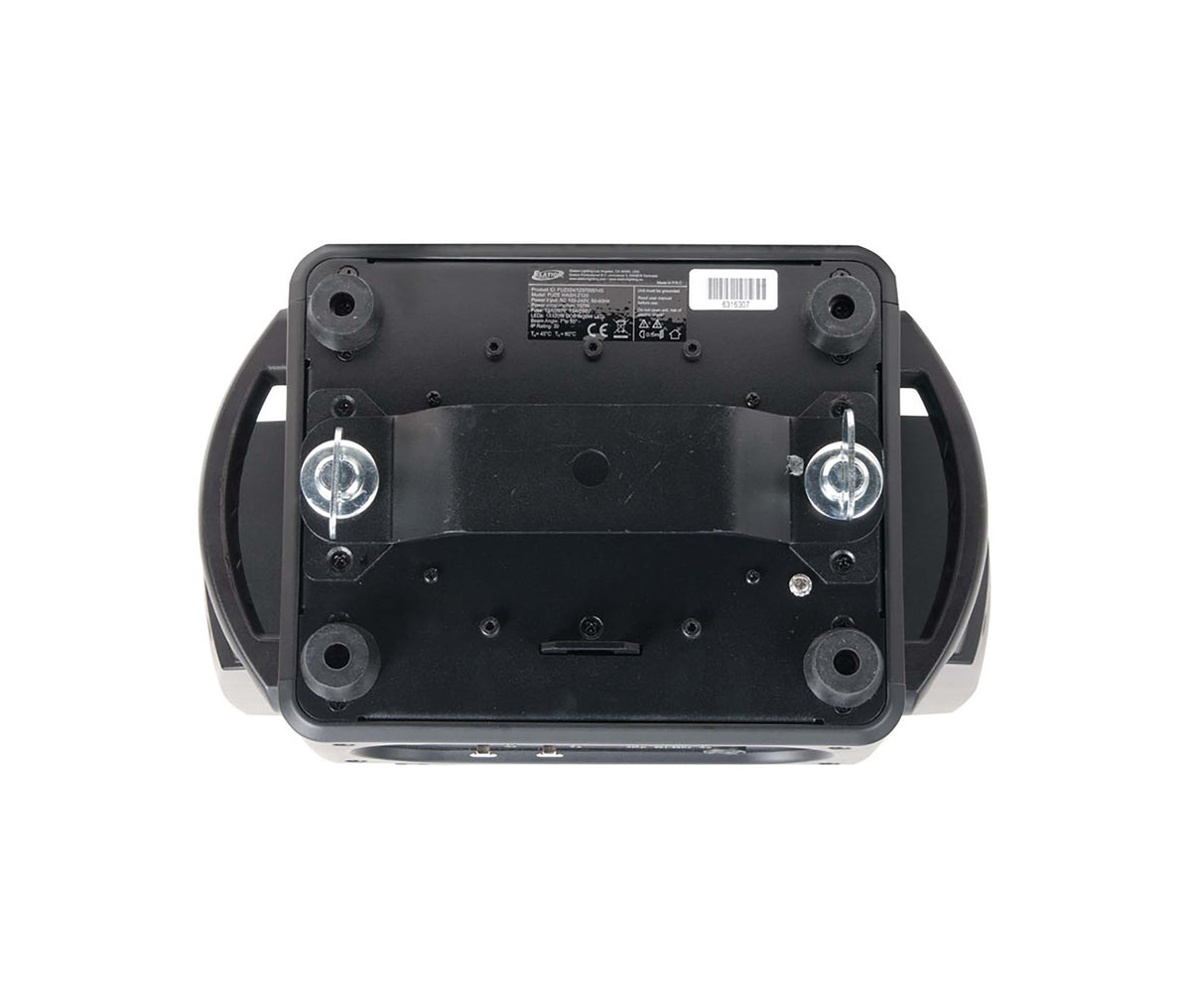

The Elation Fuze Wash Z120, RGBW LED Wash Fixture with Zoom - 120 Watt is a single source par moving head luminaire with a 120W Quad Color RGBW COB LED. Features 7° to 55° motorized zoom, pan and tilt, RGBW color mixing, electronic strobe and selectable dimming curve effects, DMX and RDM (remote device management) protocol support, DMX and power in/out connections, LCD menu display with 7 button control panel, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).
Product Specifications:
Source:
120W RGBW COB LED
100,000 Hour Average LED Life*
Photometric Data:
10,640 LUX 988 FC @9.8’ (3m) (7° Full ON)
692 LUX 64 FC @9.8’ (3m) (55° Full ON)
Color: RGBW
Effects:
RGBW Color Mixing
7° - 55° Beam Zoom Range
Electronic Strobe, Dimming and Variable Dimming Curves
64 Color Presets and 14 Unique Color Macros
Pan Angle: 540/630
Tilt Angle: 250
Control / Connections:
4 DMX Channel Modes (19 Total Channels)
7 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)
3pin/5pin DMX and Locking Power Cable In/Out
With Wired Digital Communication Network
Size / Weight:
Length: 13.3" (338mm)
Width: 9.0" (229mm)
Vertical Height: 18.2" (466mm)
Weight: 22 lbs. (10 kg)
Electrical / Thermal:
AC 110-240V - 50/60Hz
157W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
BTU/hrs. (+/- 10%) 535.37
Approvals / Ratings: CE | cETLus | IP30

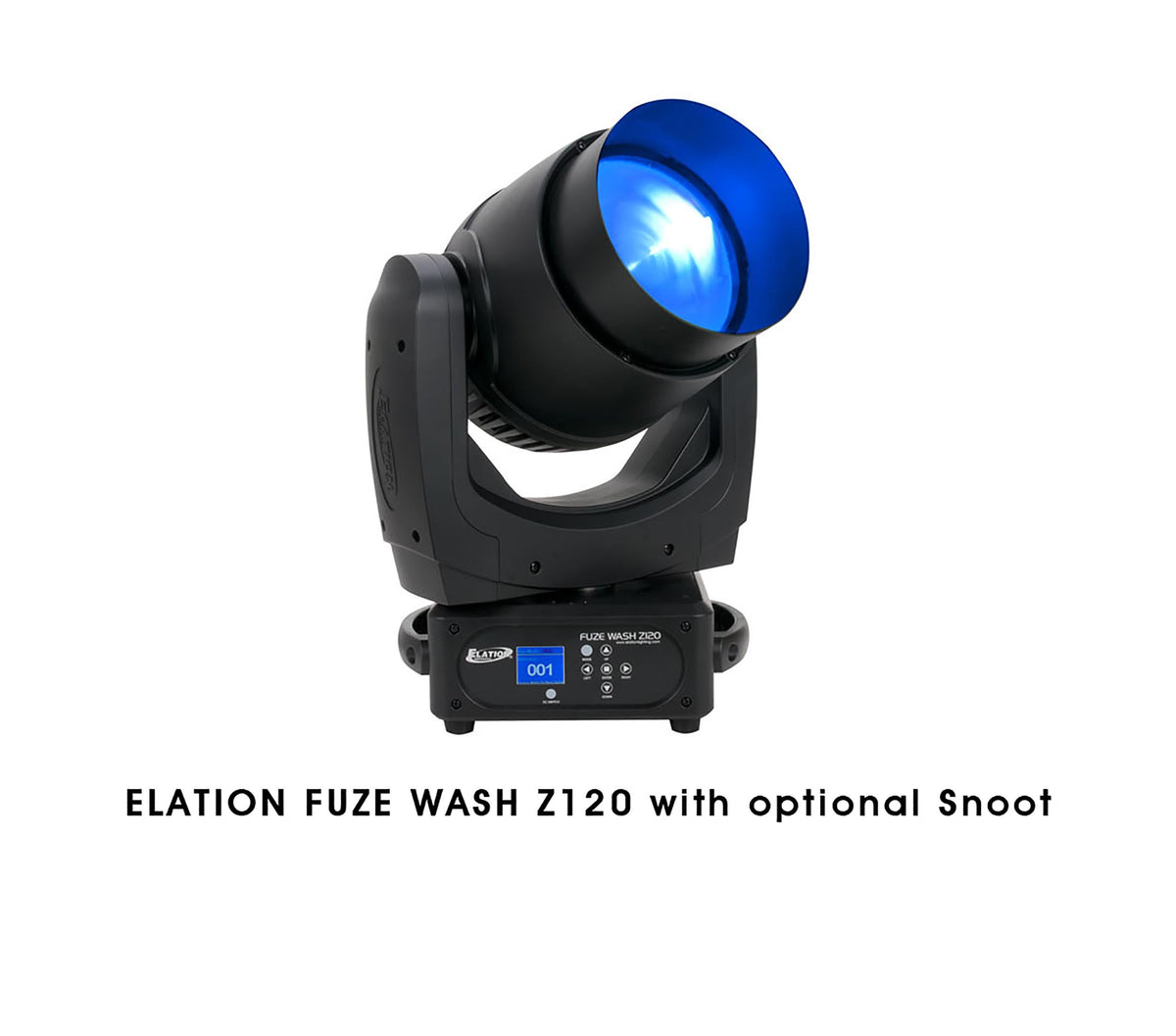

Optional Accessories: FW120SNOOT - Snoot
