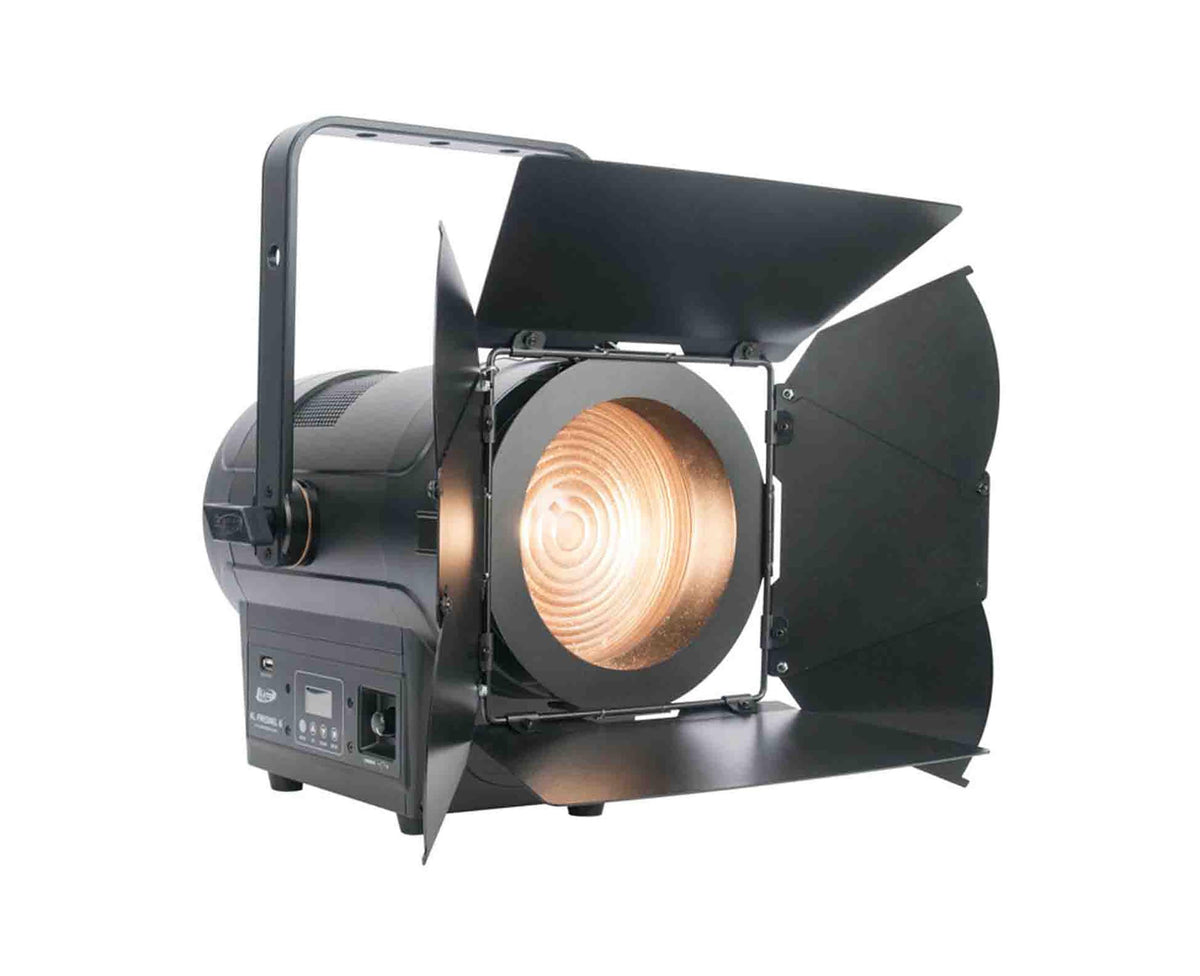

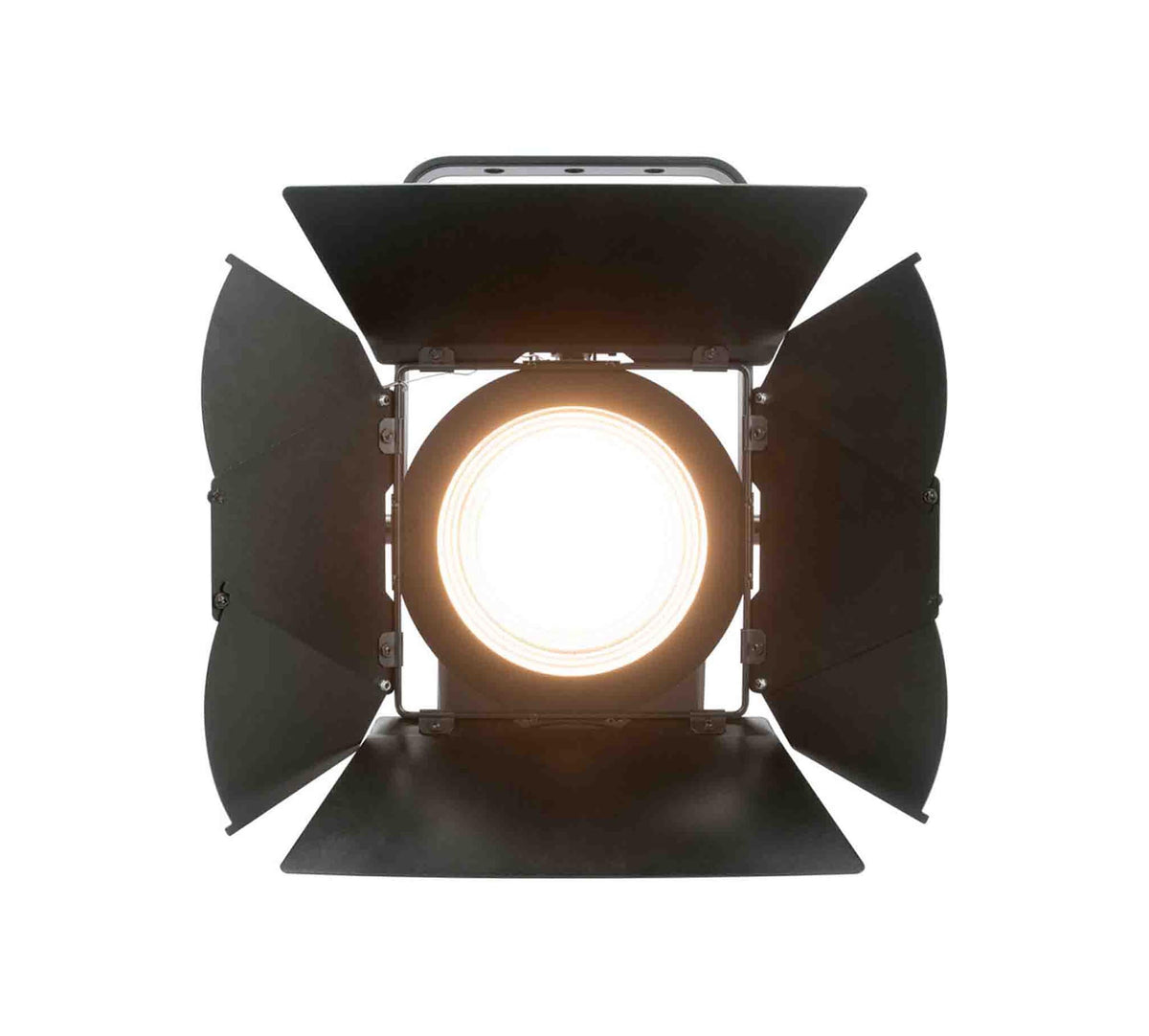

Elation KLF012, 150-Watt Warm White LED Fresnel
Elation KLF012, 150-Watt Warm White LED Fresnel
Model / SKU: H-ELAT-KLF012
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The Elation KLF012, 150-Watt Warm White LED Fresnel producing over 6,500 total lumen output, on par with compatible tungsten halogen models. Features include manual and DMX control, 15° to 38° wide manual zoom, manual and DMX controlled dimmer and shutter, dimmer and zoom rotary dials, smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker free operation for TV and FILM, removable barn doors (included), RDM (remote device management) protocol support, 3/5pin DMX and IP65 Locking Power Cable in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating bar doors (included), and a 3 clamp position adjustable mounting yoke.
Product Specifications:
Source:
150W >95CRI 3,000K Warm White LED
50,000 Hour Average LED Life
Photometric Data:
6,500+ Total Lumen Output
17,829 LUX 1,656 FC @6.6’ (2m) (Min Zoom / Full ON)
4,412 LUX 410 FC @6.6’ (2m) (Max Zoom / Full ON)
Zoom Range: 15° - 38°
Beam Angle: 15.5° - 38°
Field Angle: 23.4° - 51.8°
Effects:
Manual Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
Color: Warm White 3,000K
Control / Connections:
Manual and DMX Controlled Dimmer and Shutter
Dimmer and Zoom Rotary Dials
(5) DMX Channel Modes (1 / 2 / 3 / 4 / 5)

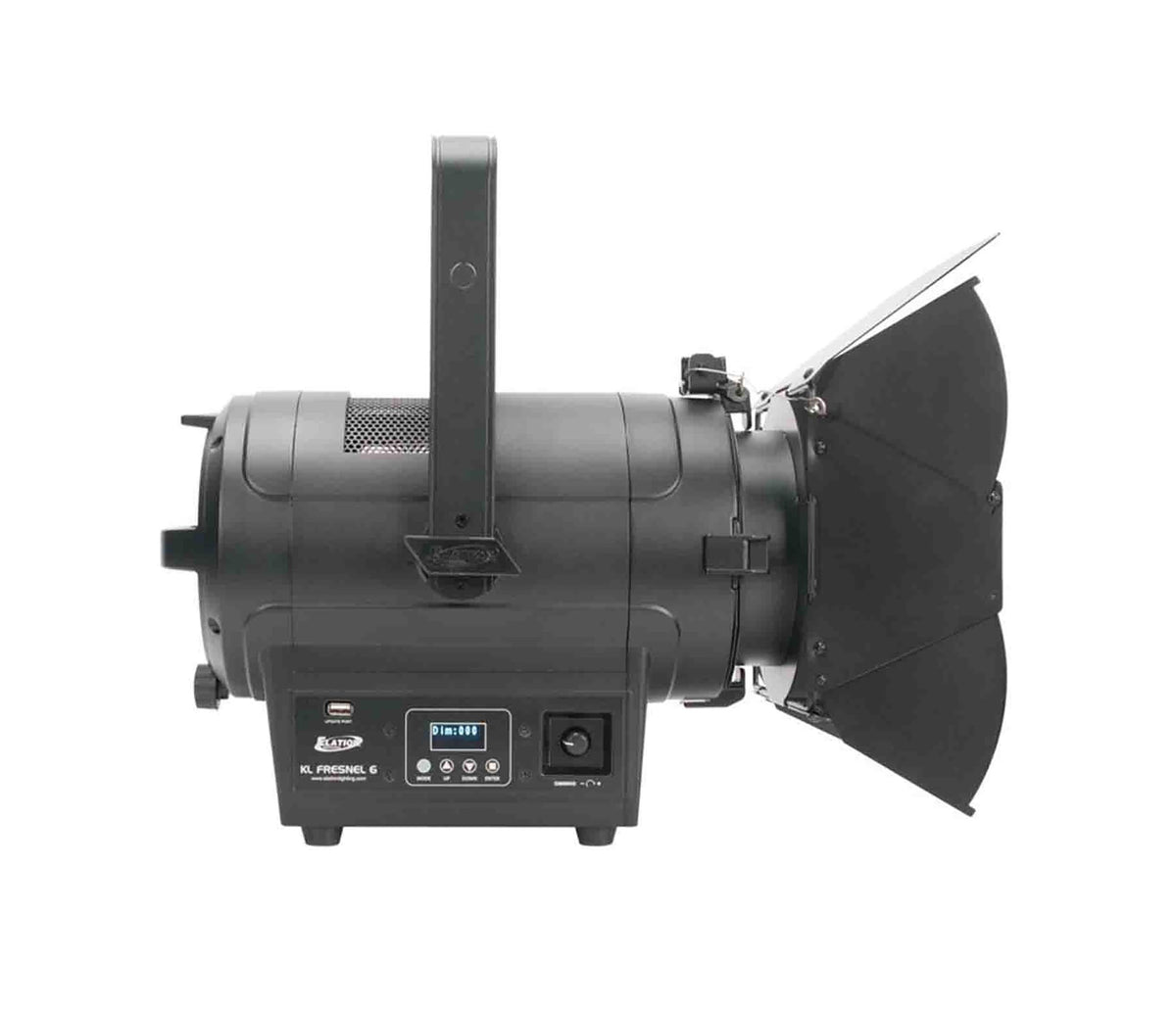

4 Button Control Panel LCD Menu Display
RDM (Remote Device Management)

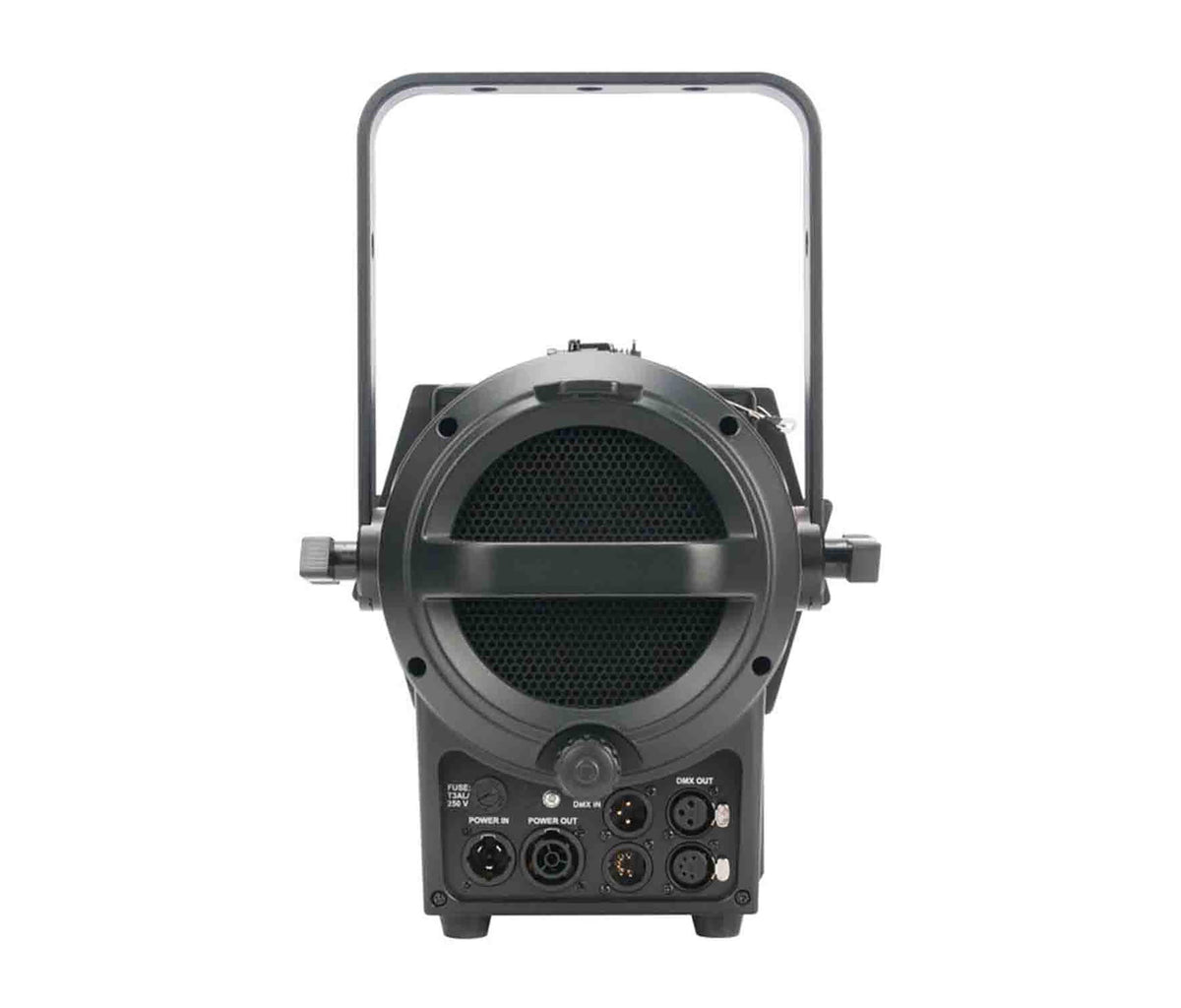

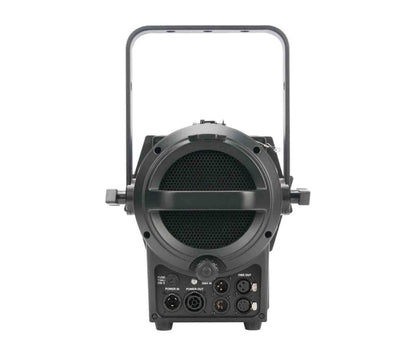

3/5pin DMX and IP65 Locking Power Cable In/Out
With Wired Digital Communication Network
Shipping Dimension:
Length: 20”
Width: 12”
Height: 17”
Shipping Weight: 20 lbs.
