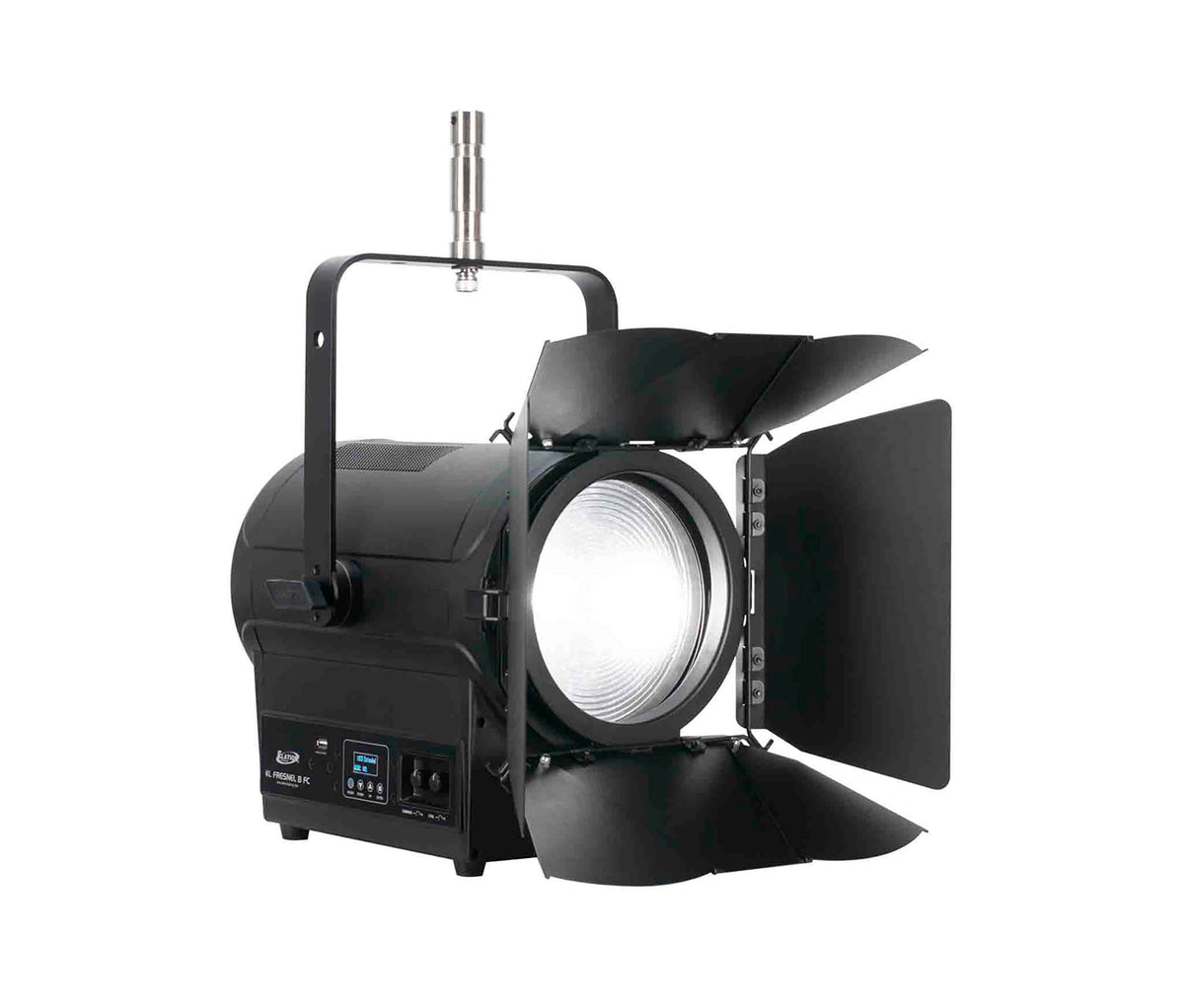

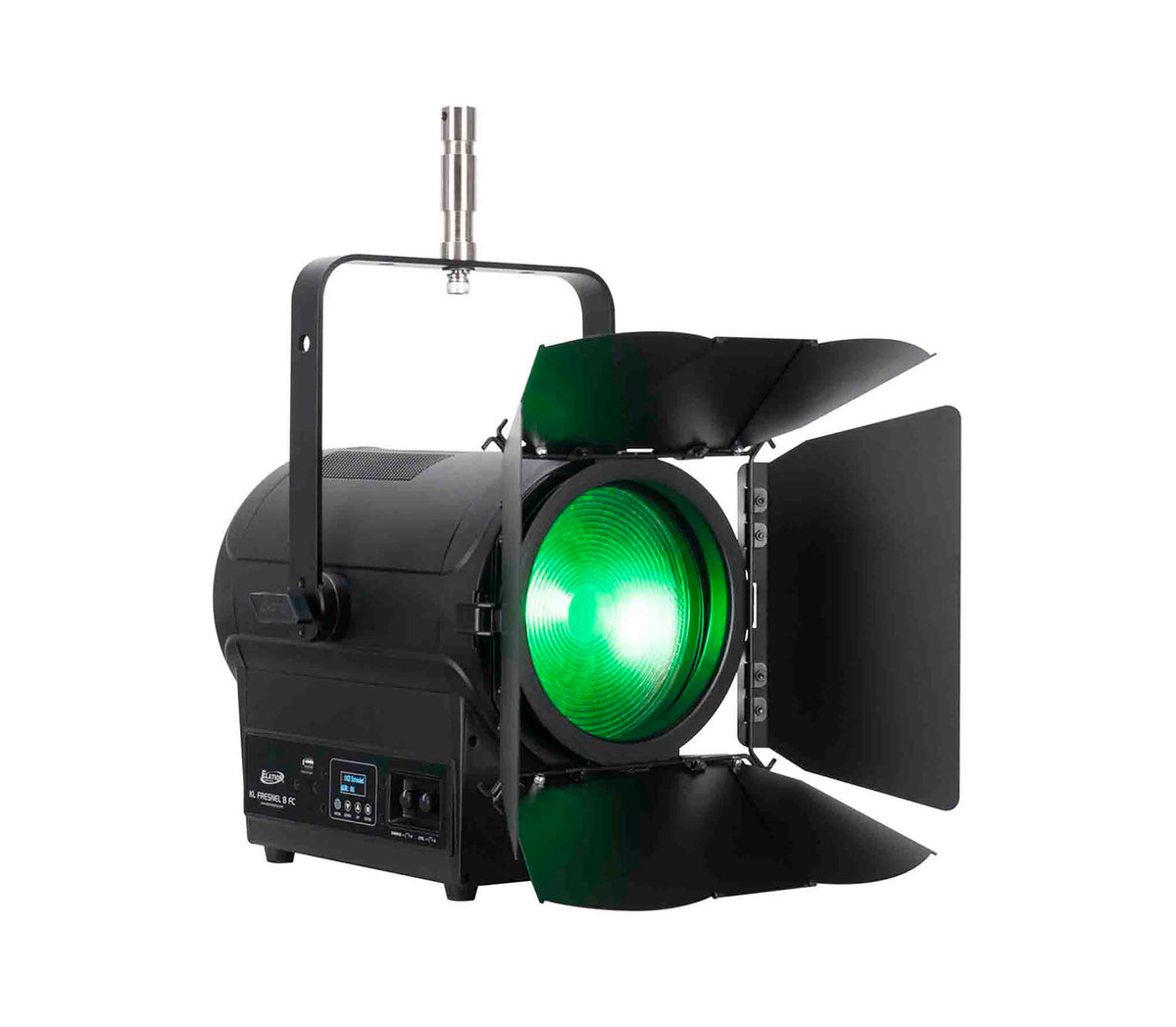

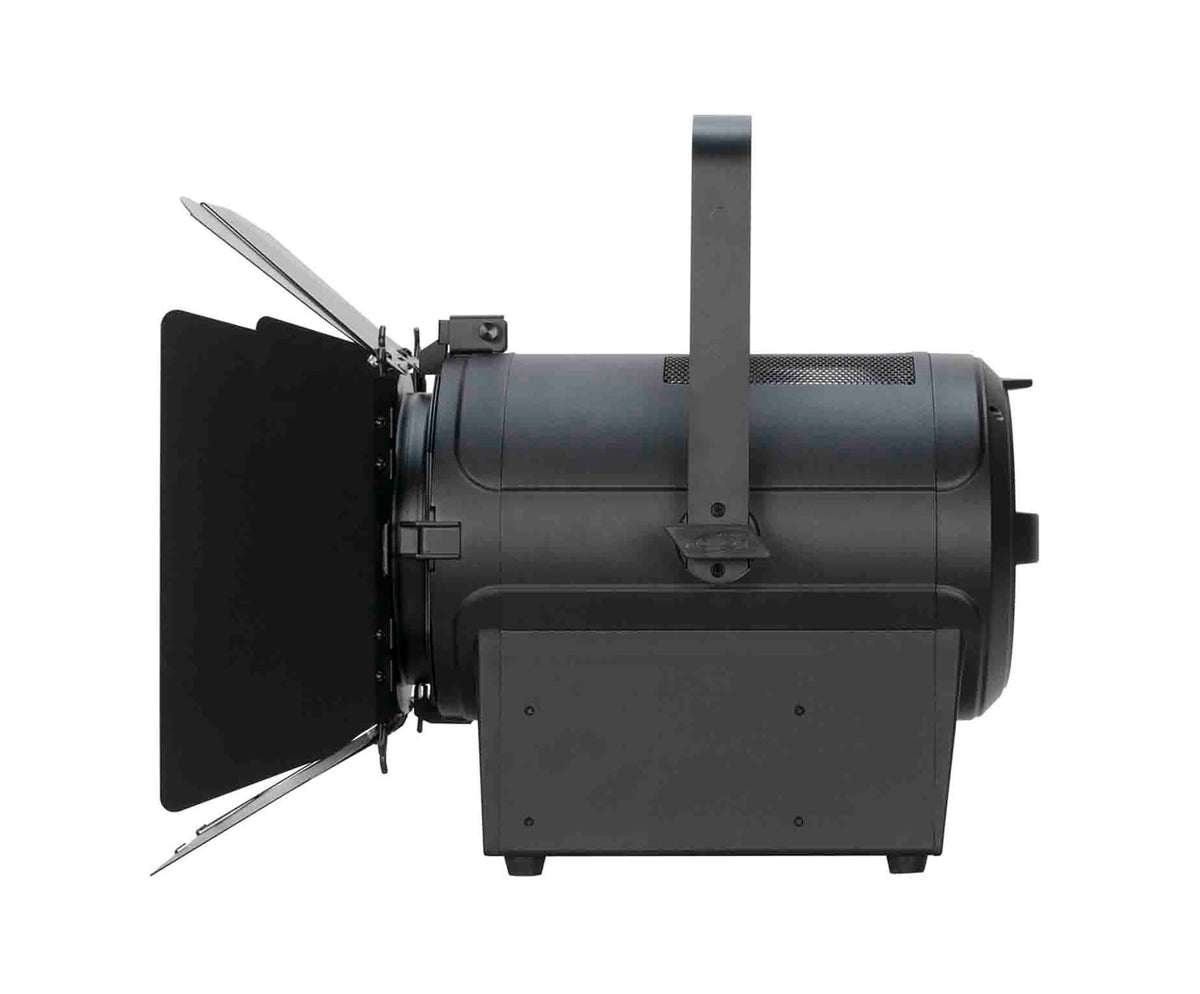

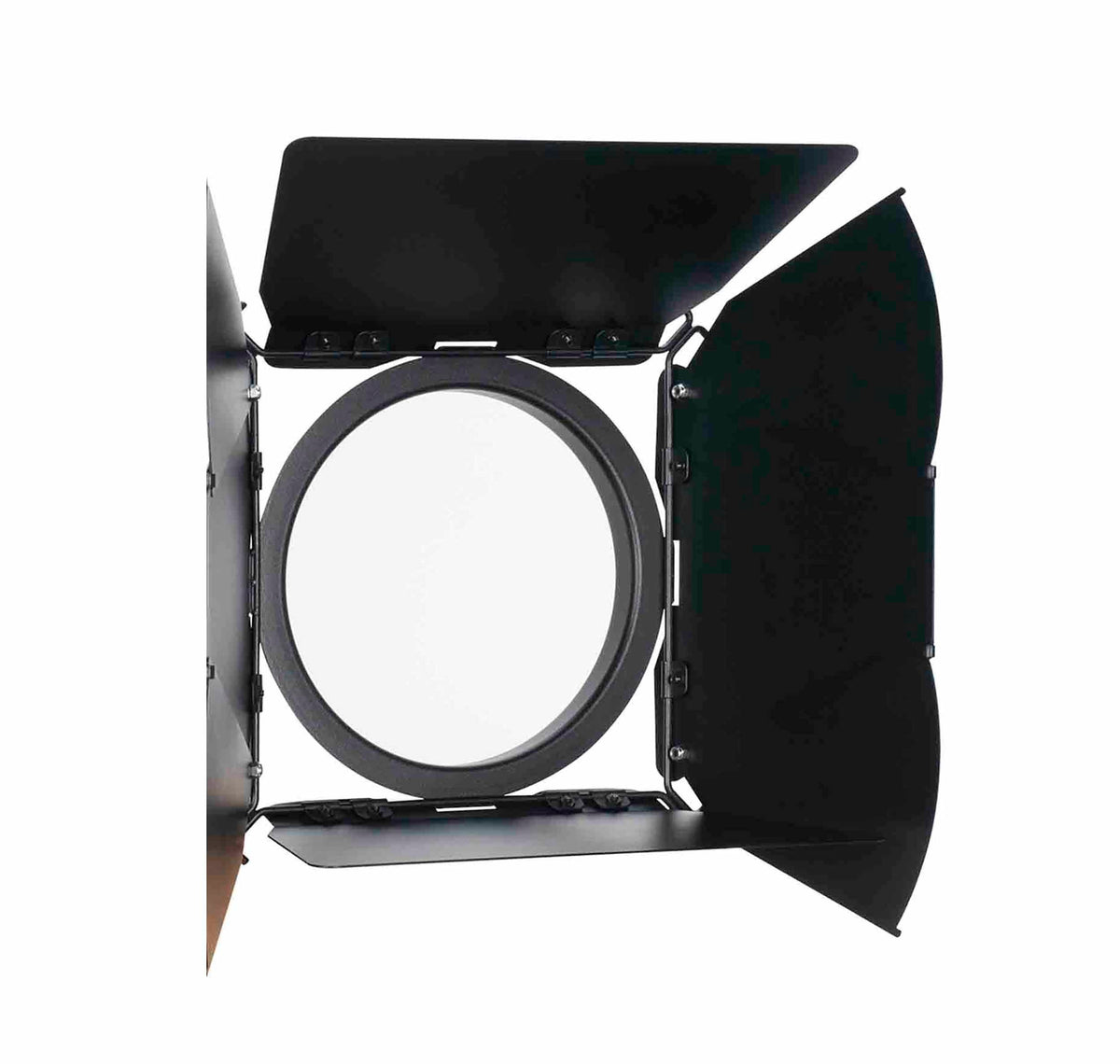

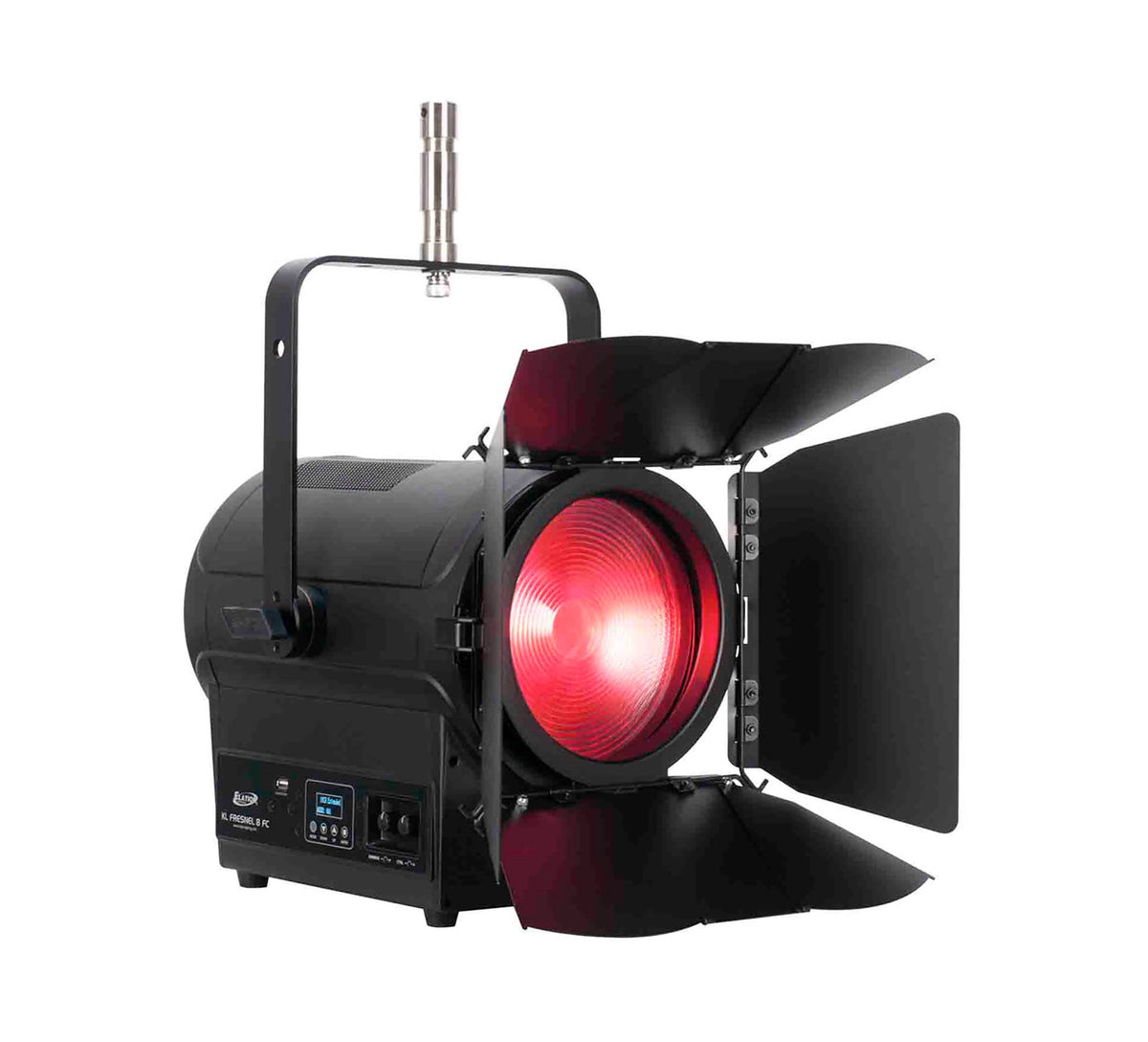

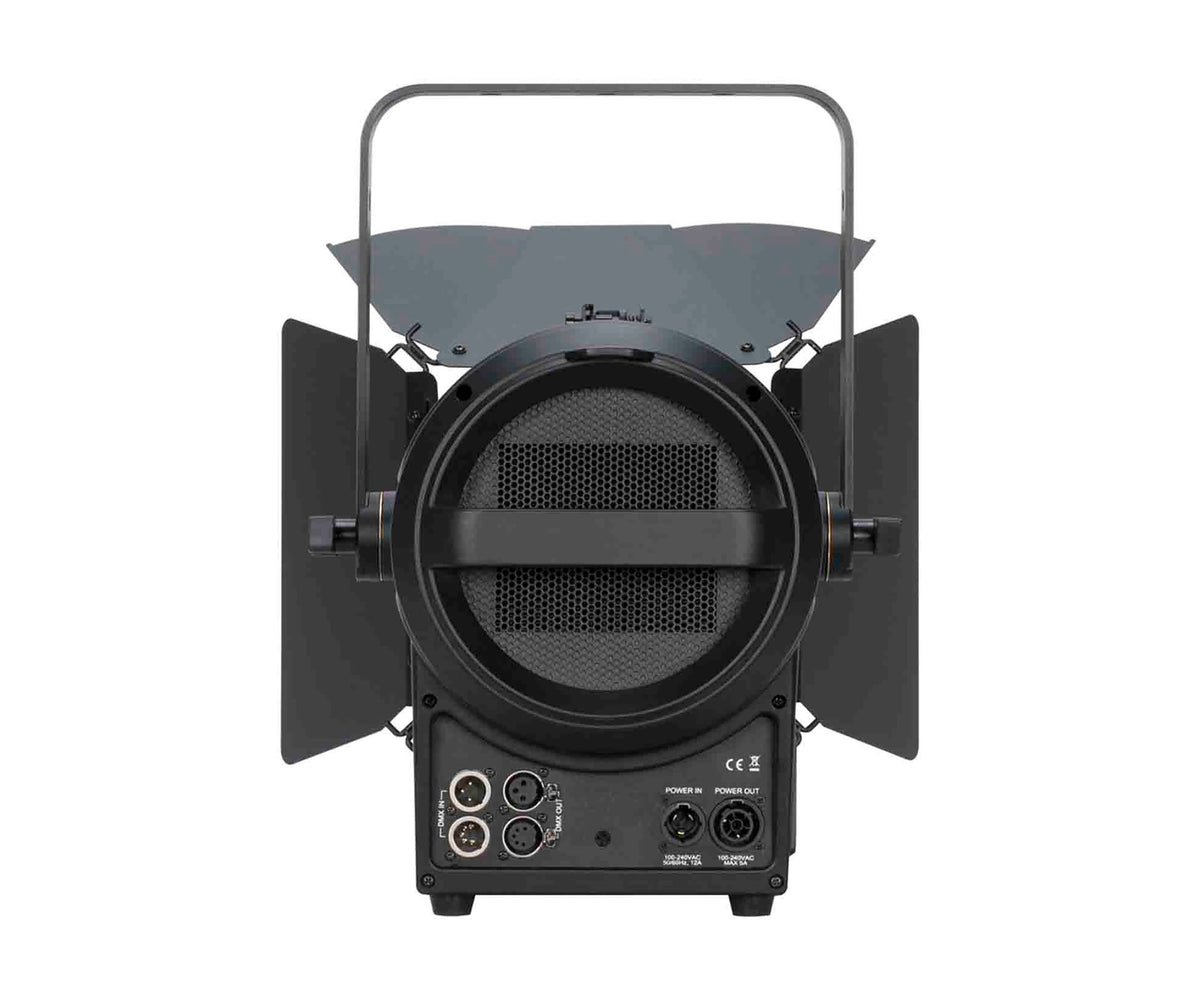

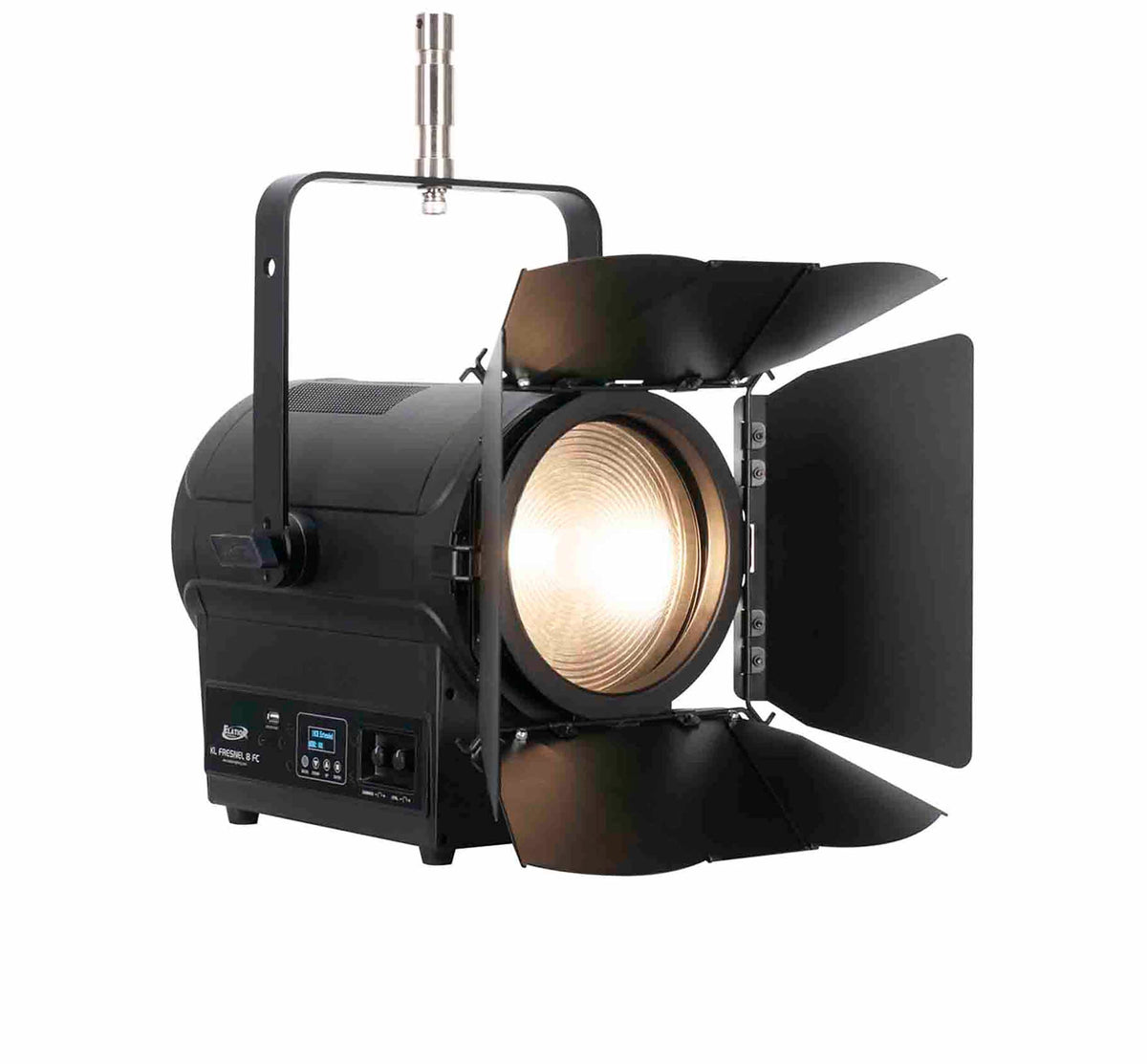

The Elation KLF832 Full-Color-Spectrum Led Fixture is a full-color-spectrum LED fixture that provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage. Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality, while offering a wide array of rich saturated colors and subtle pastels. The KL Fresnel 8 FC incorporates a highly efficient 5-in-1 (RGBMA) LED engine that produces up to 18,000 field lumens with a motorized Zoom range of 10° to 50°.
Outstanding color rendering quality, precise CCT presets, and remotely adjustable LED refresh frequency makes this unit the perfect choice for today's fast-paced production environments. Rugged and portable, the fixture can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. It is fully self-contained without the need for an external power supply and offers locking power pass-through for easy linking of multiple units.
The KL Fresnel 8 FC can be operated through industry-standard DMX protocols and has full RDM support. In addition, it offers manual access using the included encoders and display, providing instant control of Zoom, Intensity, Color temperature, Green shift, and other important settings. The display and encoders are conveniently positioned at the bottom side of the fixture to ensure unobstructed access while mounted on a stand.
Product Specifications:
Lumens: 18,000
Color Temperature: 2400 to 8500K
Color Accuracy Standard: CRI 94.5, TLCI 94
Expected Lamp Life: 50,000 Hours
Max DMX Control Channels: 6
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
Power Pass-Thru: Yes
Power Consumption: 514 W Maximum
IP Rating: IP20
Operating Temperature: 5 to 113°F / -15 to 45°C
Display: LED
Shipping Dimension:
Length: 16”
Width: 13”
Height: 18”
Shipping Weight: 25 lbs.
