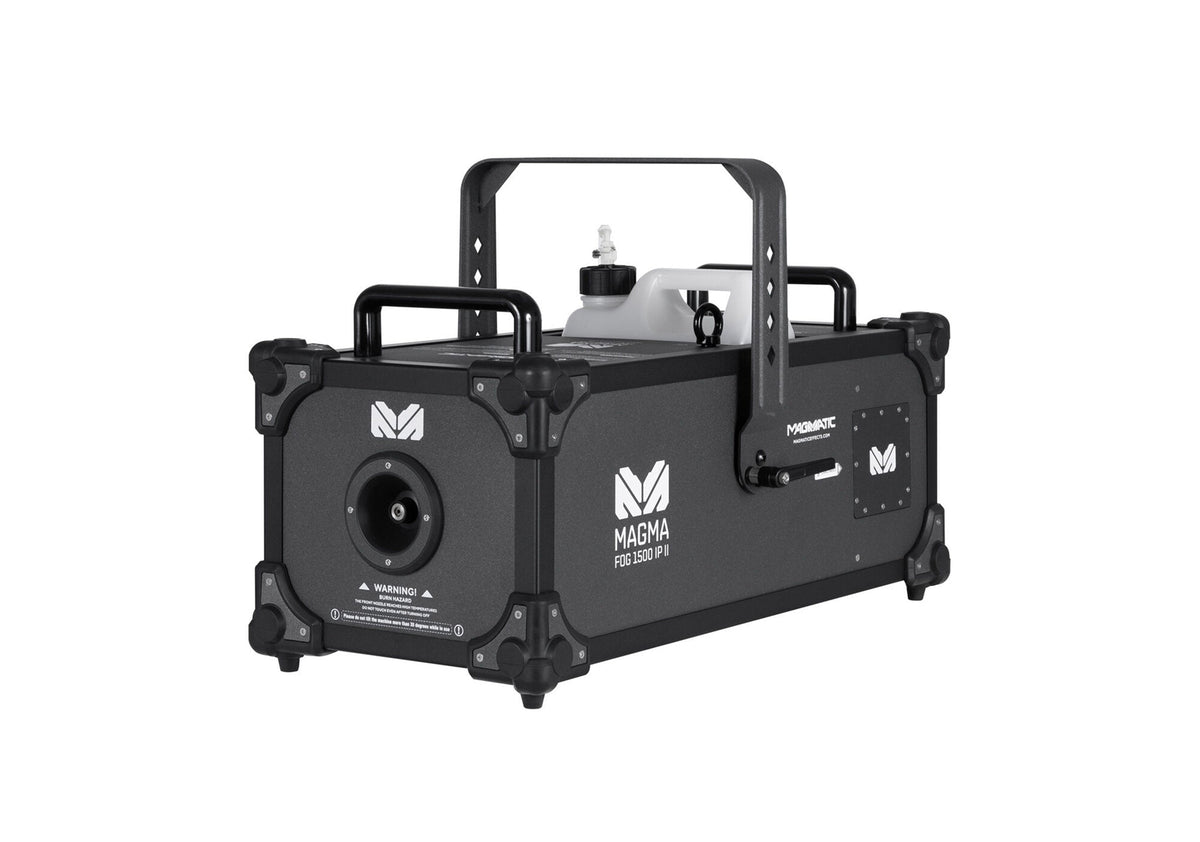

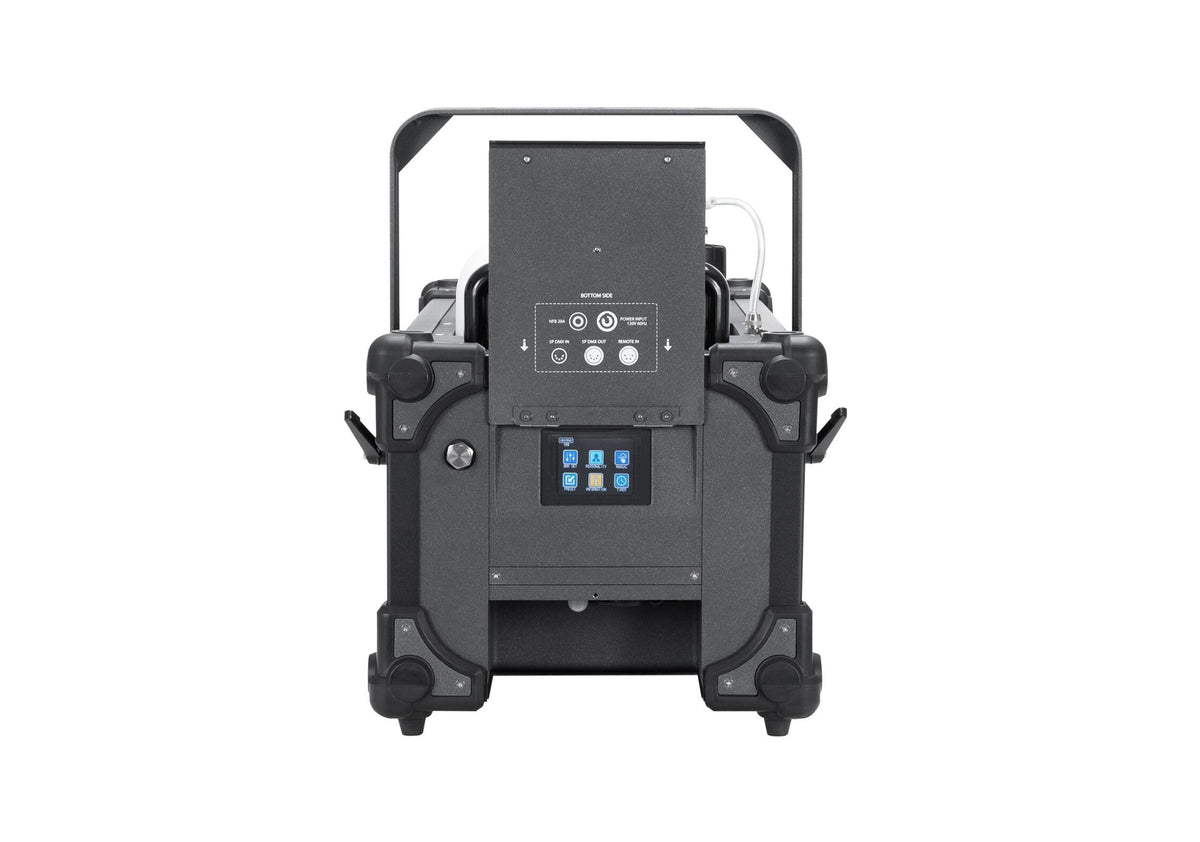

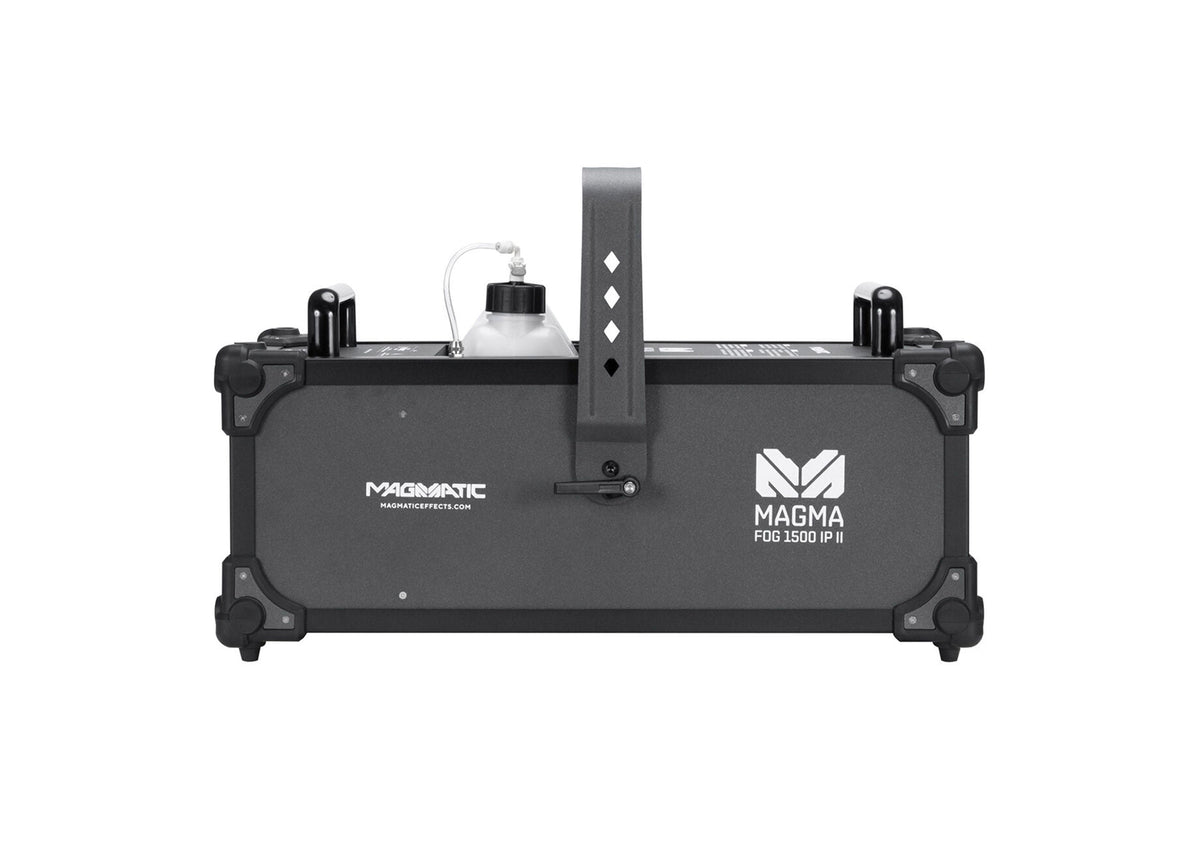

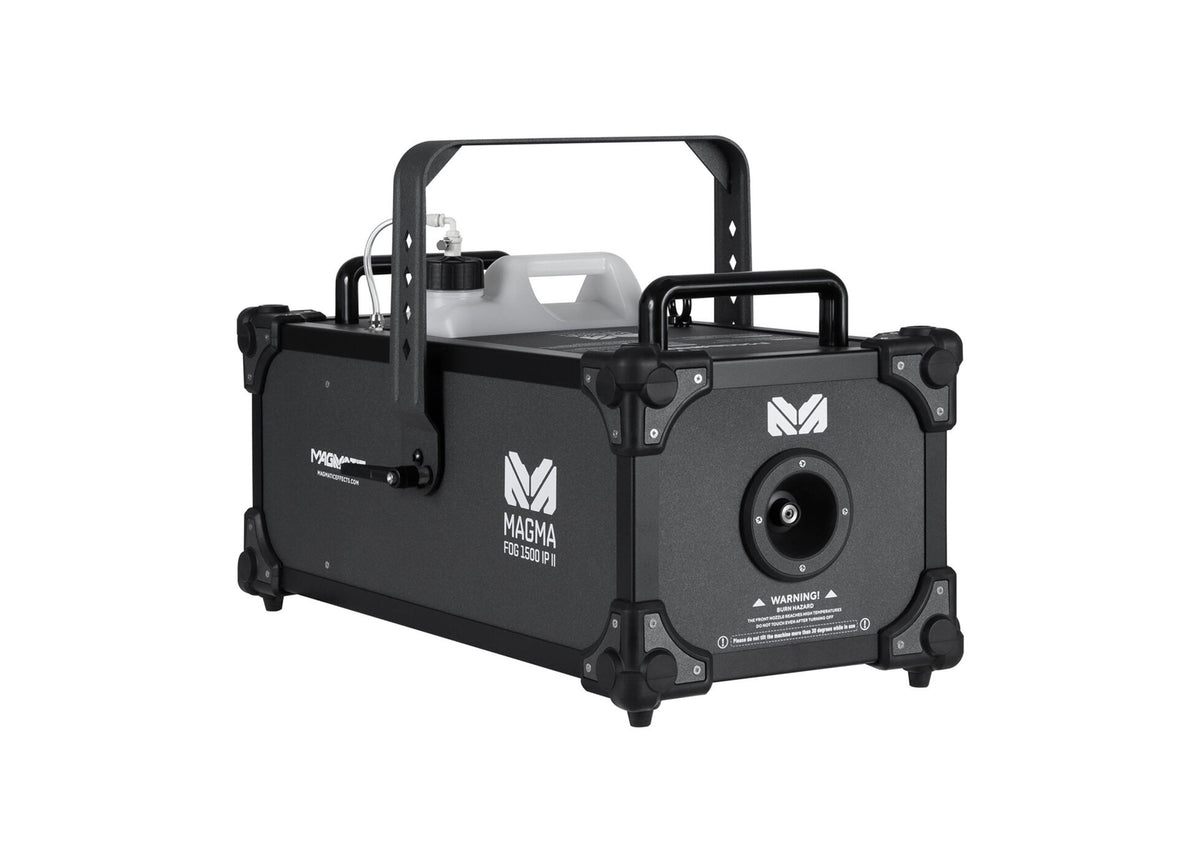

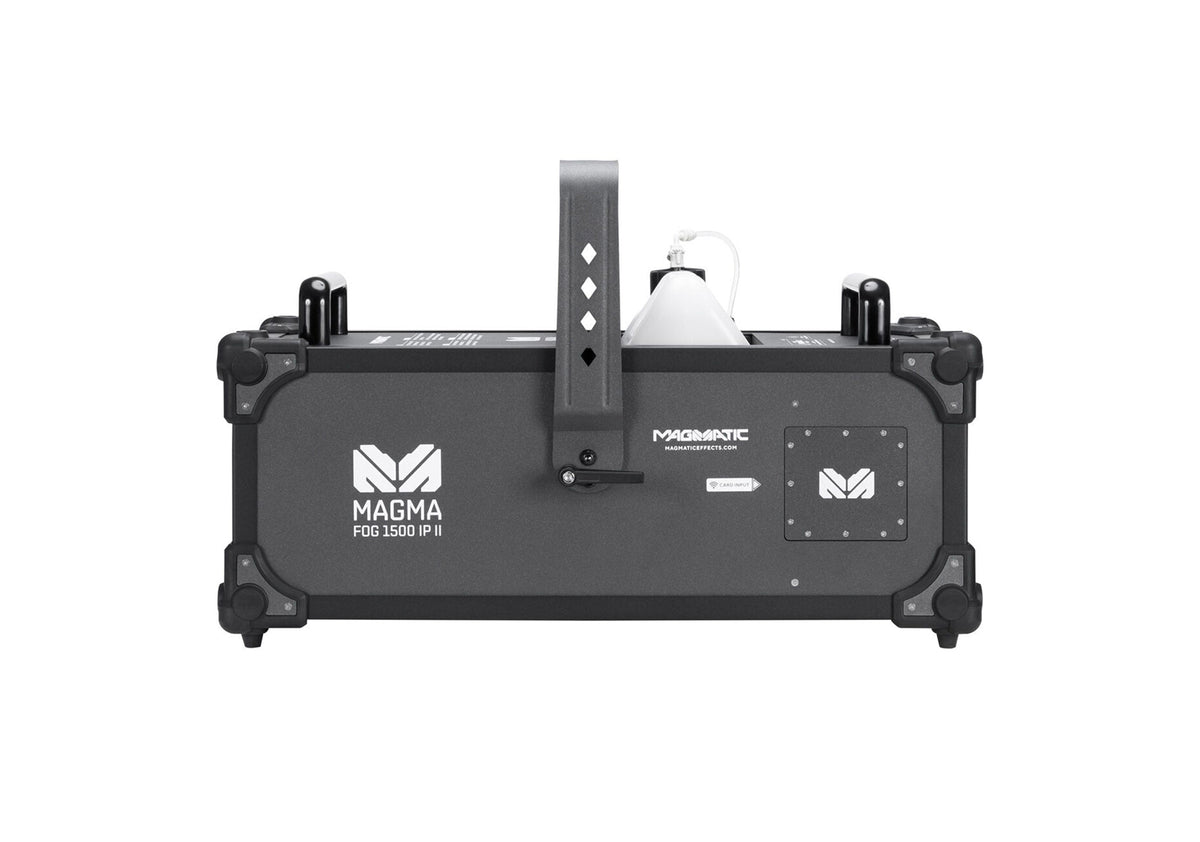

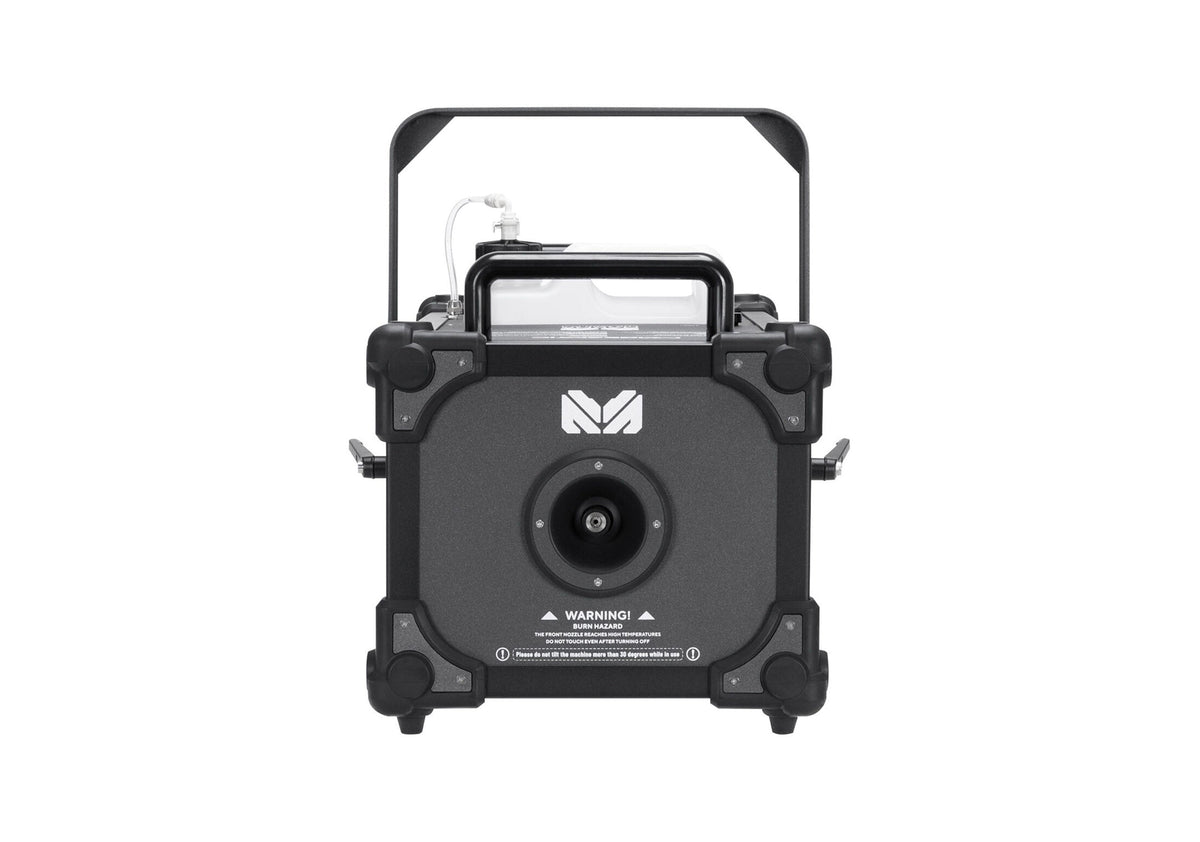

Elation MAGMA FOG 1500 IP-II, IP67-Rated High-Output Fog Machine

The Elation MAGMA FOG 1500 IP-II, IP67-Rated High-Output Fog Machine is water-based fog machine engineered for professional environments where extreme weather resistance and high fog output are essential. Capable of producing up to 60,000 CFM, this robust unit features a thermally protected heat exchanger, intuitive DMX-512/RDM control, and onboard LCD touchscreen for efficient setup and operation. Designed with a rugged aluminum chassis, it includes locking IP-rated connectors, a 5-liter fluid tank, and optional wireless/wired remote controls for versatile stage or outdoor deployment.

Product Specifications:

Performance:

Power Rating: 1700W

Max Fog Output: 60,000 CFM (approx.)

Warm-up Time: 14 minutes (initial)

Fluid Consumption: 6.76 oz/min (200 ml/min)

Tank Capacity: 1.32 gallons (5 liters)

Compatible Fluids: Atmosity Extreme Filtered Fog Fluid (AEF-2L, AEF-4L, AEF-20L)

Control & Connectivity:

DMX Channels: 1 / 2 / 4

Protocols: DMX-512, RDM

Touchscreen: Onboard LCD

DMX In/Out: Locking 5-pin XLR

Power In: IP67 Locking Connector

Optional Control: MagFly (Wireless DMX), MagRF (Wireless/Wired Remote)

Construction:

Thermally protected heat exchanger

Rugged IP67 aluminum chassis

Two integrated carry handles

Mounting bracket included

Electrical:

US Version: 120V 60Hz, 20A (NFB)

EU Version: 230V 50Hz, 10A (NFB)

Max Power Consumption: 1700W

Thermal Ratings:

Max Ambient Temp: 104°F (40°C)

Surface Temp (Steady): 149°F (65°C)

Certifications: CE, IP67, RoHS, UKCA

Size / Weight:

Length: 25.5 in. (648 mm)

Width: 14.6 in. (372 mm)

Height: 16.2 in. (411 mm)

Weight: 74.3 lbs (33.7 kg)
