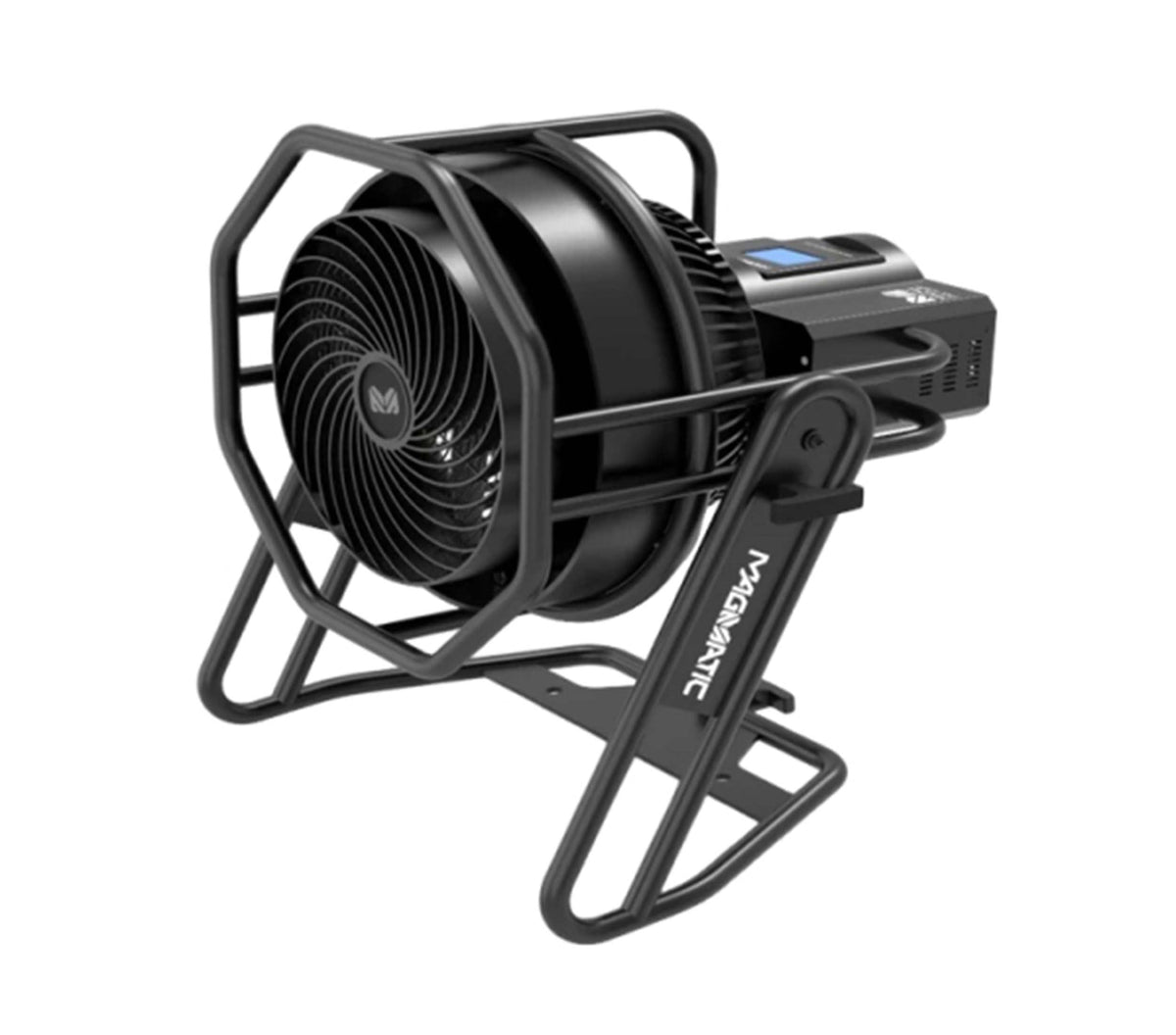

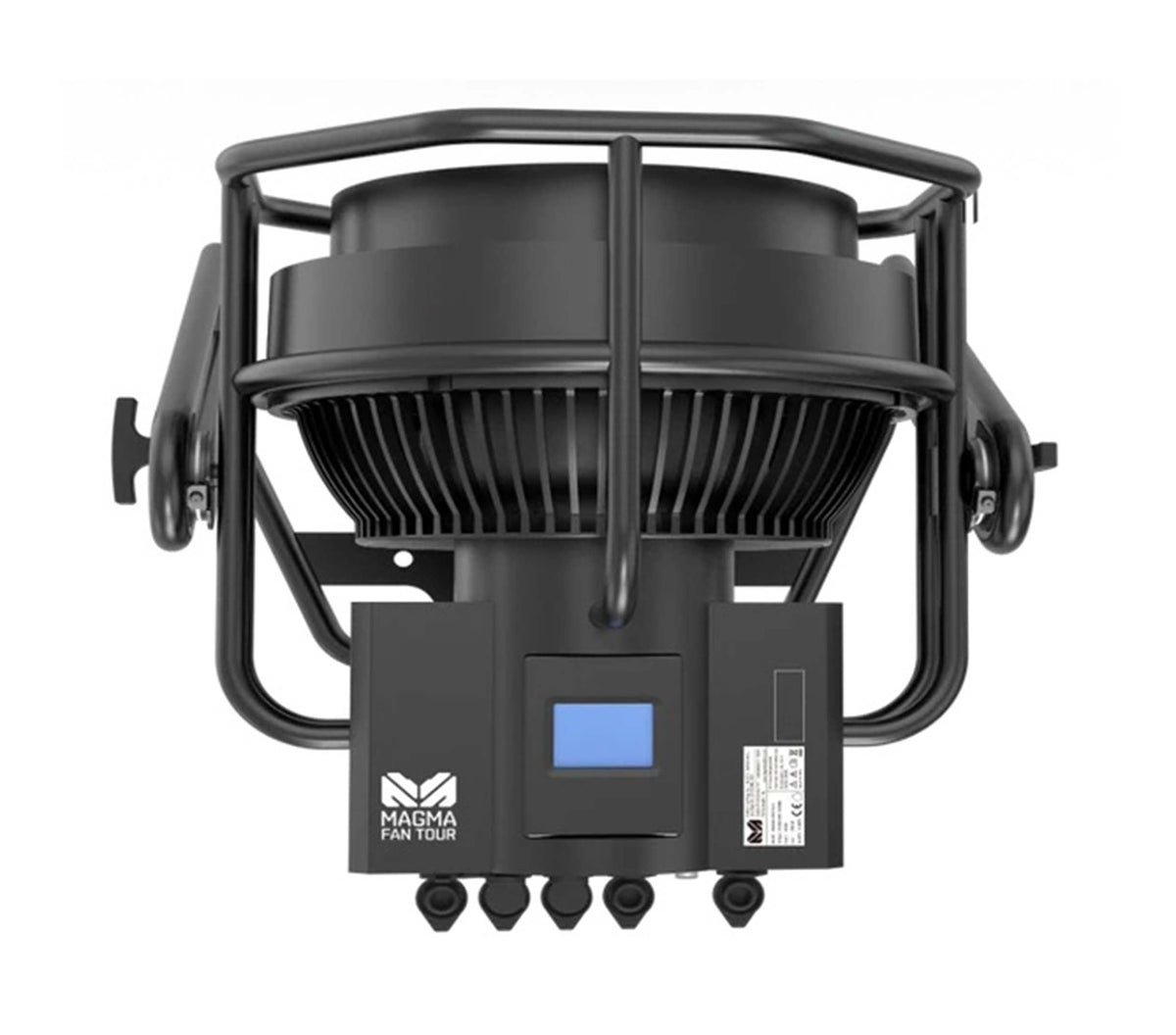

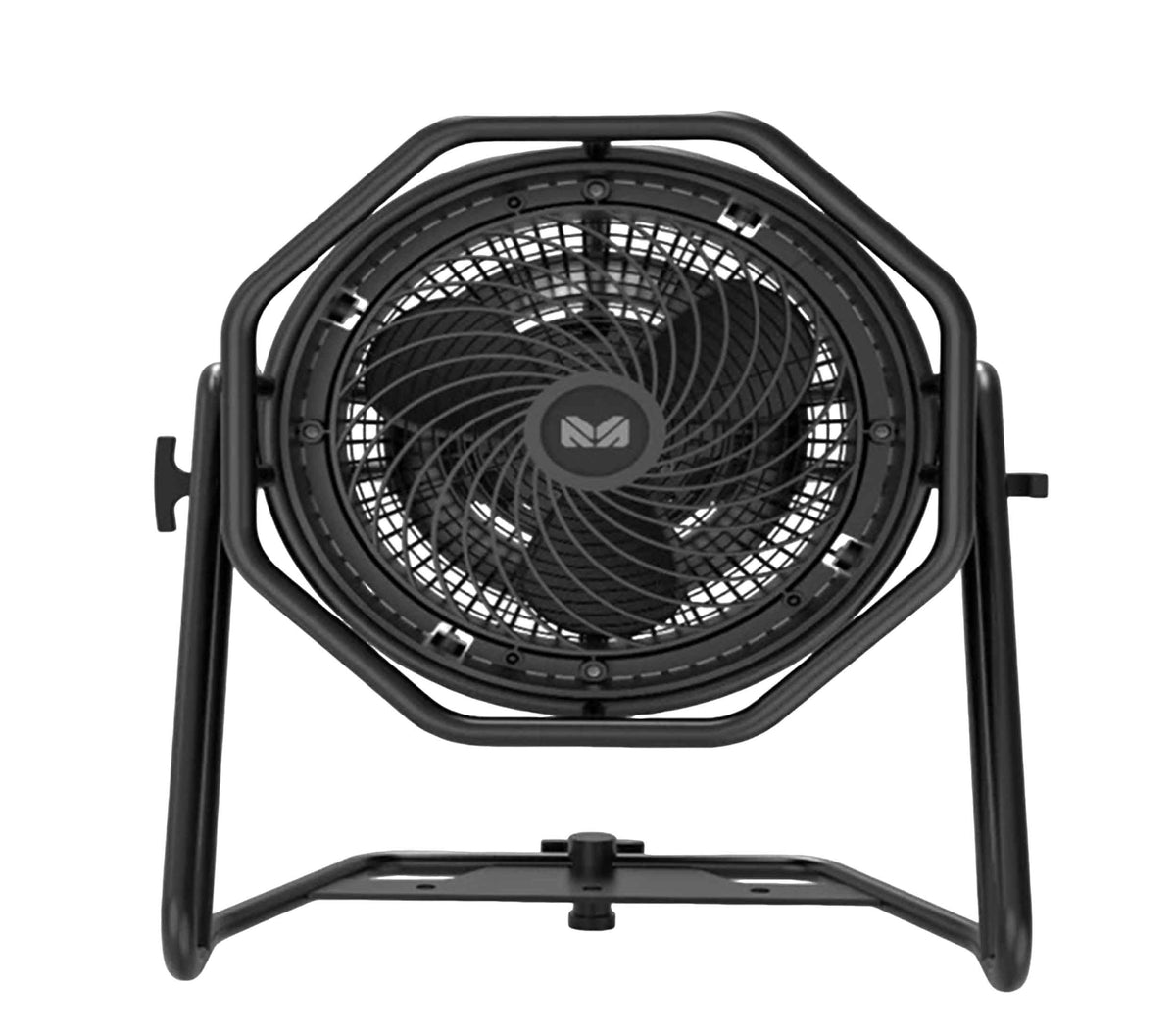

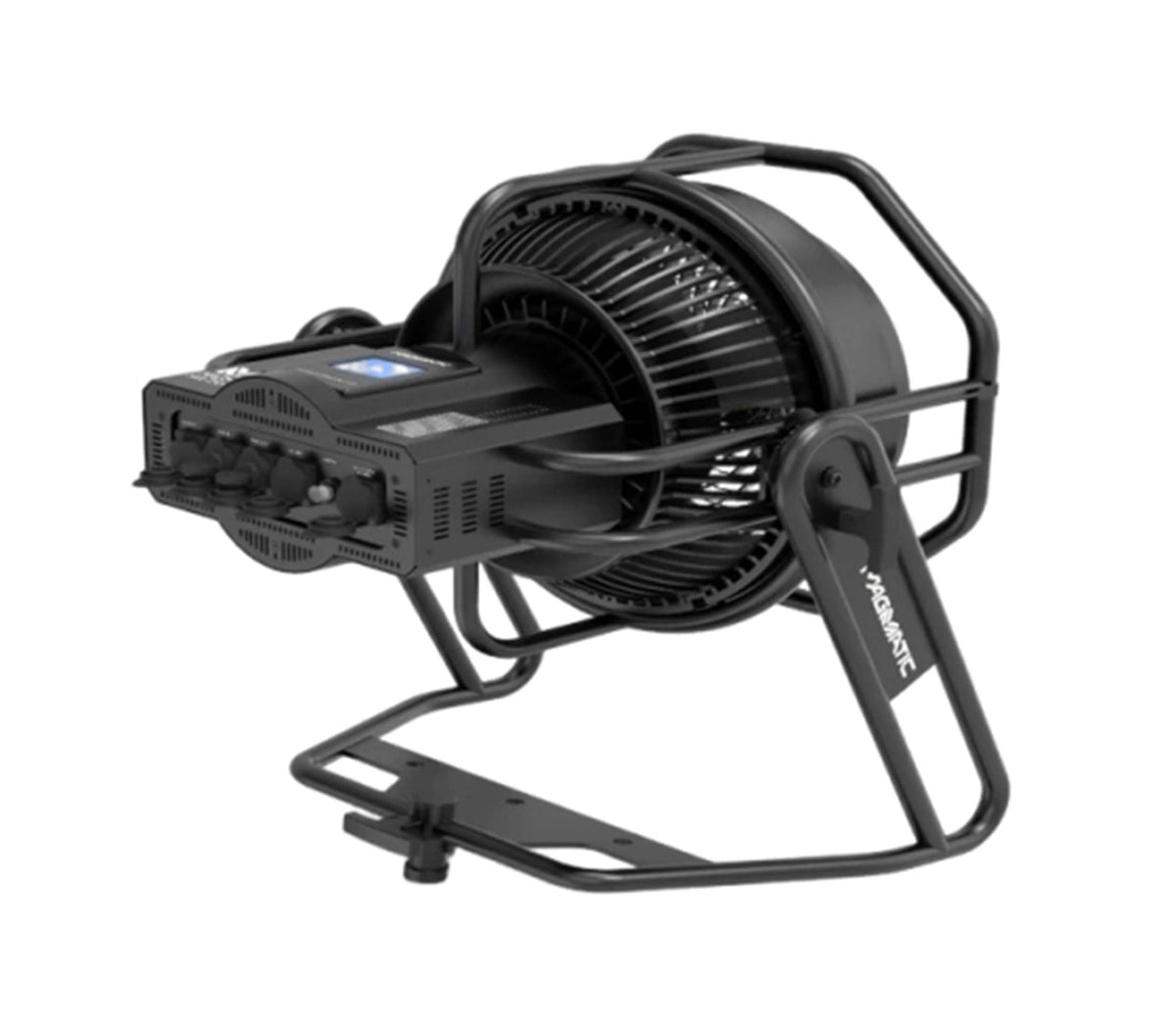

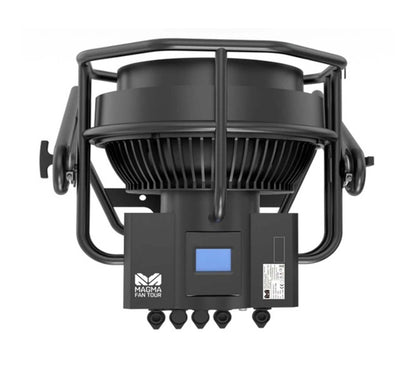

Elation MSF125 Magmatic Magma Fan Tour Professional Wind Machine

The Elation MSF125 Magmatic Magma Fan Tour is a high-output professional wind machine designed to deliver powerful, consistent airflow for touring productions, outdoor events, permanent installations, and demanding live environments. With a maximum airflow of 5,400 m³/h (approximately 3,180 CFM) and wind speeds reaching 78 km/h (48.5 mph), it provides substantial wind effects for atmospheric control, haze dispersion, scenic effects, and other professional production applications.

Powerful Airflow & Adjustable Performance

The Magma Fan Tour features a 1,500-3,600 rpm adjustable fan speed range, allowing operators to precisely control the intensity of the wind effect. Its 0.612 HP motor provides reliable output, while the 36° wind direction angle helps create a focused and effective airflow pattern. Manual fan-speed adjustment makes it easy to fine-tune the effect directly from the unit.

DMX, RDM & Stand-Alone Control

Designed for professional FX and lighting environments, the Magma Fan Tour supports 2-channel DMX control through 5-pin DMX connectors and includes RDM functionality for advanced system integration. Stand-alone operation is also available, with onboard controls for power, fan speed, DMX addressing, and battery status. A waterproof touchscreen provides convenient local configuration, while a 4-pin XLR remote controller connection offers additional control flexibility.

IP65 Construction for Touring & Outdoor Use

Built for demanding production environments, the Magma Fan Tour features an IP65-rated housing that provides protection against dust and water. Its rugged obsidian gray enclosure, integrated handle, and air-cooled design make it well suited to outdoor stages, touring productions, festivals, and permanent installations. The fan operates in ambient temperatures up to 40°C (104°F) while maintaining a maximum surface temperature of 40°C.

Flexible Power & Battery Operation

The unit accepts 100-240V AC at 50/60 Hz and consumes 450W, with a maximum starting power of 550W. An outdoor-rated locking power input supports secure operation in demanding environments, while external battery support provides additional flexibility for locations where conventional AC power may not be practical.

Product Specifications:

Product Type: Professional Wind Machine

Application: Touring, Outdoor Events, Permanent Installations, Live Productions

Maximum Fan Volume: 5,400 m³/h (≈ 3,180 CFM)

Average Wind Speed: 78 km/h (48.5 mph)

Fan Speed Range: 1,500-3,600 rpm

Fan Speed Adjustment: Yes

Motor Power: 0.612 HP

Wind Direction Angle: 36°

DMX Channels: 2

DMX Modes: 1

DMX Connectors: 5-pin

Stand-Alone Operation: Yes

Onboard Control: On/Off, Fan Speed, DMX Address Setting, Battery Status

Remote Controller Connection: 4-pin XLR

Manual Speed Control: Yes

External Battery Support: Yes

Input Voltage: 100-240V

Frequency: 50/60 Hz

Power Consumption: 450W

Maximum Starting Power: 550W

Power Connection: Outdoor IP65 Locking Power Input

IP Rating: IP65

Maximum Ambient Temperature: 40°C (104°F)

Handle: Integrated Handle

Fan Material: Plastic

Housing Color: Obsidian Gray

Product Weight: 34.8 lbs

Product Dimensions: 20.1" L × 18.0" W × 22.1" H

Shipping Weight: 36.8 lbs

Shipping Dimensions: 22.1" L × 20.0" W × 24.1" H
