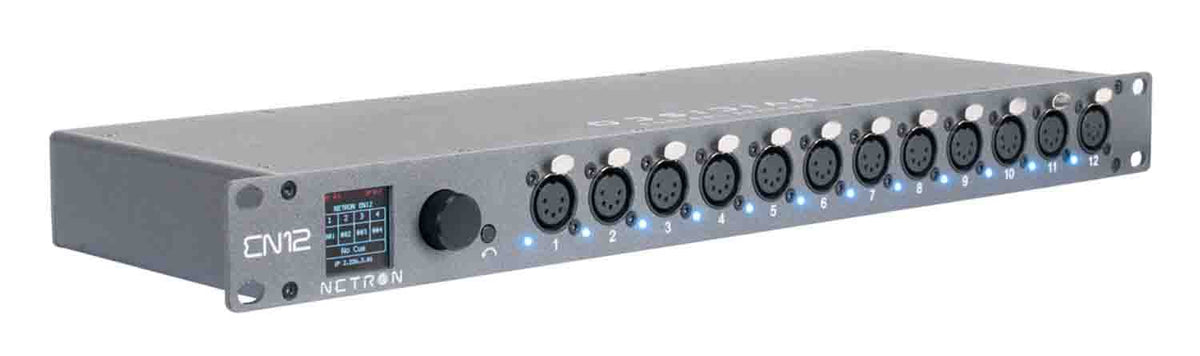

The Elation NRE001 Professional Obsidian Neutron EN12 Ethernet to DMX Gateway is a powerful high-density Ethernet to DMX gateway with twelve RDM compatible ports. Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features it is the ideal device for live production or installations requiring a lot of physical DMX ports. Contact closures allow for recall of presets, routings, mergers or any of the internal cues.
Product Specifications:
Mounting
Rackmount
Connections

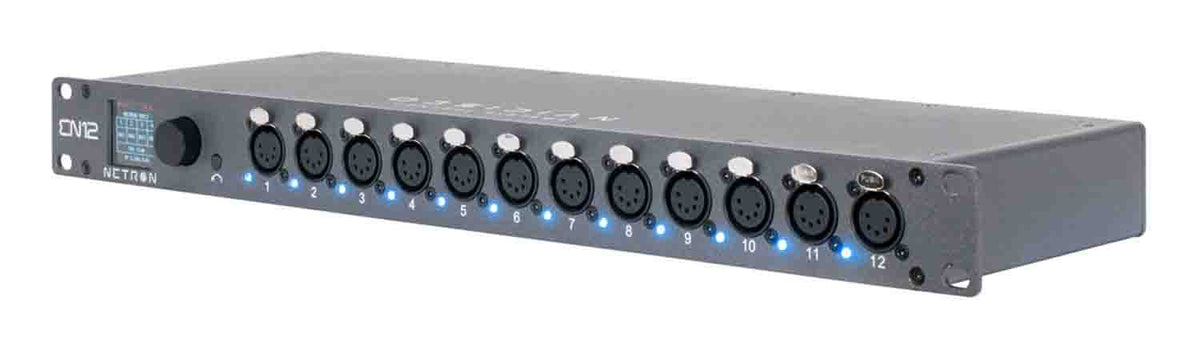

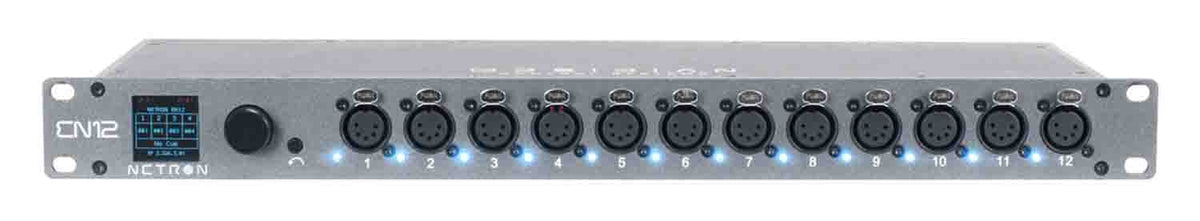

Front (12) 5pin DMX/RDM optically isolated ports Ports are bidirectional for DMX In and Output Full color OLED display Encoder w. Push to Select / Exit Button

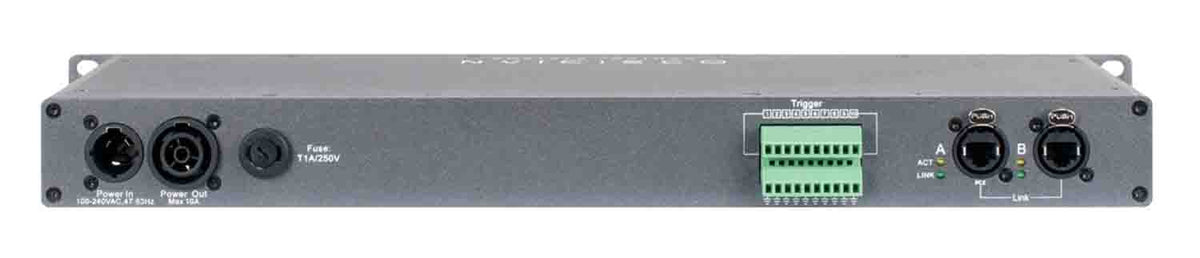

Back (2) Locking RJ45 Ethernet network in (10) Contact Closures (Terminal Block) Locking Power In/Thru
Package Dimension
Length: 20 in Width: 6.9 in Height: 2.3 in Weight: 5.2 lbs
