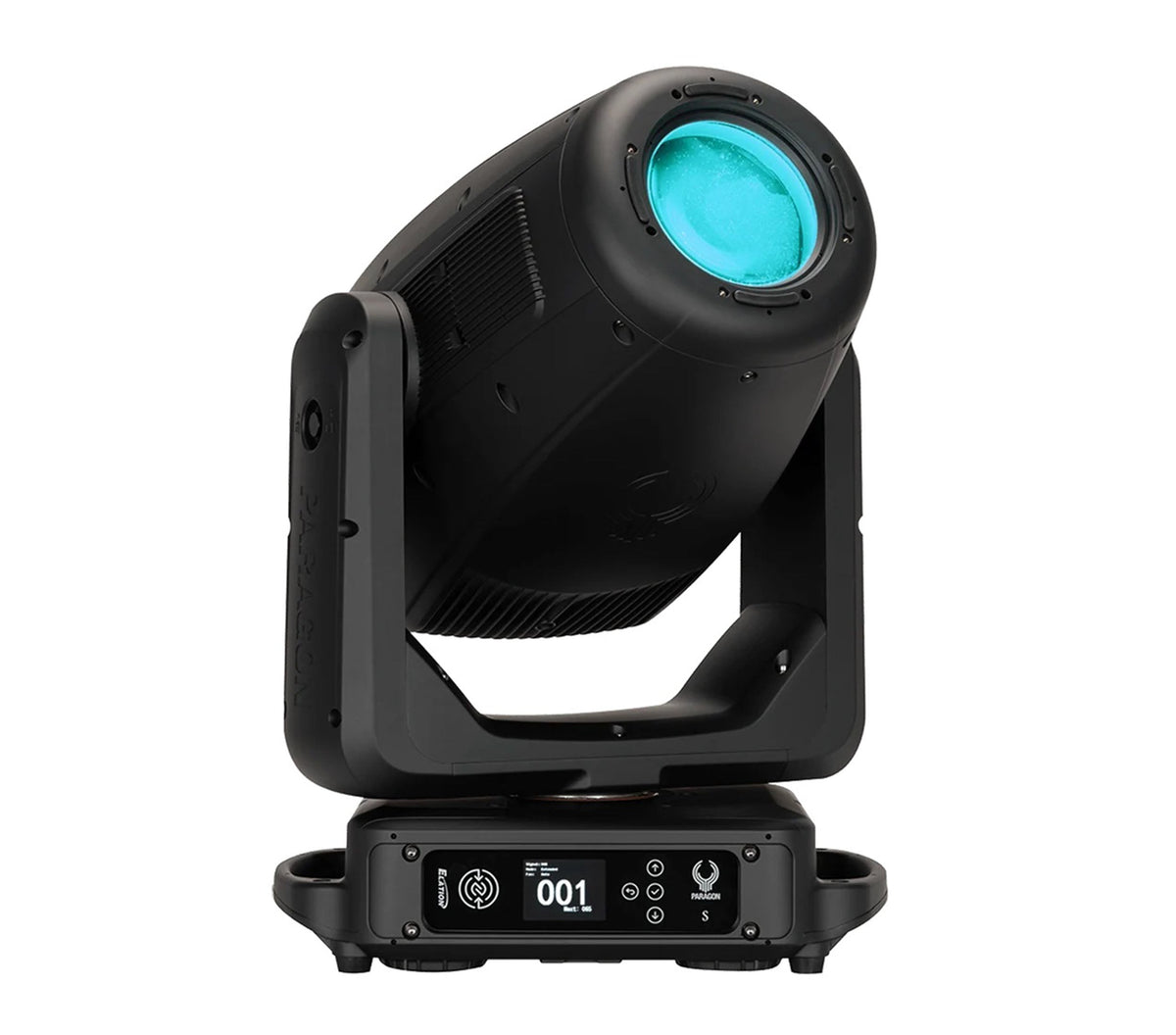

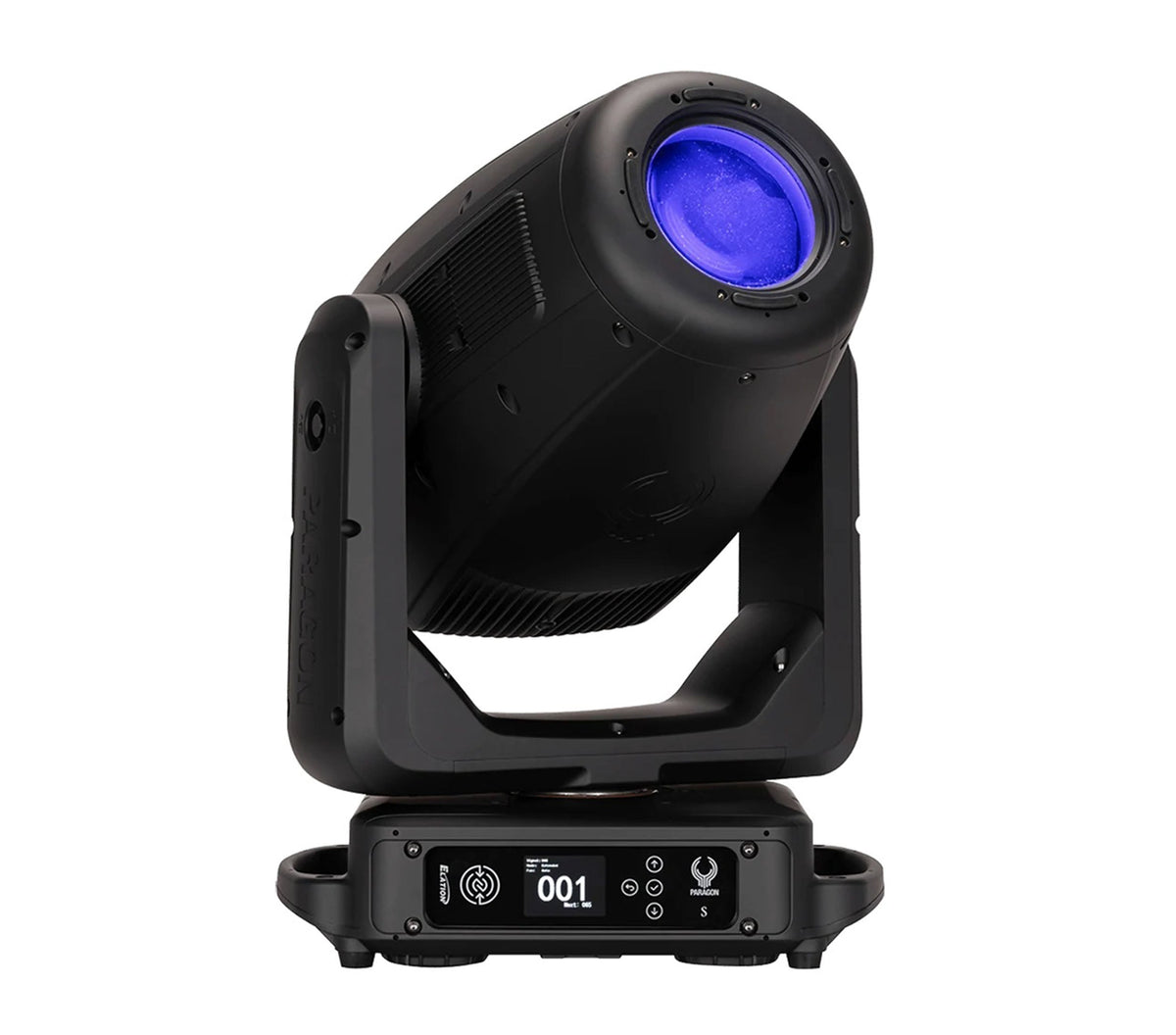

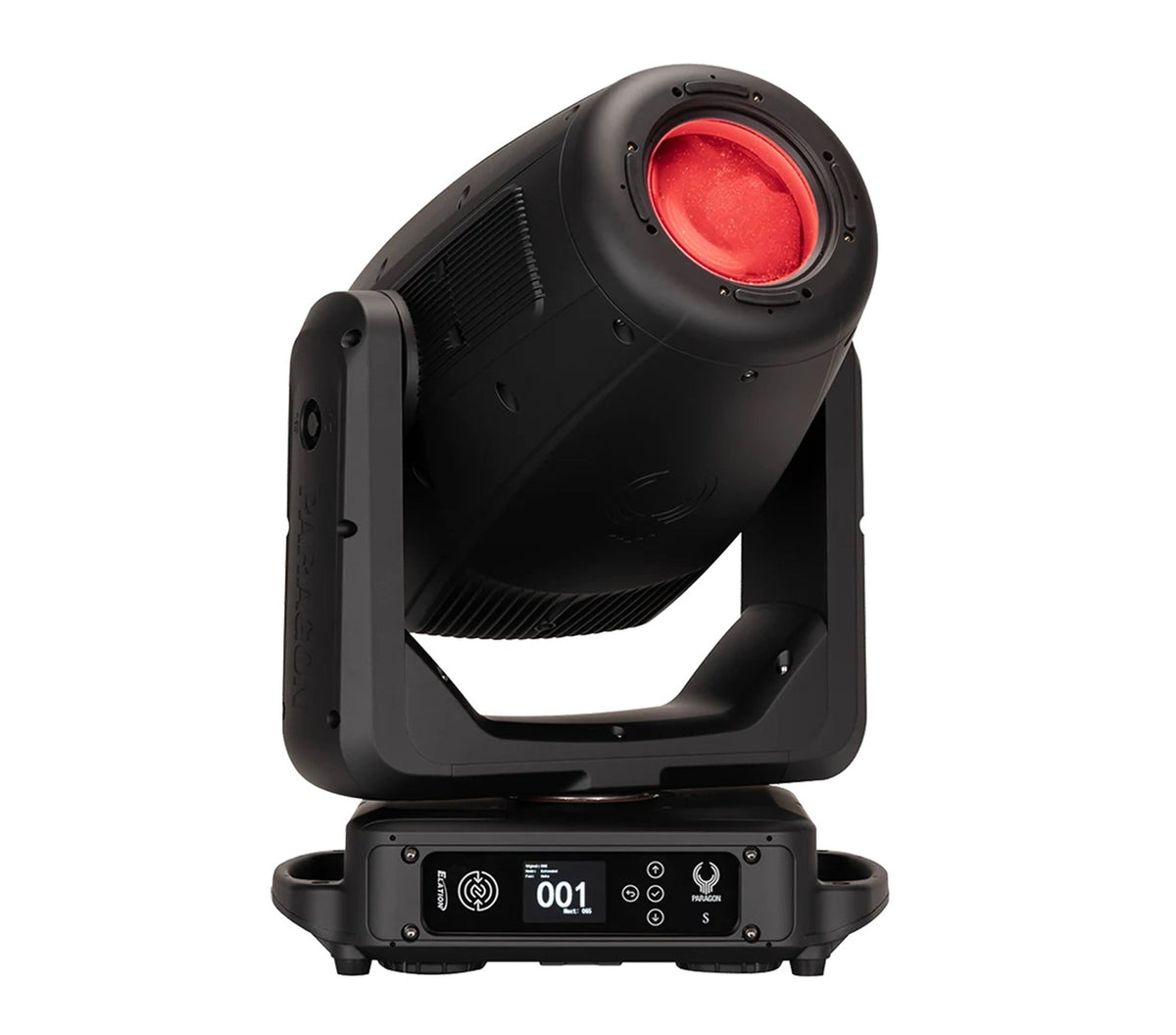

Elation PAR101 PARAGON S 550W Variable CRI LED IP Framing Profile Fixture with CMY

The Elation PAR101 PARAGON S is a professional-grade framing profile fixture designed to deliver powerful projection, precise beam shaping, and exceptional color control for demanding stage and event applications. Its impact-resistant polycarbonate chassis and IP54-rated construction make it suitable for indoor use as well as temporary outdoor events in challenging environments.

At the heart of the PARAGON S is a high-efficiency 550W, 6,500K variable CRI white LED engine capable of producing up to 20,500 lumens at CRI 80. Elation's TruTone technology provides continuously adjustable color fidelity from CRI 70 to CRI 93, allowing lighting designers to balance output and natural color reproduction for different scenes and production requirements. The fixture also features ultra-fast CMY color mixing, linear CTO correction, and a seven-position dichroic color wheel with UV filtering.

The PARAGON S combines an extensive effects package with precise framing and beam control. Seven rotating/indexing interchangeable glass gobos, nine fixed metal gobos, a 360° bi-directional animation wheel, dual rotating prisms, dual variable frost filters, and a motorized iris provide extensive creative options. Its four full-blackout framing blades offer precise shutter cuts, while the 5°, 50° zoom range and support for DMX, RDM, Art-Net, and sACN make it a versatile solution for concerts, touring, theaters, corporate events, and professional installations.

Product Specifications:

Product Type: IP Framing Profile Fixture

LED Engine: 550W, 6,500K Variable CRI White LED

LED Life: 30,000 Hours

Total Output: Up to 20,500 Lumens at CRI 80

Variable CRI: TruTone CRI 70-93

Profile Lens Zoom: 5°, 50°

Beam Angle: 4.9°, 44.7°

Field Angle: 5.2°, 47.8°

CMY: Color Mixing

CTO: Linear Color Correction

Rotating Gobos: 7 Interchangeable Glass Gobos

Fixed Gobos: 9 Metal Gobos

Animation: 360° Bi-Directional Animation Wheel

Prisms: 4-Facet Round and Linear Rotating Prisms

Frost: 2 Variable Frost Filters

Iris: Motorized Iris with Variable Pulse Effects

Framing: 4 Full Blackout Framing Blades, ±40° Index

Framing Module: ±120° Index

Pan: 540°

Tilt: 260°

Dimming: Variable 16-Bit Dimming Curve Modes

Shutter/Strobe: High-Speed Electronic Shutter and Strobe

DMX Channels: 41/64

Protocols: DMX, RDM, Art-Net, sACN

Fan Modes: 5

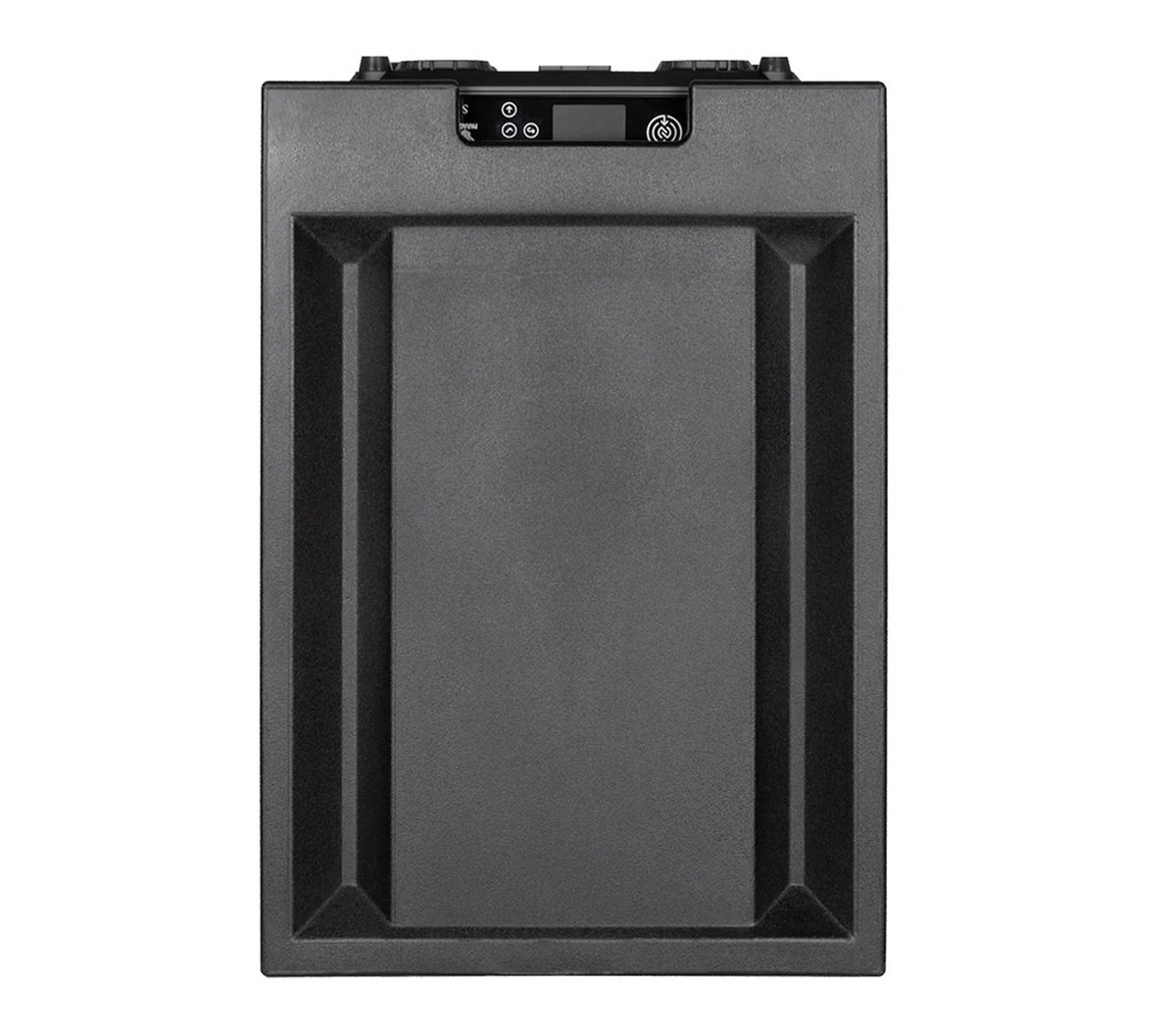

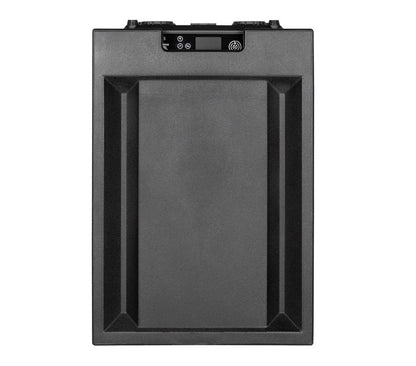

Display: Full-Color 180° Reversible LCD

Control Panel: 4-Button Touch Control Panel

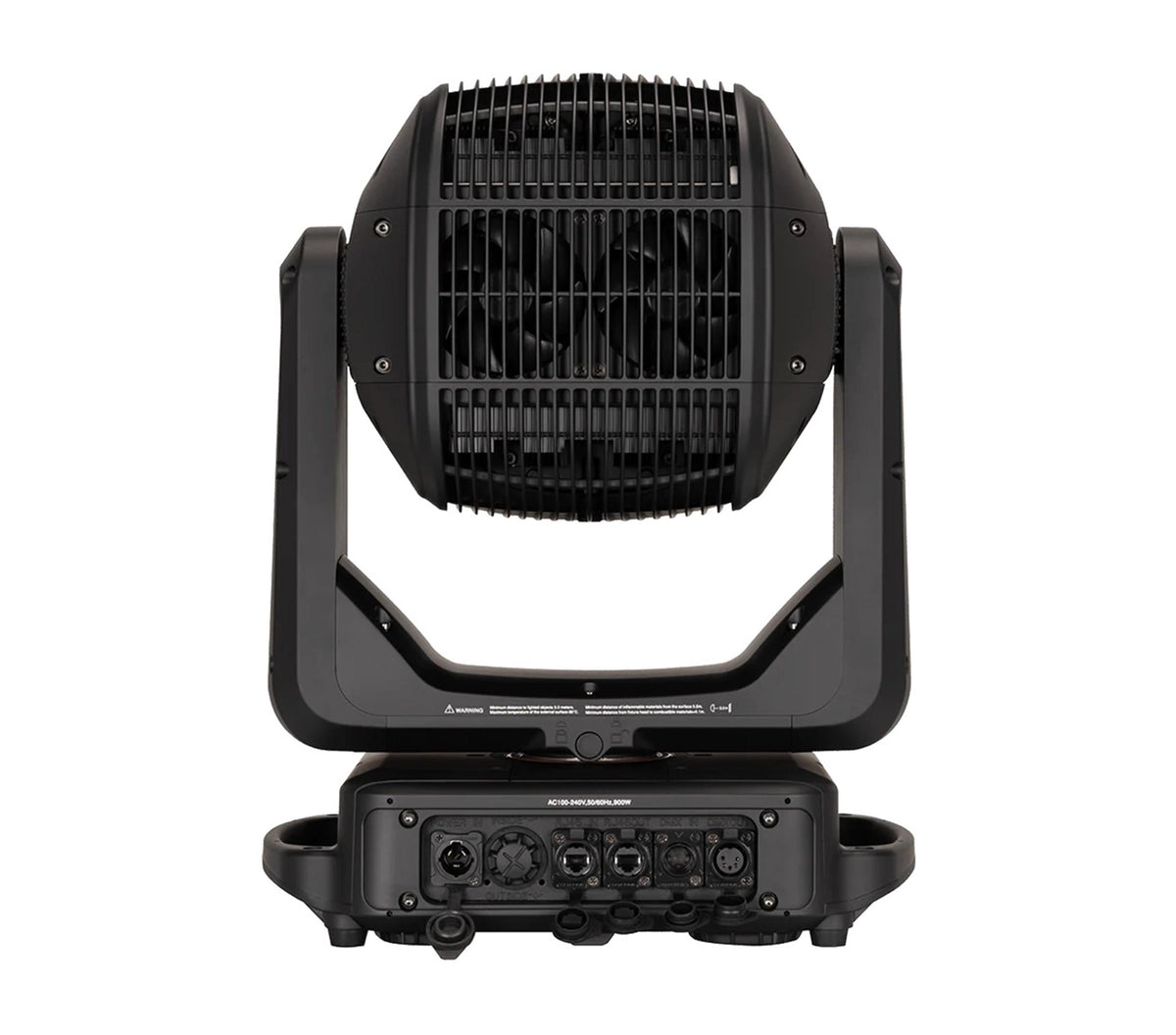

Connections: IP65 Locking 5-Pin XLR In/Out, RJ45 Ethernet In/Out, Power In

Power Save: Hibernation Mode

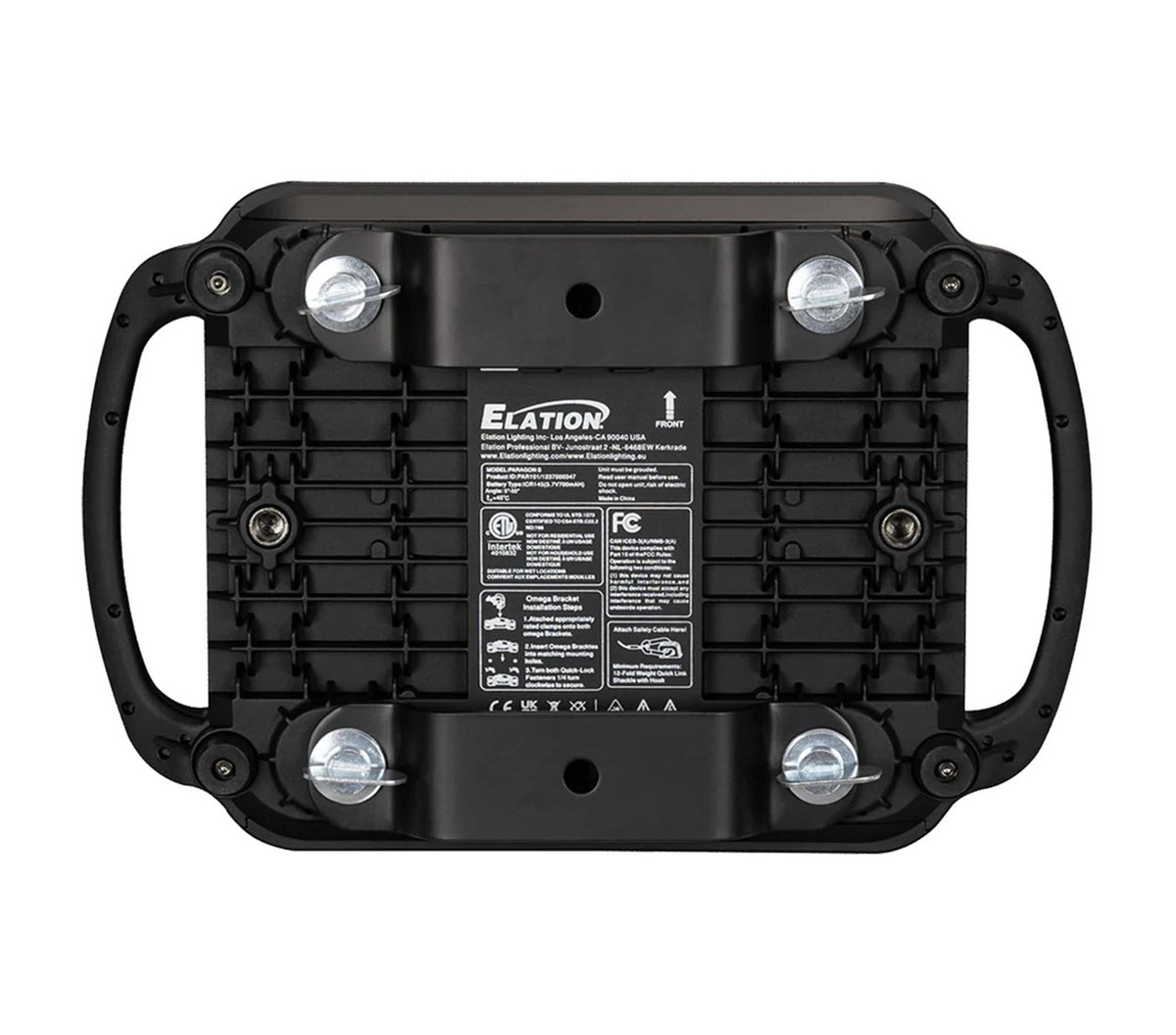

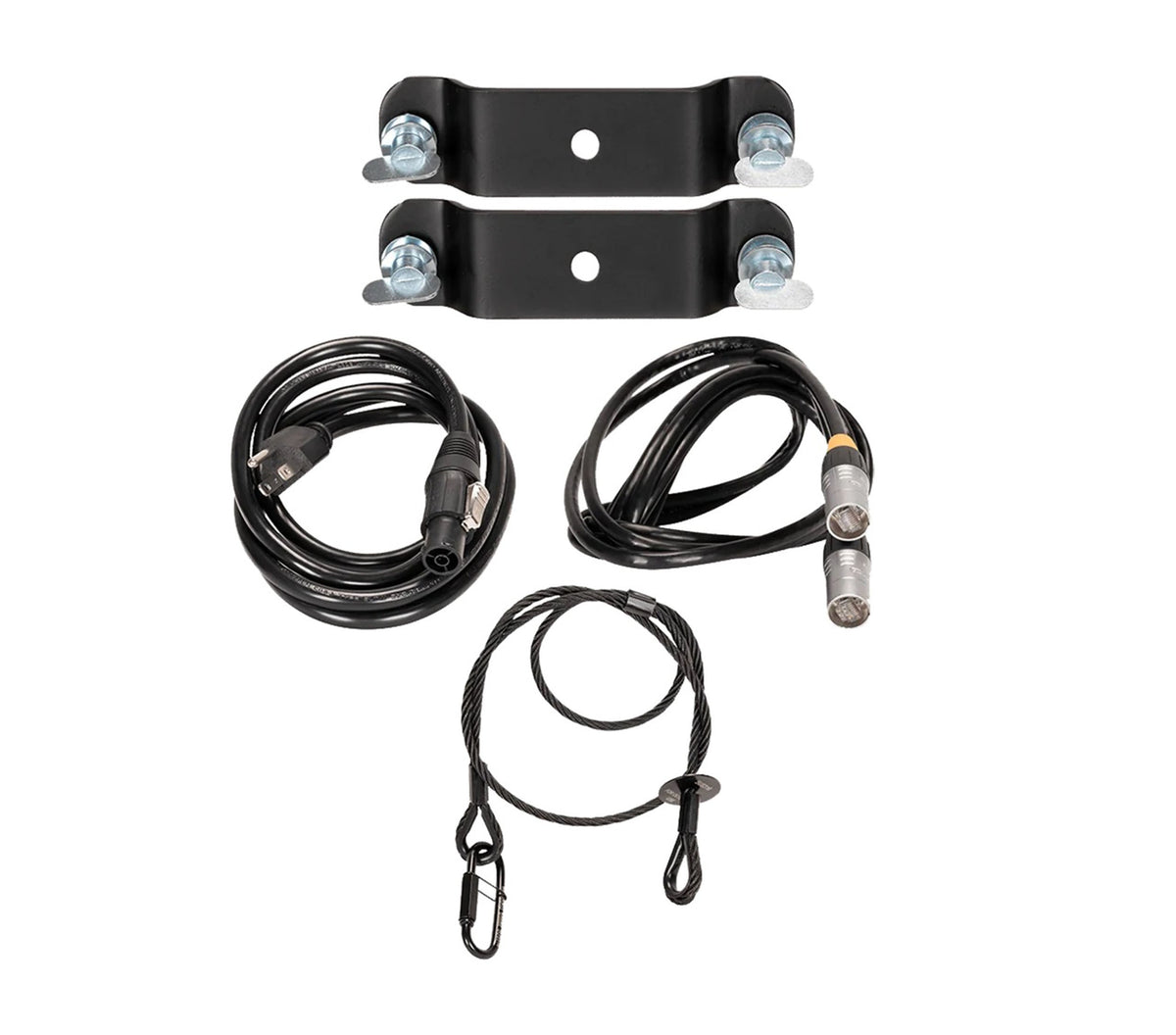

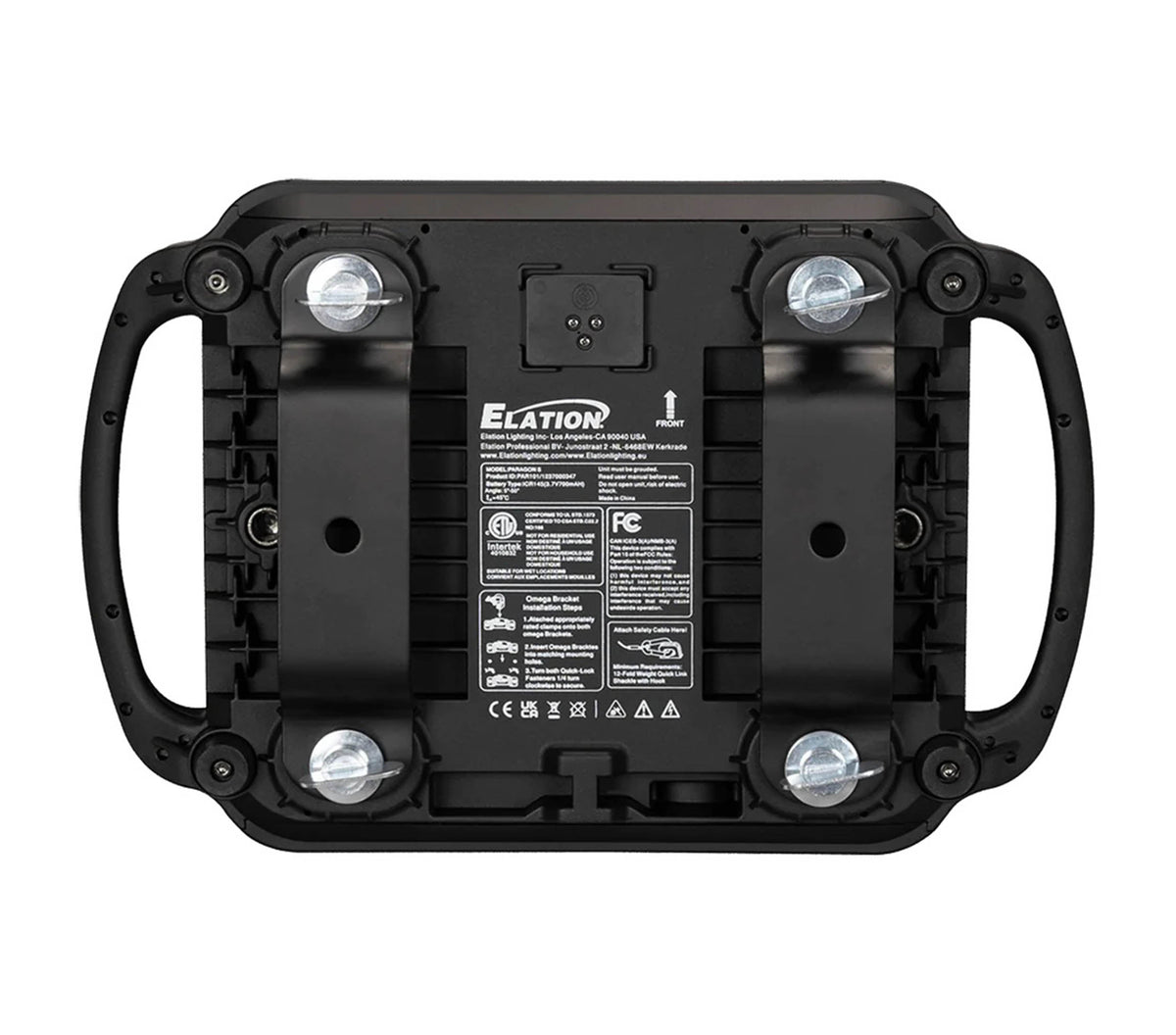

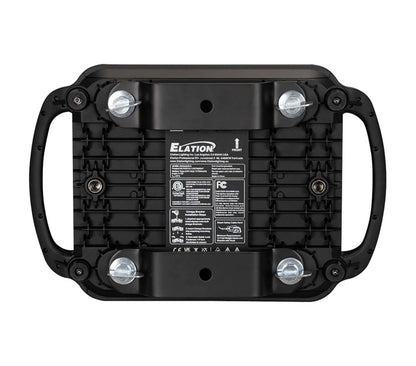

Mounting: 2 x 180mm Omega Brackets, 2 x M12 Screw Holes

Mounting Orientation: Any Orientation

IP Rating: IP54

Operating Temperature: -4°F to 113°F (-20°C to 45°C)

Power: AC 100-240V, 50/60Hz

Maximum Power Consumption: 900W

Construction: Impact-Resistant Lightweight Polycarbonate

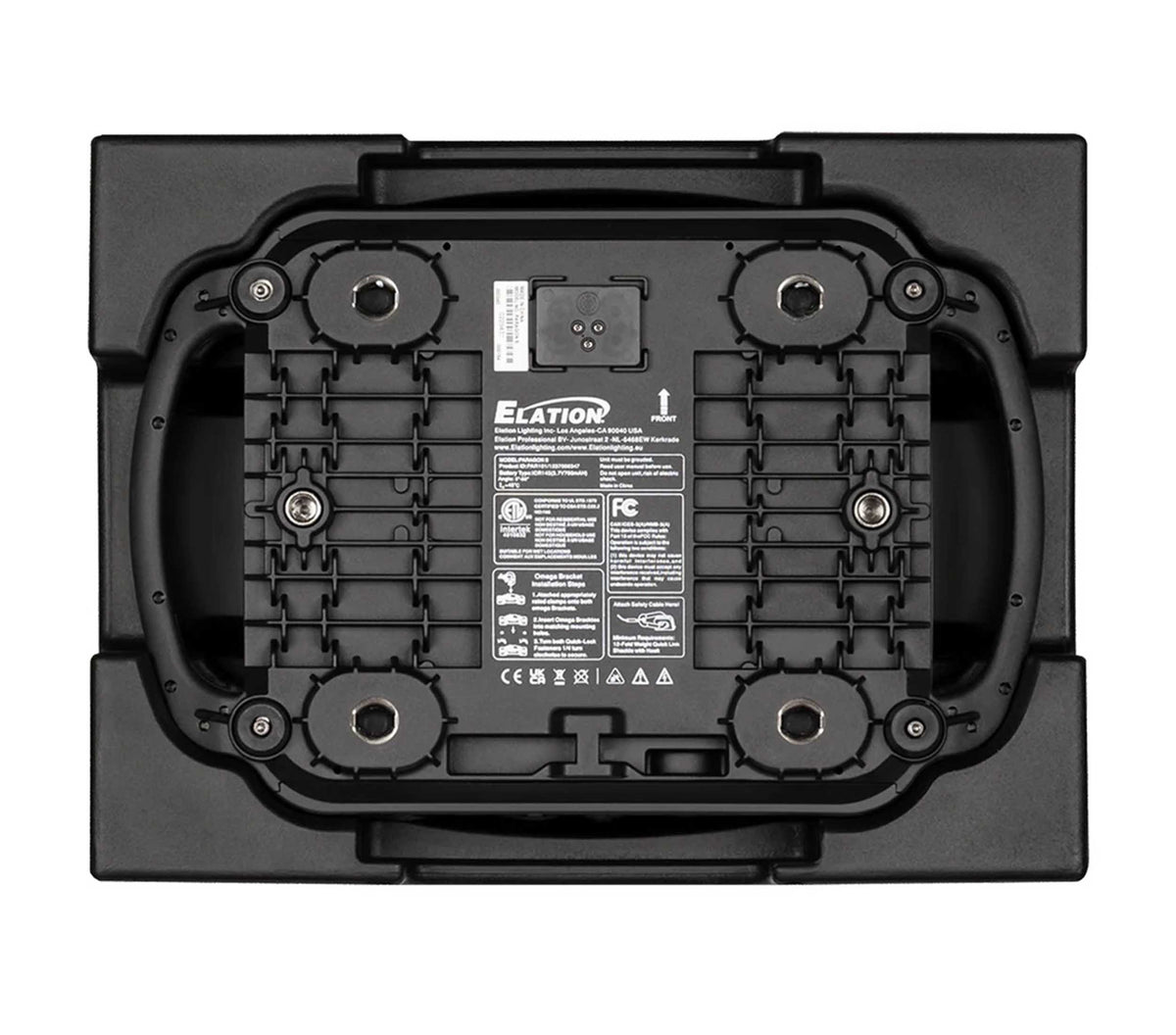

Packaging: Polyurethane Foam FIL Insert

Product Weight: 45.2 lbs

Product Dimensions: 23.4" x 10.2" x 15.3"

Shipping Weight: 47.2 lbs

Shipping Dimensions: 25.4" x 12.2" x 17.3"
