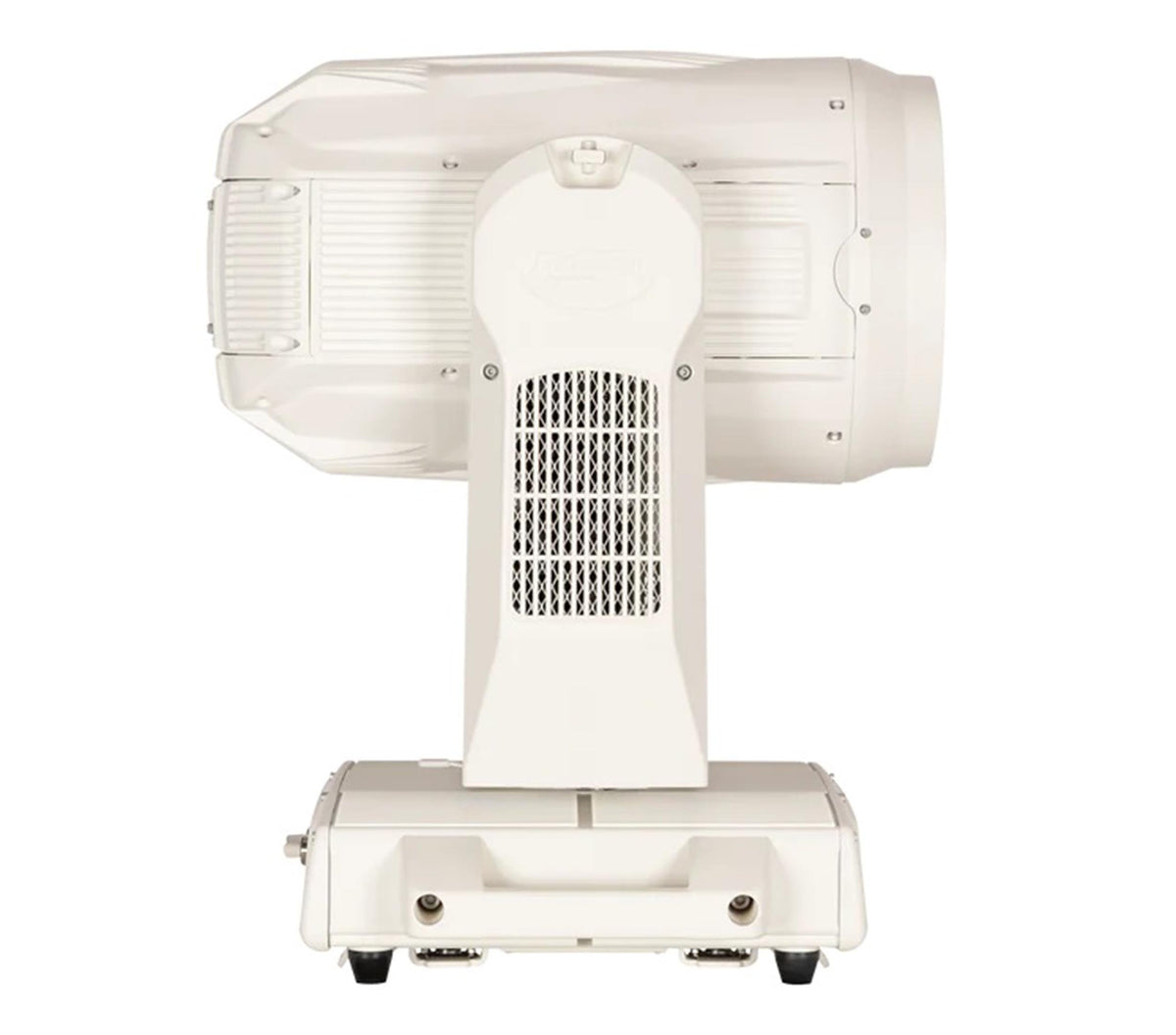

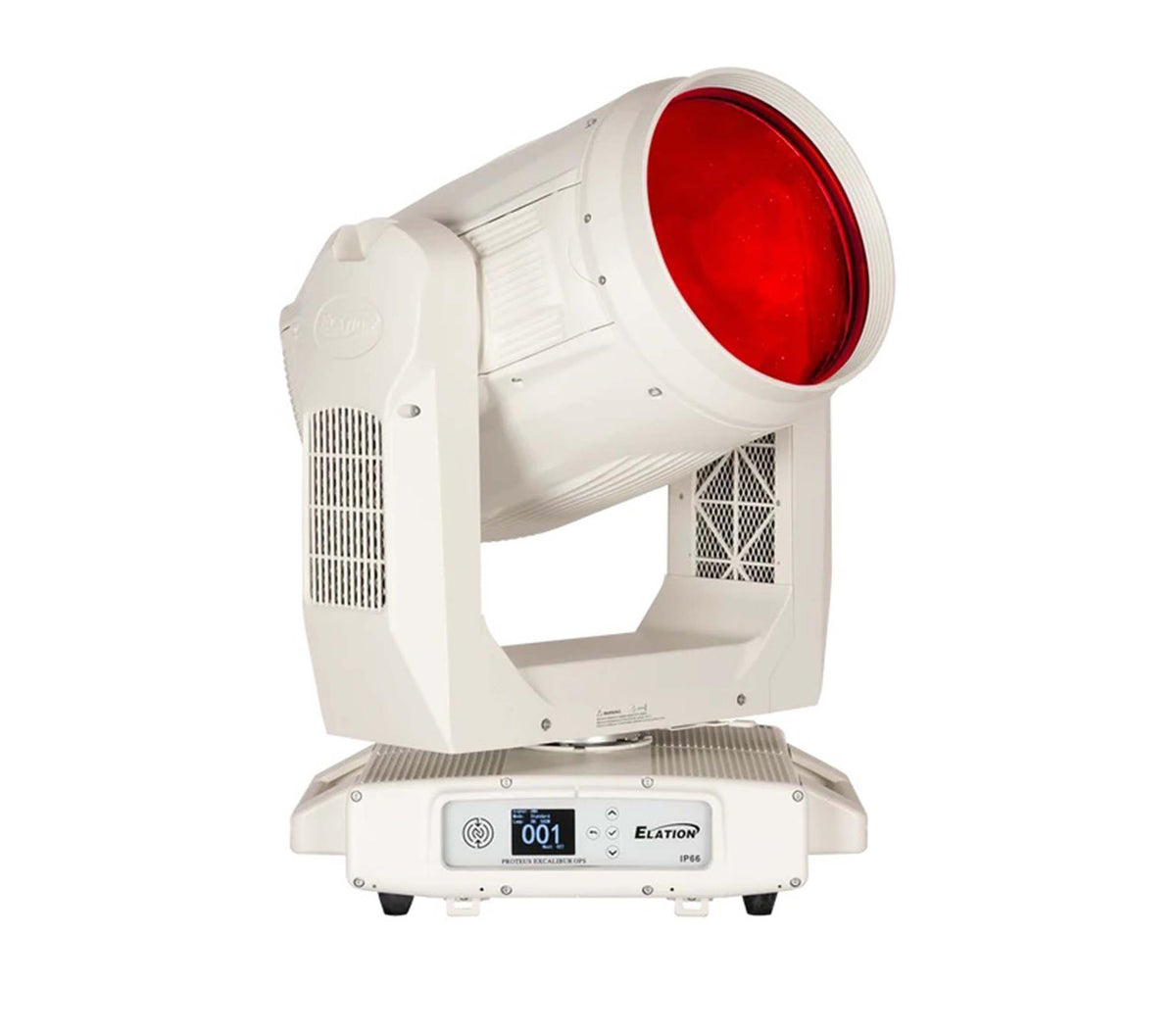

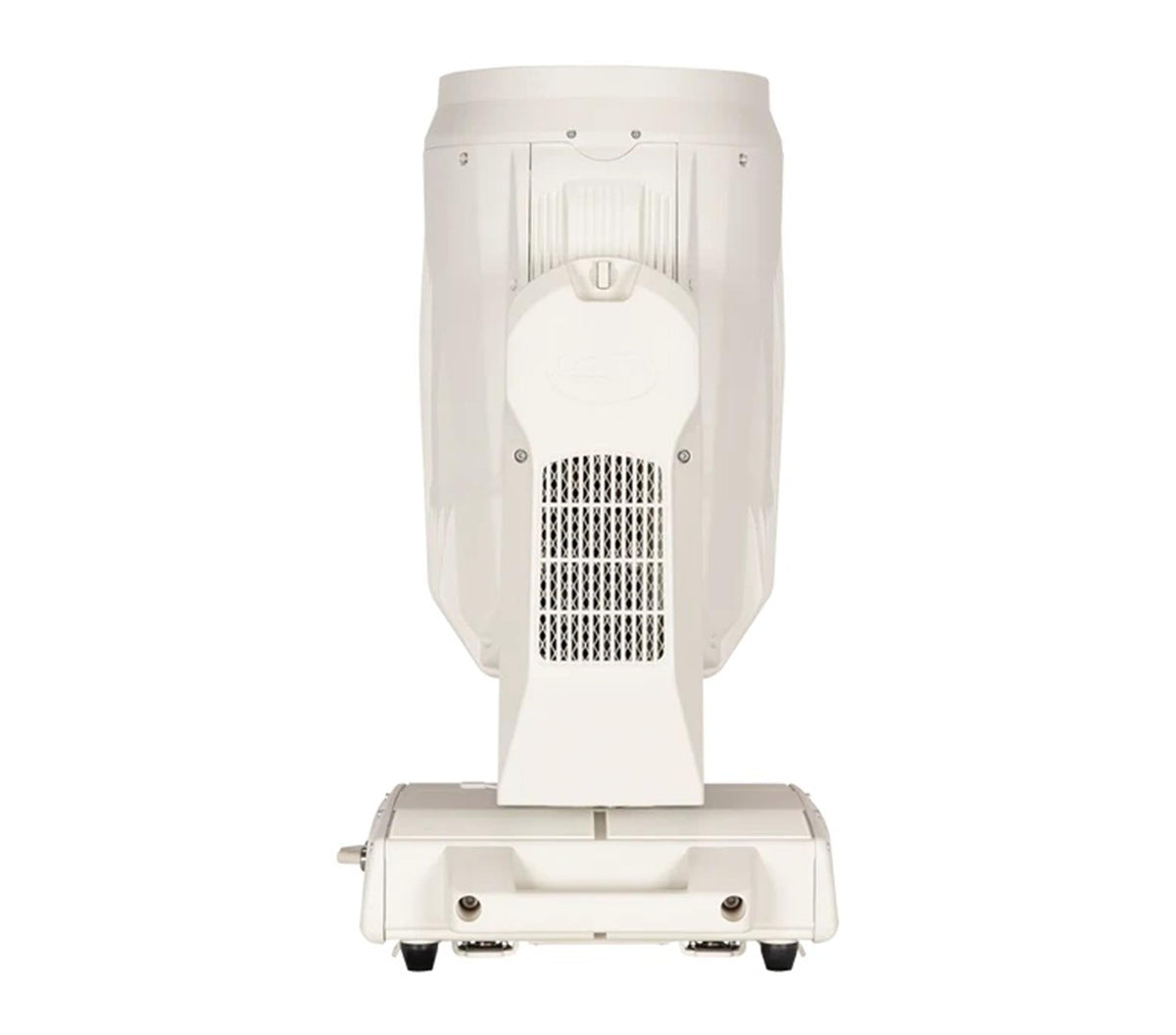

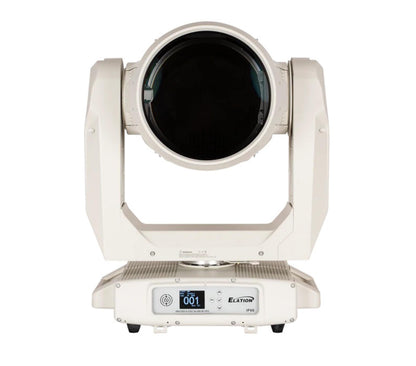

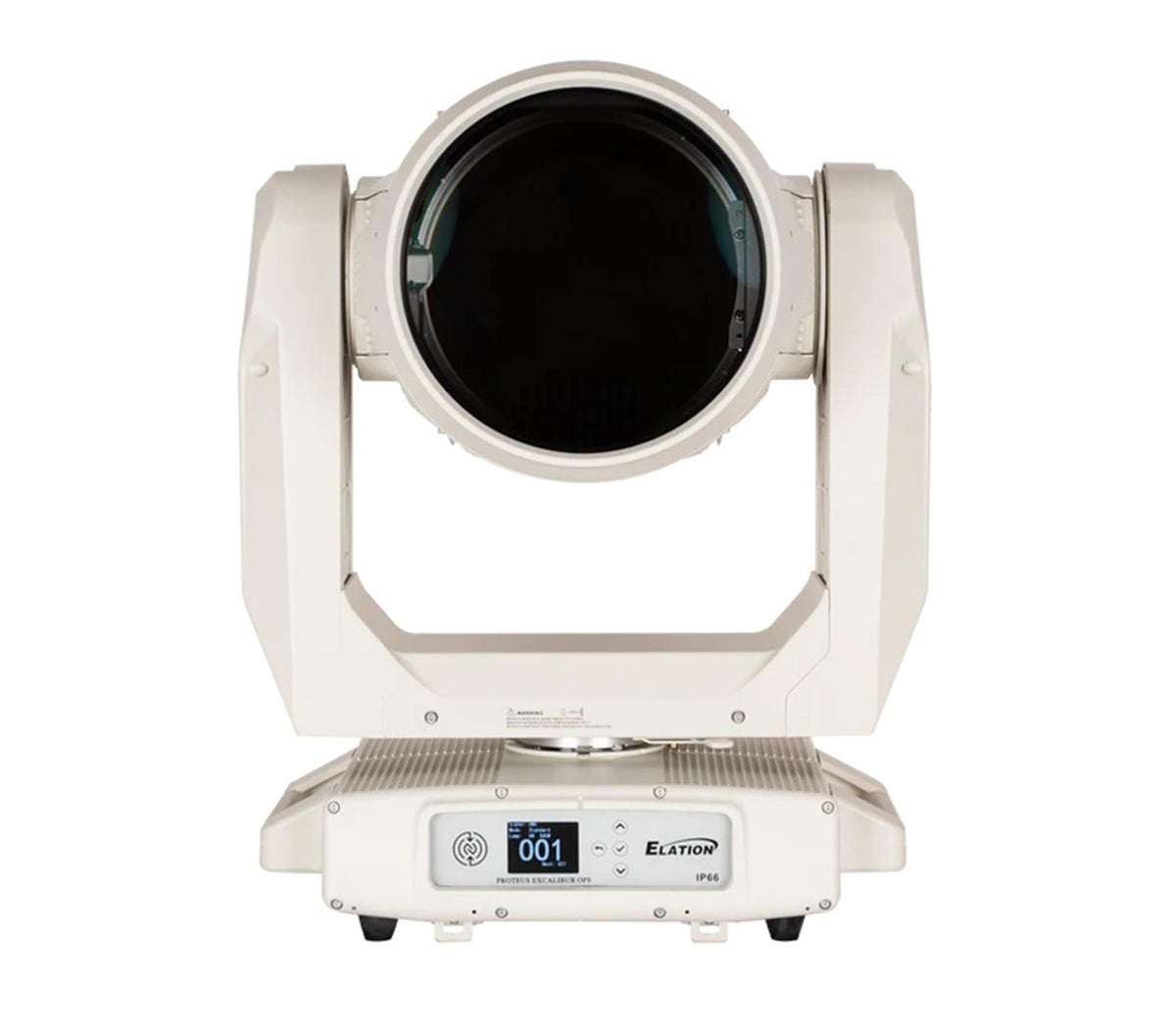

The Elation PRE949 Proteus Excalibur OPS is a high-output IP66 beam fixture designed to produce an intense, narrow aerial beam from a compact fixture body. Its 0.8° beam angle creates a concentrated column of light suitable for large-scale outdoor productions, concerts, special events, theme parks, cruise ships, and entertainment installations.
A 550W Philips MSD Platinum 500L Flex lamp produces up to 20,000 lumens, while the ultra-wide 260 mm front lens provides an expansive optical output. The integrated 3.5° beam expander allows the beam to be widened when a broader projection is required, while motorized focus maintains crisp projections.

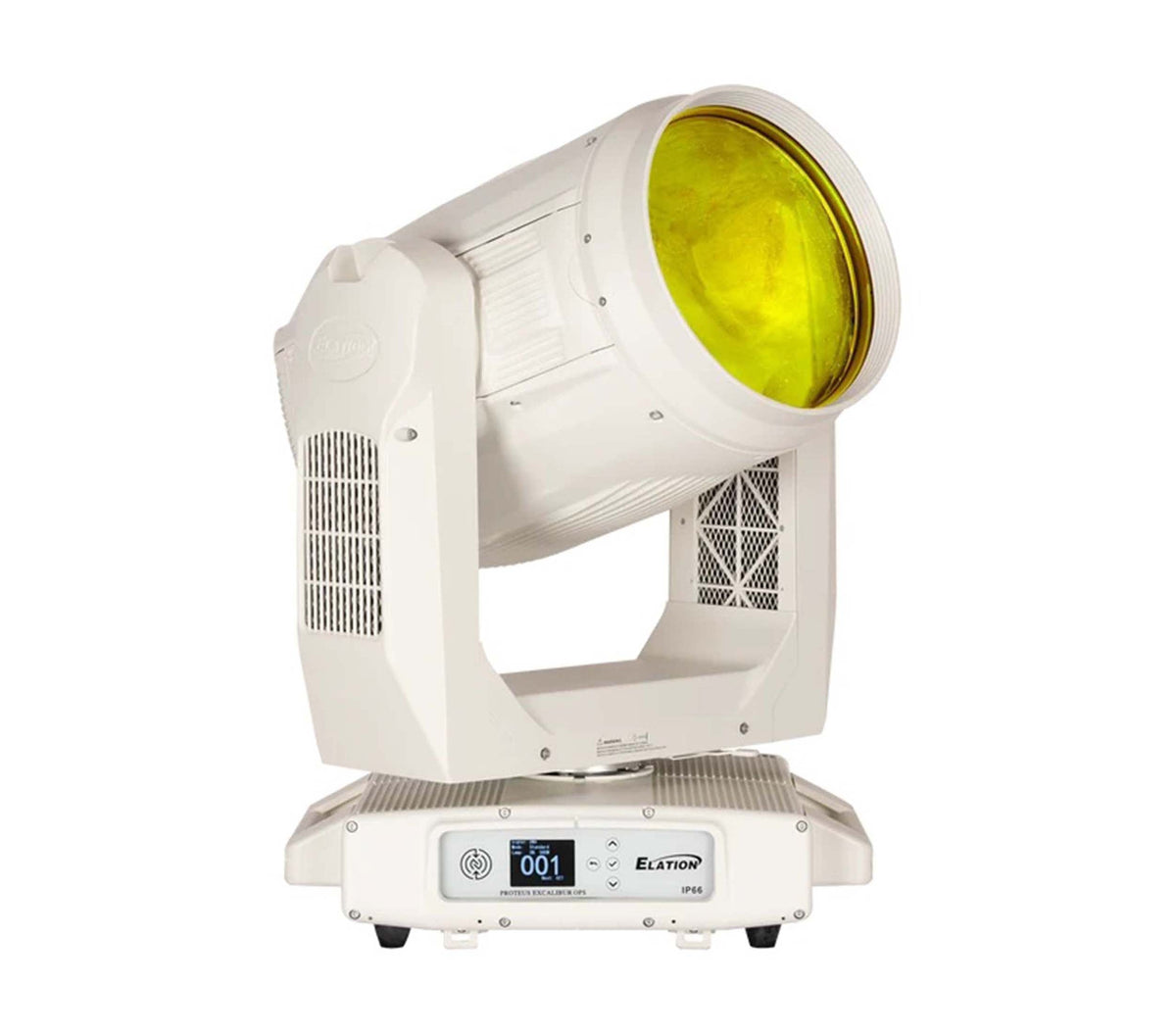

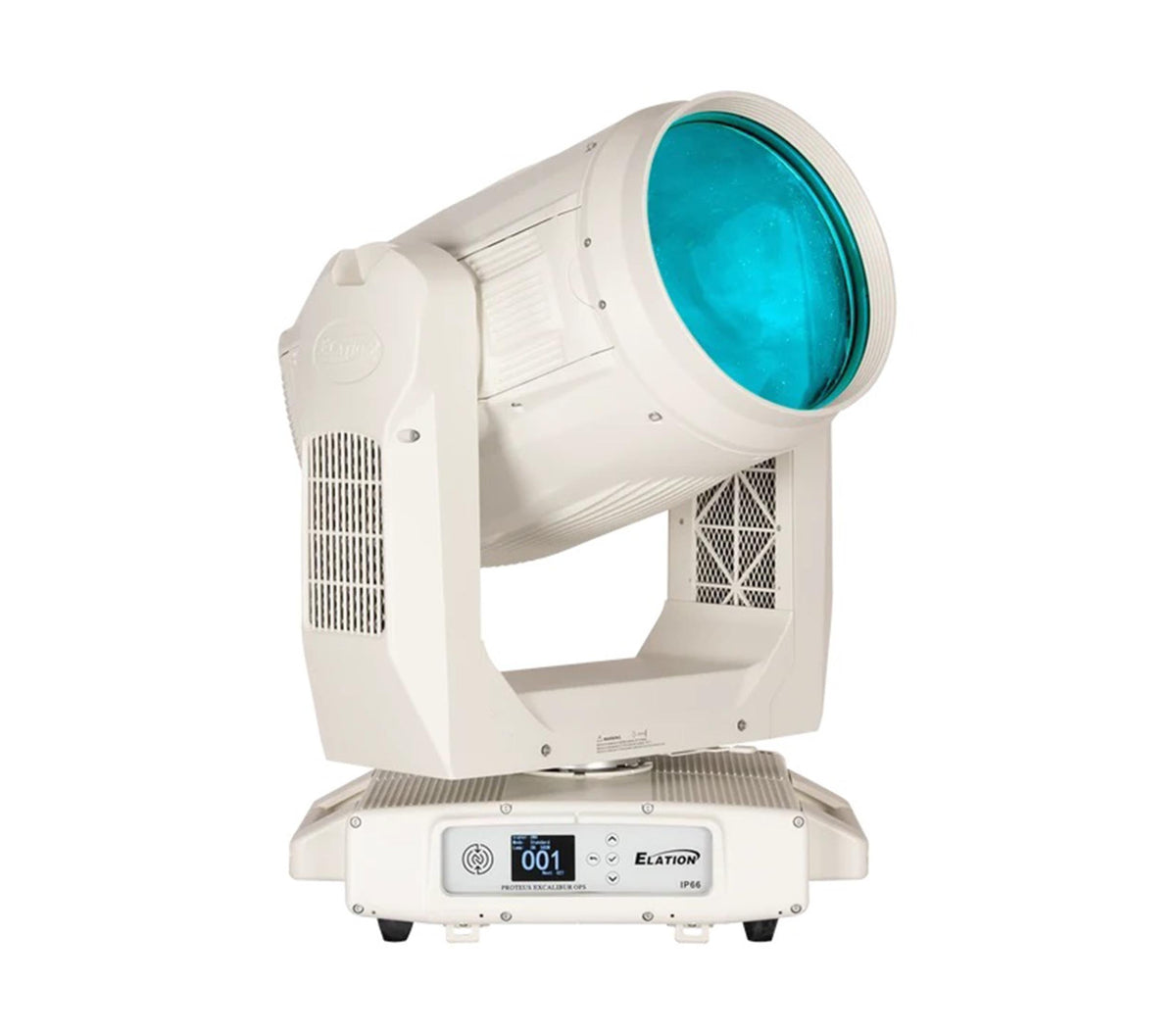

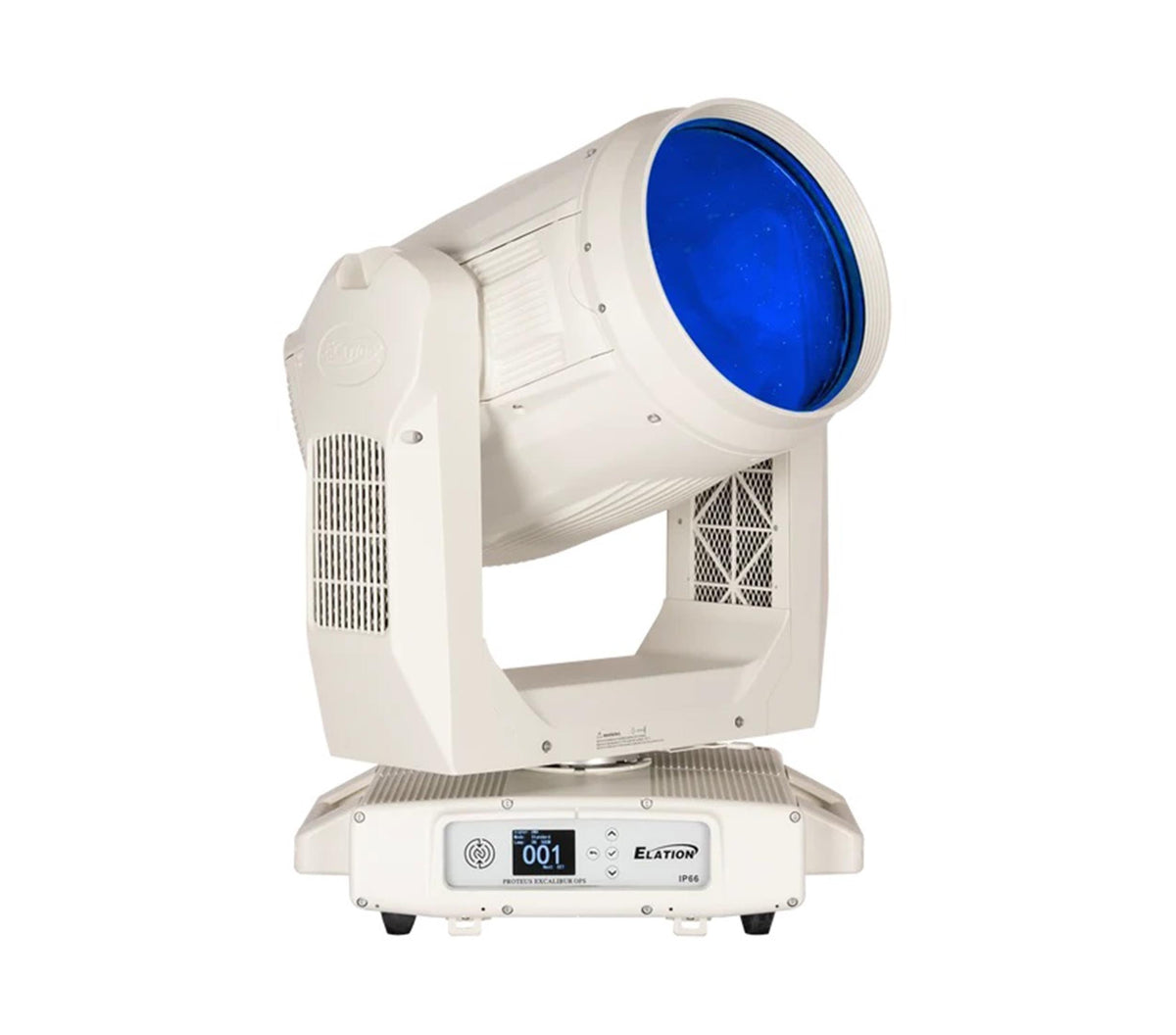

The fixture combines full CMY color mixing with 16 dichroic colors, including CTO and UV, along with eight rotating/indexing glass gobos and 17 static metal gobos. Dual rotating prisms, prism macros, frost filters, and a high-speed mechanical shutter and strobe provide a wide range of aerial and beam effects.
The integrated Sky Motion system allows the Proteus Excalibur OPS to operate as a standalone searchlight or skytracker without requiring a dedicated lighting controller. Multiple fixtures can be interconnected and assigned individual IDs, with movement patterns and parameters adjustable directly through the fixture's display.
Product Specifications:
Product Type: IP66 Beam Fixture
Light Source: Philips MSD Platinum 500L Flex 550W Lamp
Lamp Power: 550W
Lamp Life: Up to 4,000 hours
Beam Angle: 0.8°
Field Angle: 1.6°
Beam Expander: 3.5°
Total Lumen Output: 20,000 lumens
Color Temperature: 7000K
CRI: 77+
Pan Angle: 540° / 630°
Tilt Angle: 250°
Color System: Full CMY mixing, 16 dichroic colors including CTO and UV
Rotating Gobos: 8 interchangeable glass gobos
Static Gobos: 17 stamped metal gobos
Prisms: Dual rotating prisms and prism macros
Frost: Dual frost filter hybrid wash effect
Control: DMX, RDM, NFC
DMX Mode: 26 channels
Standalone Mode: Sky Motion searchlight and skytracker animations
Control Resolution: 16-bit pan, tilt, and dimming

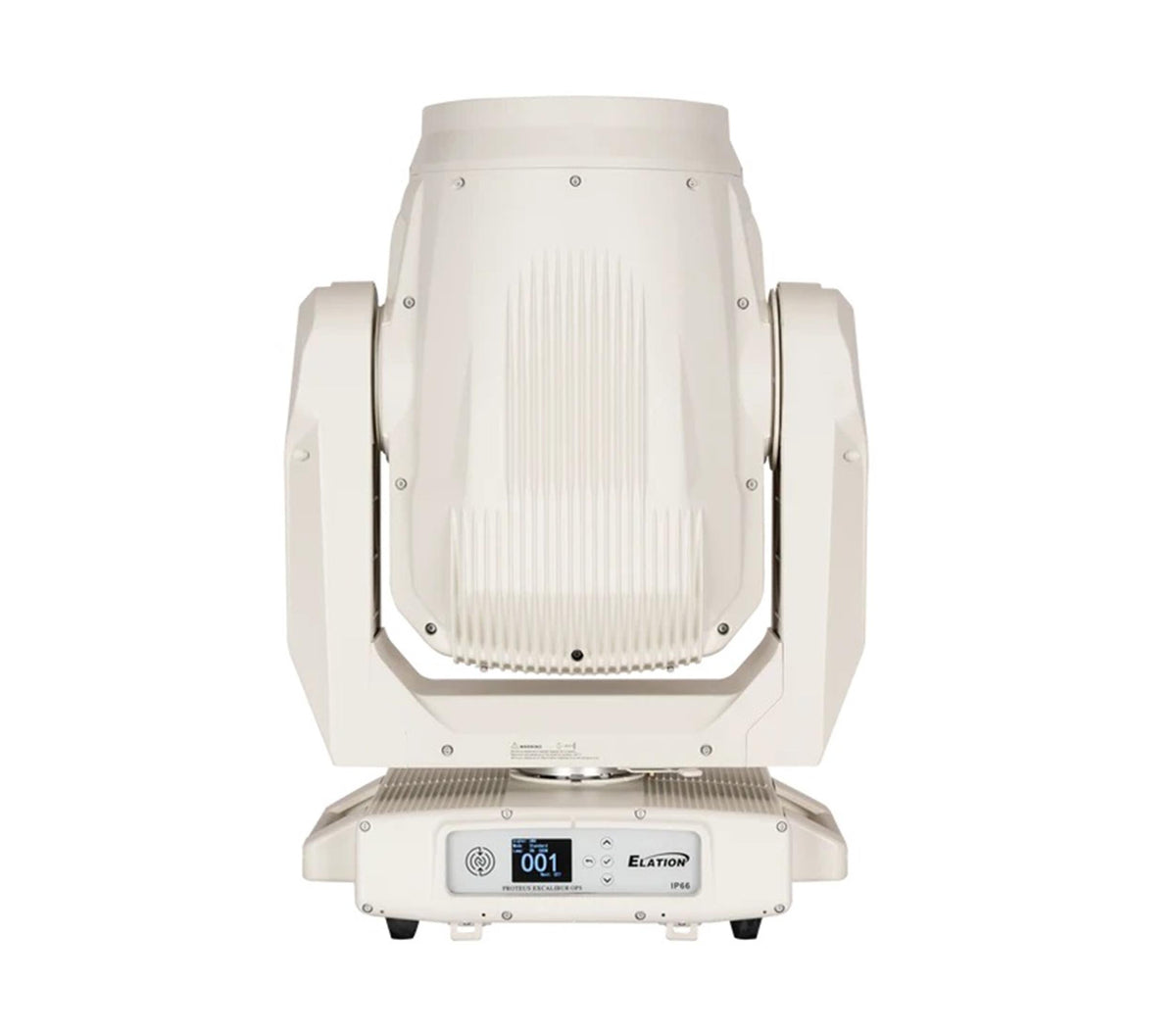

Display: Full-color 180° reversible LCD
Focus: Motorized
Input Voltage: AC 100-240V, 50/60Hz
Maximum Power Consumption: 800W
Operating Temperature: -20°C to 45°C
Protection Rating: IP66
Exterior Finish: RAL9016
Coating: CX Extreme Marine Grade Coating
Fasteners: Stainless Steel 316
Country/Region: Custom colors available on request
Product Weight: 108.00 lbs
Product Dimensions: 27.40 H × 15.10 W × 19.40 L
