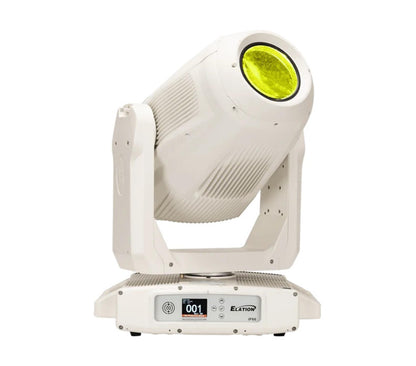

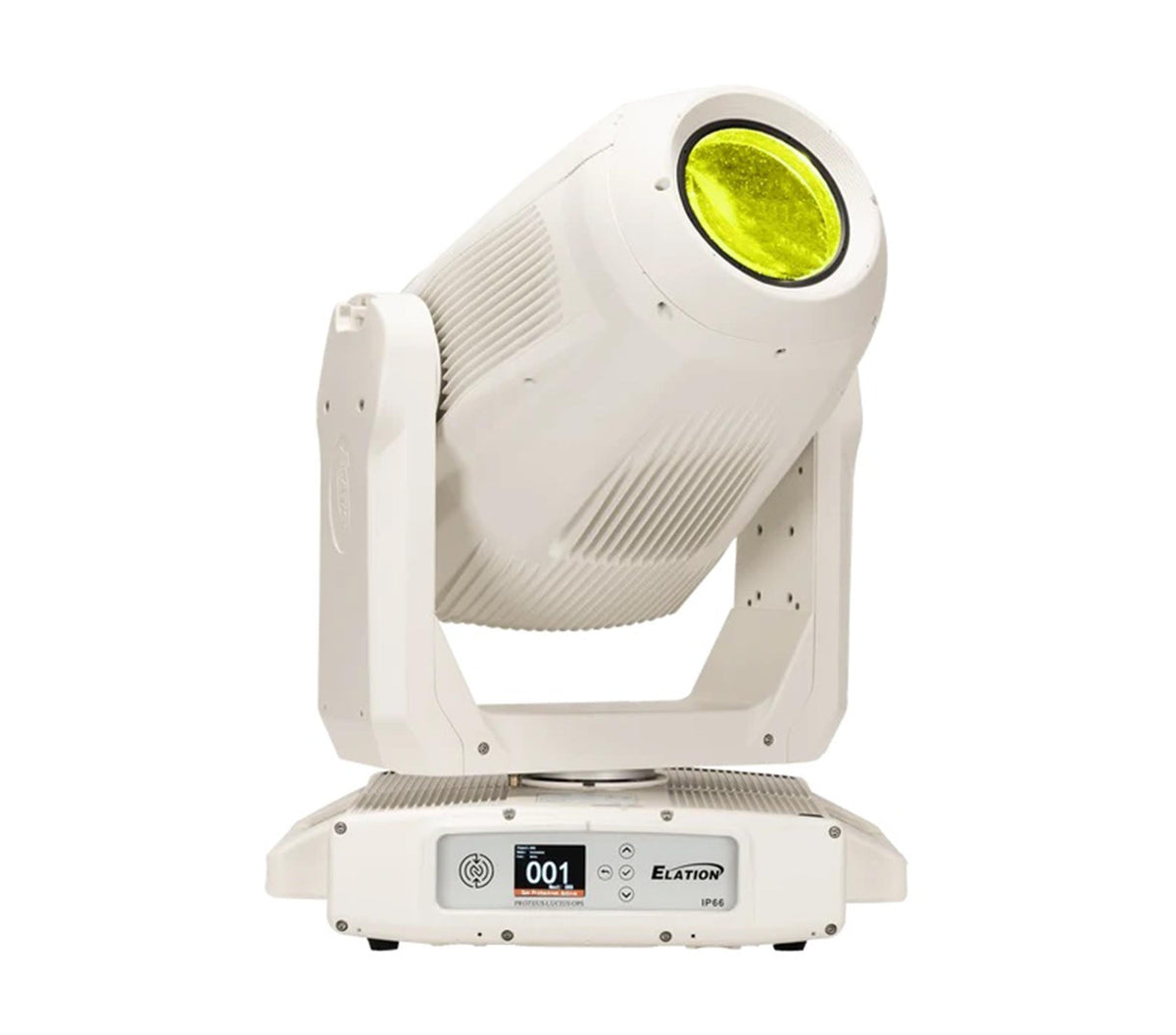

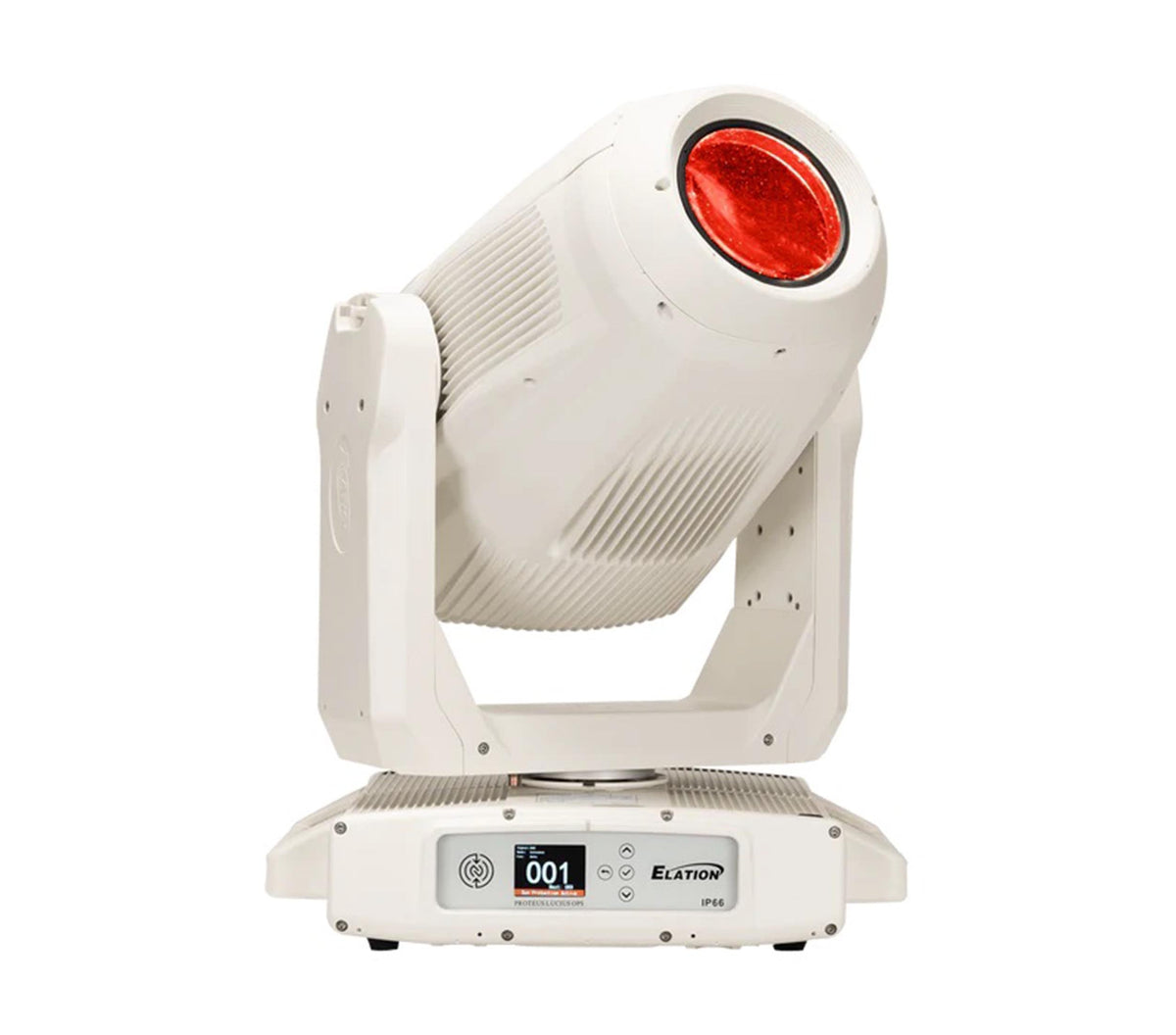

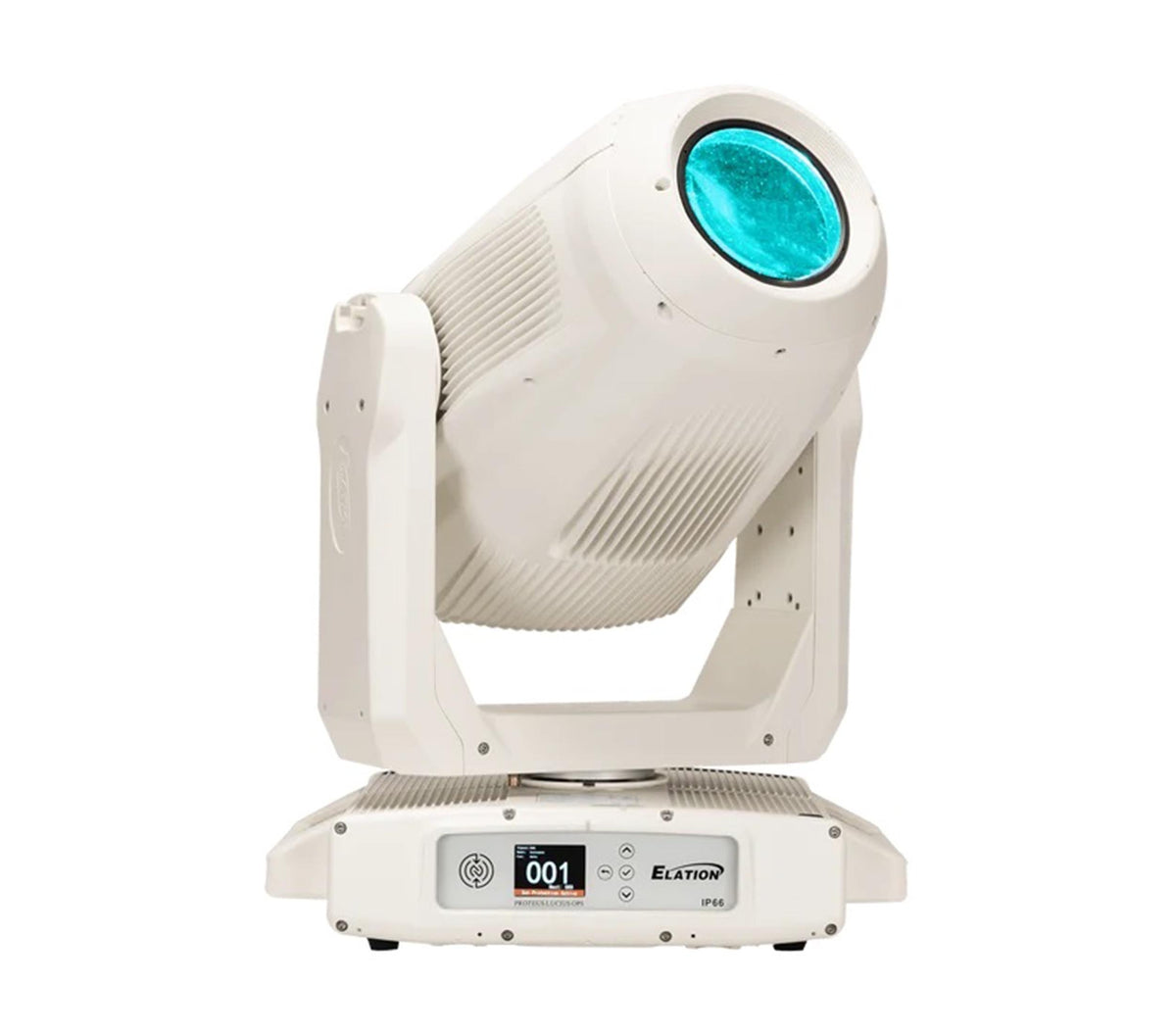

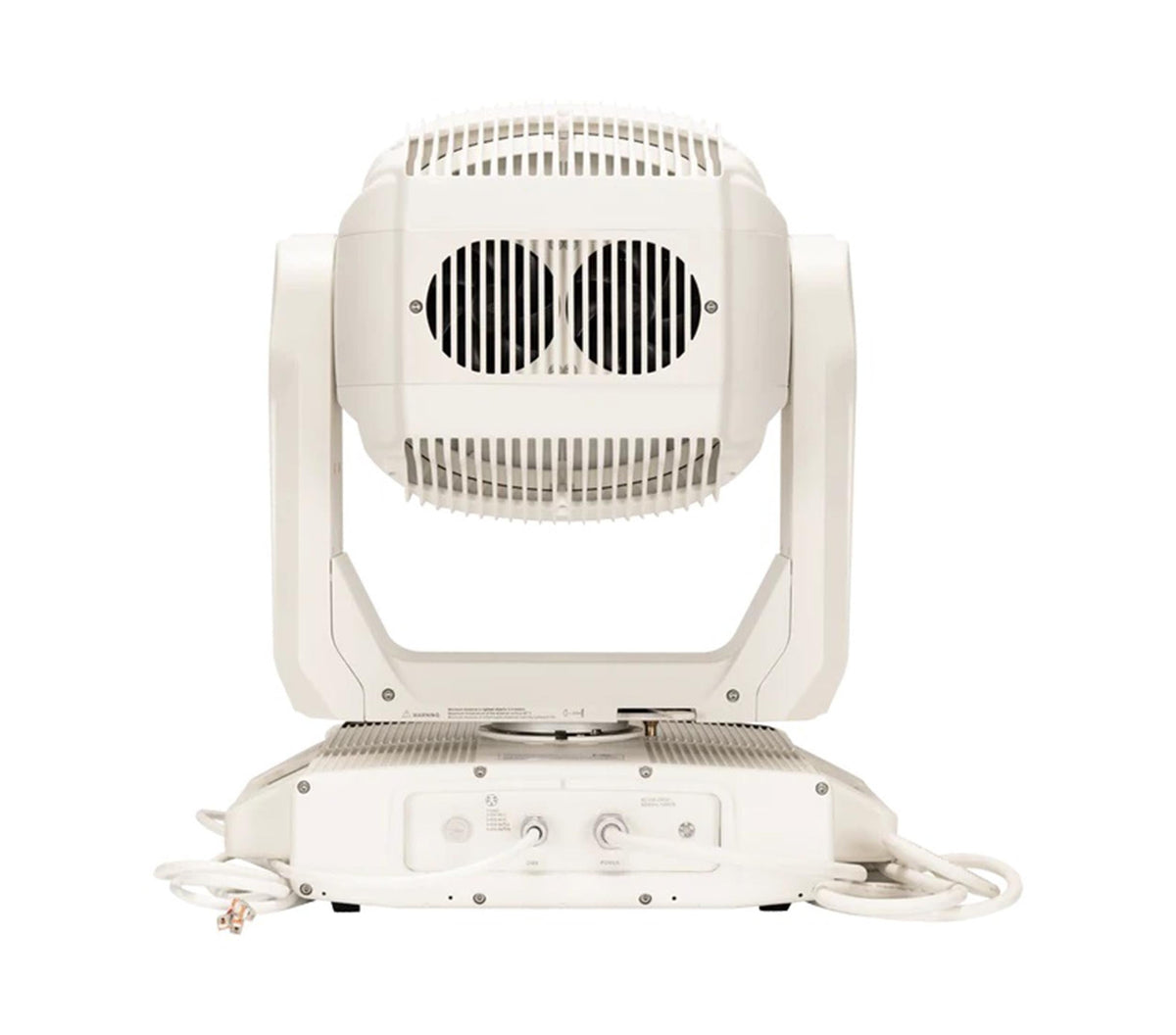

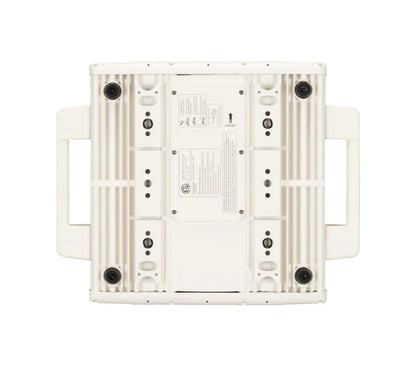

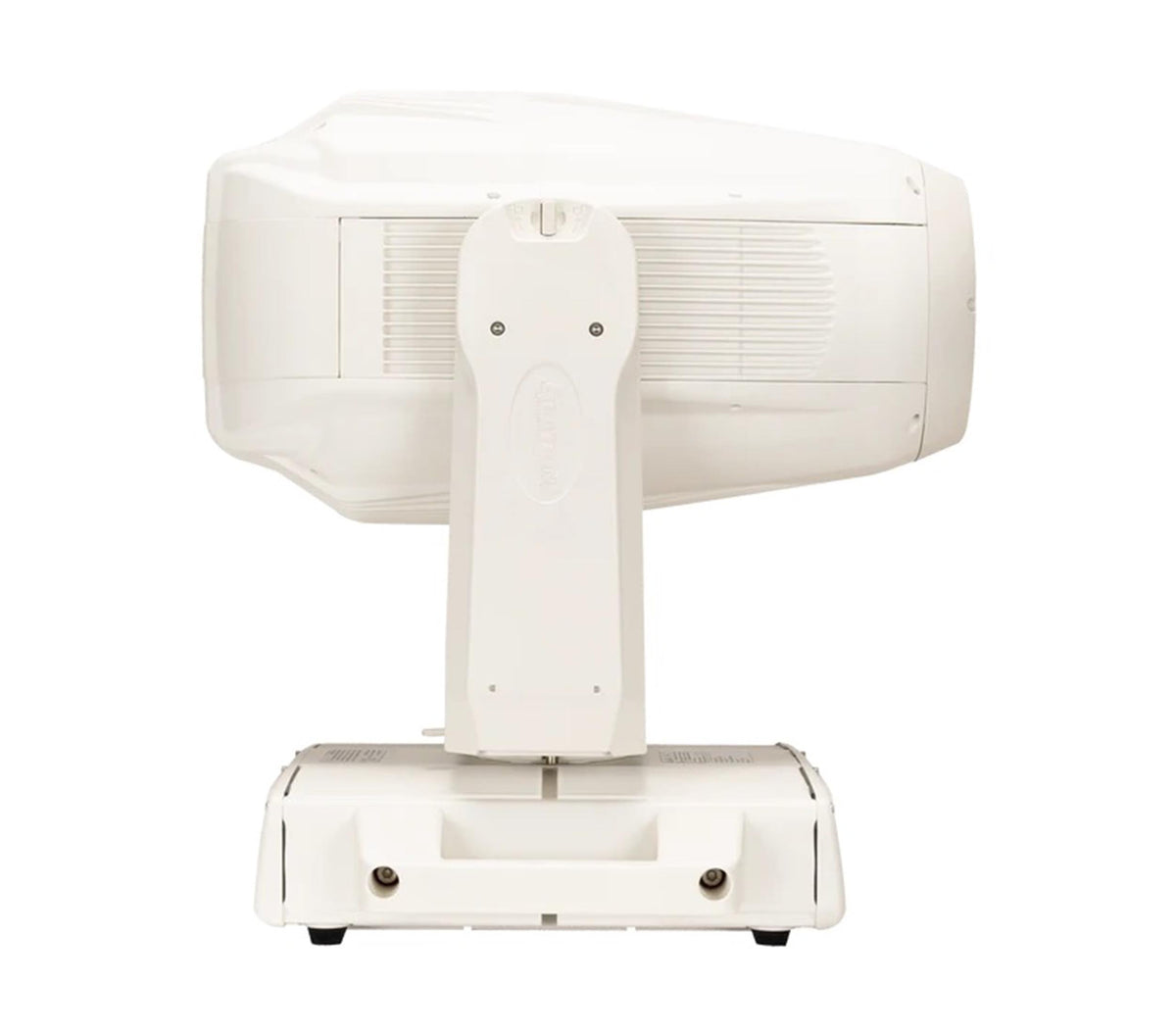

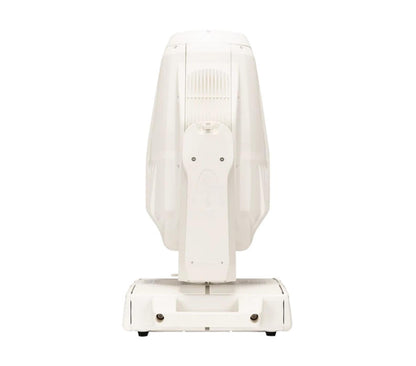

The Elation PRL734 Proteus Lucius OPS is a professional-grade IP66 LED profile fixture designed to deliver powerful projection, precise beam control, and advanced effects in demanding indoor and outdoor environments. Its custom-designed 580W 6,500K Peak Field LED engine produces up to 33,500 lumens, providing the output required for large stages, permanent installations, outdoor productions, and high-impact lighting applications.
The fixture combines a wide 5.5°, 50° motorized zoom range with advanced framing and optical effects. Its indexable framing system uses four rotating full-blackout framing blades and provides precise beam shaping, while the dual prism system, animation wheel, variable frost filters, motorized iris, and high-speed shutter offer extensive creative control.
Color control includes CMY color mixing, linear CTO correction, and a five-position dichroic color wheel with a High CRI filter. The fixture also incorporates three gobo wheels, including rotating and static glass gobos, allowing lighting designers to create detailed projections and textured effects.
Product Specifications:
Product Type: LED Profile Fixture
IP Rating: IP66
LED Engine: 580W 6,500K Bright White Peak Field LED
LED Life: 30,000 hours average
Total Lumen Output: Up to 33,500 lumens
CRI: 71+ / 85+ with HCRI Filter
Zoom Range: 5.5°, 50°
Beam Angle: 6°, 36.7°
Field Angle: 7.6°, 51.3°
Color Mixing: CMY
Color Correction: Linear CTO
Color Wheel: 5 dichroic colors including High CRI Filter
Rotating Gobos: 6 + 7
Static Gobos: 7
Gobo Wheels: 3
Framing: 4 rotating full-blackout framing blades
Framing Indexing: ±45°
Animation: Full 360° bi-directional
Prisms: 4-facet and linear rotating prisms
Frost: 2 variable frost filters
Iris: Motorized with variable pulse effects
Dimming: Variable 16-bit dimming curve modes
Shutter/Strobe: High-speed electronic
Pan: 540°/630°
Tilt: 250°
DMX Modes: 43/68 channels
Protocols: DMX and RDM
Display: Full-color 180° reversible LCD
Control Panel: 6-button touch control panel
Connectivity: NFC
Power: AC 100-240V, 50/60Hz
Maximum Power Consumption: 1000W
Operating Temperature: -4° to 122°F
BTU/hr: 3239.5
Exterior Finish: RAL9016
Coating: CX Extreme Marine Grade Coating
Fasteners: Stainless Steel 316
Approvals/Ratings: CE, cETLus, FCC, IP66
Includes: 2 Omega brackets and safety cable
Product Weight: 89.90 lbs
Product Dimensions: 26.80 H × 14.60 W × 18.41 L
