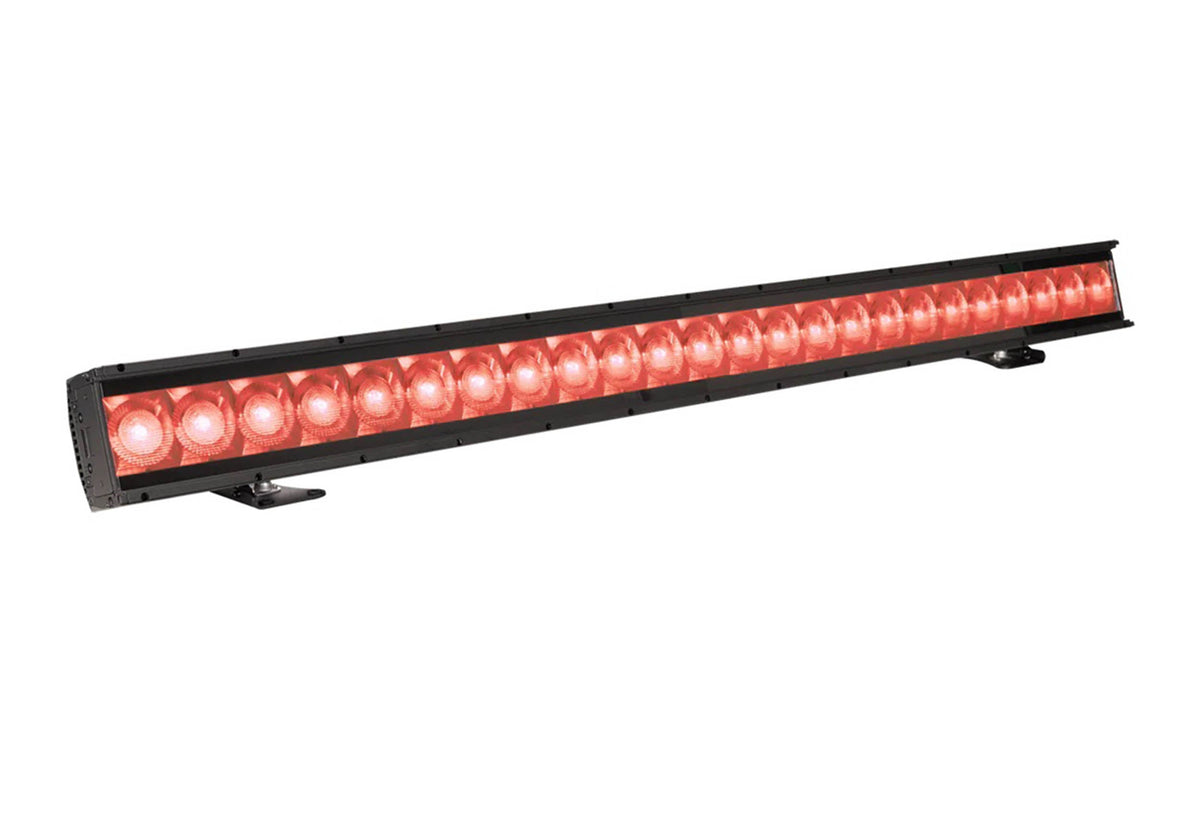

Elation Professional KL BATTEN 72 RGBMA LED Batten

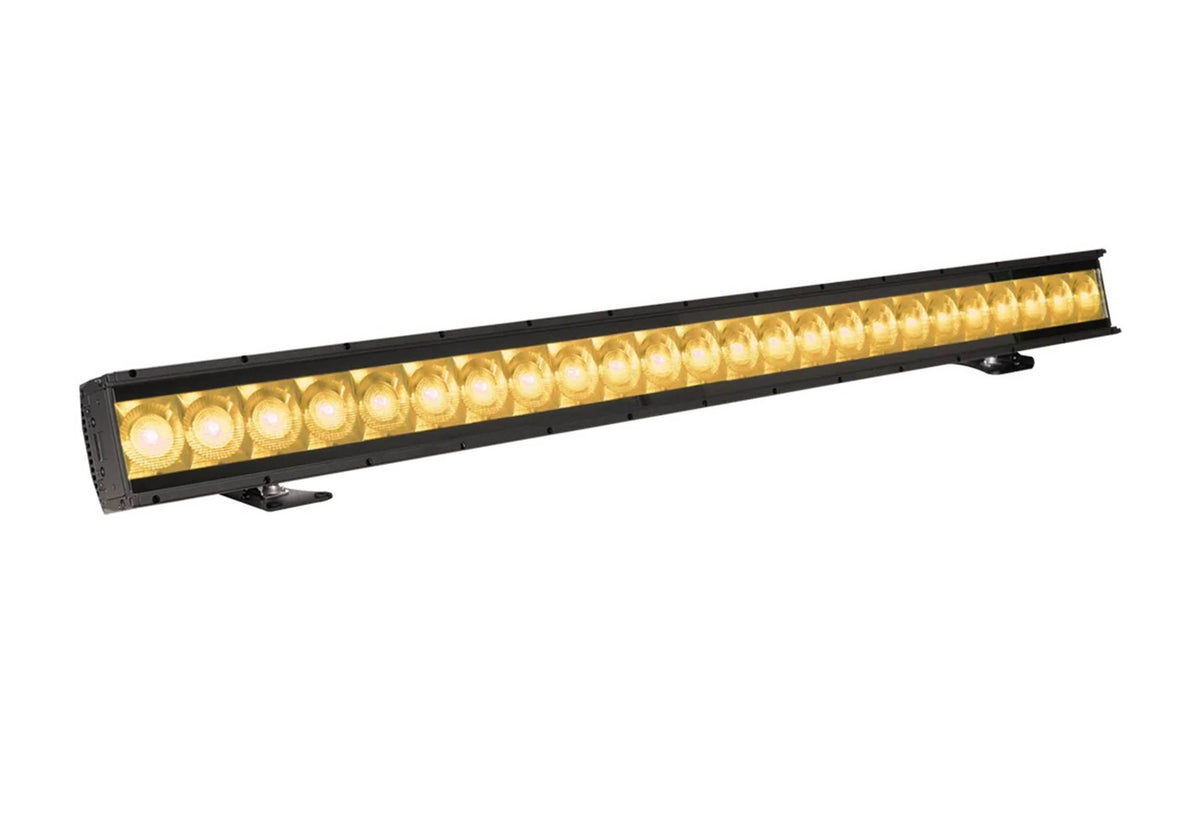

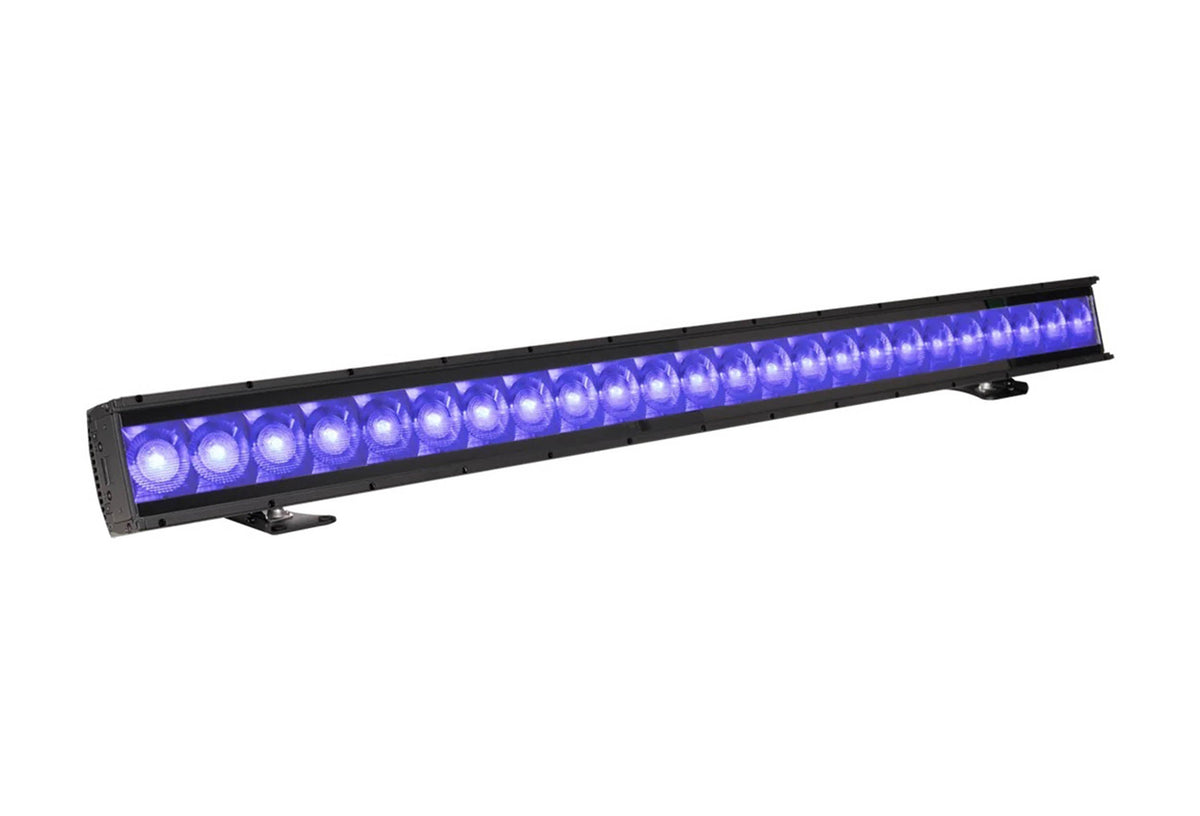

The Elation Professional KL BATTEN 72 is a high-output LED batten designed for professional stages, studios, large cycloramas, and demanding scenic applications. Its 24 × 100W RGBMA LED array produces an impressive 61,275 lumens of smooth, even light, providing powerful room-filling coverage across large sets and wide scenic surfaces. With a CRI of 94.9 and TLCI of 95, it delivers natural, full-spectrum color that performs exceptionally well both on stage and on camera.

The advanced RGBMA color engine provides a fully variable 16-bit CCT range from 2400K to 8500K, along with green/magenta shift, dim-to-warm fading, and a virtual gel swatch book. Full pixel control allows individual LED sections to be addressed for complex color effects, pixel mapping, and dynamic chases. Electronic dimming, strobe functions, and selectable 16-bit dimming modes and curves provide precise control for everything from subtle scenic transitions to high-impact lighting effects.

Built for demanding professional environments, the KL BATTEN 72 features an IP65-rated housing and IP65-rated DMX, Ethernet, and power connections for reliable indoor and outdoor operation. Art-Net and sACN networking provide seamless integration with modern lighting control systems, while 52 DMX channel modes offer flexible operation from simple 1-channel control up to advanced 321-channel pixel control. Its integrated L-Track mounting system and end-to-end magnetic alignment make installation and positioning practical for touring rigs, permanent installations, and large-scale lighting designs.

This is just the lighting fixture. Gear and accessories in product images not included.

Product Specifications:

Product Type: LED Batten Fixture

LED Source: (24) × 100W RGBMA LEDs

LED Engine: RGBMA

Total Fixture Output: 61,275 lumens

LED Life: 30,000 hours average

Beam Angle: 82° × 22°

Field Angle: 97° × 53°

Pixel Control: Full Pixel Control

Dimmer: Electronic

Dimming Resolution: 16-bit

Dimming Modes: Variable 16-bit Modes and Curves

Strobe: Electronic Strobe

CCT Range: 2400K, 8500K

Color Adjustment: Green/Magenta Shift

Dim-to-Warm: Supported

Virtual Gel: Swatch Book Included

DMX Channel Modes: 52

DMX Channel Range: 1 to 321 Channels

Control Panel: 4-Button

Display: Color LED Display

RDM: Supported

Wireless Management: Aria x2

NFC Configuration: Supported

Networking: Art-Net & sACN

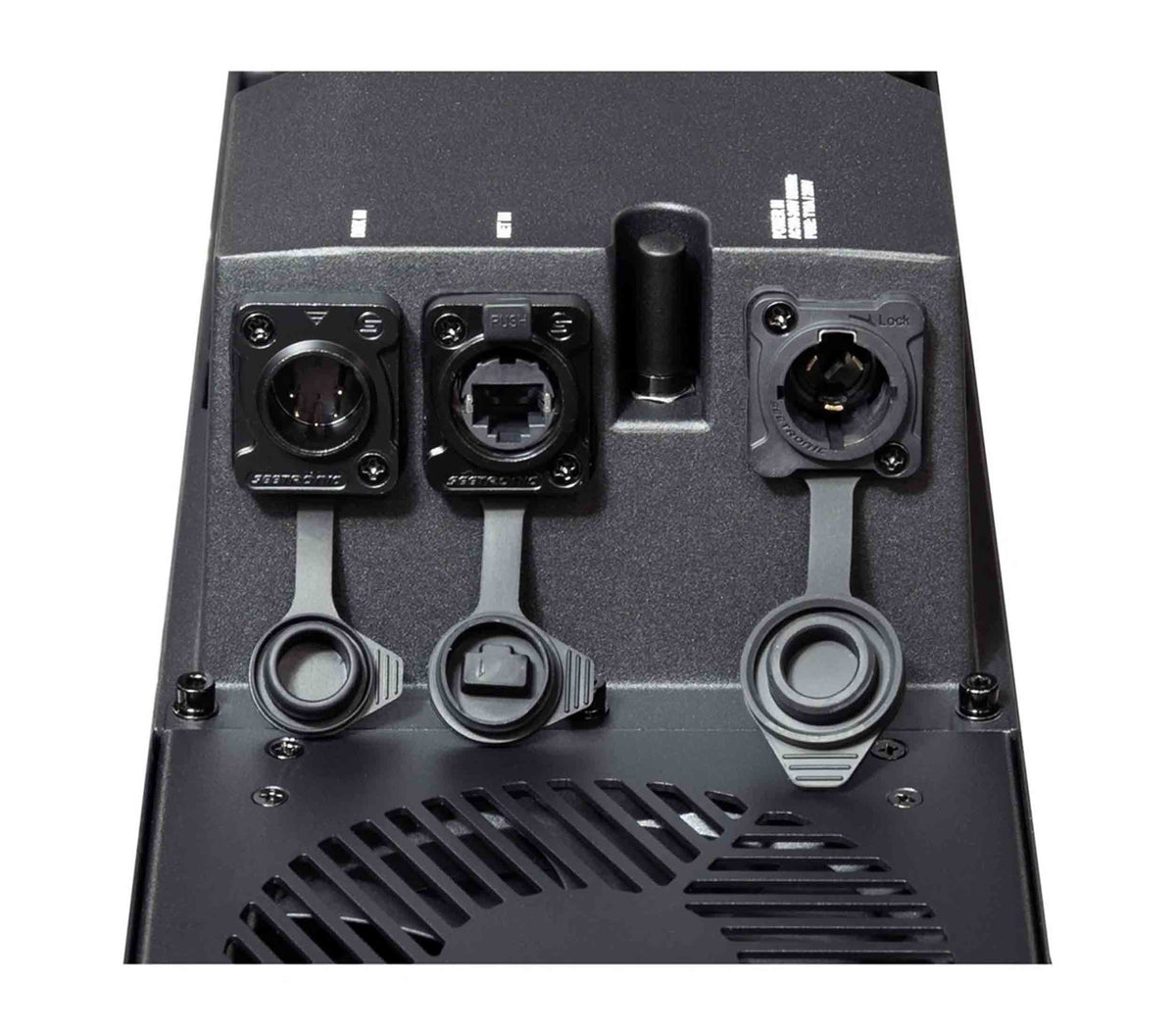

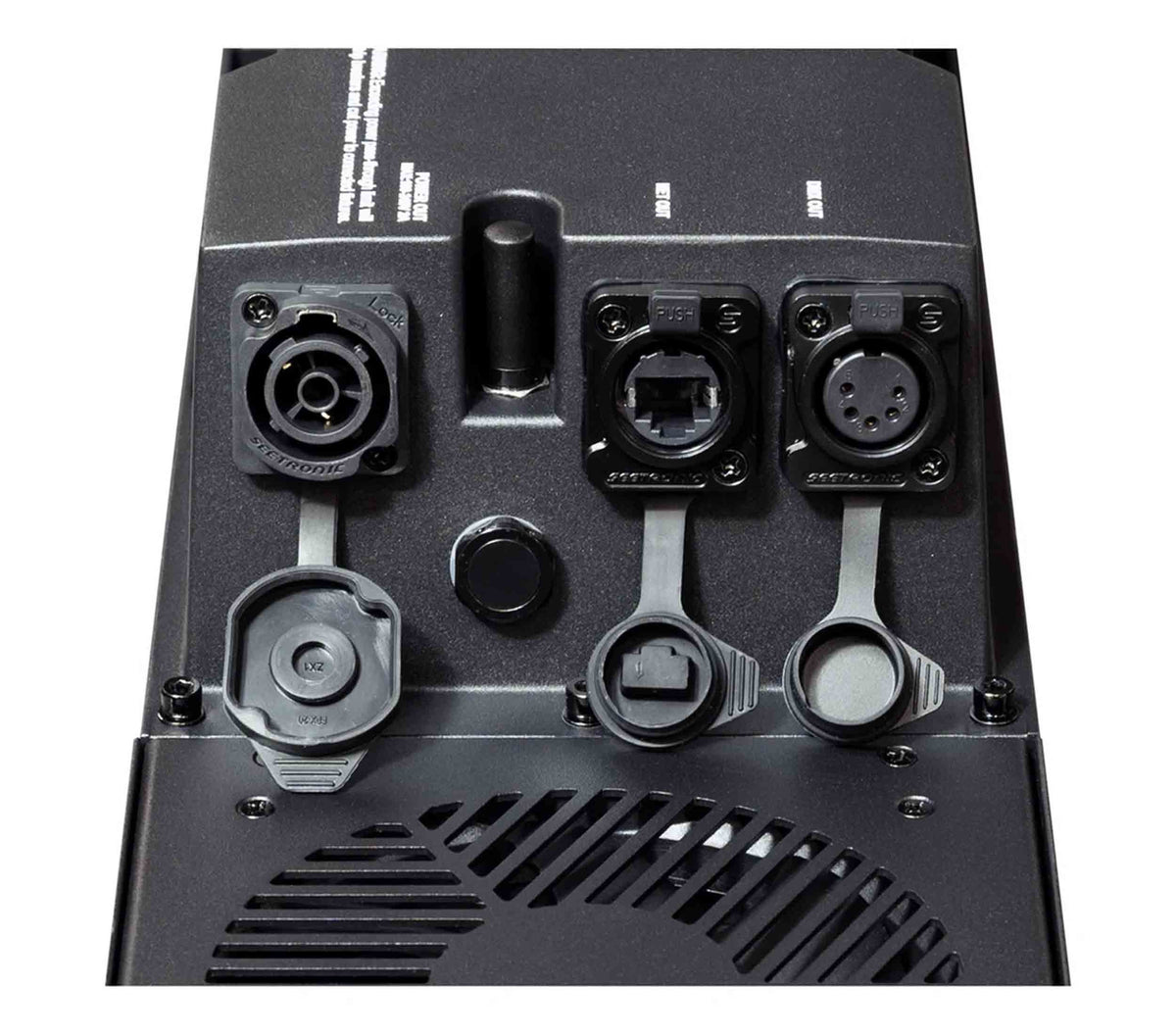

DMX Connection: IP65 5-pin XLR In/Out

Ethernet Connection: IP65 RJ45 In/Out

Power Connection: IP65 Locking Power Cable In/Out

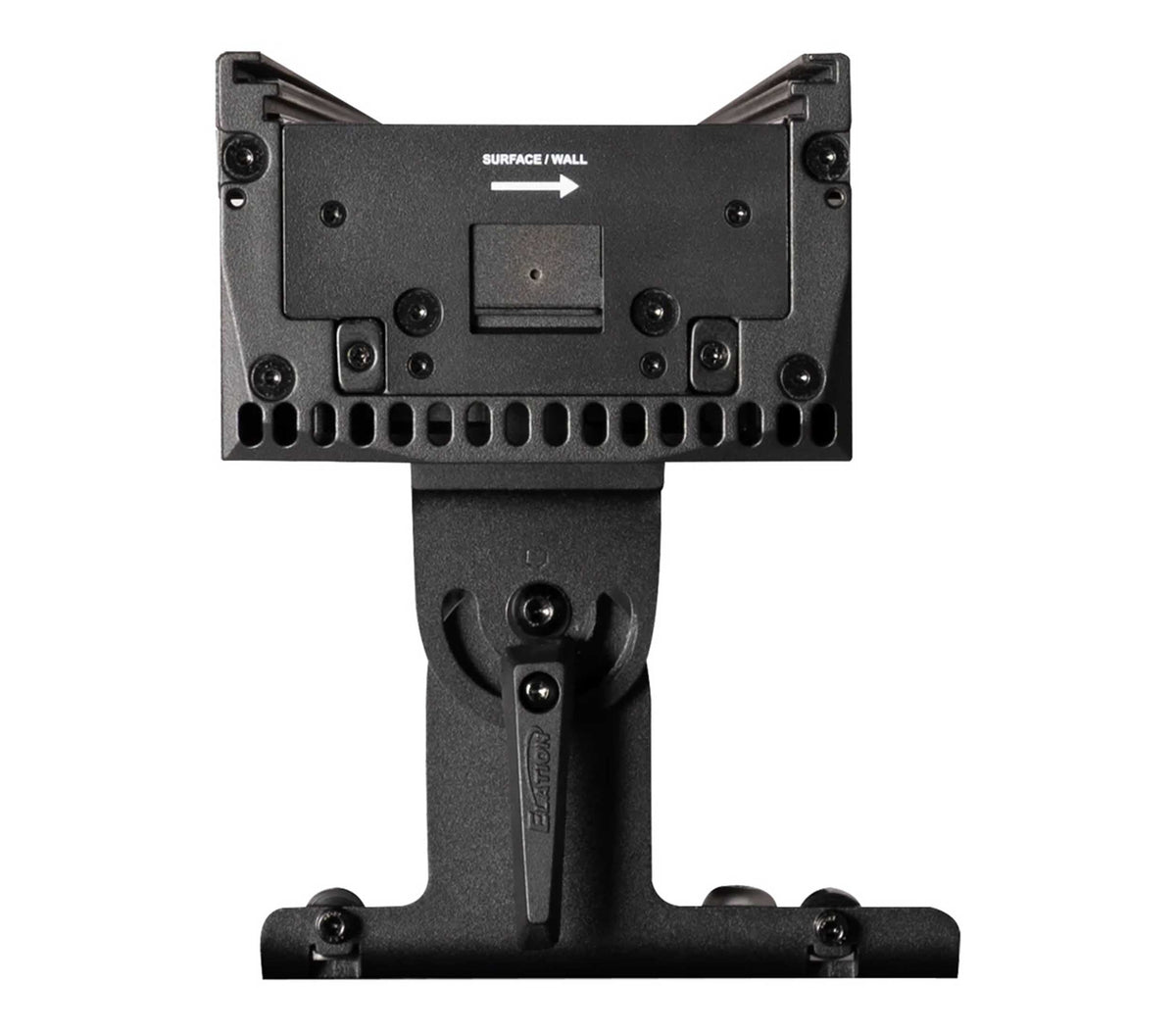

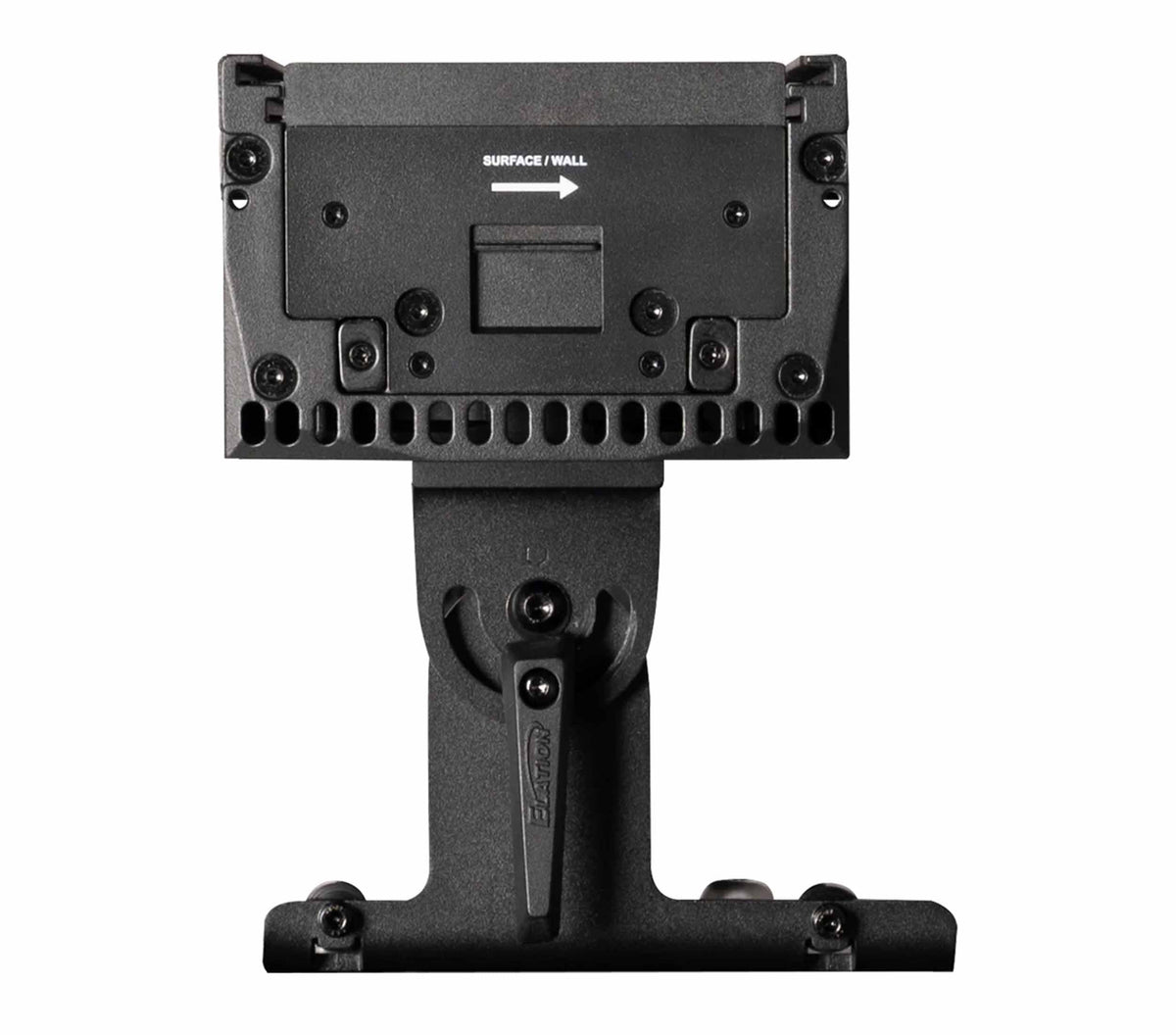

Mounting System: Integrated L-Track

Alignment System: End-to-End Magnetic Alignment

IP Rating: IP65

Input Voltage: AC 100-240V

Frequency: 50/60Hz

Maximum Power Consumption: 1200W

Power thru Capacity: 2A

Operating Temperature: -40°F to 131°F

Thermal Output: 4,092 BTU/hr ±10%

Vertical Height: 9.4"

Low-Clearance Height: 8.6"

Included Accessory: Glare Shield

Approvals: CE, cETLus, FCC, UKCA

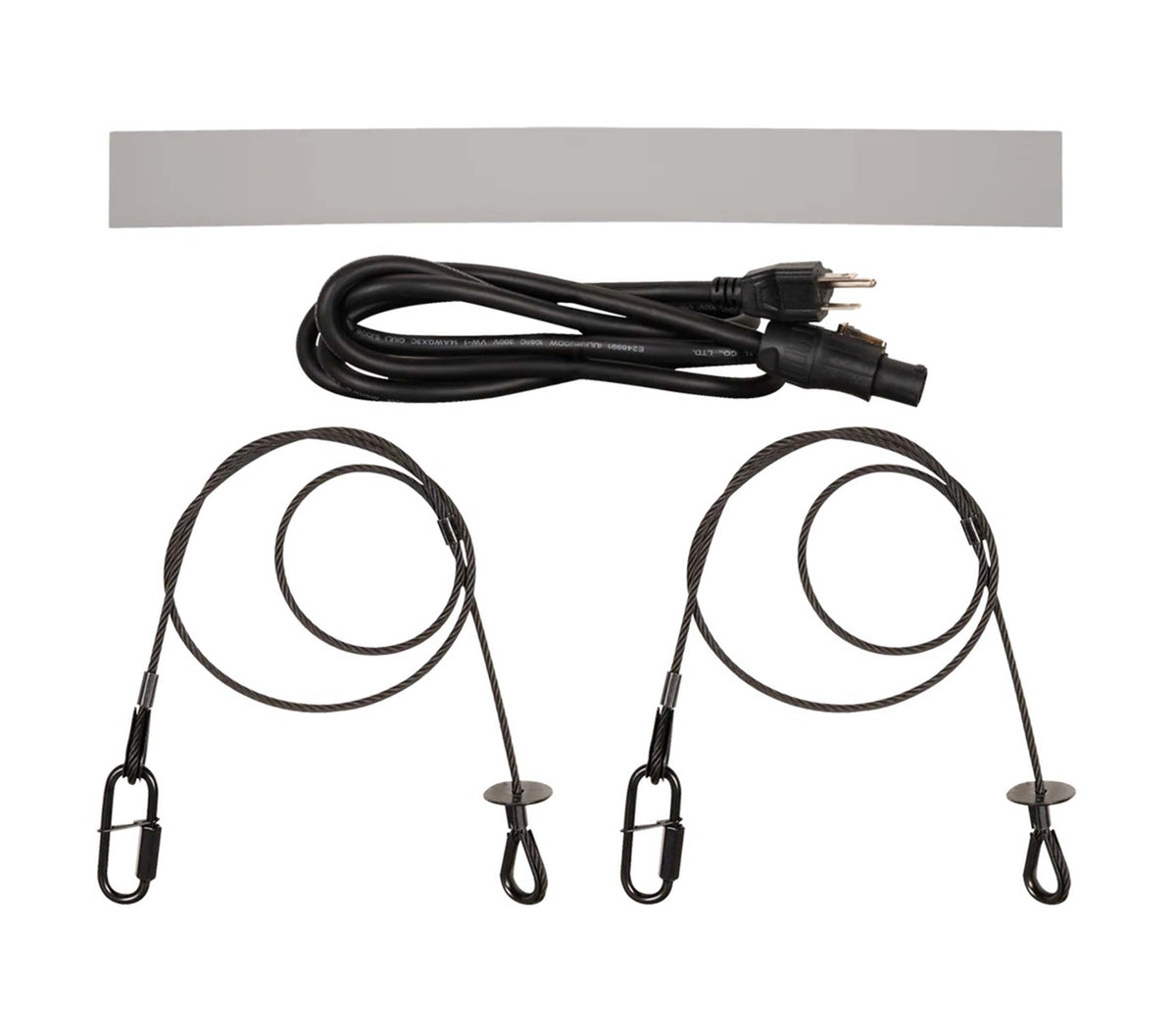

Included Accessory: 2 × Safety Cables

Included Accessory: Border Light Filter

Included Accessory: IP65 Locking Power Cable

Optional Accessory: 2 × Omega Brackets OB-107-90B

Optional Accessory: L-Track to M10 Adapter 70mm LTR001

Optional Accessory: L-Track to M10 Adapter 44.5mm LTR008

Optional Accessory: L-Track C-Clamp Adapter Assembly 70mm LTR100

Optional Accessory: L-Track C-Clamp Adapter Assembly 44.5mm LTR112

Product Weight: 60.4 lbs

Product Dimensions: 71.1" L × 7.2" W × 9.4" H

Shipping Weight: 62.4 lbs

Shipping Dimensions: 73.1" L × 9.2" W × 11.4" H
