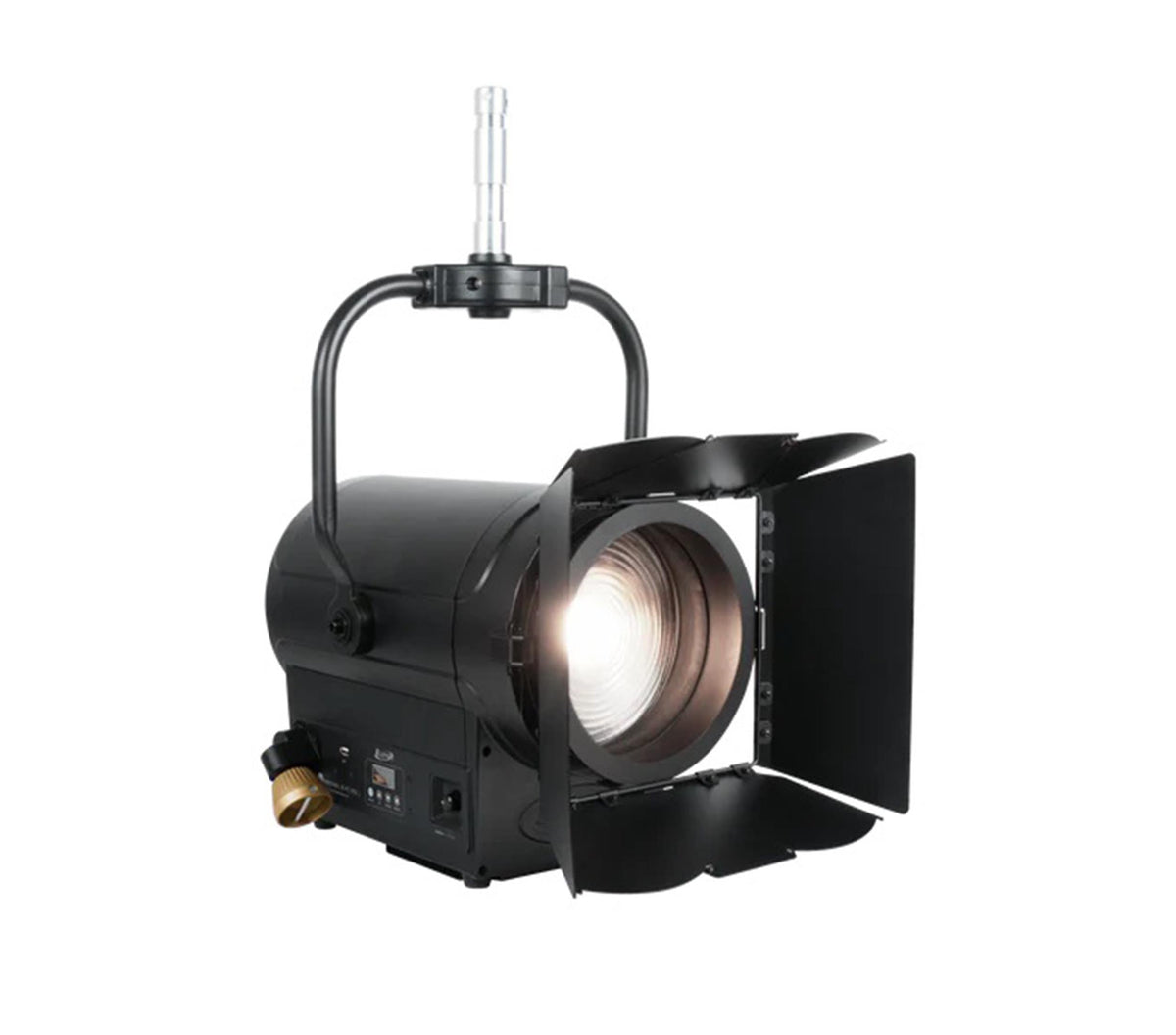

Elation Professional KL FRESNEL 6 CW PO 150W Cool White LED 6" Pole-Operated Fresnel with Zoom

The Elation Professional KLF074 KL FRESNEL 6 CW PO is a professional-grade 150W cool white LED Fresnel designed for demanding stage, broadcast, film, and production environments. Its 5,600K single-source LED engine delivers over 8,500 lumens with a high 97 CRI rating for bright, accurate, and consistent illumination.

A versatile 16°, 39° manual zoom range provides precise control over beam size, while the pole-operated design allows convenient pan, tilt, and zoom adjustments. Manual and DMX-controlled dimming and shutter functions, selectable 16-bit dimming modes and curves, and adjustable LED refresh frequency provide extensive control for professional lighting applications.

The KL FRESNEL 6 CW PO includes 8-leaf rotating barn doors and a gel frame holder for additional beam shaping and light control. Its 3-position adjustable mounting yoke, RDM support, 3/5-pin DMX connections, IP65 locking power connections, and universal 100-240V power supply make it a flexible solution for both permanent installations and production environments.

Product Specifications:

Product Type: LED Fresnel Luminaire

Light Source: 150W Cool White LED

Color Temperature: 5,600K

Average LED Life: 50,000 Hours

Total Lumen Output: 8,500+ Lumens

Minimum Zoom Illuminance: 9,269 Lux / 861 FC @ 9.8 ft (3 m)

Maximum Zoom Illuminance: 2,334 Lux / 217 FC @ 9.8 ft (3 m)

Zoom Range: 16°, 39°

Beam Angle: 16.1°, 38°

Field Angle: 39.1°, 53.9°

Zoom Control: Manual

Dimming: Electronic

Dimming Control: Manual & DMX

Shutter Control: Manual & DMX

Dimming Resolution: 16-bit

Dimming Modes: Variable

Dimming Curves: Variable

Dimming Delays: Variable

Strobe: Electronic

Refresh Frequency: Adjustable

Flicker-Free Operation: Yes

DMX Channel Modes: 1 / 2 / 3 / 4 / 5

Control Protocol: DMX / RDM

Control Panel: 4-Button

Display: LCD Menu Display

DMX Connections: 3-Pin & 5-Pin

Power Connections: IP65 Locking Power In/Out

Power Supply: Universal Auto-Switching

Input Voltage: 100-240V AC

Frequency: 50/60 Hz

Maximum Power Consumption: 180W

Power Linking: 6 Units @ 110V / 14 Units @ 240V

Operating Temperature: 5°F, 113°F (-15°C, 45°C)

Mounting Yoke: 3-Position Adjustable

Operation: Pole-Operated Pan, Tilt & Zoom

Barn Doors: 8-Leaf Rotating

Gel Frame: Included

LED Operation: Silent

Approvals: CE / cETLus

IP Rating: IP30

Product Weight: 18.5 lbs

Product Dimensions: 13.5" L × 10.75" W × 15.47" H

Shipping Weight: 20.5 lbs

Shipping Dimensions: 15.5" L × 12.75" W × 17.47" H
