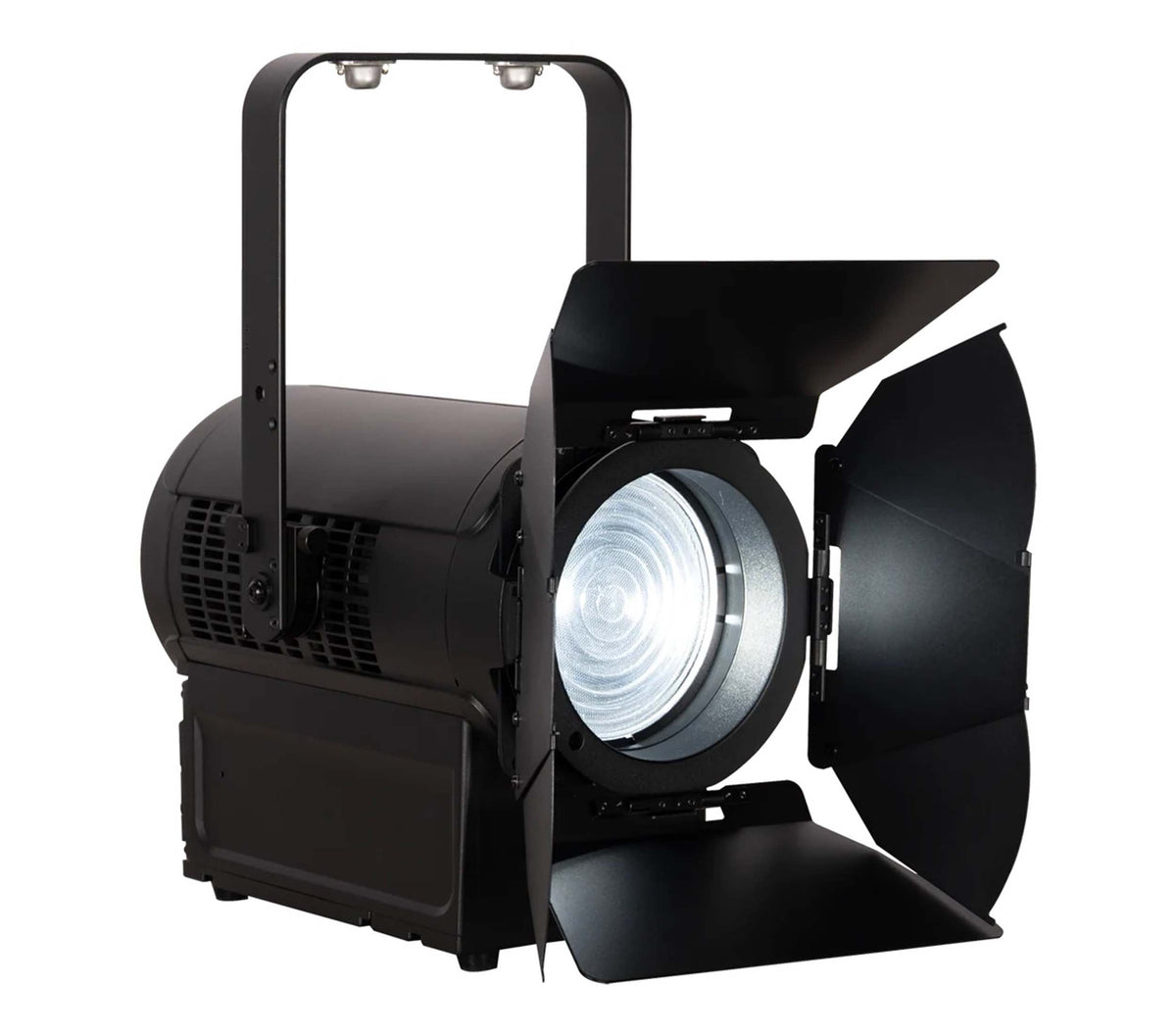

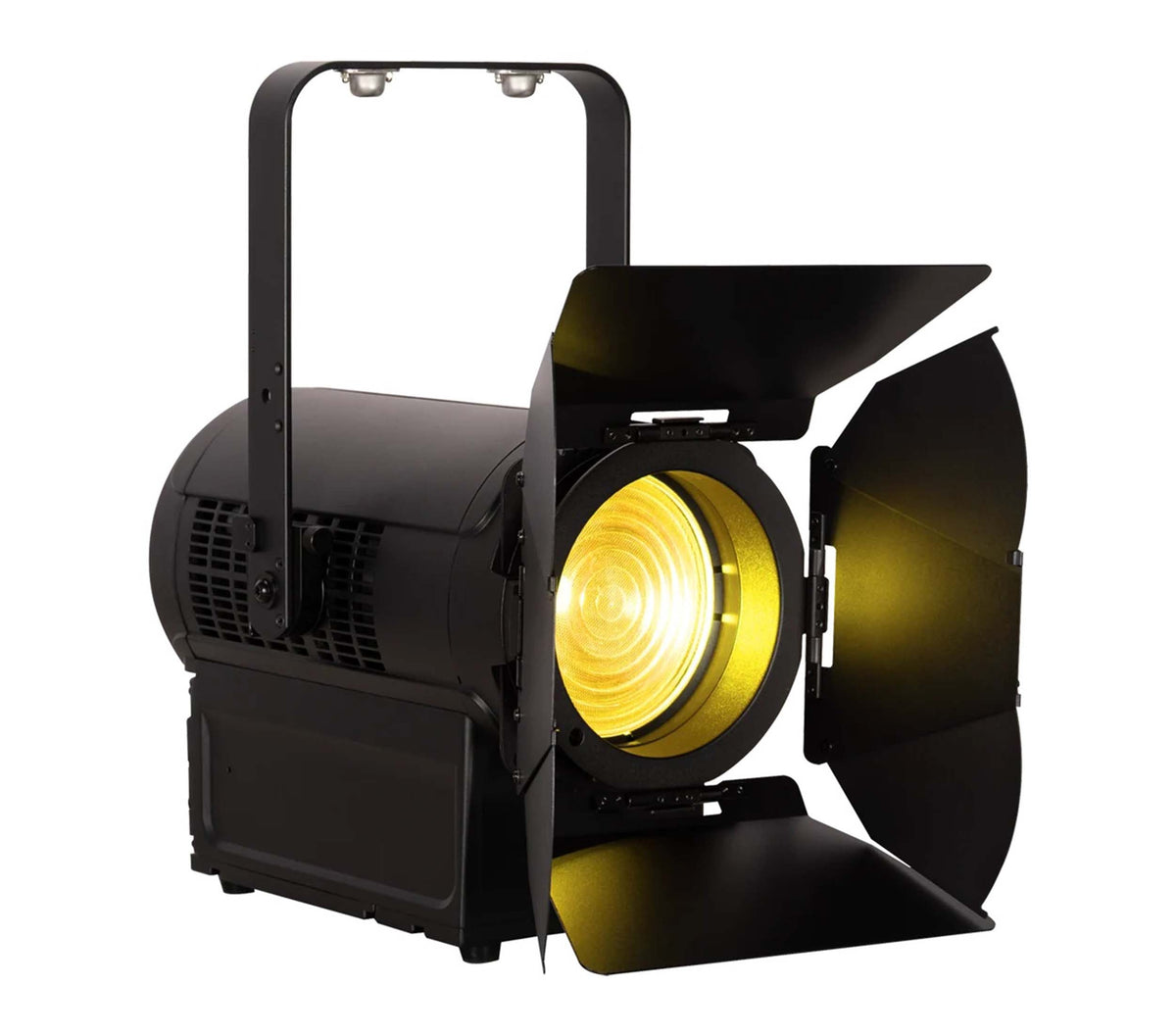

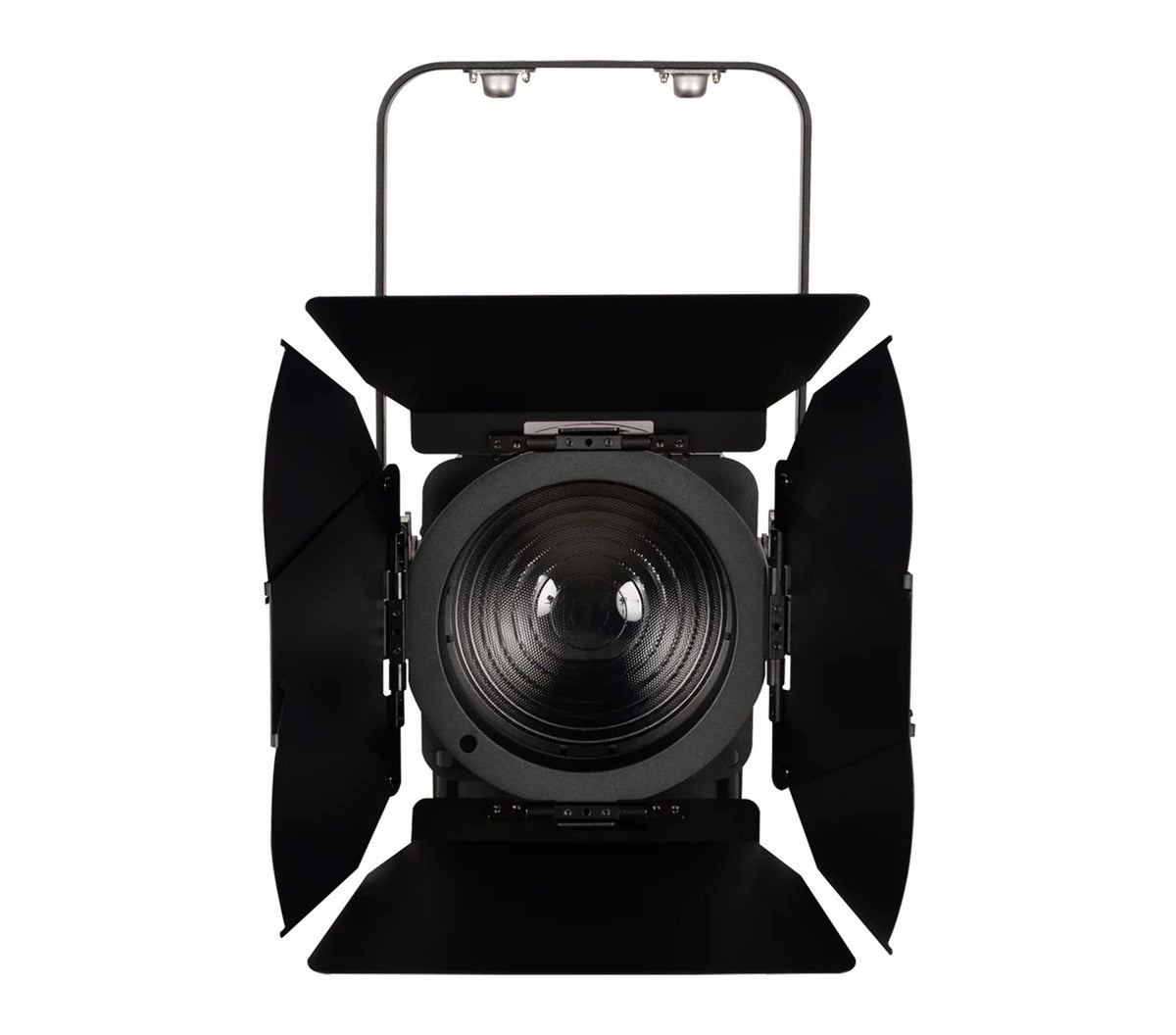

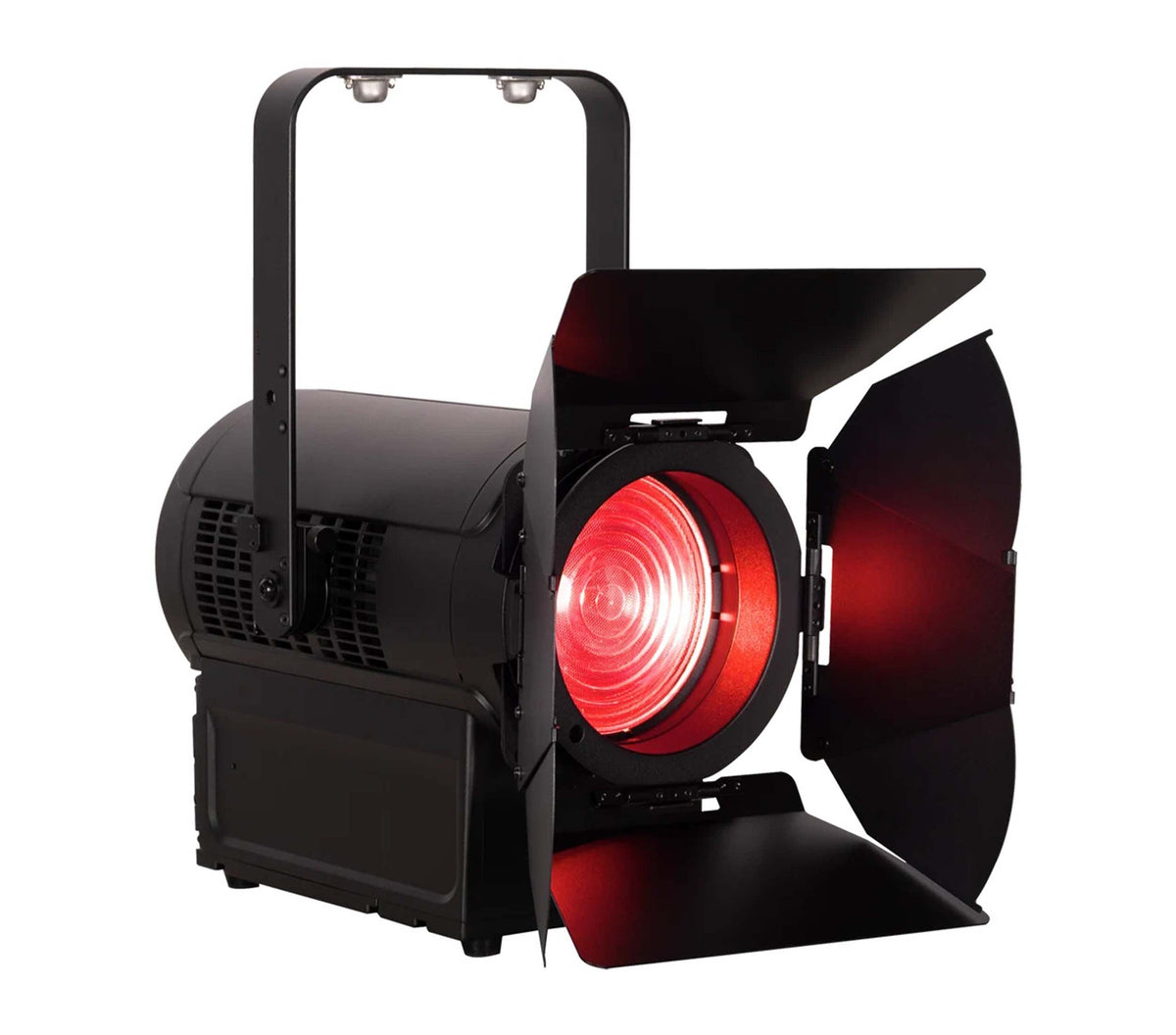

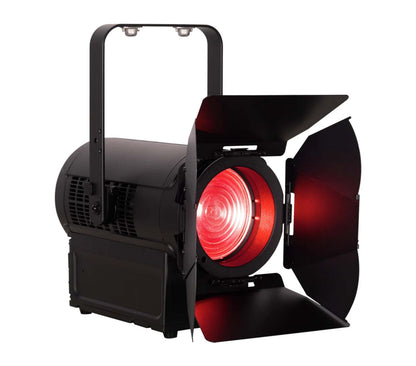

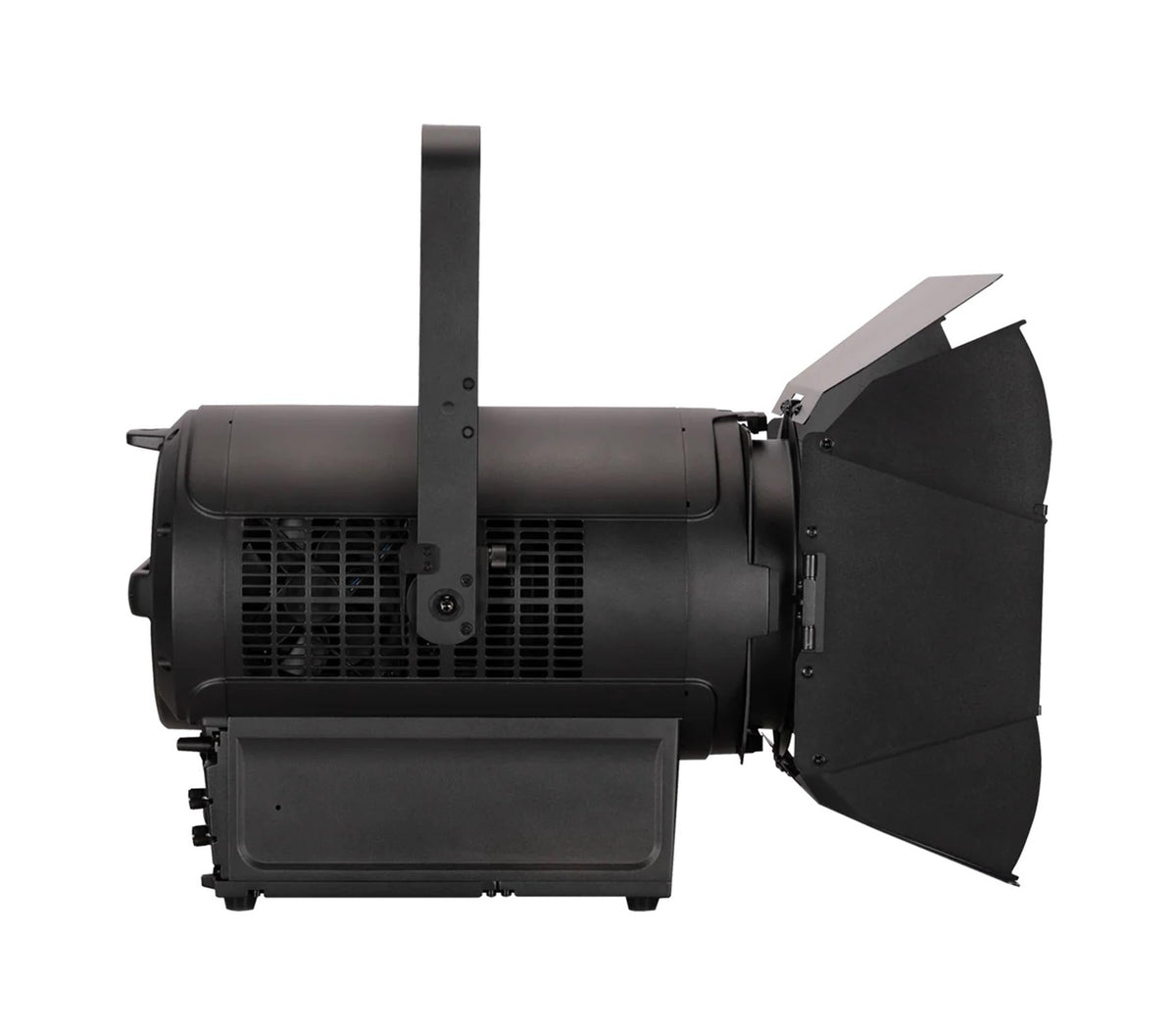

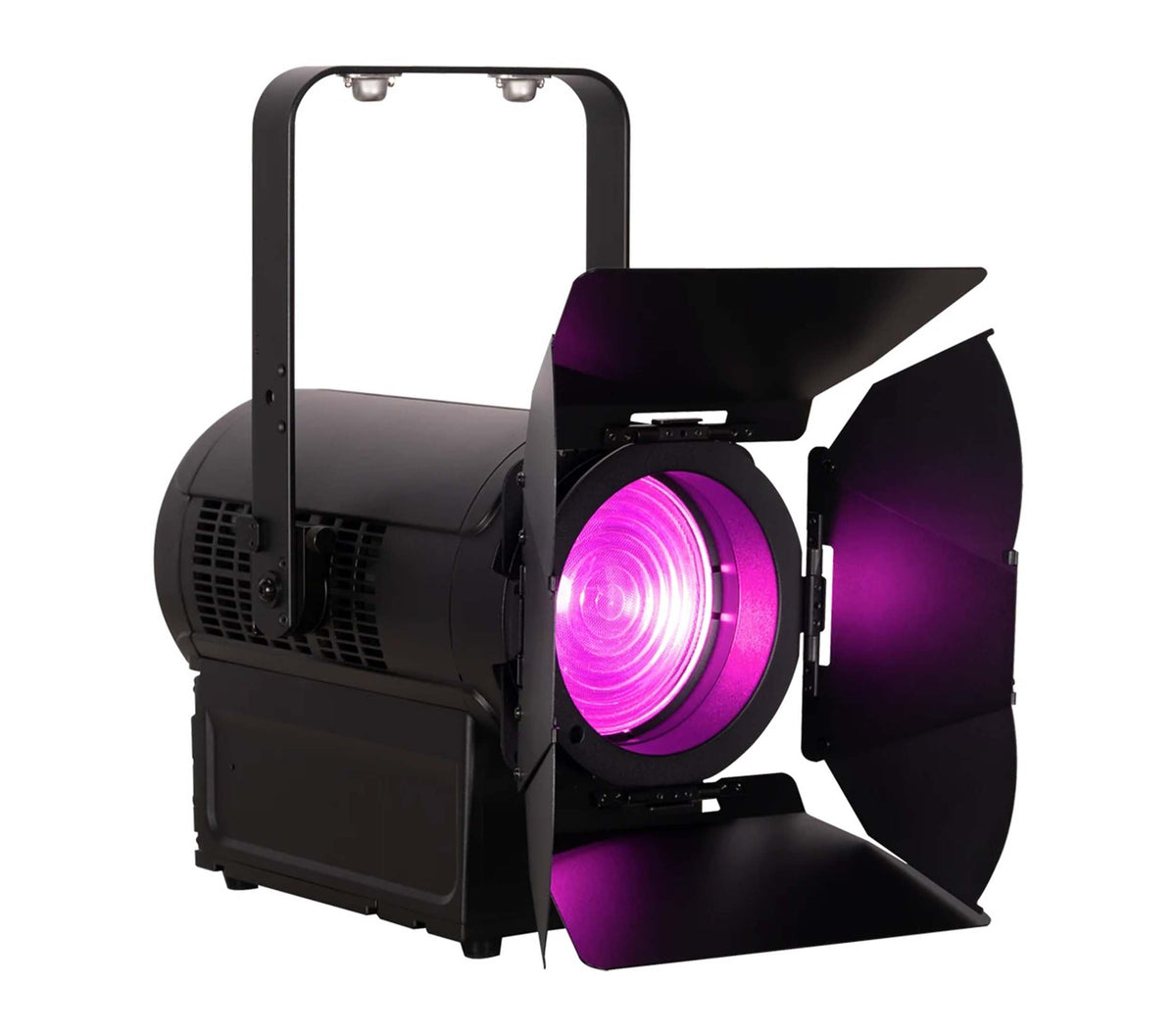

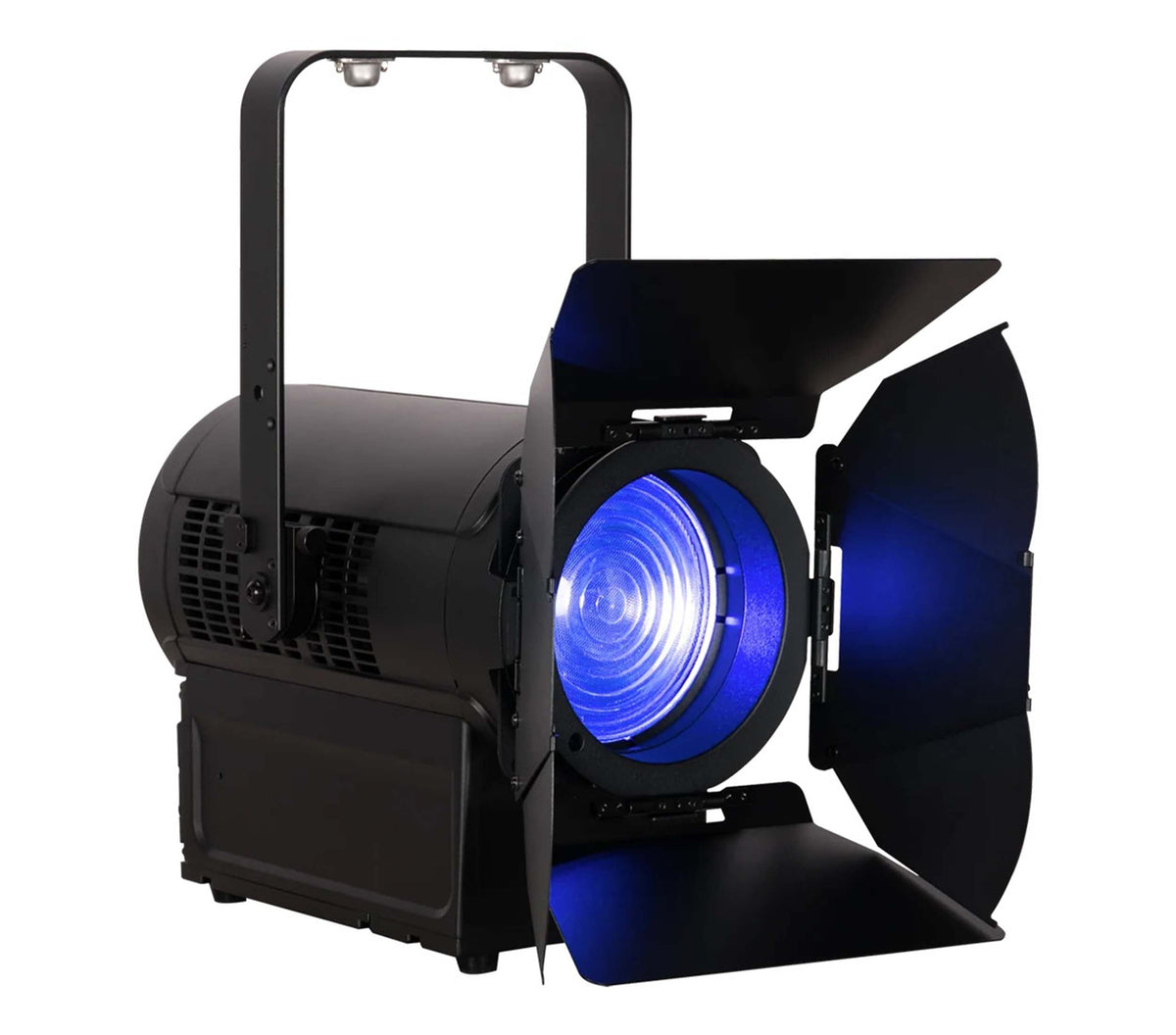

Elation Professional KL FRESNEL 6 IP 250W RGBMA LED 6" with Motorized 8°-60° Zoom

The Elation Professional KLF913 KL FRESNEL 6 IP delivers professional Fresnel performance in a compact, weather-ready 6-inch design. Its 250W 6000K RGBMA LED engine produces 7,400 total fixture lumens with 94 CRI and 95 TLCI, providing balanced, full-spectrum illumination with natural skin tones and accurate color reproduction for demanding stage, studio, film, and television applications.

Motorized Zoom & Classic Fresnel Character

A wide 8°, 60° motorized zoom range provides precise control over beam coverage, from concentrated illumination to broad washes. The source-moving zoom mechanism maintains the familiar optical behavior of a traditional Fresnel, producing a smooth and natural falloff that gives lighting designers consistent control in both focused and wide-angle applications.

Advanced Color & Effects Control

The RGBMA color array provides extensive creative control, including fully variable 16-bit CCT adjustment from 2400K to 8500K, green/magenta shift, CMY emulation, x/y control, and a virtual gel swatch book. Additional effects include a variable 1-20 Hz strobe, dim-to-warm/red-shift emulation, variable 16-bit dimming modes and curves, and DMX-controllable LED refresh rates from 900 Hz to 25 kHz for flicker-conscious broadcast and camera applications.

Smart Wireless & Local Operation

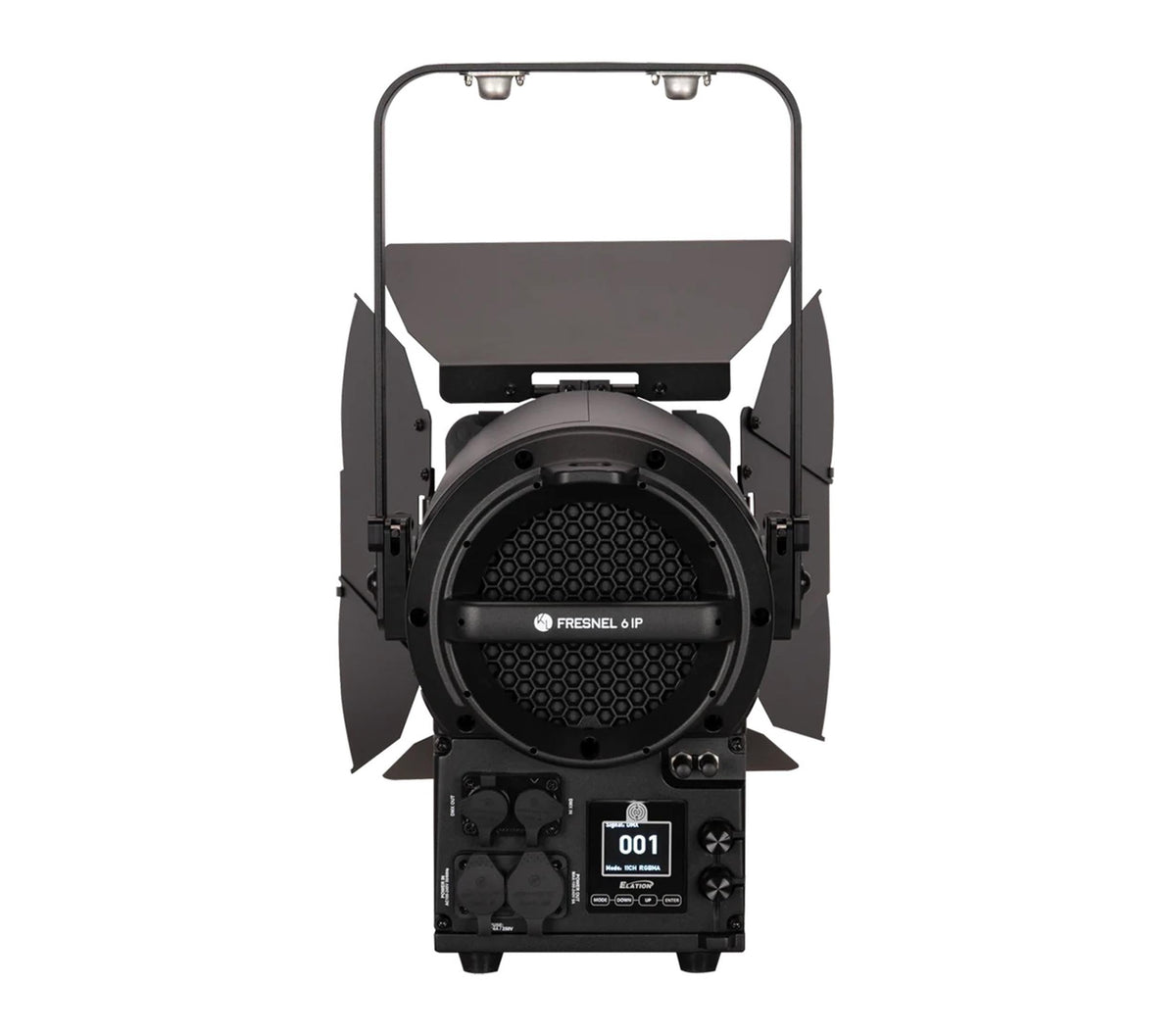

The KL FRESNEL 6 IP is designed for efficient setup and programming with NFC configuration, Aria x2 wireless device management, RDM, and nine selectable DMX channel modes. A full-color 180° reversible LCD menu display with dual rotary encoders provides intuitive local control, while four selectable DMX-controllable fan modes allow users to prioritize cooling performance or quieter operation depending on the environment.

Weather-Ready Professional Construction

Built for demanding production environments, the KLF913 features an IP65-rated housing designed for reliable operation in indoor and outdoor applications. The fixture supports AC 100-240V operation, offers 268W maximum power consumption, and includes IP65 5-pin DMX and locking power connections. A gel frame, safety cable, 8-leaf barndoor, and IP65 locking power cable are included, providing a ready-to-use solution for professional lighting setups.

Product Specifications:

Product Type: LED Fresnel Luminaire

Fixture Series: KL FRESNEL 6 IP

Lens Size: 6"

Light Source: 250W RGBMA LED Engine

LED Color Temperature: 6000K

LED Type: RGBMA

Average LED Life: 50,000 Hours

Total Lumen Output: 7,400 Lumens

Photometric Measurement: Integrating Sphere

Zoom Type: Motorized

Zoom Range: 8°, 60°

Beam Angle: 7.5°, 42°

Field Angle: 12°, 60°

Strobe Rate: 1-20 Hz

Dimming: Variable 16-bit

Dimming Modes: Variable

Dimming Curves: Variable

Color Control: RGBMA

Color Control: CMY Emulation

Color Control: x/y Control

CCT Range: 2400K, 8500K

CCT Adjustment: 16-bit Fully Variable

Green/Magenta Shift: Yes

Virtual Gel Swatch Book: Yes

Dim-to-Warm: Yes

Red Shift Emulation: Yes

LED Refresh Rate: 900 Hz, 25 kHz

Refresh Rate Control: DMX Controllable

DMX Channel Modes: 9

DMX Modes: 1 / 5 / 7 / 11 / 12 / 20 / 10 / 16 / 14

Manual Control: Yes

DMX Control: Yes

Fan Modes: 4 Selectable

Fan Control: DMX Controllable

Local Controls: Dual Rotary Encoders

Display: Full-Color 180° Reversible LCD

RDM: Supported

Wireless Management: Aria x2

NFC Configuration: Supported

DMX Connection: IP65 5-Pin DMX In/Out

Power Connection: IP65 Locking Power In/Out

Input Voltage: AC 100-240V

Frequency: 50/60 Hz

Maximum Power Consumption: 268W

Power Thru Capacity: 4A

Power Thru @ 115V: 1 Unit

Power Thru @ 240V: 3 Units

BTU/hr: 913.8 ±10%

Operating Temperature: 5°F, 113°F (-15°C, 45°C)

Housing Rating: IP65

Length: 15.9"

Length with Yoke at 0°: 19.5"

Width: 10.1"

Fixture Body Height: 11.9"

Height with Yoke at 90°: 19.6"

Included Gel Frame: Yes

Included Safety Cable: Yes

Included Barndoor: 8-Leaf

Included Power Cable: IP65 Locking Power Cable

Optional Accessory: Omega Bracket

Approvals: CE / cETLus / FCC / UKCA

IP Rating: IP65

Product Weight: 25.1 lbs

Product Dimensions: 19.5" L × 10.1" W × 19.6" H

Shipping Weight: 27.1 lbs

Shipping Dimensions: 21.5" L × 12.1" W × 21.6" H
