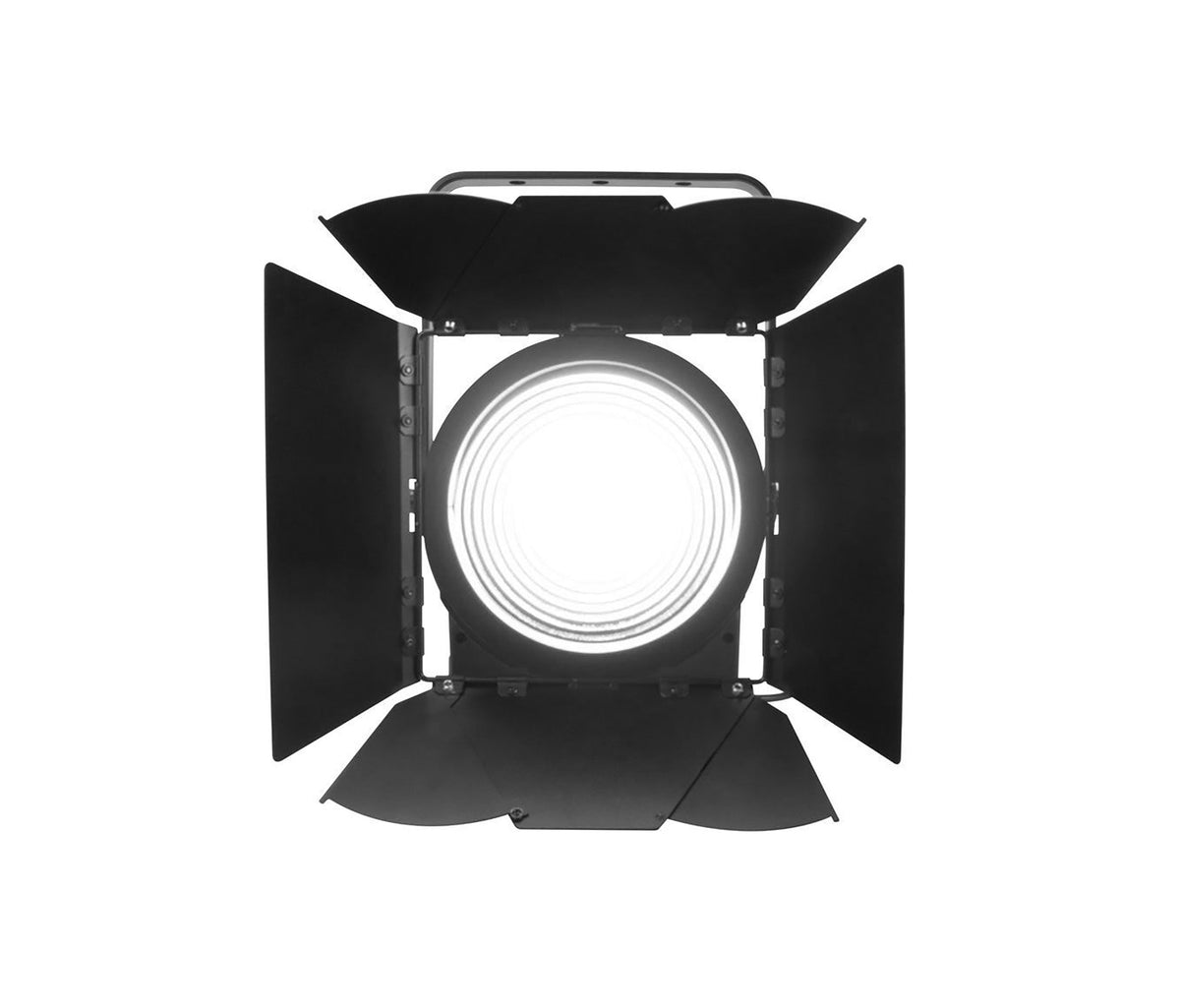

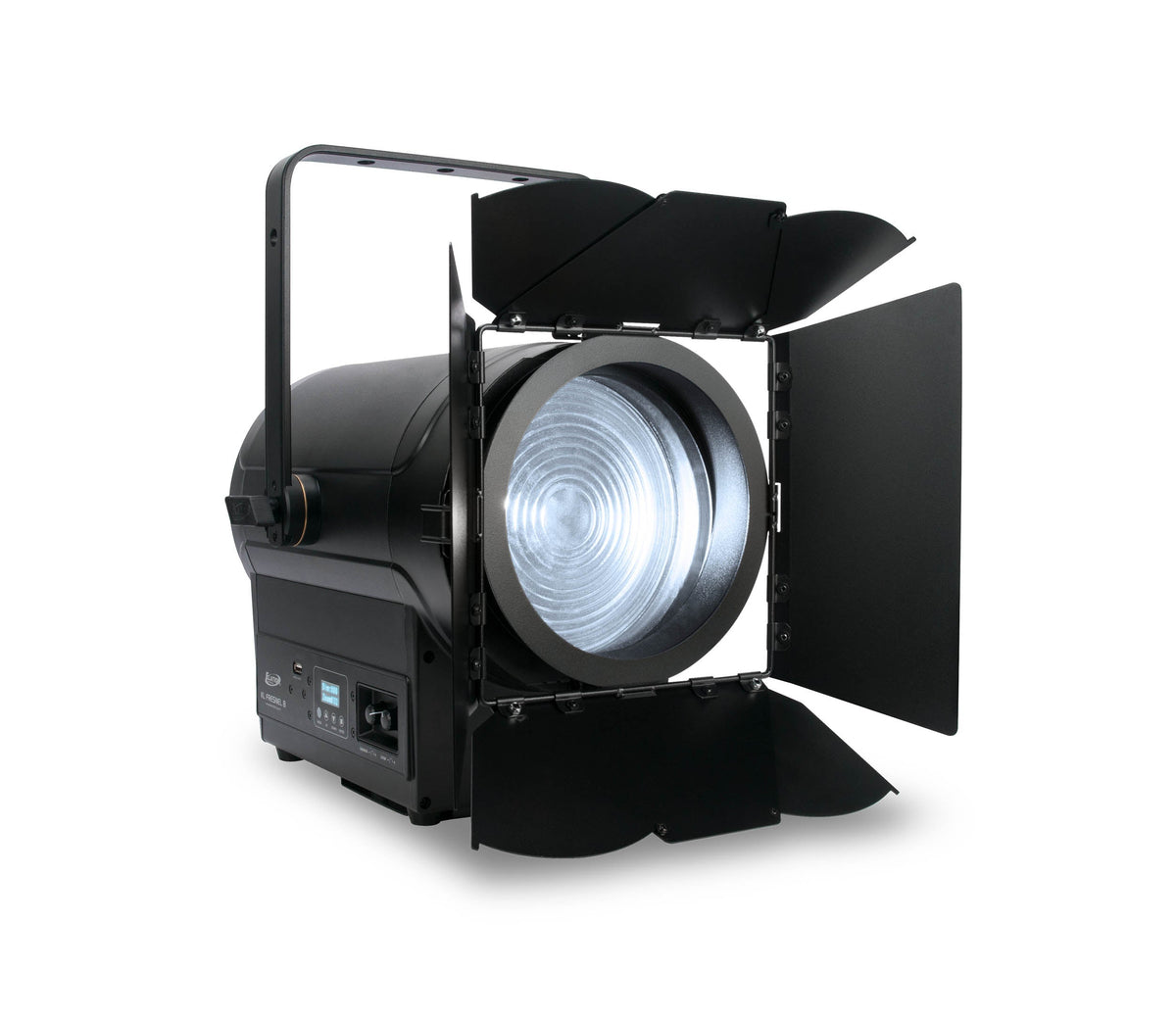

The Elation Professional KLF036, KL Fresnel 8 CW Daylight LED Light is a 350W, cool white LED fixture with a 97+ CRI rating. It produces an output of 14,000 total lumens and offers both manual and DMX control plus an 11° to 56° wide motorized zoom, a manual and DMX controlled dimmer, as well as shutter, zoom, and dimmer rotary dials. The light also features smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker-free operation, removable rotating barndoors, Remote Device Management protocol support, 3/5 pin DMX and IP65 locking power cable in/out connections, a four-button control panel, an LCD menu display, multiple unit power linking, a universal auto switching power supply, and a gel frame.
Product Specifications:
Item Type: 1x LED Fresnel
Included Light Modifier: 1x Barndoors
Included Storage Case: No
Lumens: 14000
Photometrics:
11° at 5600K:
14,014 fc / 150,858 Lux at 3.3' / 1 m
1557 fc / 16,762 Lux at 9.8' / 3 m
560 fc / 6034 Lux at 16.4' / 5 m
56° at 5600K:
1222 fc / 13,160 Lux at 3.3' / 1 m
135 fc / 1462 Lux at 9.8' / 3 m
48 fc / 526 Lux at 16.4' / 5 m"
Color Temperature: 5600K
Color Modes: Daylight
Color Accuracy Standard: CRI 97
Dimming:
Built-In Dimmer (Continuous)
0 to 100%
Cooling System: Fan
Expected Lamp Life: 50,000 Hours
Beam Angle: 11 to 57°
Built-In Flash: No
Preprogrammed Effects: No
Umbrella Mount: No
Front Accessory Mount: Proprietary
Lens:
Lens Type: Fresnel
Power & I/O:
Power Source: AC Power (Cable Included)

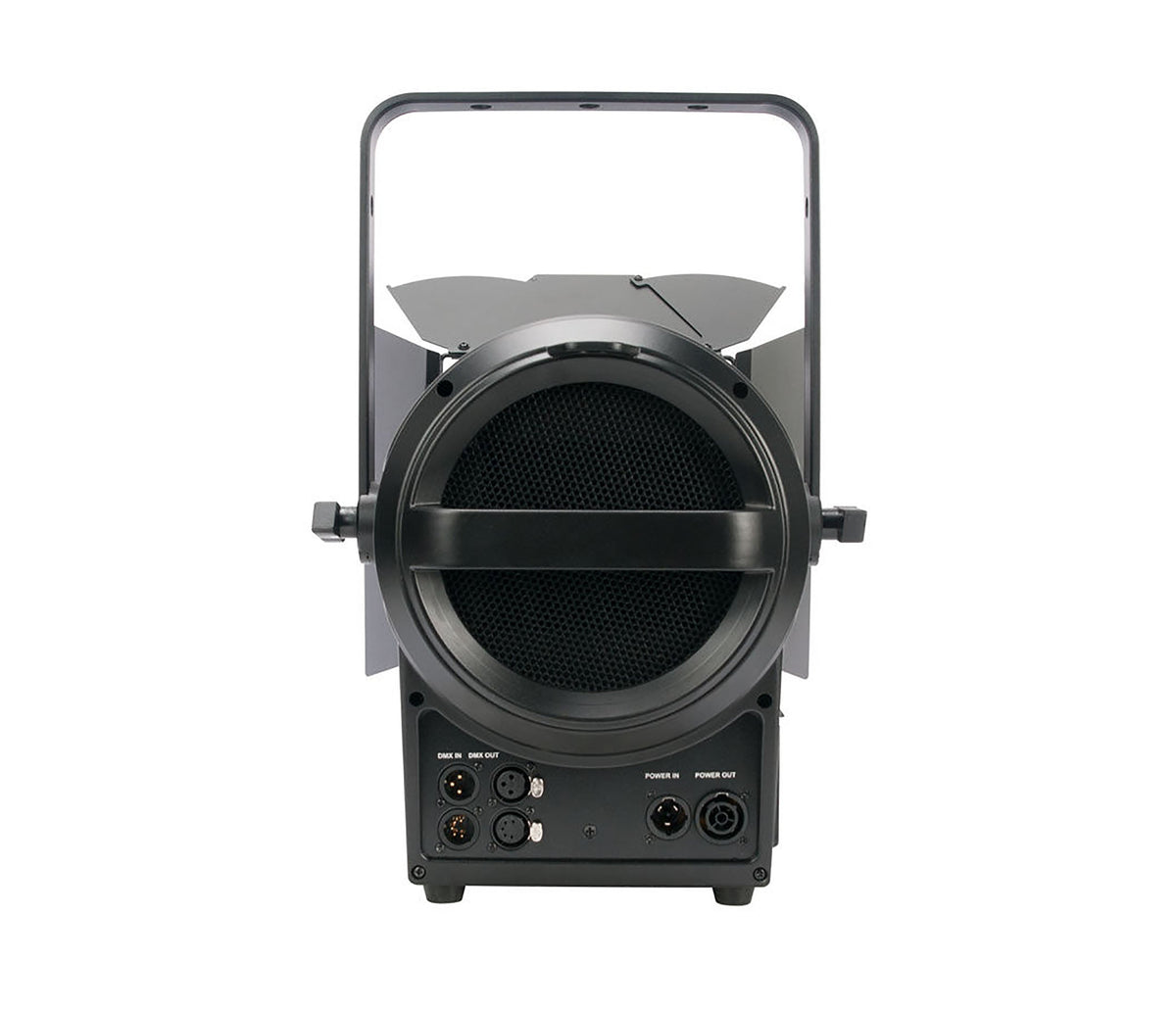

Inputs/Outputs:
1x powerCON TRUE1 AC Power Input
1x powerCON TRUE1 AC Power Output
1x XLR 5-Pin Male DMX Input
1x XLR 5-Pin Female DMX Output
1x XLR 3-Pin DMX Input
1x XLR 3-Pin DMX Output
Input Power: 100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable: 1x USA Type-A/B to powerCON TRUE1 Cable
Inline Switch: No
Power Pass-Thru: Yes
Power Consumption: 450 W (Maximum)
Mounting:
Yoke Type: Manually-Operated Yoke
Fixture Mounting: 1x Unthreaded Hole
General:

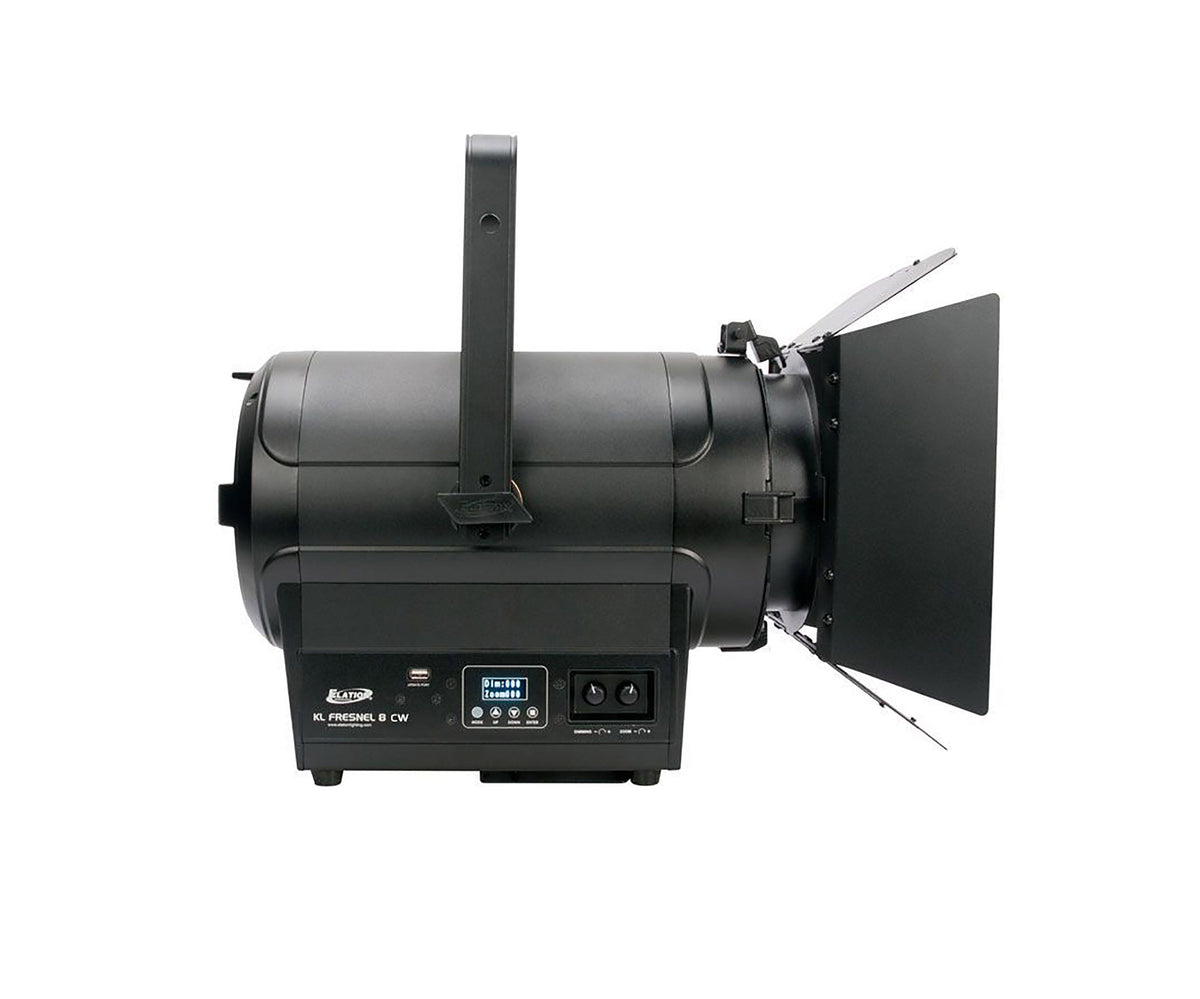

Display: LCD
Environmental Resistance: Dust-Resistant (IP30)
Operating Conditions: 5 to 113°F / -15 to 45°C
Certifications:
CE
cETLus
Dimensions: 17.95 x 17.5 x 12.89" / 45.59 x 44.5 x 32.74 cm
Weight: 28 lbs. / 12.7 kg
