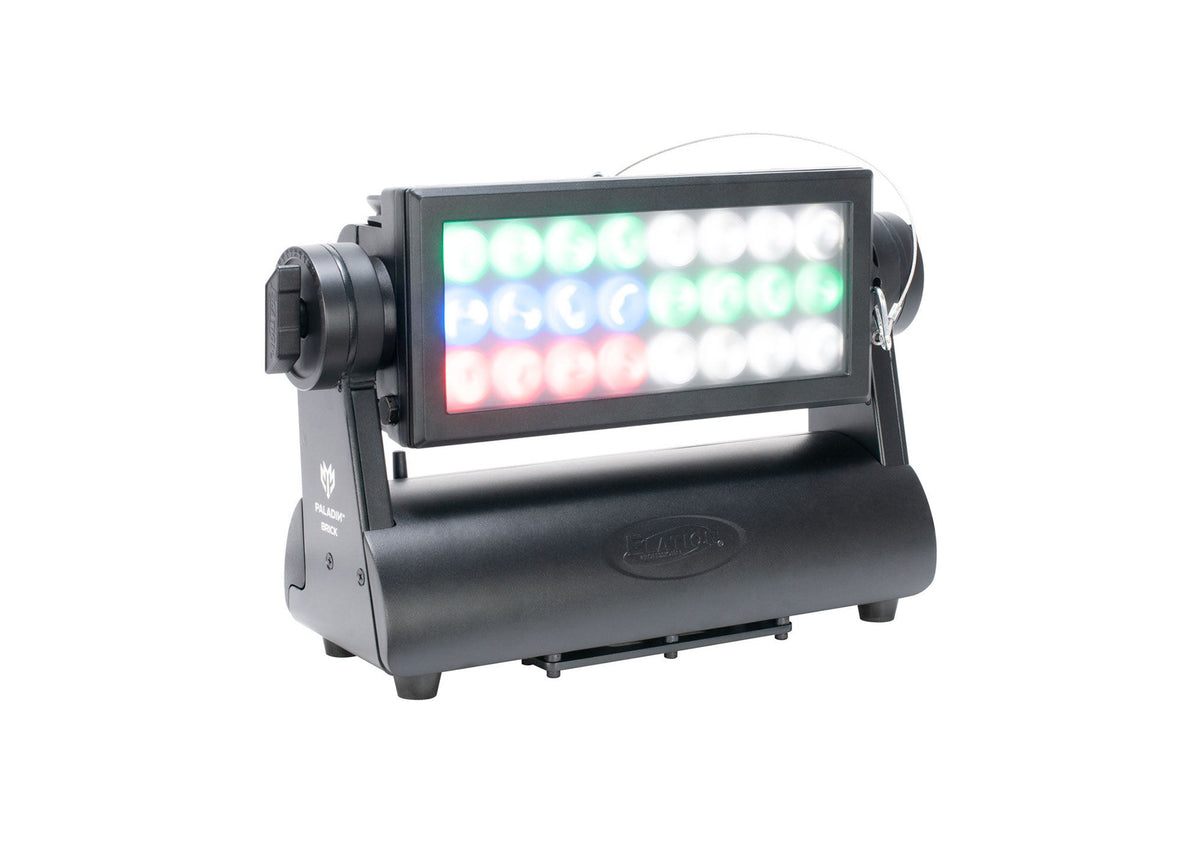

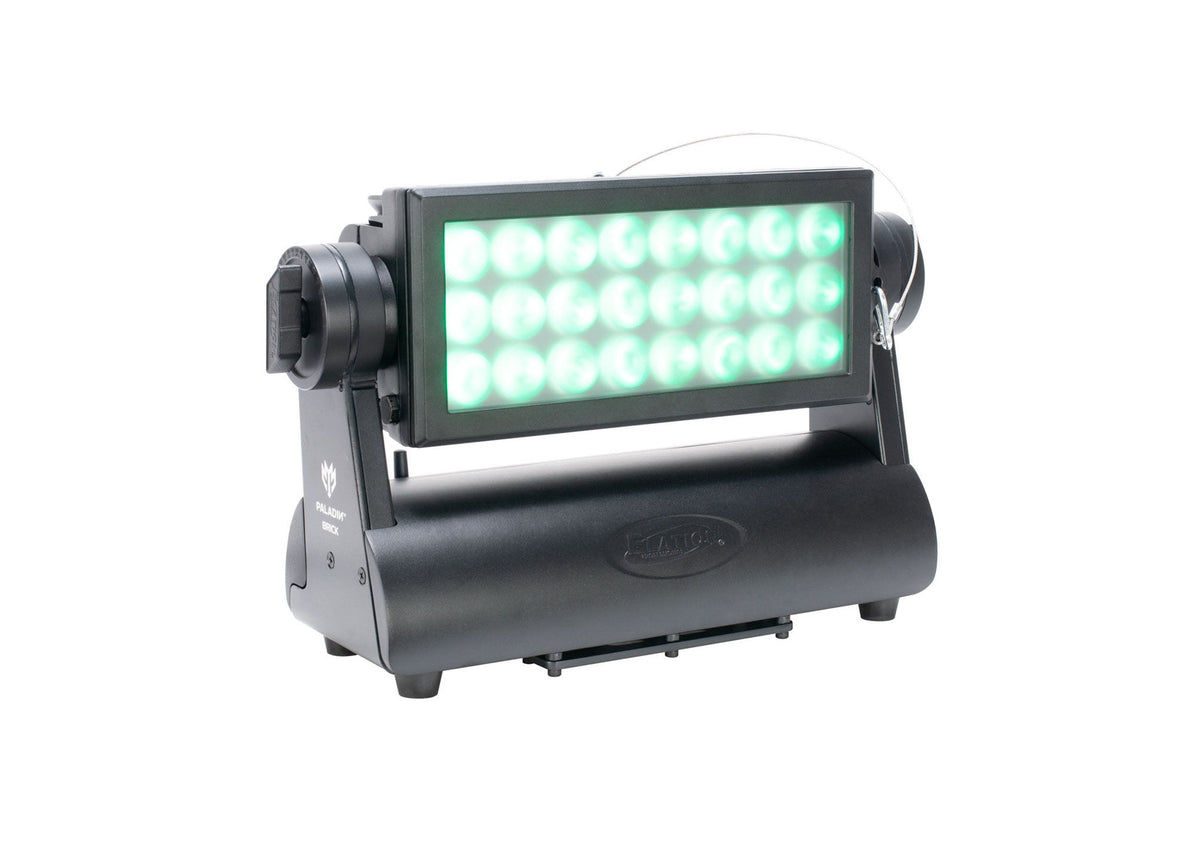

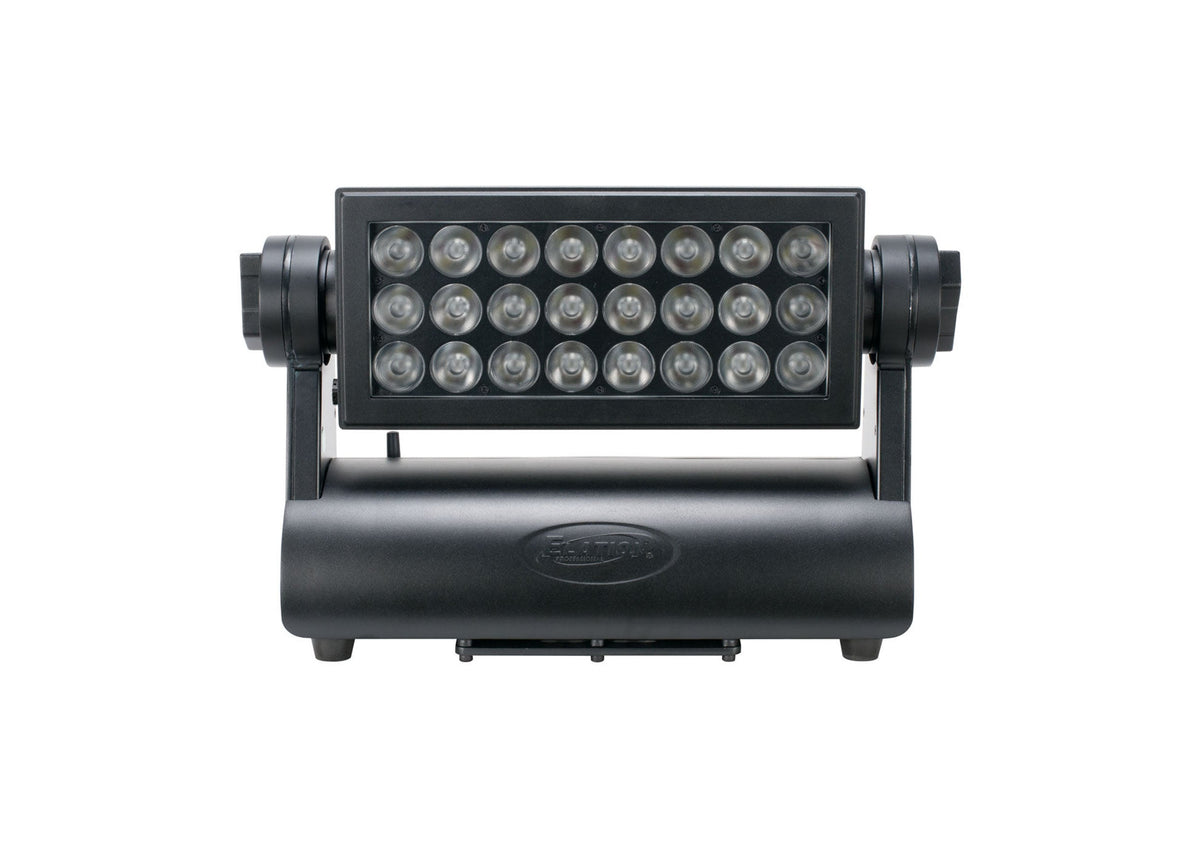

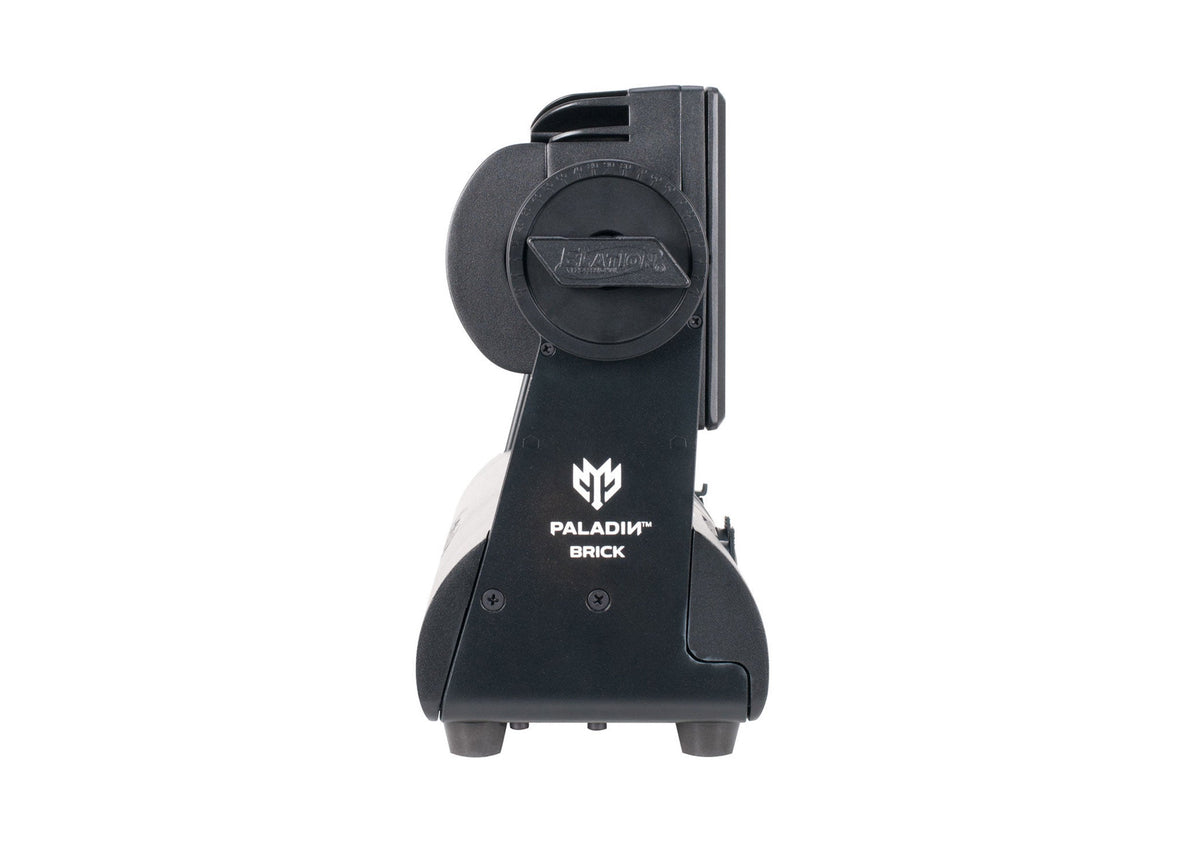

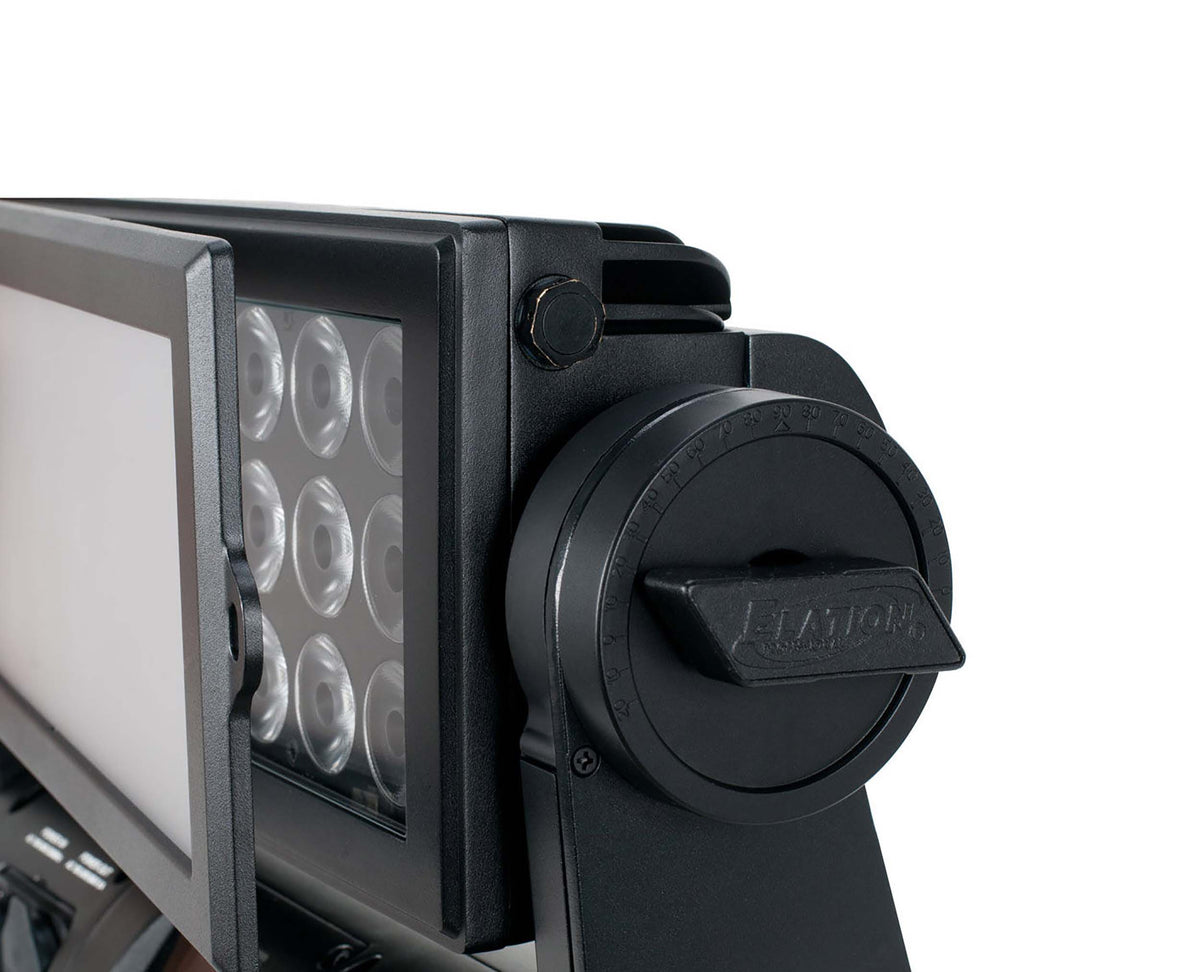

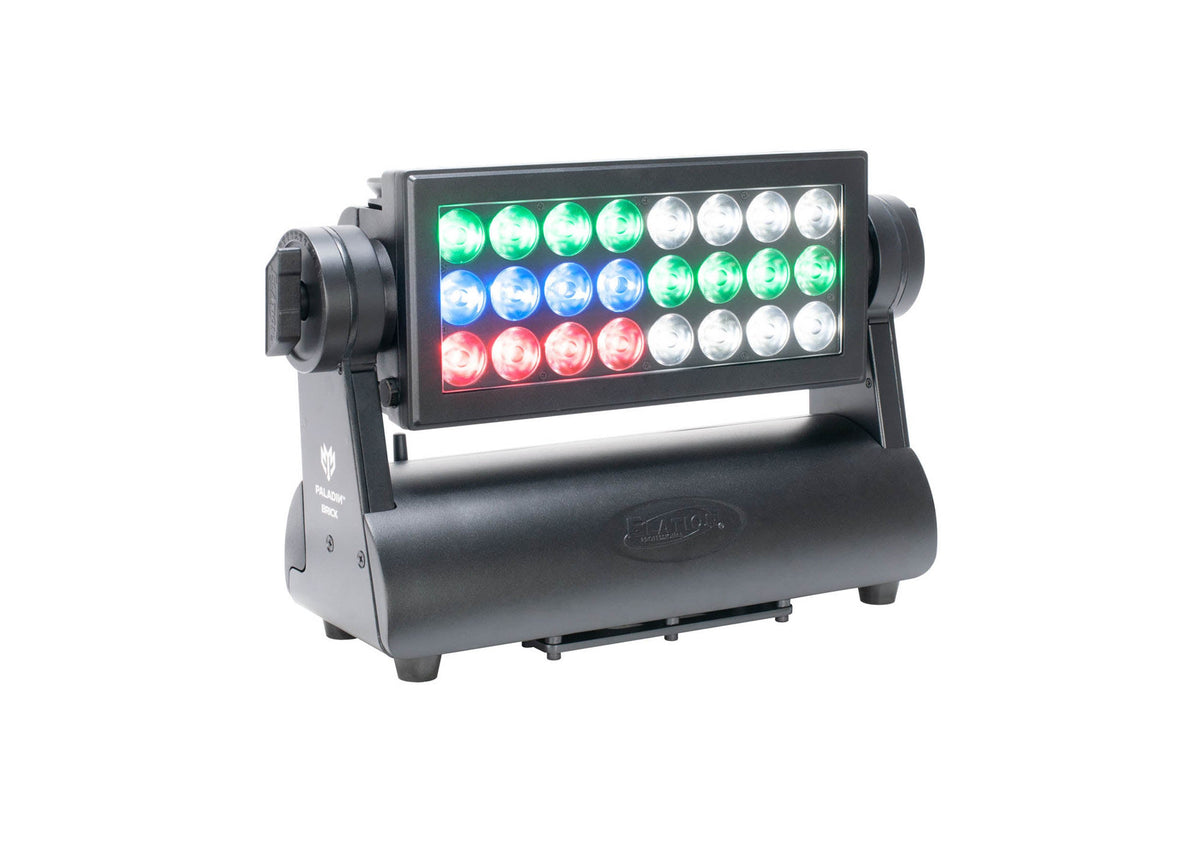

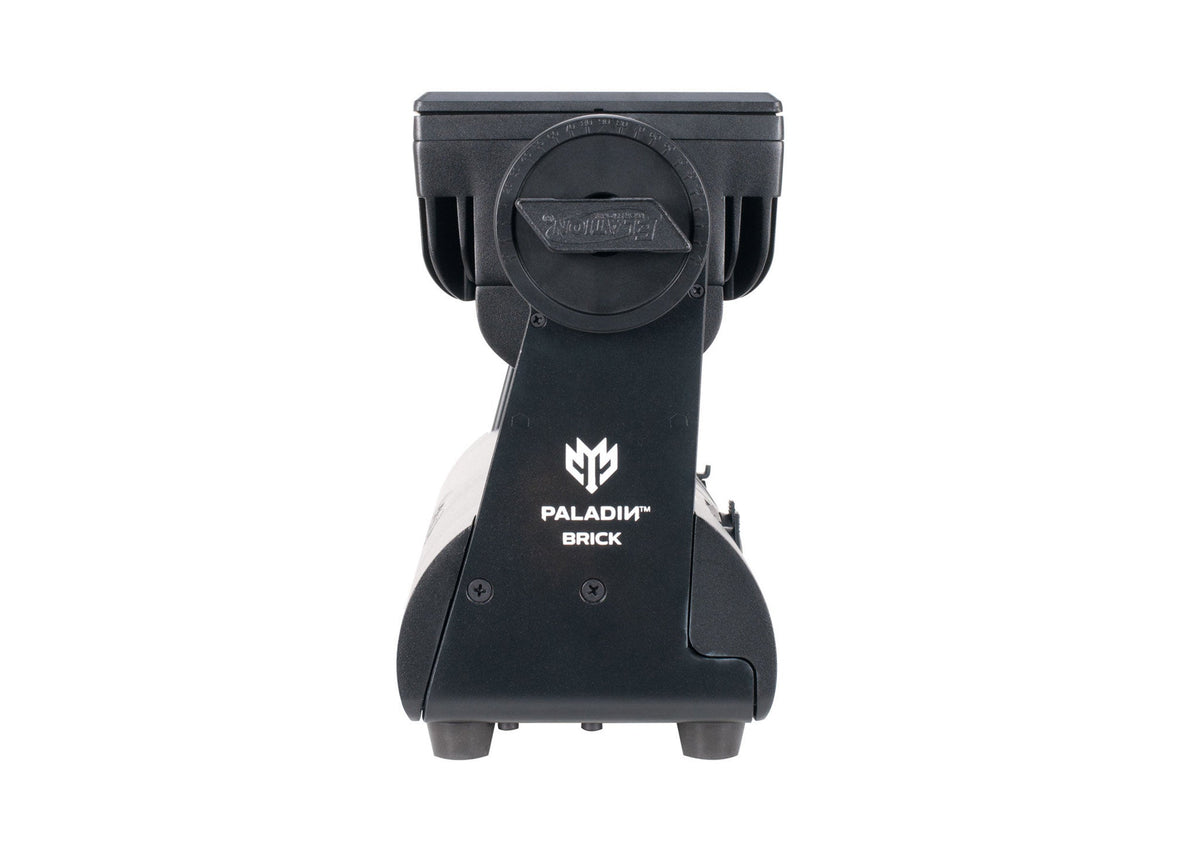

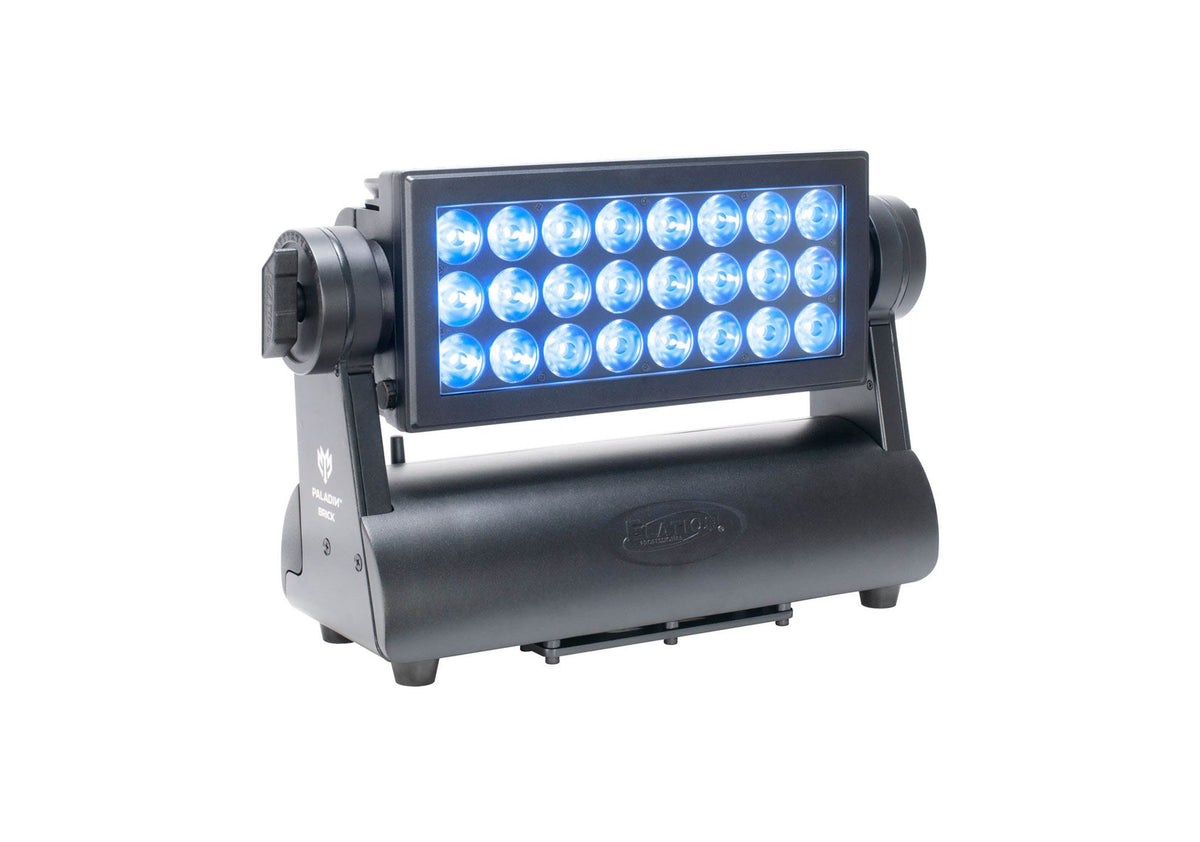

Elation Professional Paladin Brick RGBW Floodlight - 360W

Elation Professional Paladin Brick RGBW Floodlight - 360W

Request a quote

Model / SKU: H-ELAT-PAL264

In a hurry? Call us.

Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

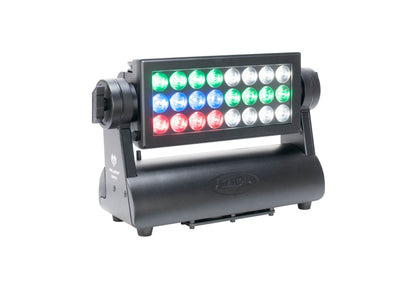

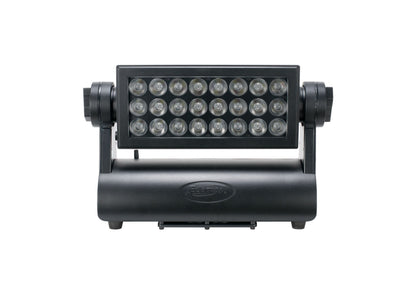

The Elation Professional Paladin Brick RGBW Floodlight - 360W is a compact and powerful outdoor flood light for a wide variety of applications. Using 24x15W RGBW cells it provides a total output of up to 8,200 lumens. Certified to IP65 it features a rugged design with a solid build quality, eliminating the need to worry about dust and water ingress. IP rated connections make it an ideal product to illuminate large areas of any outdoor event with vibrant and powerful colors. It can be operated standing on the floor or be hung in any orientation using the provided omega brackets. Available cell control and strobe features make the PALADIN BRICK also a versatile effects fixture or audience blinder.

Product Specifications:

Fixture Type: LED Panel

Light Source: 24x Color LED - 15 W

Expected Lamp Life: 50,000 Hours

Colors: Blue, Green, Red, White

Pixel Configuration: 6x Zone

Photometrics:

14°:

10,767 fc / 115,902 Lux at 3.3' / 1 m (Full On)

2692 fc / 28,975 Lux at 6.6' / 2 m (Full On)

1196 fc / 12,878 Lux at 9.8' / 3 m (Full On)"

Color Temperature: 6000K

Lumen Output: 8200 Lumens

Beam Angle:

14° (without Filter)

25° (with Filter)

Field Angle:

25° (without Filter)

50° (with Filter)

Iris: No

Zoom Adjustment: No

Performance:

Operating Modes: DMX, Primary/Secondary, Standalone

Macros / Programs: 12x Internal Program

Effects: Strobe

Gobos: No

Refresh Rate: 900 Hz to 25,000 Hz

Control:

Control Protocols: DMX512, W-DMX, RDM

DMX Channel Modes:

11 Mode(s): 32-Channel

Display / Controls: OLED / 4-Button

Remote Control: No

Mobile App Compatible: No

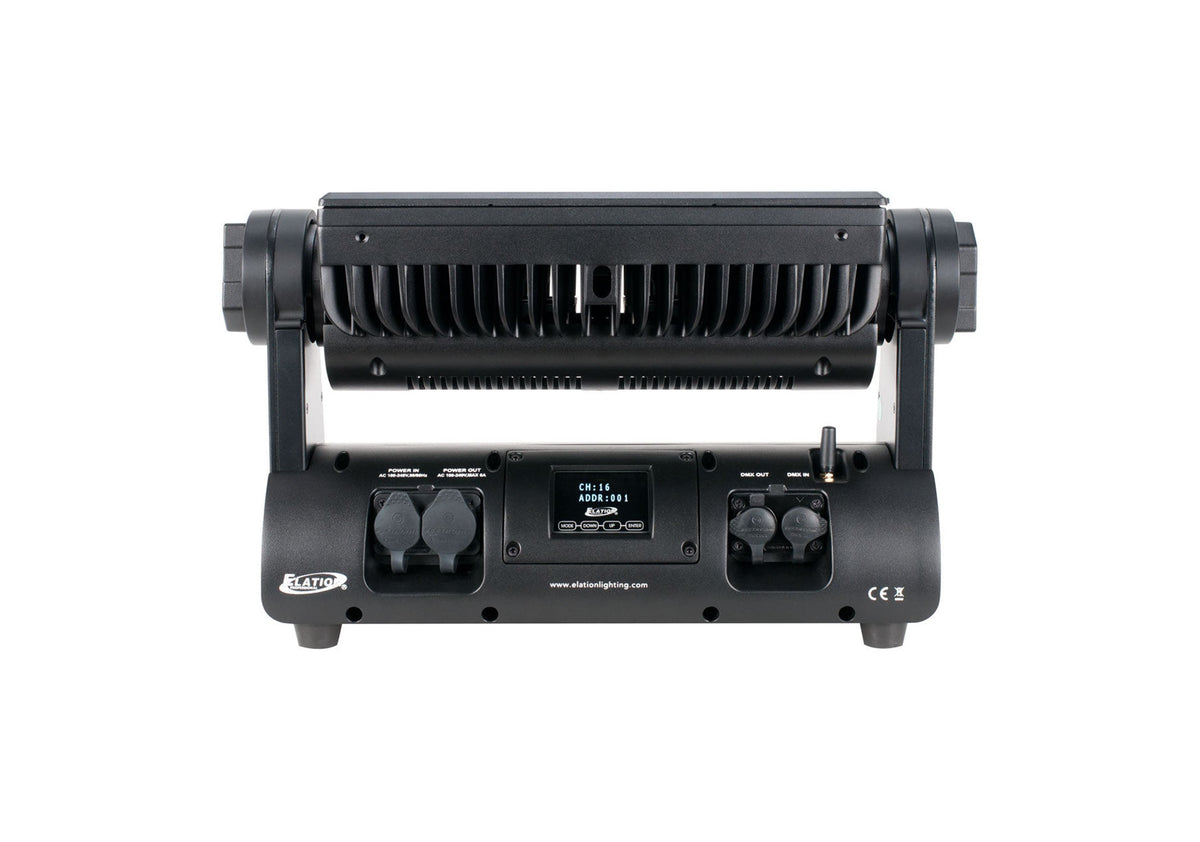

Connectivity:

Inputs/Outputs:

1 x XLR 5-Pin DMX Input

1 x XLR 5-Pin DMX Output

Power:

AC Input Power: 100 to 240 VAC, 50/60 Hz

AC Power Connector:

Input: 1x powerCON TRUE1

Output: 1x powerCON TRUE1

Fuse: No

Power / Current Consumption: 390 W

Physical:

Environmental Resistance: Dust/Water-Resistant (IP65)

Operating Conditions: 5 to 113°F / -15 to 45°C

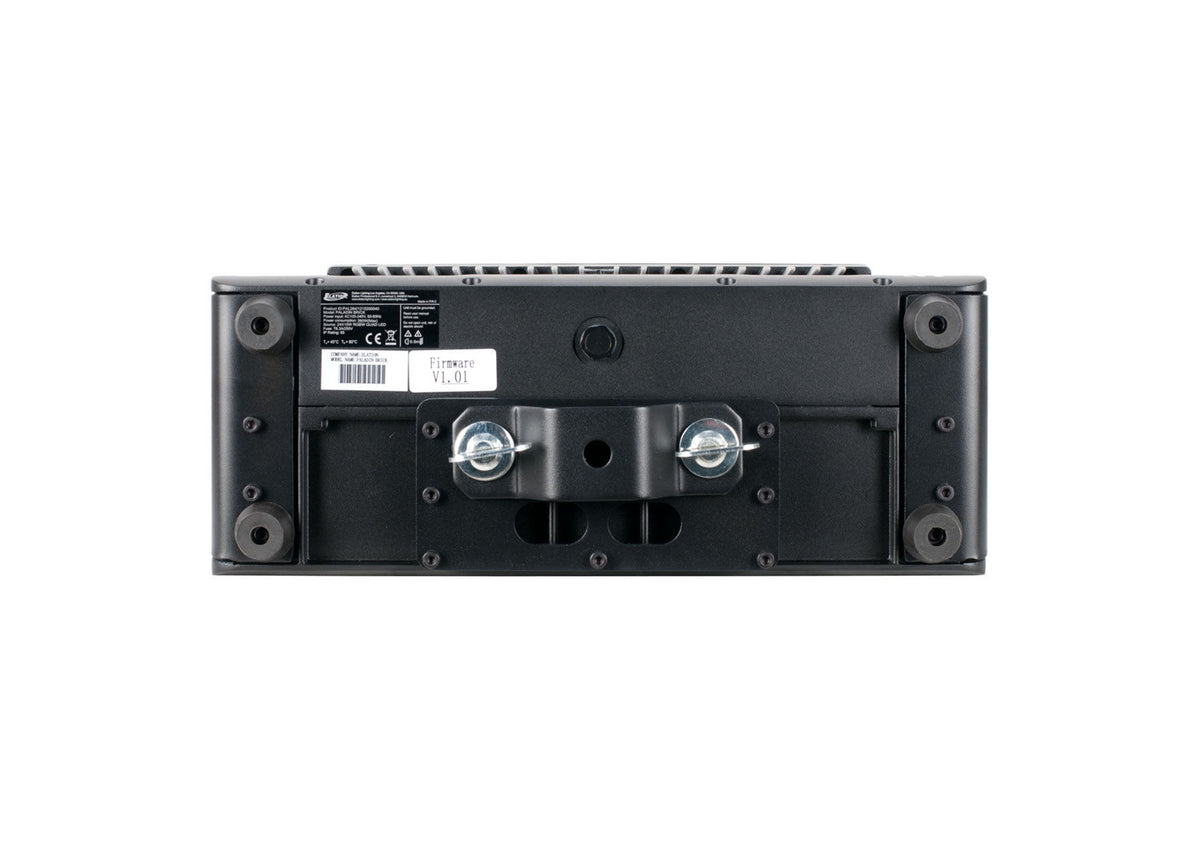

Mounting: Floor Base, Omega Bracket

Included Accessories:

1x Power Cable

1x Filter

Duty Cycle: No

Exterior Color: Black

Cooling: Fan (Variable Speed)

Certifications: CE, cETLus

Dimensions: 17.2 x 11.3 x 5.8" / 43.7 x 28.7 x 14.7 cm

Weight: 21 lbs. / 9.5 kg
