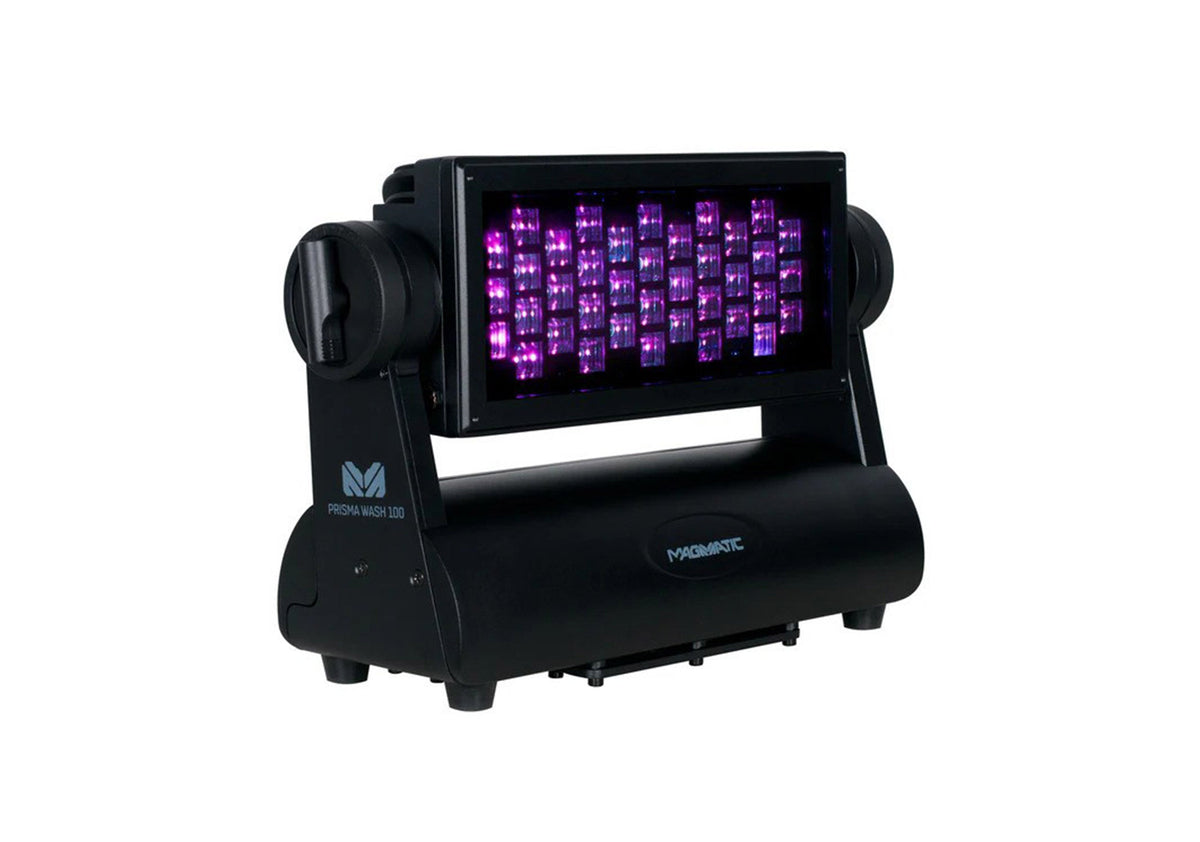

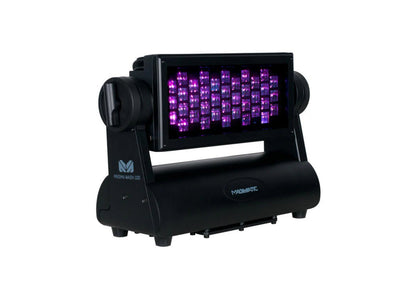

Elation Professional Prisma Wash 100, LED IP65 100° Wash Fixture

The Elation Professional Prisma Wash 100, LED IP65 100° Wash Fixture is an exterior IP65 rated UV wash luminaire that produces 365nm peak true UV output with zero visible light. Features include a scoop LED reflector design which creates an impressive 90-degree wide beam angle, manual adjustable tilt positioning and versatile rigging options, a user friendly digital 2.5-inch LCD touch screen control panel, intuitive DMX-512 and RDM control, and IP rated power and data in/out.

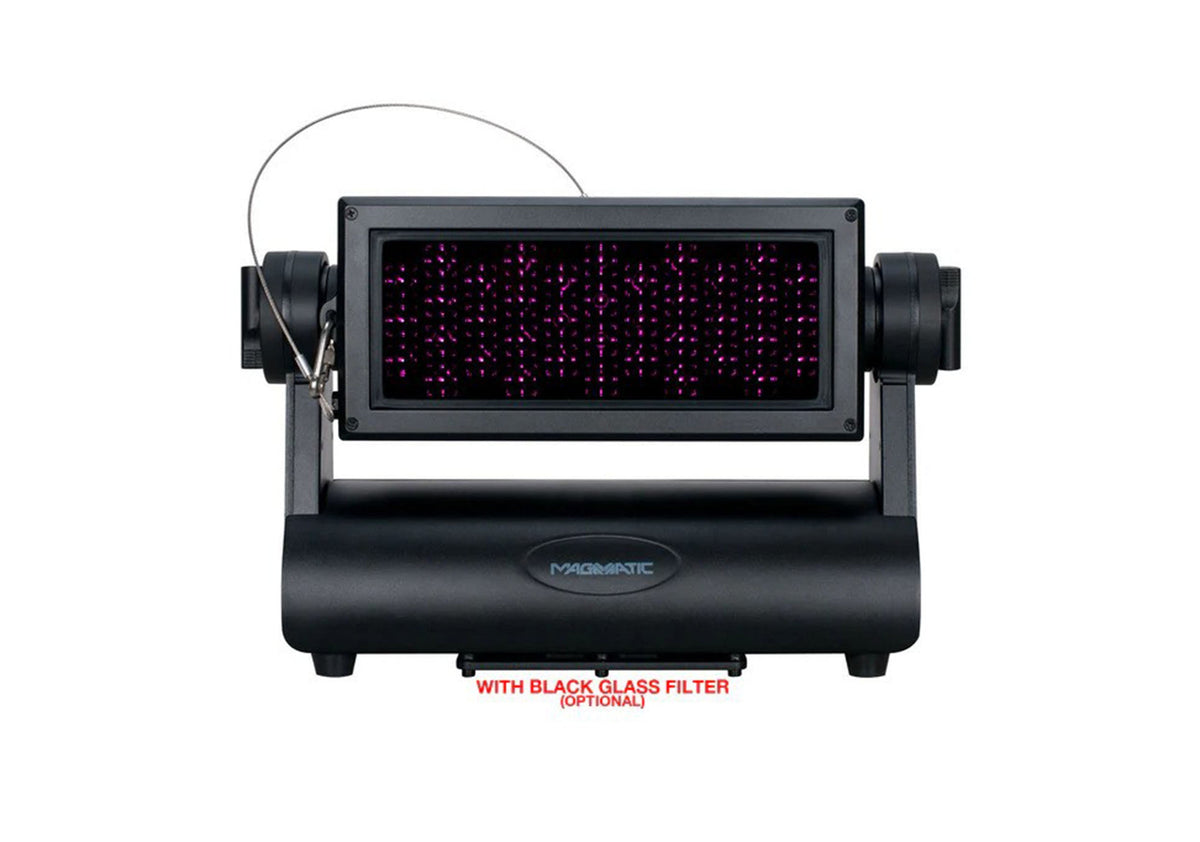

Optional accessories include a Black Glass diffusion filter to create a complete blackout effect, only allowing UV rays to penetrate, and extended length IP rated power and data linking cables.

Product Specifications:

Source:

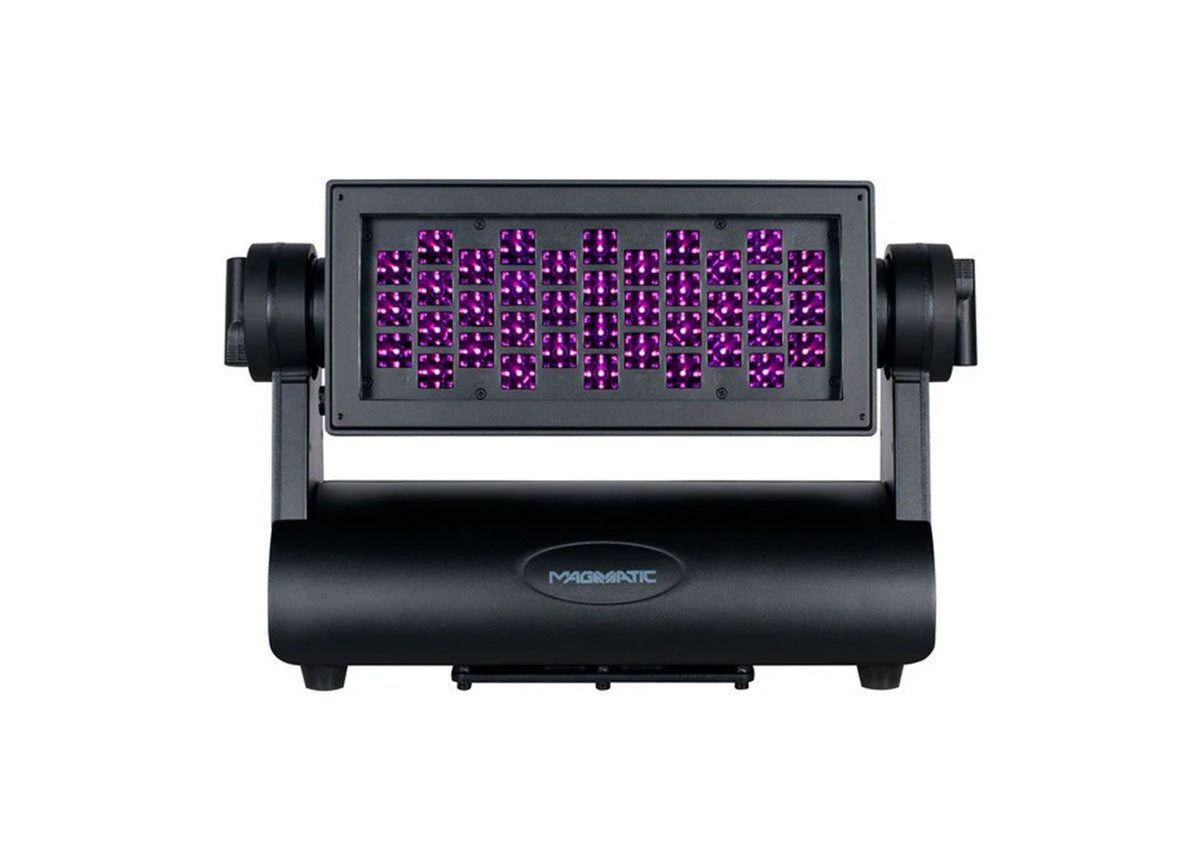

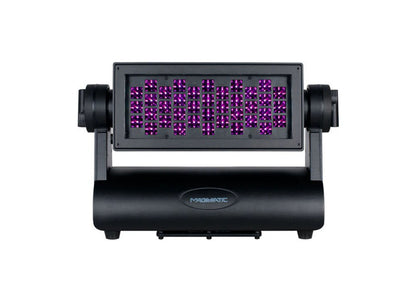

(38) 2W High Power UV Diode LEDs

20,000 Hour Average LED Life

Photometric Data:

90 Degree Wide Beam Angle

365nm True UV Peak Wavelength

Effects:

High Speed Electronic Strobe

Variable Dimming Curve Modes

Construction:

Rugged IP65 Rated Aluminum Housing

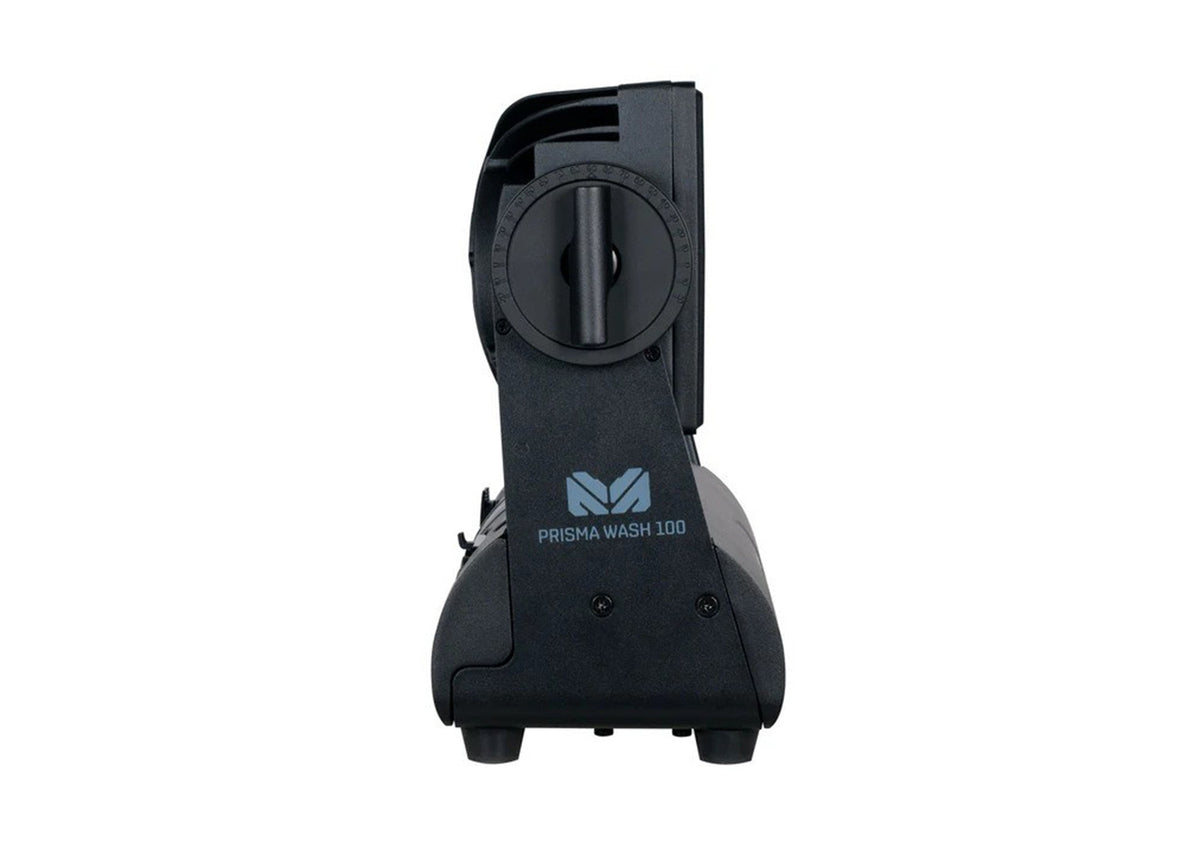

Manual Adjustable Tilt Position

Control:

Multiple DMX Channel Modes

Onboard 4 Button Touch Control Panel

DMX-512 and RDM Protocol Support

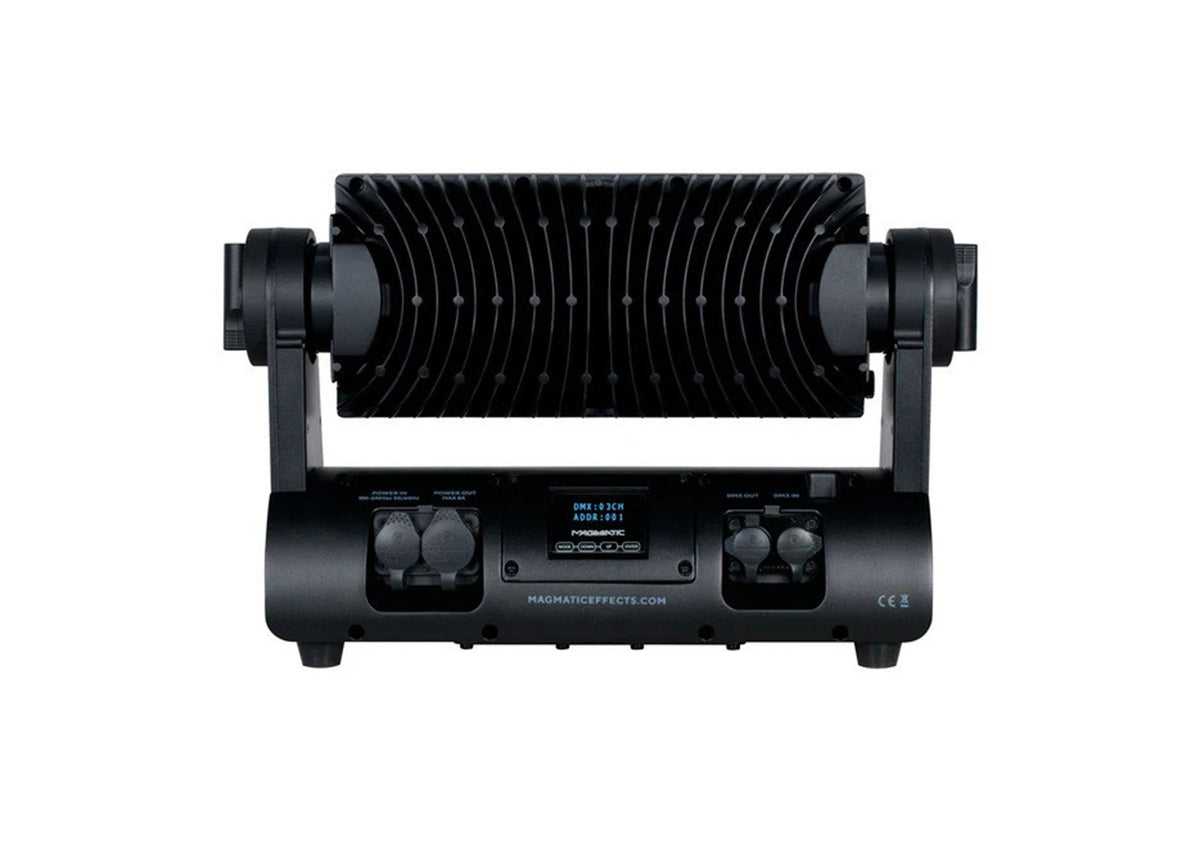

Connections:

Locking 5pin XLR Connector In/Out

IP65 Locking Power Connector In

With Wired Digital Communication Network

Size / Weight:

Length: 17.24” (438mm)

Width: 5.82” (148mm)

Vertical Height: 11.29” (287mm)

Weight: 18.5 lbs. (8.4 kg)

Electrical:

AC100-240V 50-60Hz

T2A/250V

83W Max Power Consumption

Thermal:

Ambient Temperature (Ta max) 104°F (40°C)

Air Cooled

Approvals / Ratings: CE | cETLus | IP65
