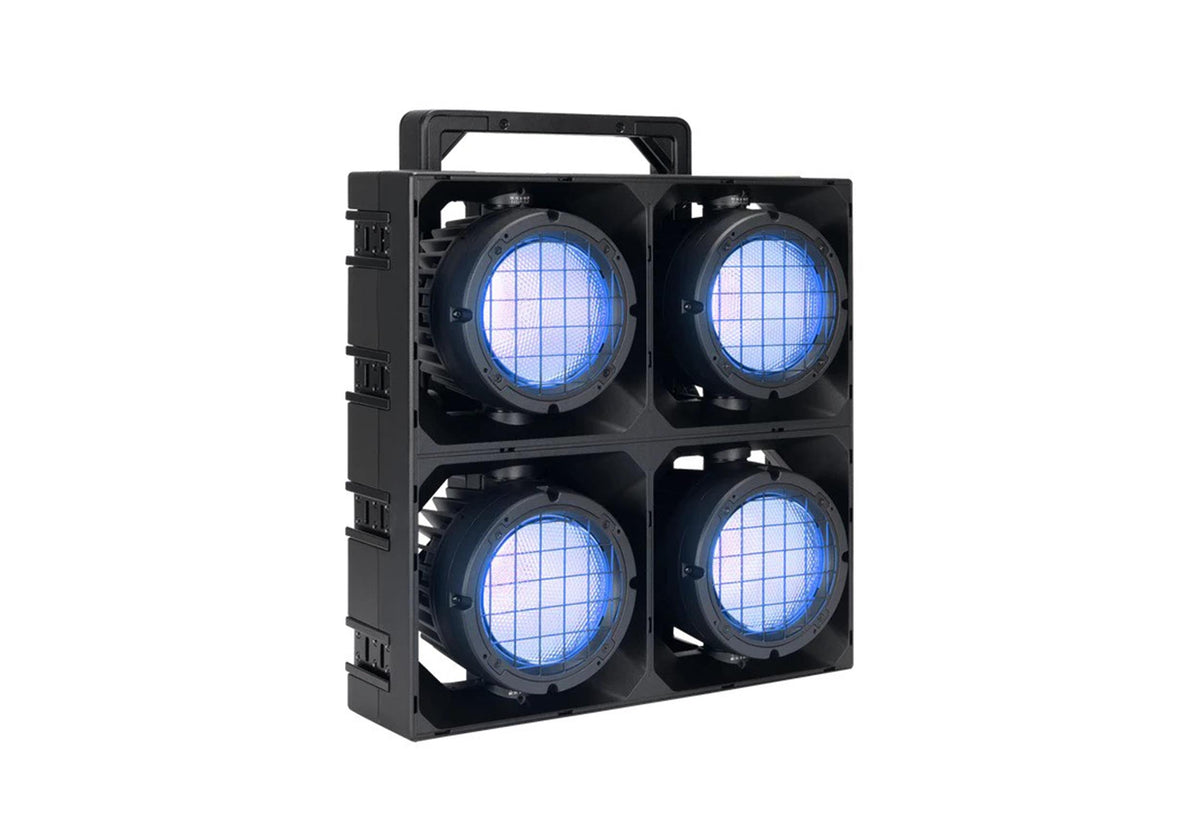

Elation Professional SOL IV Blinder, RGBLAW LED Blinder IP65 - 4x 350W

Name: Elation Professional SOL IV Blinder, RGBLAW LED Blinder IP65 - 4x 350W
Brand: Elation
SKU: H-ELAT-SOL401

Request a quote

Model / SKU: H-ELAT-SOL401

In a hurry? Call us.

1-800-700-4542
System design direct line: (213) 816-4102

Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

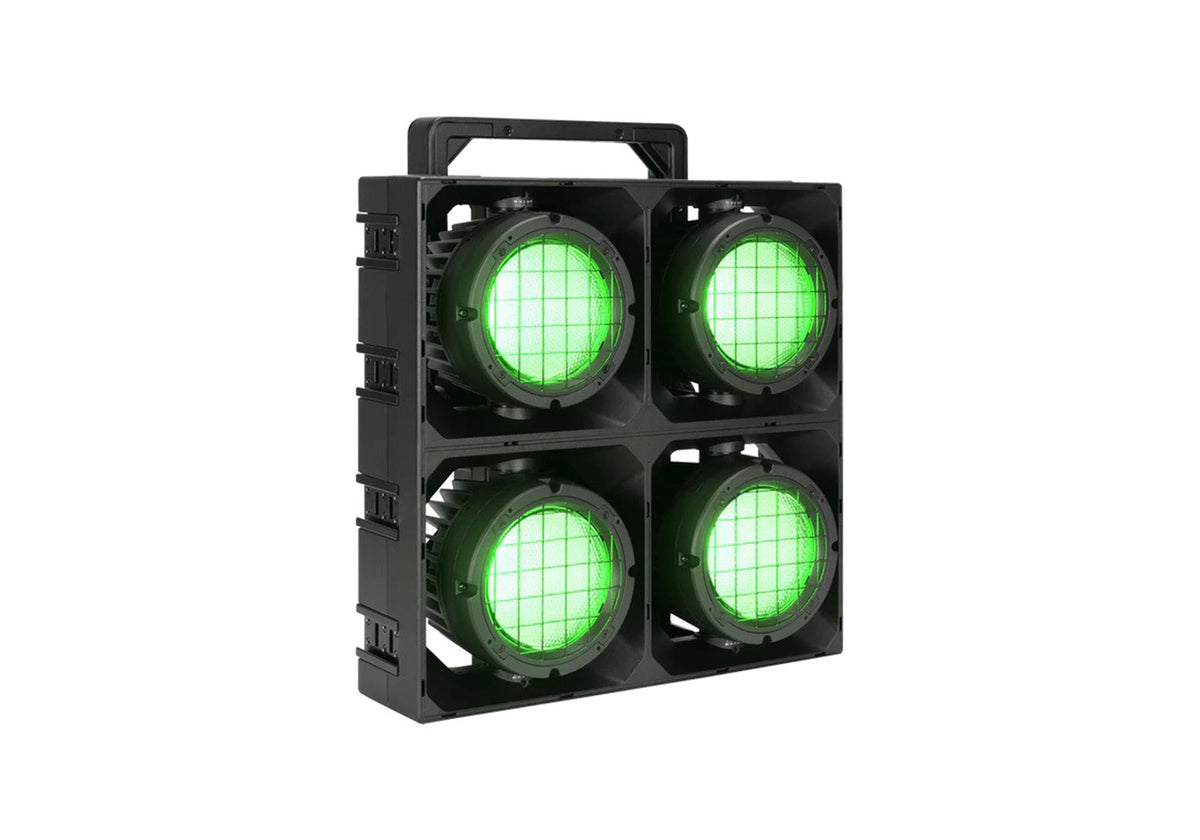

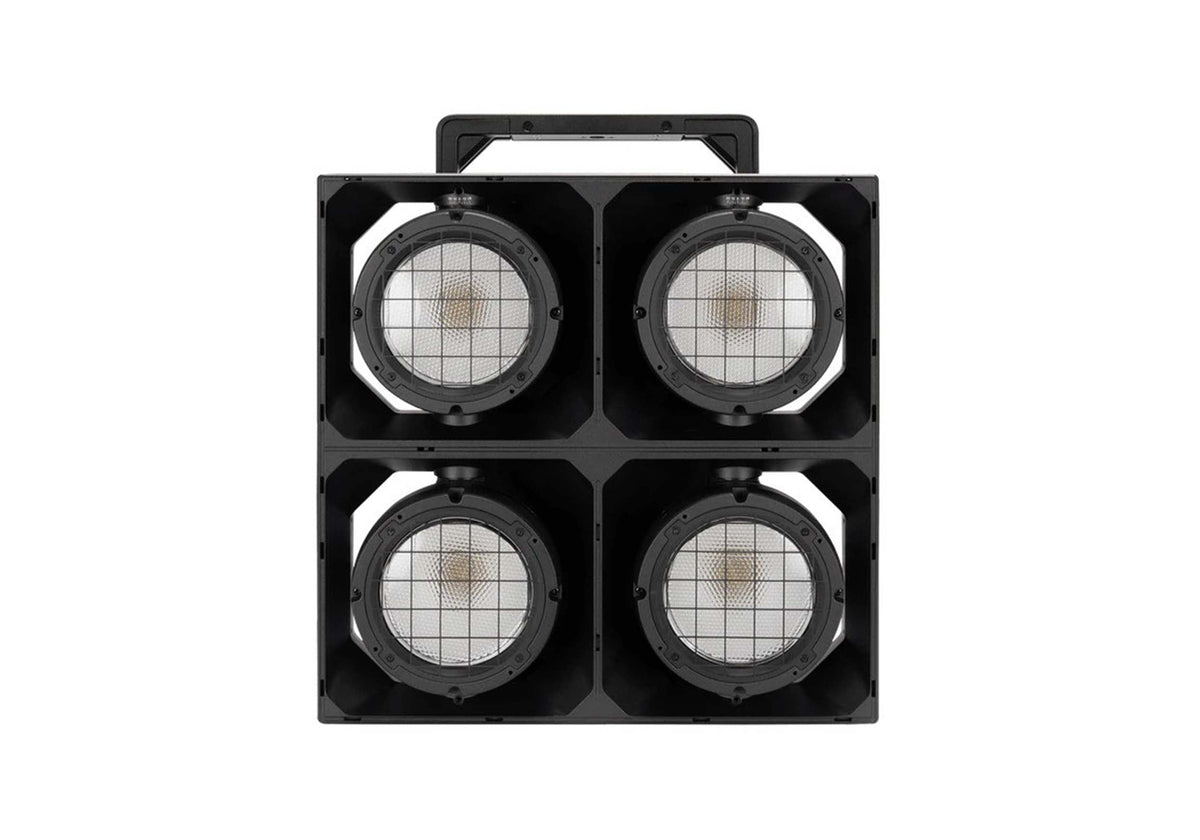

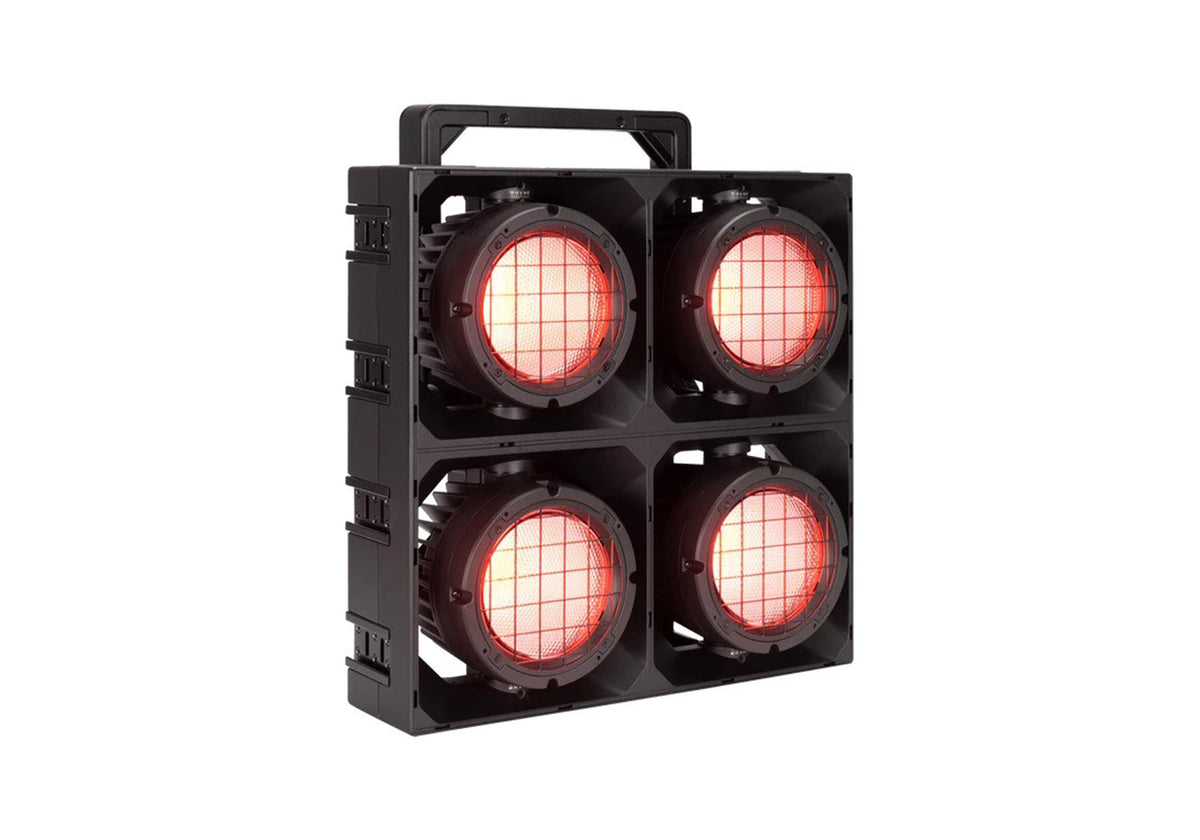

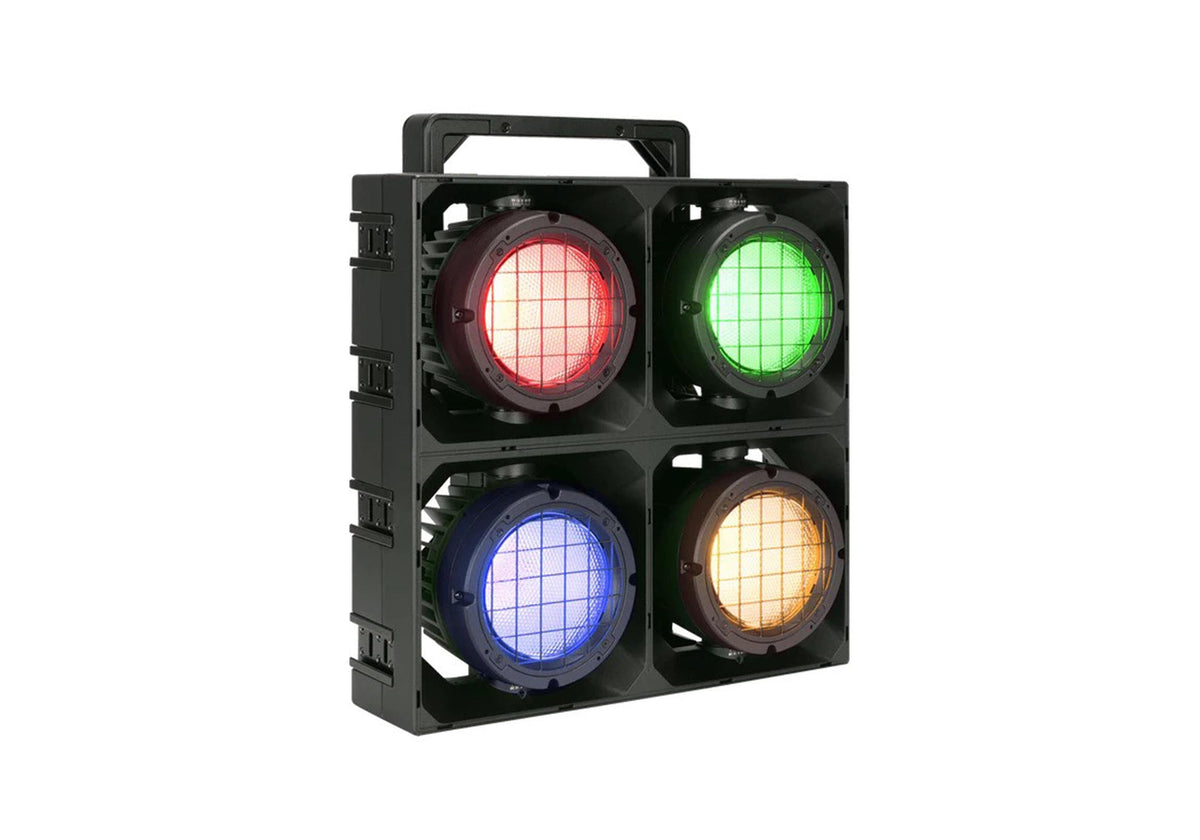

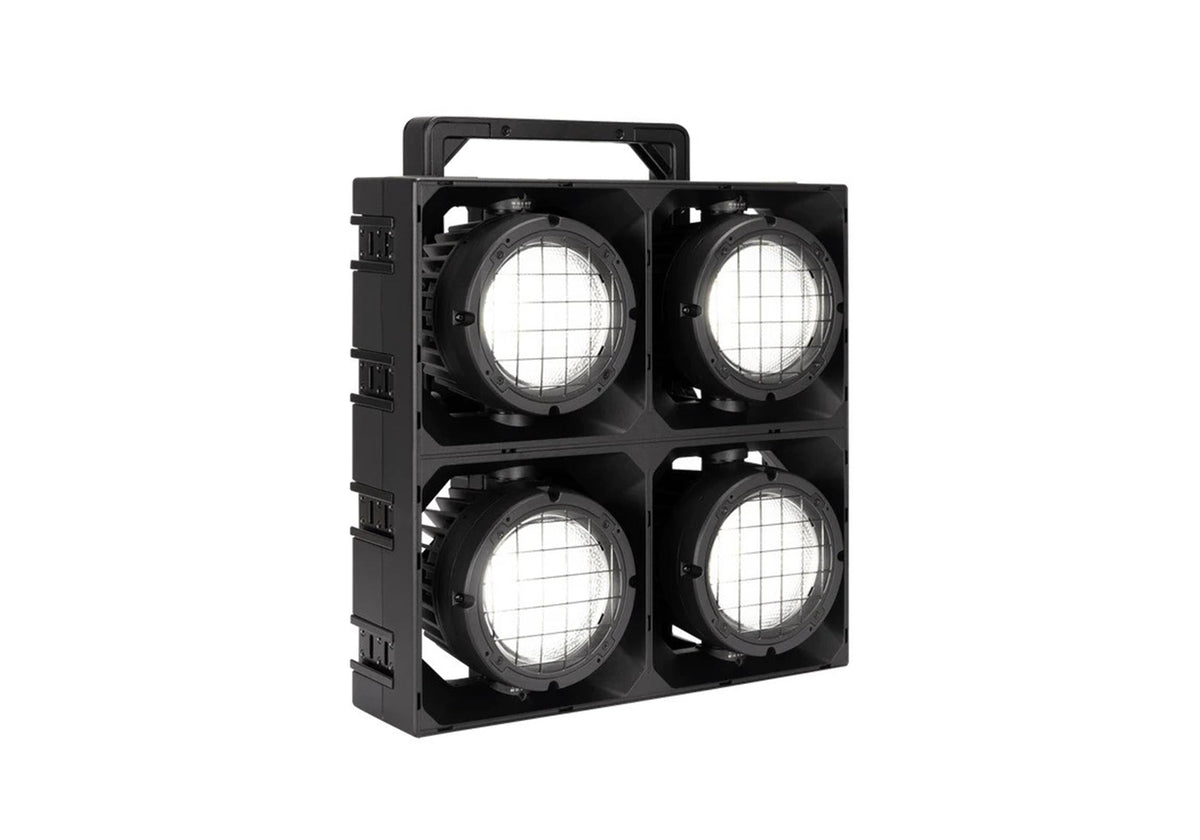

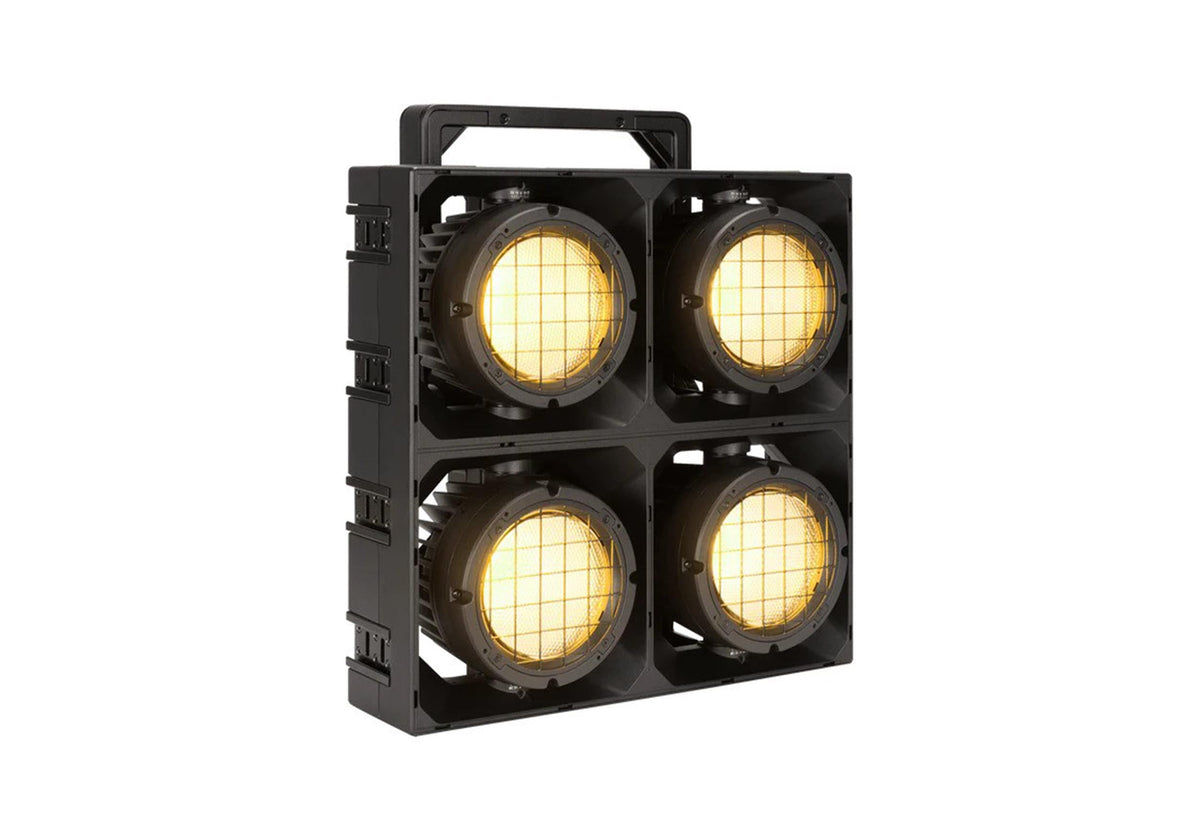

The Elation Professional SOL IV Blinder, RGBLAW LED Blinder IP65 - 4x 350W is the most versatile addition to the SŌL Series yet featuring a grid of four fixtures in a single modular housing. Like the SŌL I and SŌL II, the SŌL IV offers the same cutting-edge technology and powerful LED engine but with even greater creative potential through its multi-fixture design.

The SŌL IV BLINDER can be used as a standalone fixture or interconnected in endless configurations with additional SŌL IV units, as well as the SŌL I and SŌL II models. This flexibility allows lighting professionals to craft expansive arrays, intricate shapes, and dynamic effects that adapt to any stage or event setup.

With the same 350W RGB+Lime+Amber+White LED engine, 93+ CRI, and IP65-rated durability, the SŌL IV delivers unmatched brightness, color fidelity, and performance. Whether you're looking for an impactful standalone solution or a fixture that integrates seamlessly into a larger lighting design, the SŌL IV BLINDER provides the ultimate canvas for your creativity.

Illuminate your vision with the boundless possibilities of the SŌL IV BLINDER " the next step in redefining stage lighting innovation.

Product Specifications:

Source:

4x 350W RGBLAW LED

30,000 Hour Average LED Life

Photometric Data:

Total Lumen Output:

59,830 (Integrating Sphere)

CRI TBA

Compound Lens:

Beam Angle: 46°

Field Angle: 85°

No Lens:

Beam Angle: 52°

Field Angle: 95°

Effects:

Variable Strobe Rate: 1- 20Hz

Dim-to-Warm/ Red Shift Emulation

Variable 16-bit Dimming Modes and Curves

High Output Blinder Mode or Constant Output Mode Options

Color: RGBLAW Color Array

CMY Emulation

Variable CCT 1800K - 8500K

Virtual Gel Swatch Book

Control / Connections:

24 DMX Channel Modes (1ch, 2ch, 4ch, 2ch, 4ch, 8ch, 3ch, 5ch, 9ch, 4ch, 8ch, 16ch, 6ch, 12ch, 24ch, 7ch, 10ch, 16ch, 40ch, 69ch, 28ch, 45ch, 28ch 45ch)

Simple 'Array Mode' Addressing System

Manual and DMX Controlled Dimmer and Color

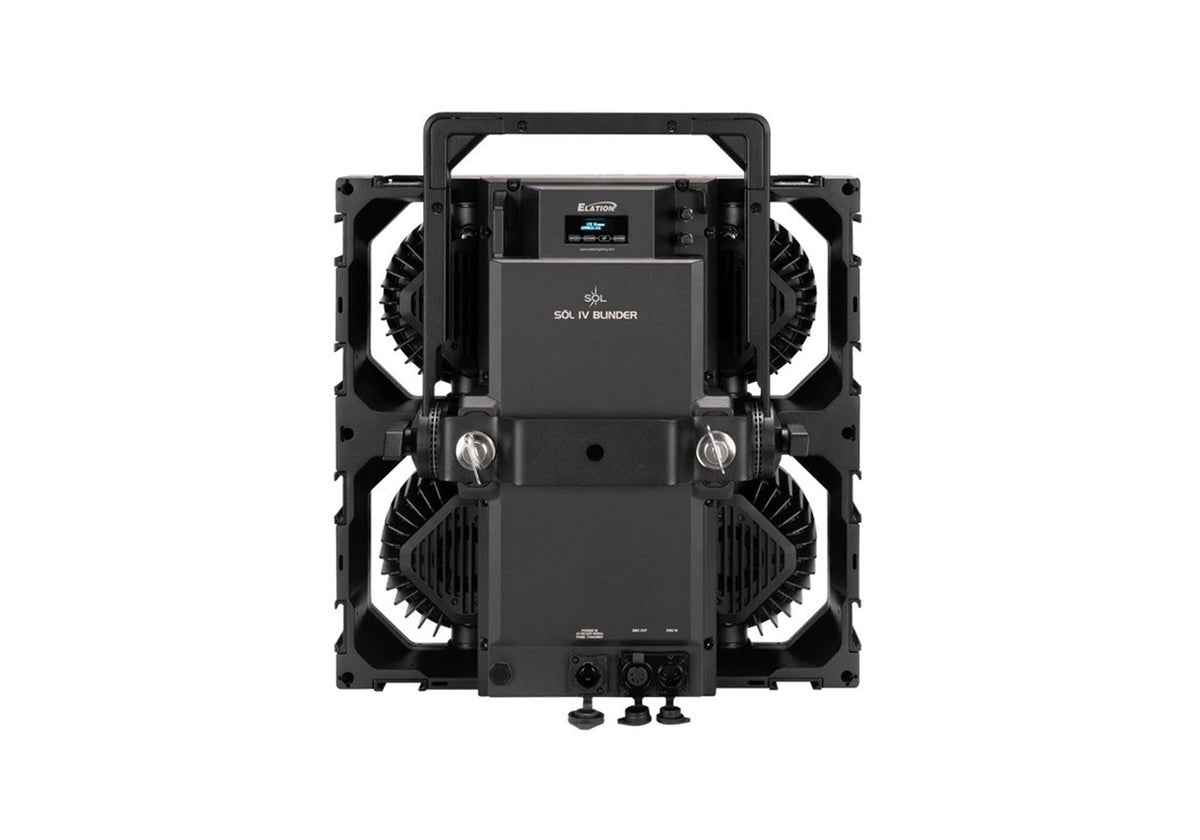

4 Button Control Panel, LED Display

Aria x2 Wireless Device Management

RDM (Remote Device Management)

IP65 5pin DMX Cable In/Out

IP65 Locking Power Cable In

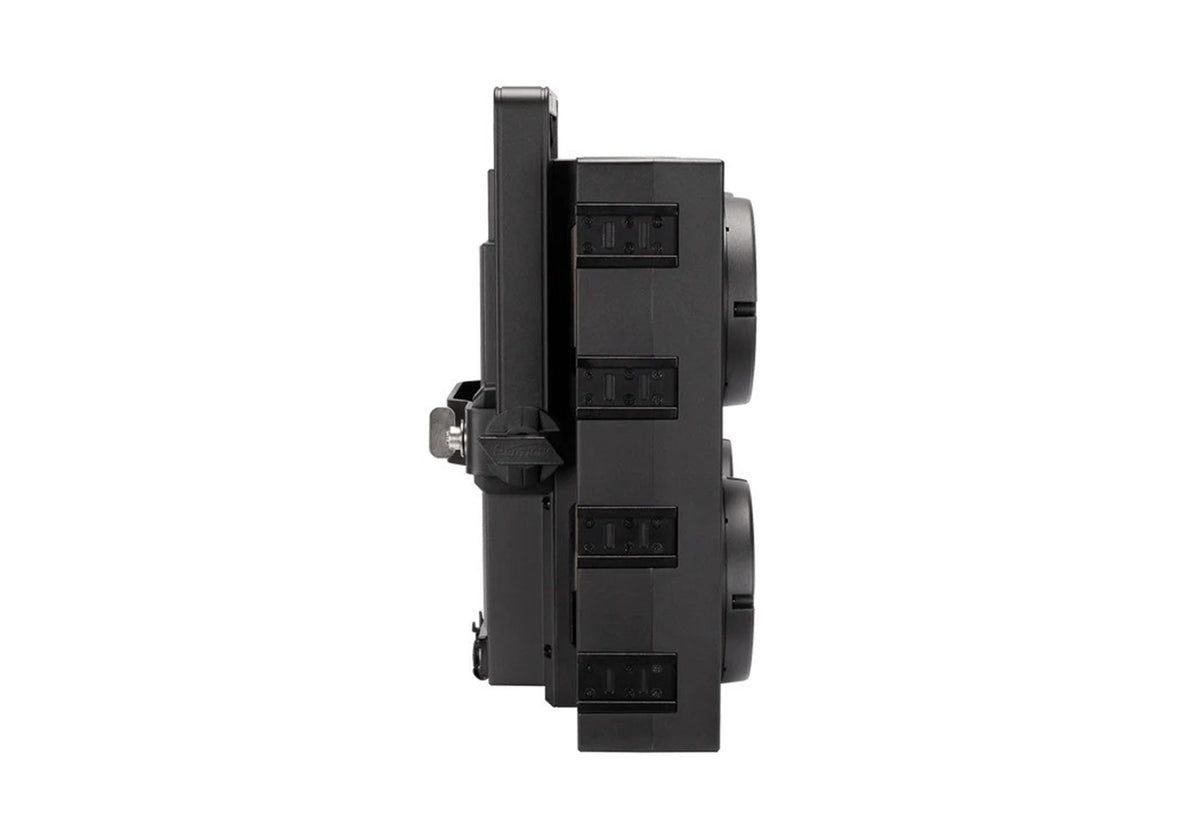

Size / Weight (Without Accessories):

Length: 9.4" (240mm)

Width: 16.5” (420mm)

Vertical Height: 18.6” (471mm)

Weight (Fixture Only): 41.9 lbs (19.0 kg)
