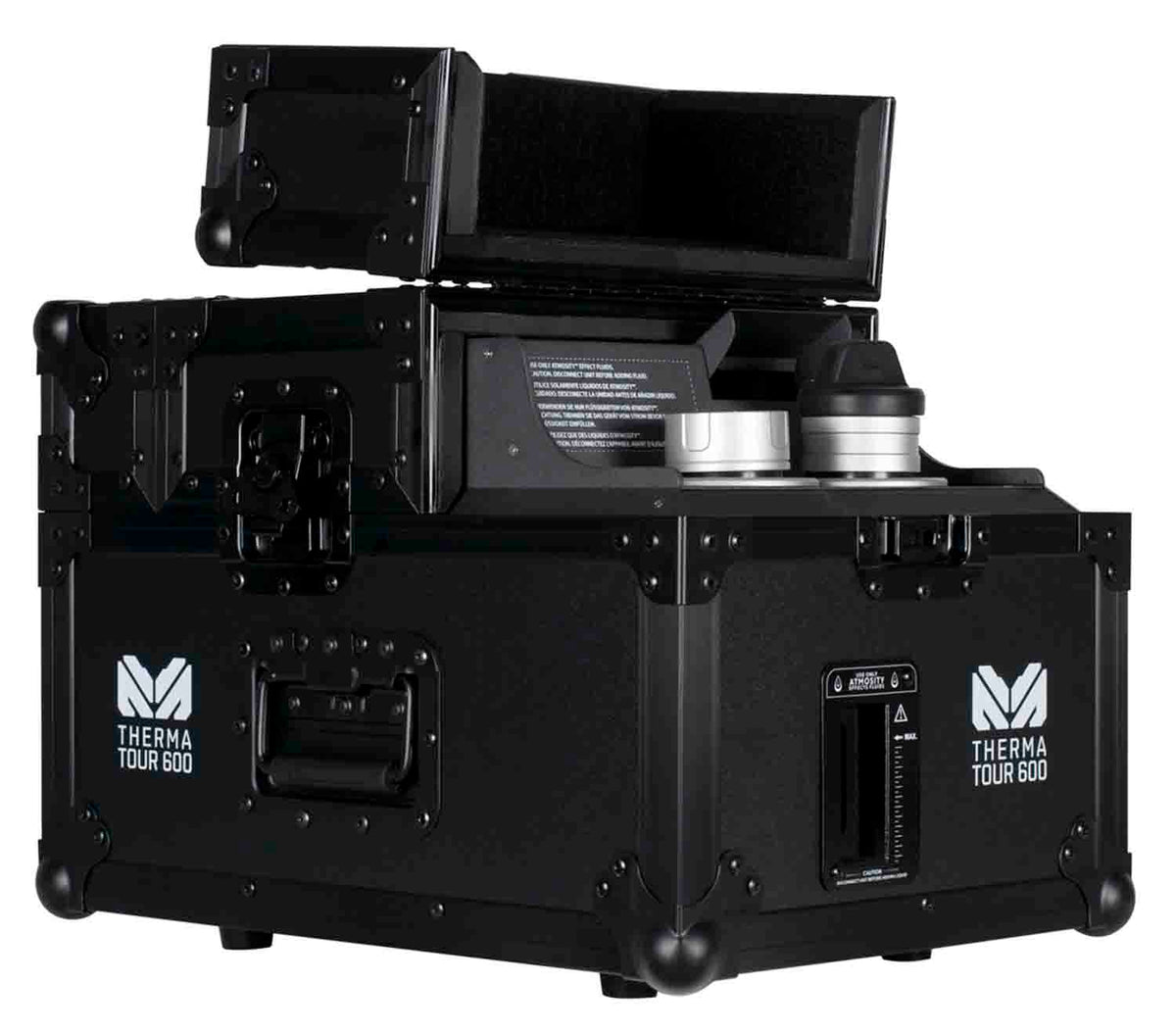

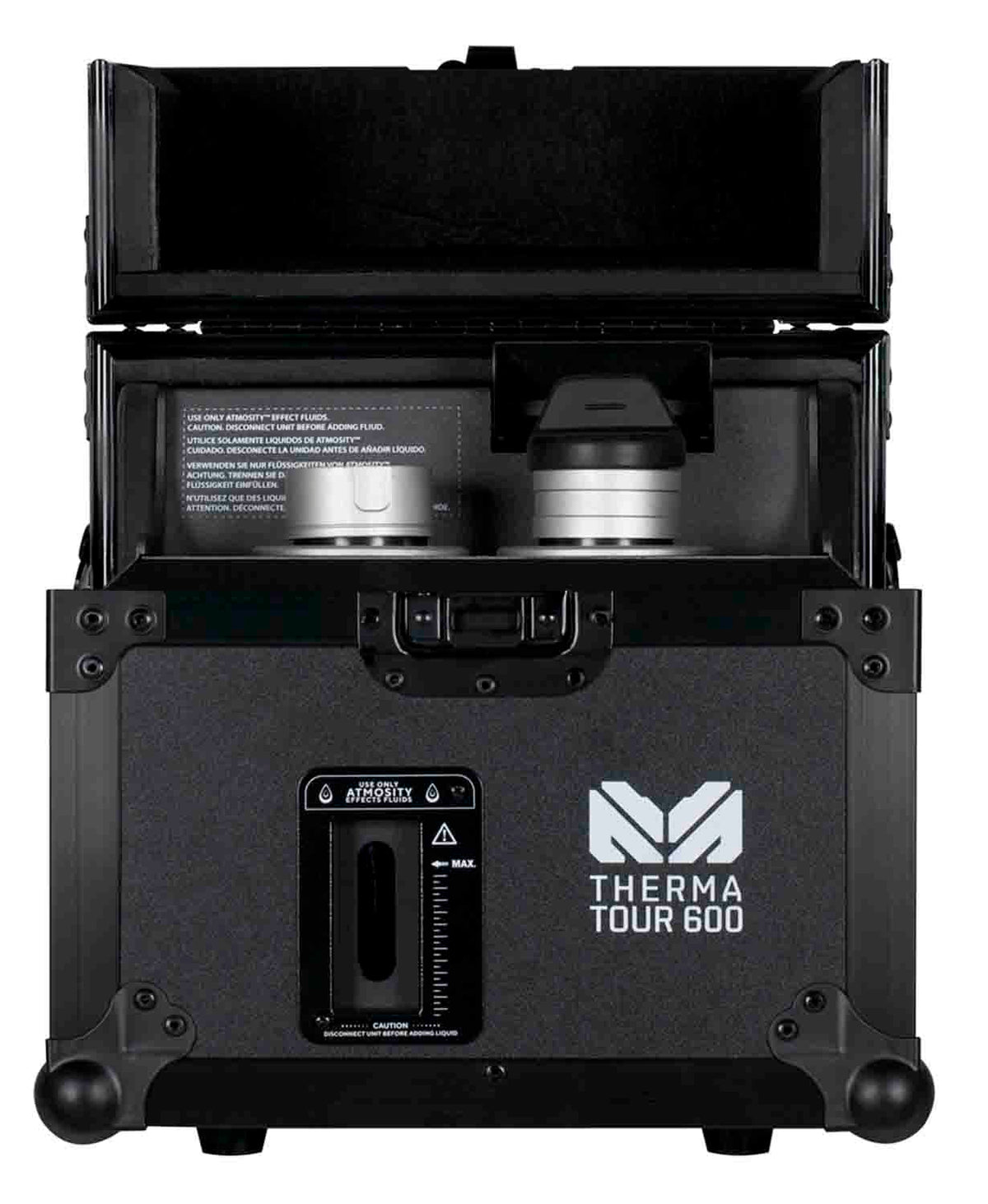

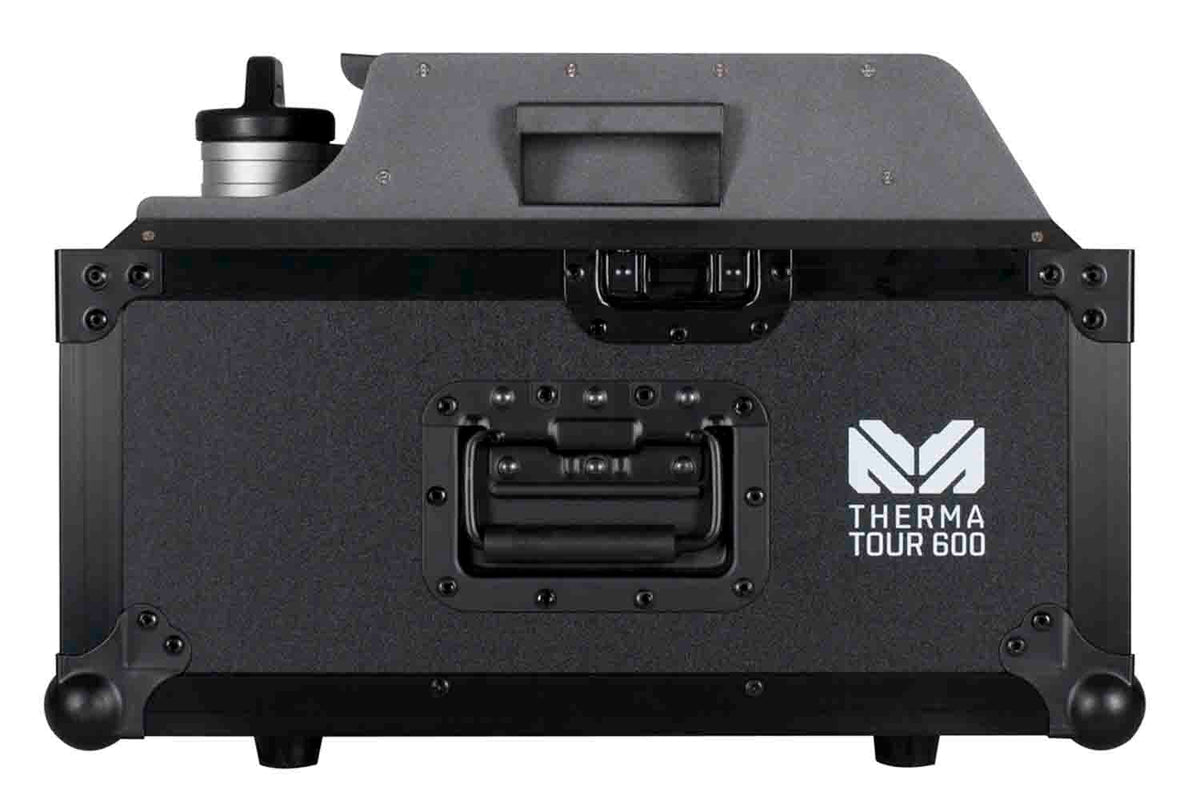

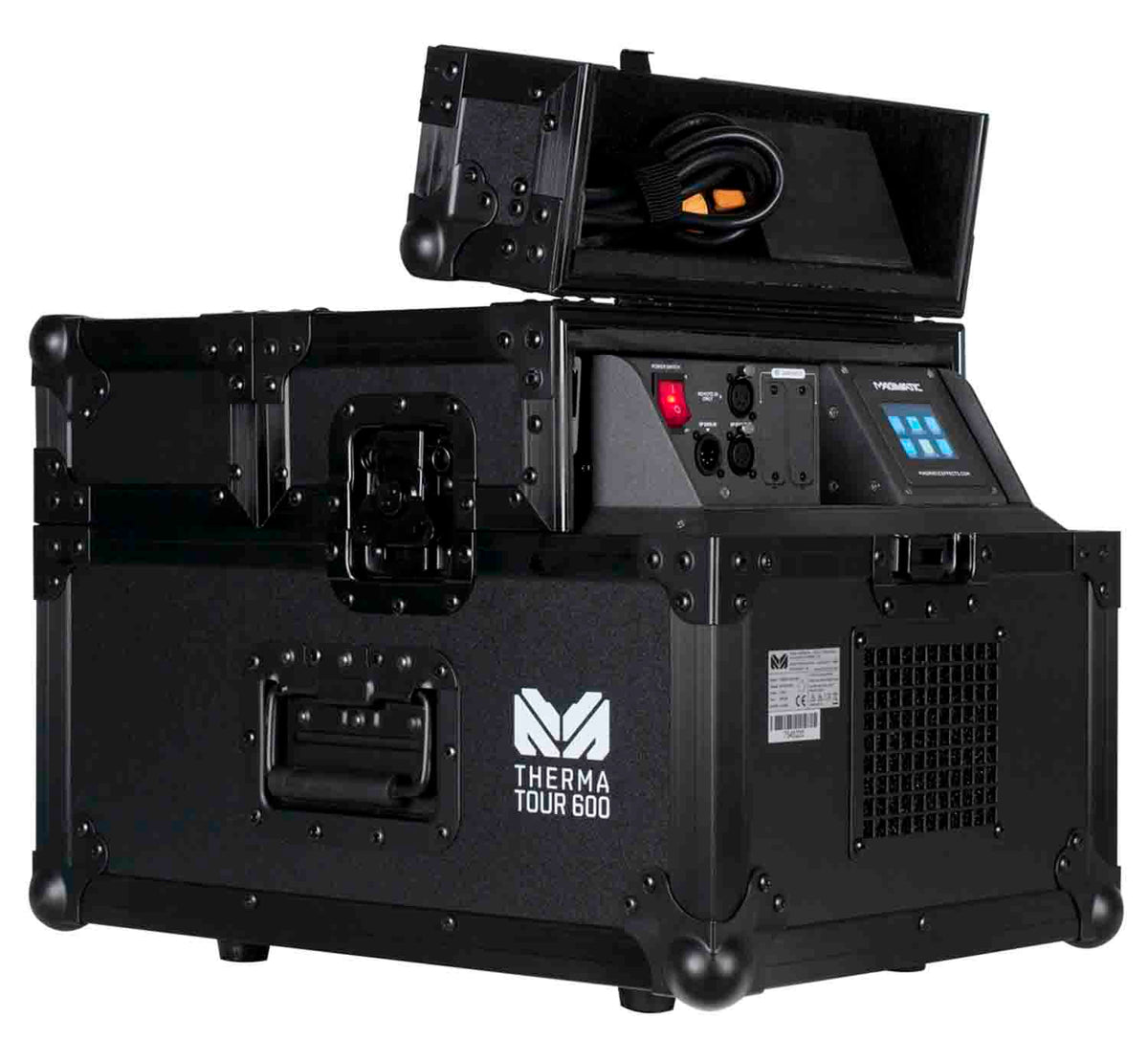

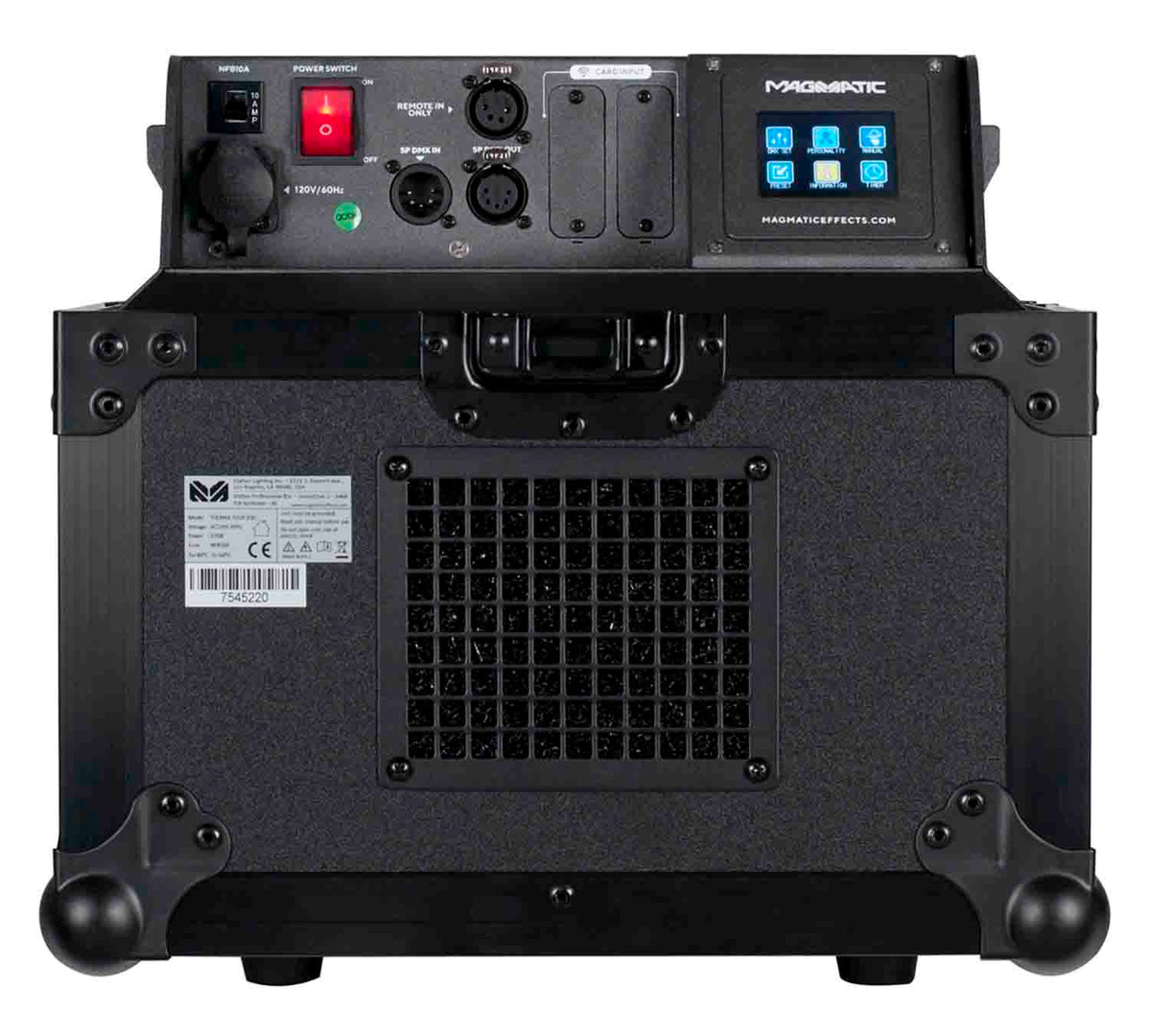

The Elation Professional Therma Tour 600 350W Oil Based Hazer Machine. The Therma Tour 600 is a premium haze effect generator that produces an exceptionally fine, long-lasting atmospheric haze that excels at revealing light beams and mid-air effects. The 350W Therma Tour 600 creates a safe, clean and odorless haze effect that leaves no residue. The perfect small-particle haze for highlighting light beams, the unit holds two liters of fluid for over 35-hours of run time with no warm up time required. Hang time is incredibly long at over 3 hours in an enclosed space Compact yet ruggedly built to withstand the day in and day out rigors of on-the-road use, multiple control options include a wireless RF remote, Magmatic Magfly or Elation E-Fly wireless DMX, wired remote, Magmatic App, and manual, on-board, touch screen control.
Product Specifications:
Performance
Rated Power: 370W
Max Output: 1,200 CFM (cu ft/min.)
Ready Time: Instant
Fluid Capacity: 0.66043 Gallons (2.5 liters)
Fluid Consumption: 0.033814 oz/min (1.0 ml/min) approximate
Compatible Fluid
Atmosity ARH (Oil Based Fluid)
Atmosity AAH (Water Based Fluid)
Construction
Advanced HPA (high pressure air) Pump Technology
Energy Saving Mode with Auto-Clean Process
Sealed Fluid Reservoir

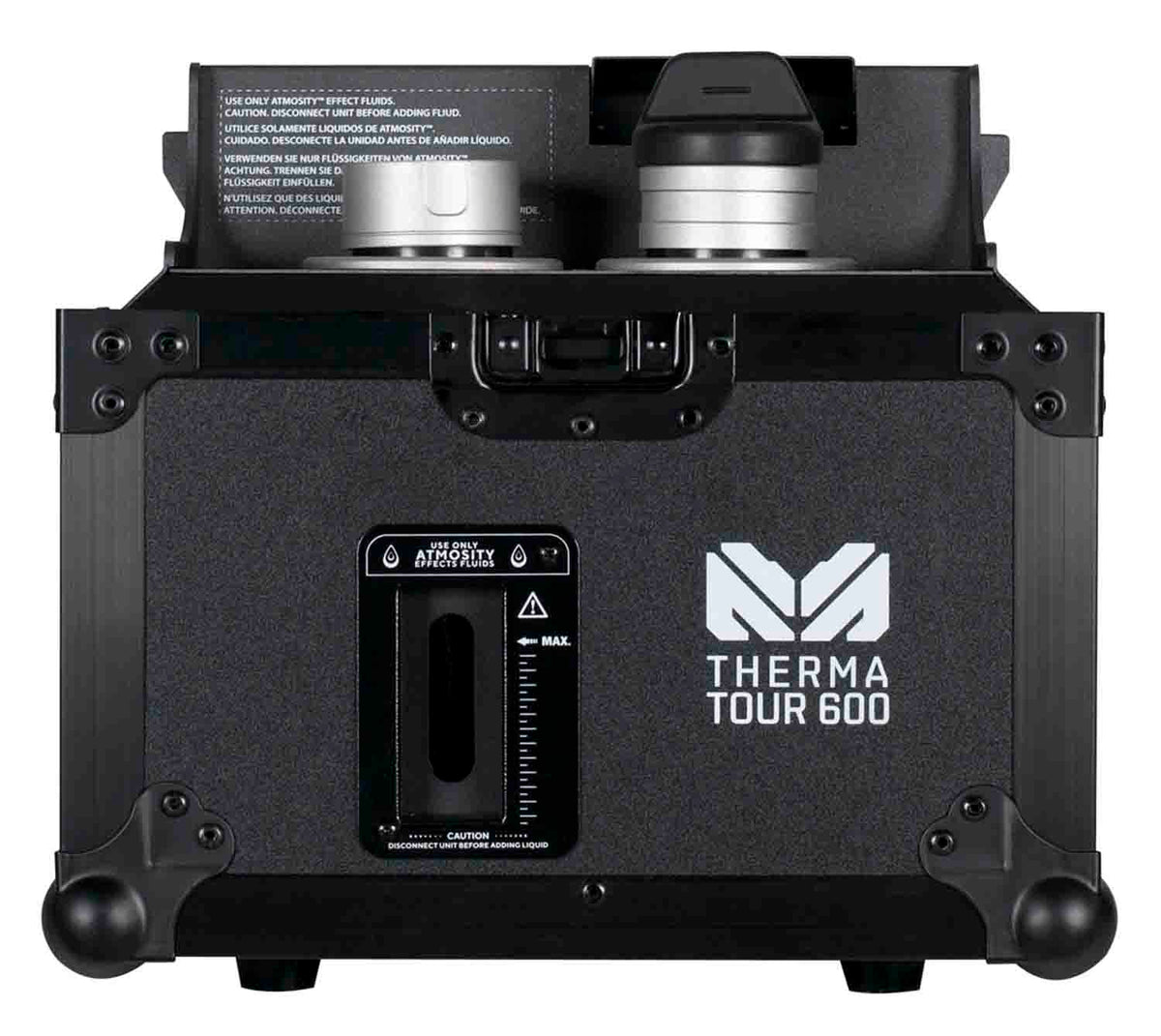

External Visual Fluid Level Detection

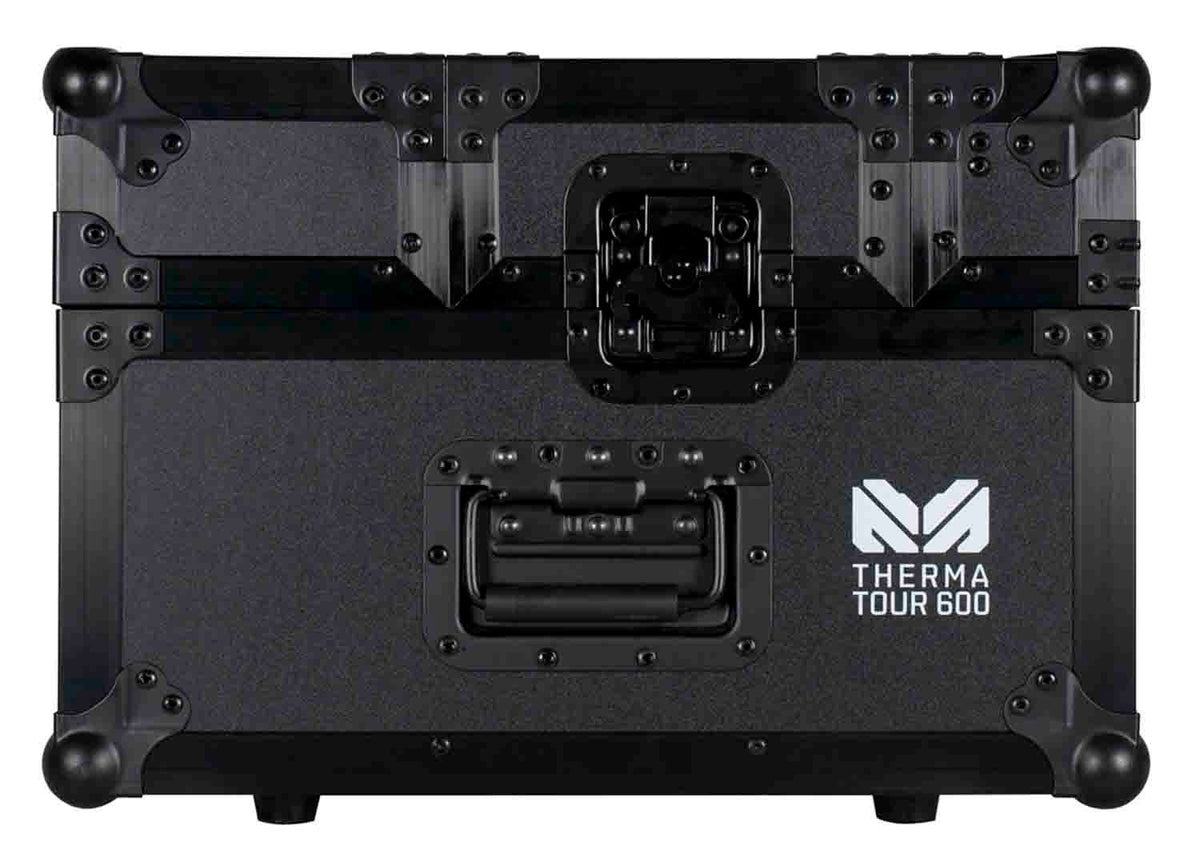

Compact Light Weight Mobile Design
Control
DMX Control Modes: 2 (1 & 3 Channel)

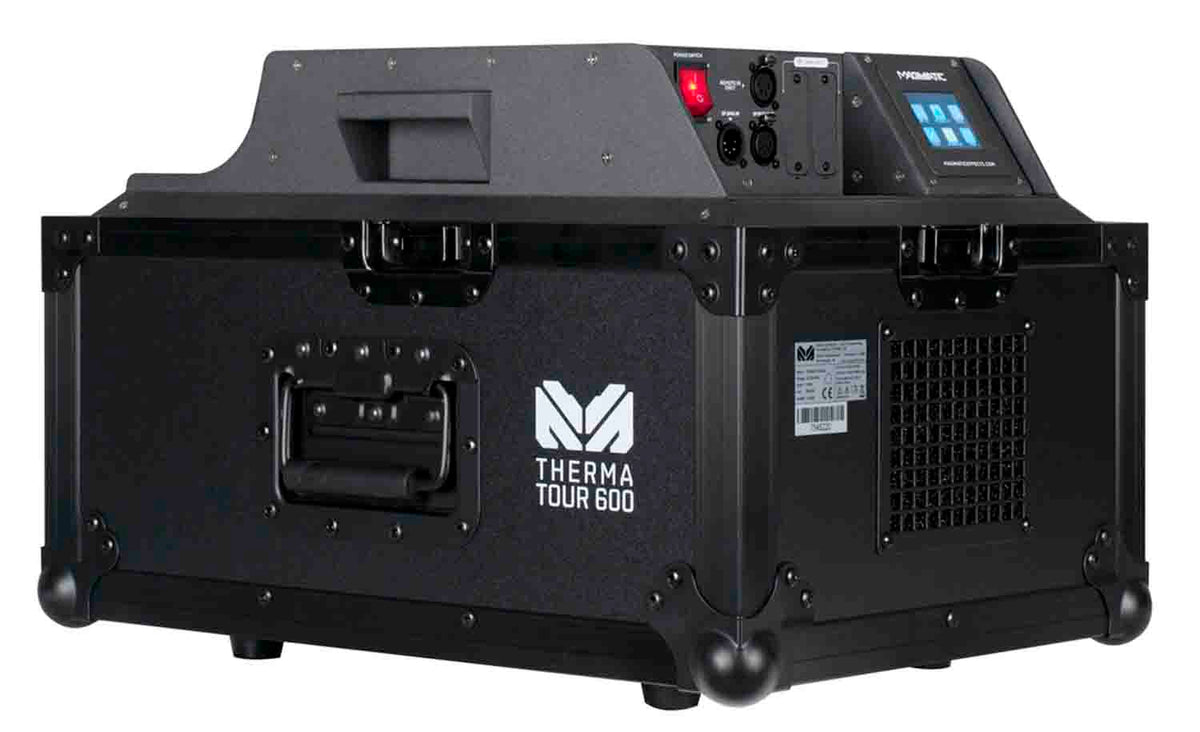

Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional MAGFLY Wireless DMX Transceiver
Optional MAGRF Wireless and Wired Remotes

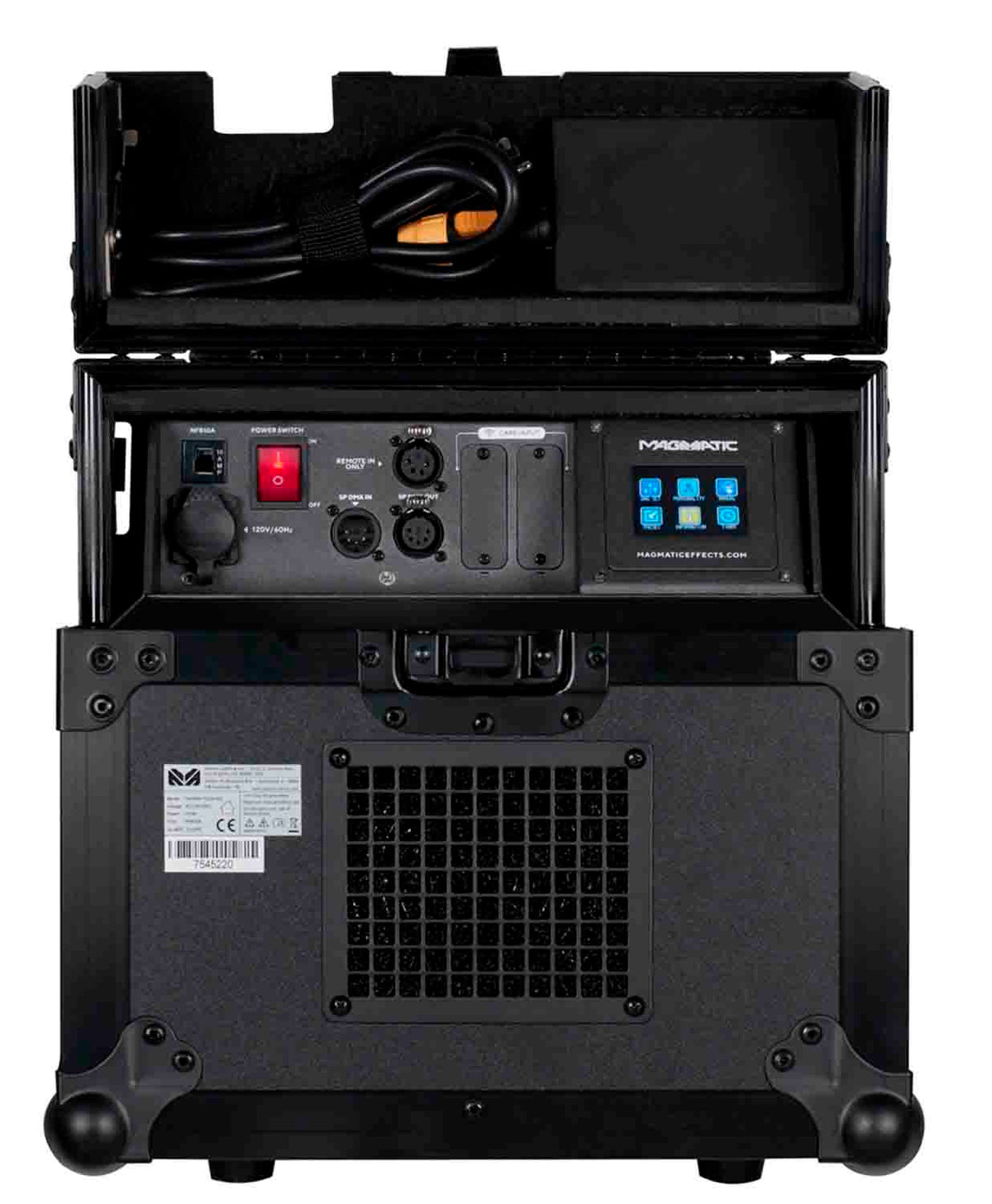

Connections
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network
Size / Weight
Length: 20.2 in. (514,1mm)
Width: 14.7 in. (374.1mm)
Height: 14.1 in. (365.1mm)
Weight: 66 lbs. (30kg)
Electrical
AC120V 60Hz (US Version)
AC230V 50Hz (EU Version)
10A (NFB US Version)
5A (NFB EU Version)
Max Power Consumption: 370W
Thermal
Maximum Ambient Temperature (Ta max) 104°F (40°C)
Exterior Surface Temperature, Steady State: 122°F (50°C)
