Elation PROTEUS HYBRID MAX WMG (PHM023) & 550-Watt Discharge IP65 Beam

Name: Elation PROTEUS HYBRID MAX WMG (PHM023) & 550-Watt Discharge IP65 Beam
Brand: Elation
SKU: H-ELAT-PHM023

Request a quote

Model / SKU: H-ELAT-PHM023

In a hurry? Call us.

1-800-700-4542
System design direct line: (213) 816-4102

Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

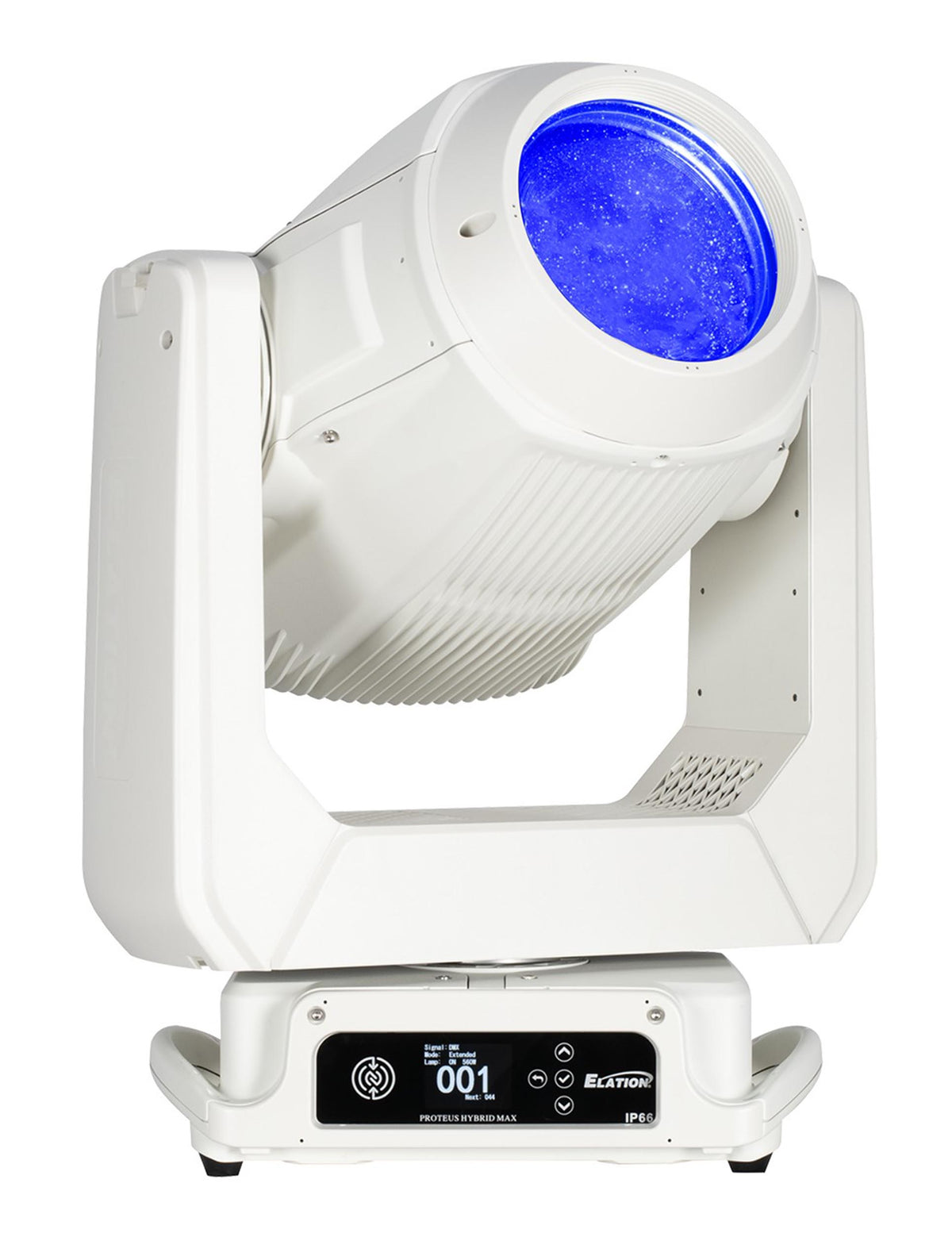

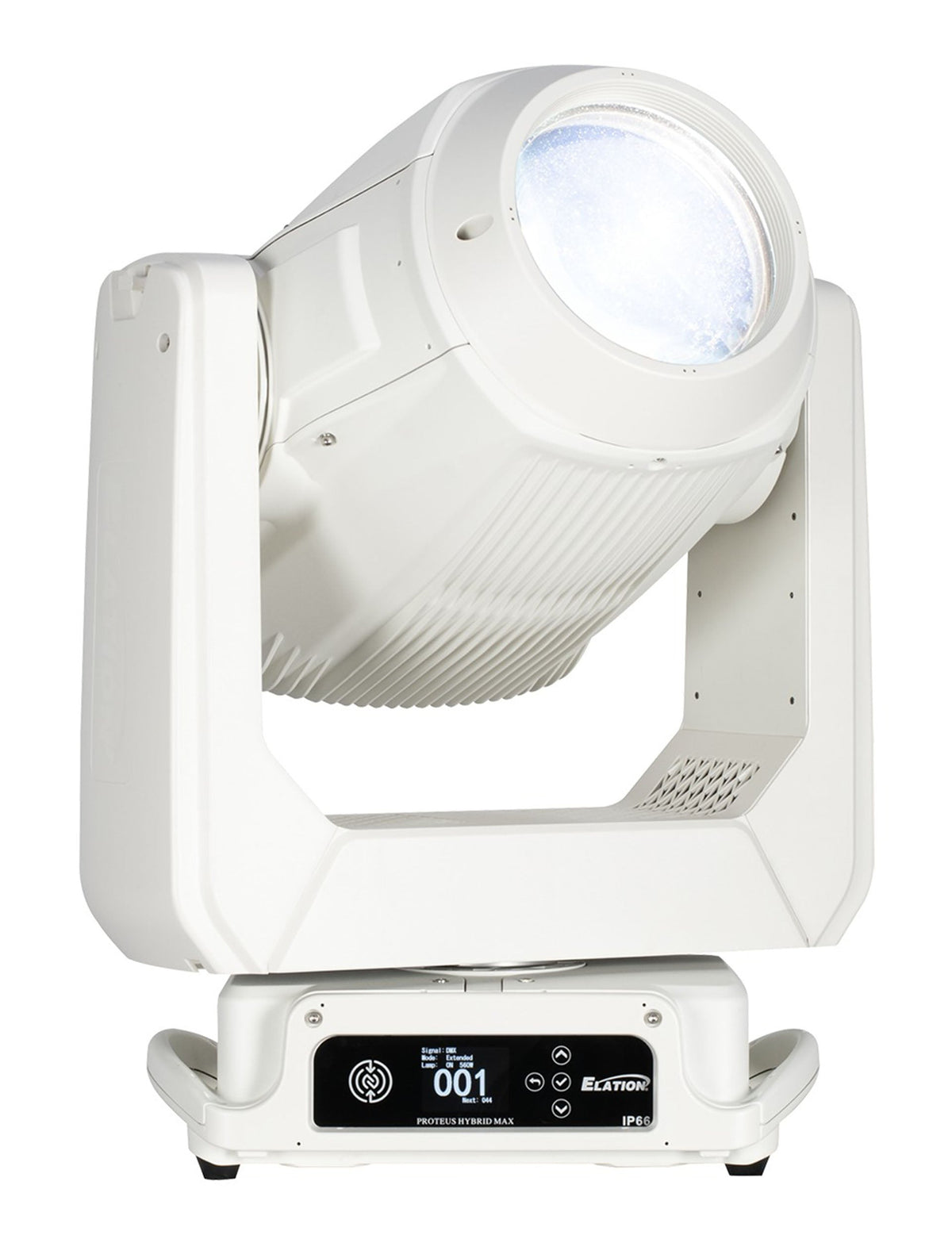

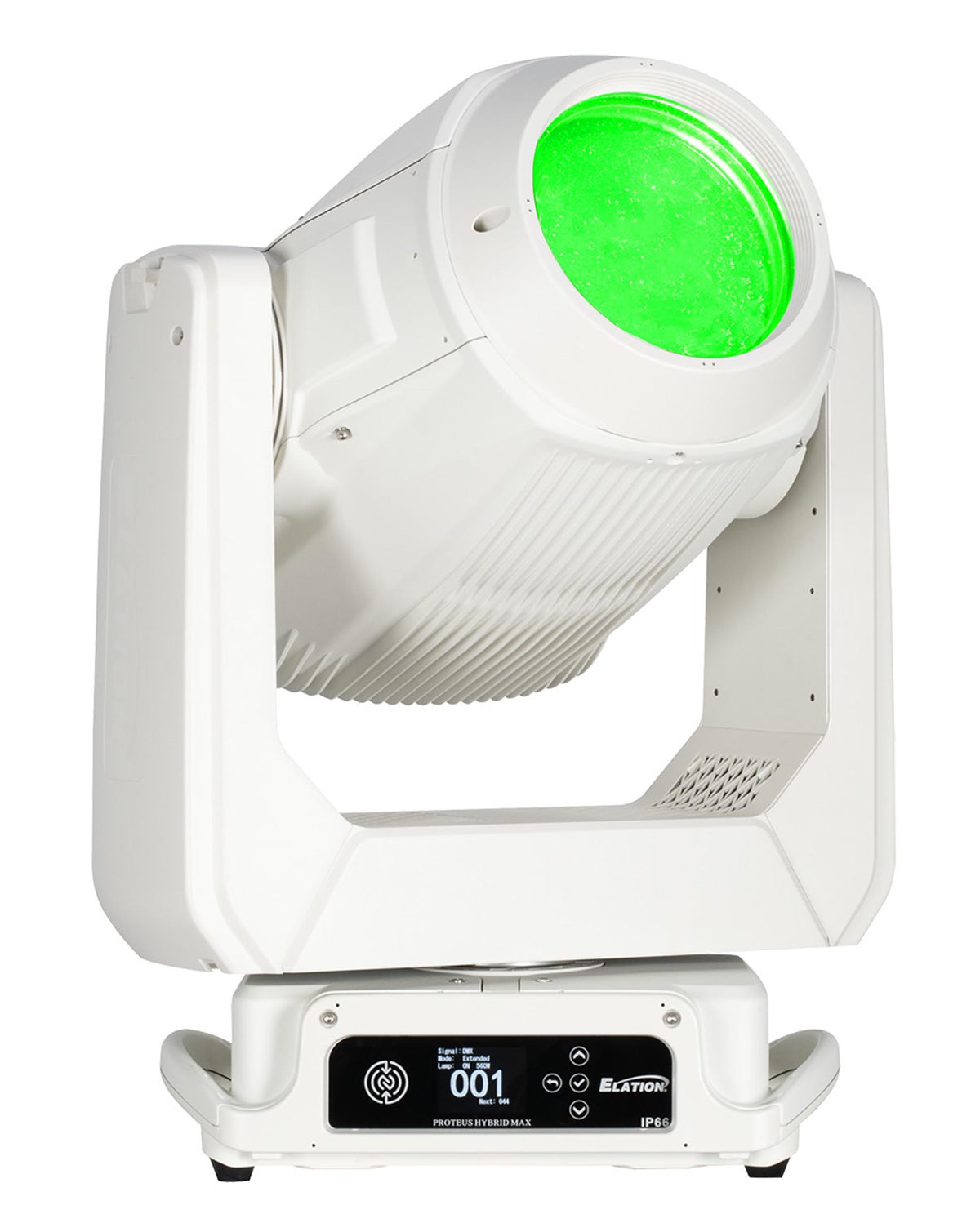

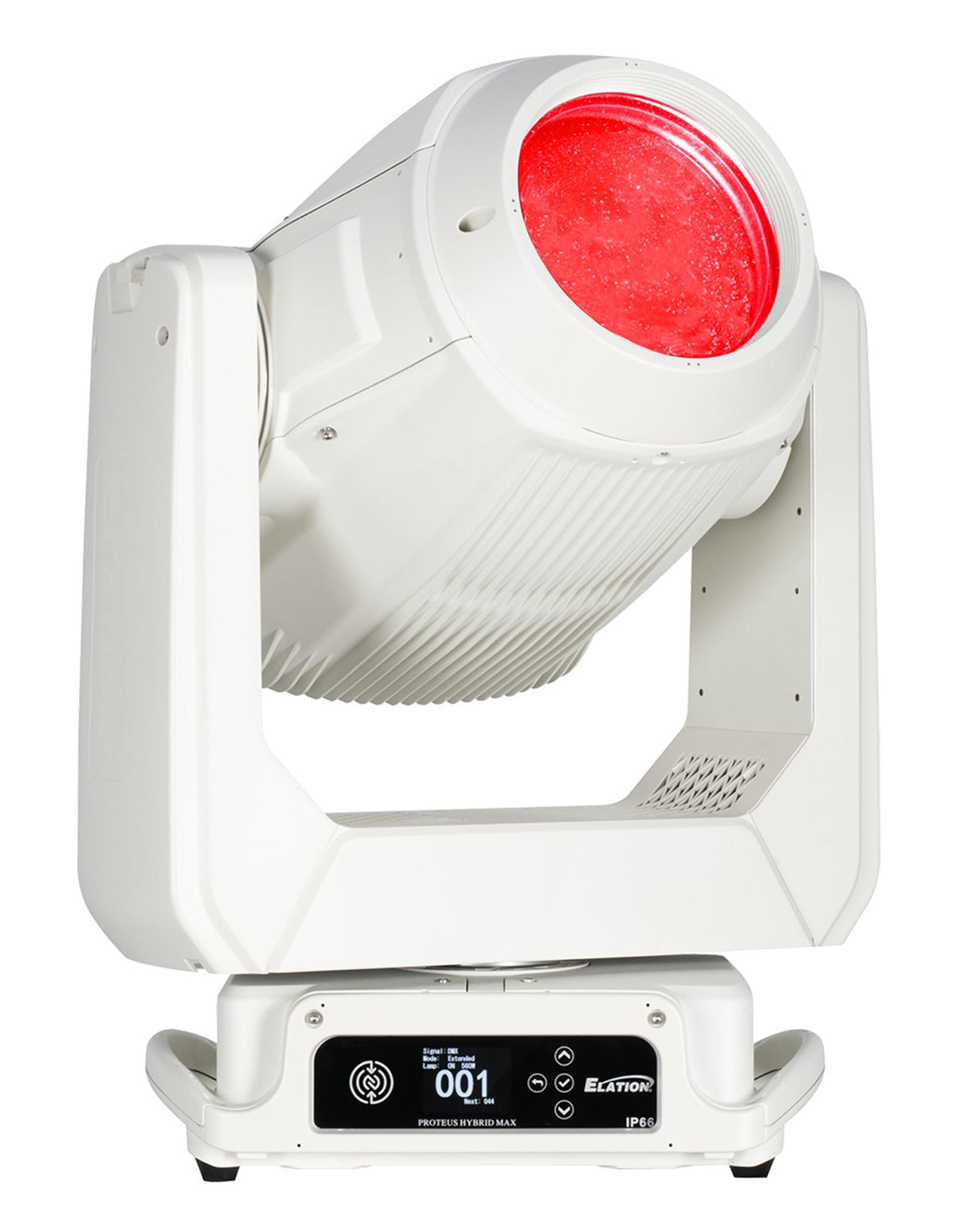

The Elation PHM023, 550-Watt Discharge IP65 Beam, Spot and Wash Hybrid Fixture combines high output and long lamp life in a feature packed compact IP66 Hybrid fixture. PROTEUS HYBRID MAX WMG is the Extreme Output Hybrid featuring the innovative Philips MSD Platinum FLEX 500 lamp. Rated at 550W and up to 4,000 hours smart lamp life the HYBRID MAX includes CMY and variable CTO plus a full complement of projection and effects options.

Four prisms on two planes, dual frosts plus dual gobo wheel and three tracks of animation patterns round out the comprehensive FX package in a compact and lightweight housing. For extra impact the fixture features a fast-continuous pan rotation.

Delivering 22,000 lumens from its large 170mm front aperture, the PROTEUS HYBRID MAX WMG has a crisp output for extremely powerful beams, sharp gobos and bright washes, making it a flexible fixture for almost any application, while providing an excellent return on investment.

The PROTEUS HYBRID MAX WMG includes the innovative Sky Motion system to operate the fixture as an impactful searchlight effect without the need for a dedicated lighting controller. Multiple fixtures can be interconnected, and with the simple assignment of IDs the fixture provides immediate access to a variety of movement patterns that are easily adjustable in size, speed, and color directly from the display. Comparable in output to large format Xenon fixtures the PROTEUS HYBRID MAX WMG operates at a fraction of the power, supports a wide range of 100-240V, has a much smaller footprint, lower weight and is fully IP66 rated. The Sky Motion system allows standalone operation for events and applications and is easy to set up and adjust directly from the display of the fixture even for "non-lighting" users and expands the usability of the fixture beyond traditional show lighting applications.

Product Specifications:

Source:

Philips MSD Platinum 500 Flex 550W Lamp

Variable Lamp Power

Automated Lamp Hibernation with Instant Recovery

Up to 4,000 Hour Lamp Life

Photometric Data:

22,000+ Lumen Total Fixture Output

Zoom Range 1.8˚ - 45˚

Effects:

Beam, Spot and Wash Modes

Motorized Zoom
