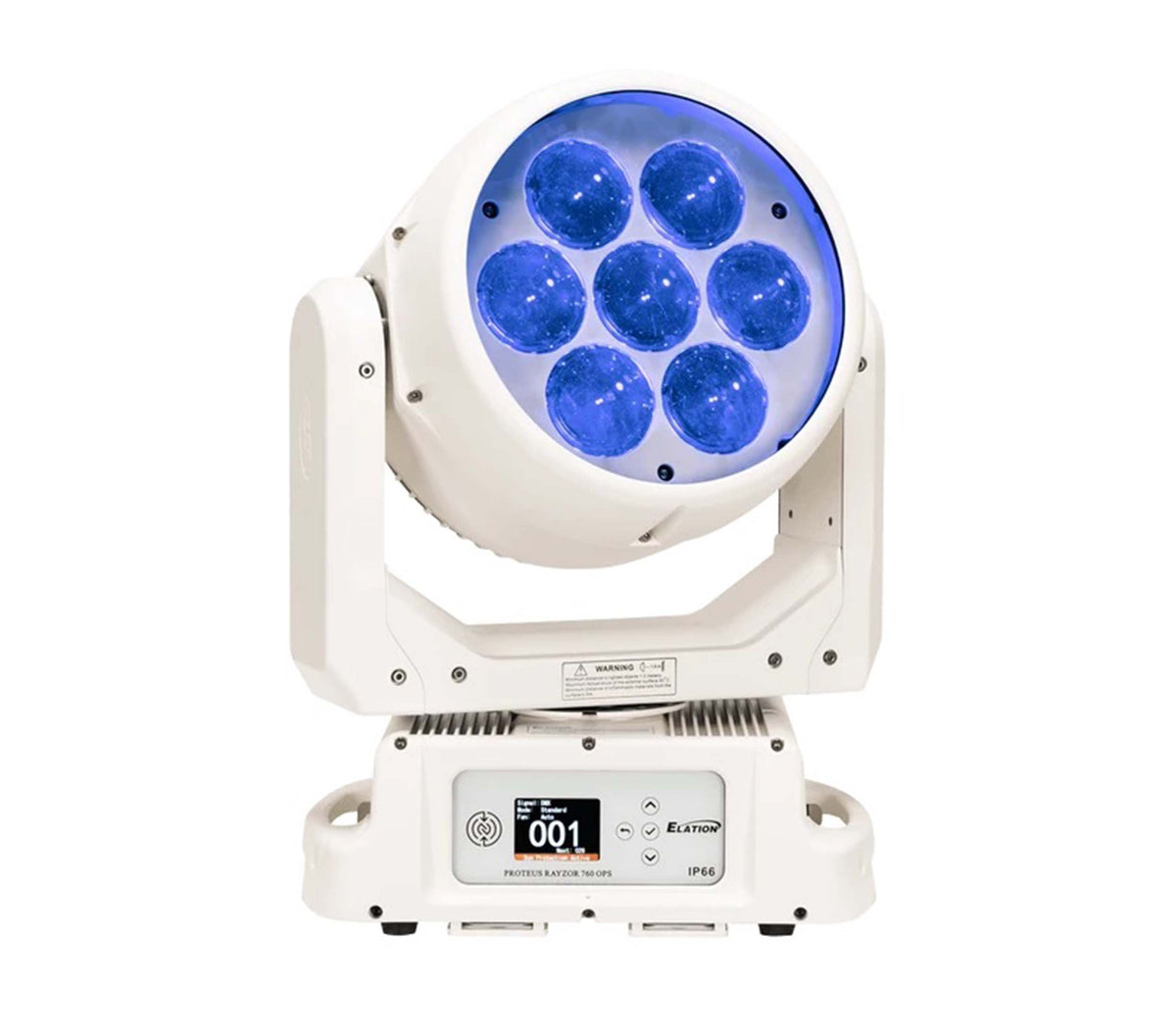

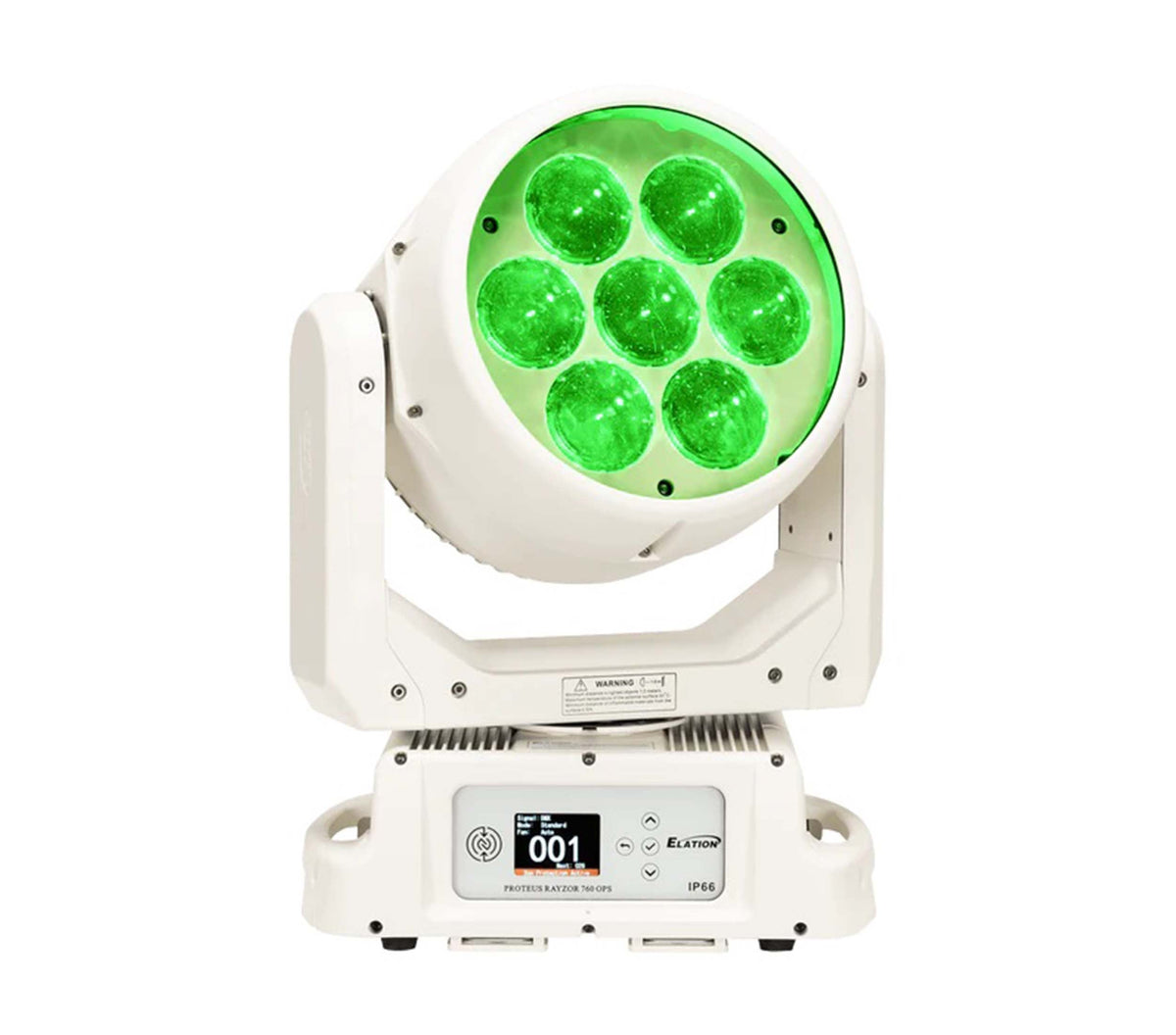

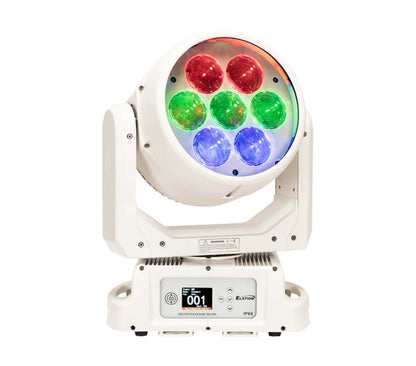

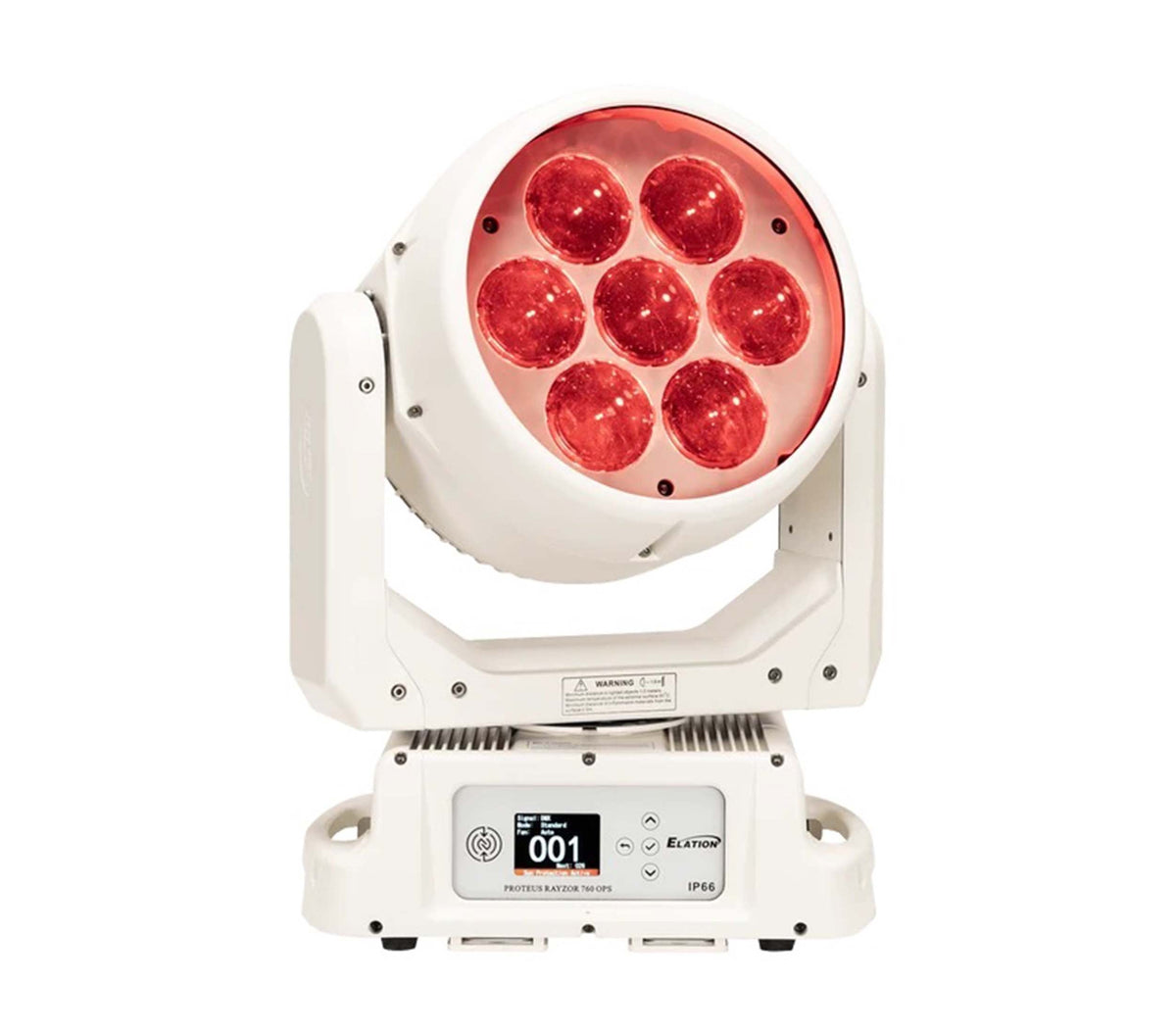

The Elation Proteus Rayzor 760 OPS is a compact yet powerful IP66-rated Wash Effects fixture designed for professional entertainment and permanent outdoor installations. Combining high-output RGBW LEDs, advanced pixel effects, continuous Pan and Tilt movement, and an exceptionally wide zoom range, it provides a versatile lighting solution for stages, architectural installations, festivals, venues, and outdoor production environments.

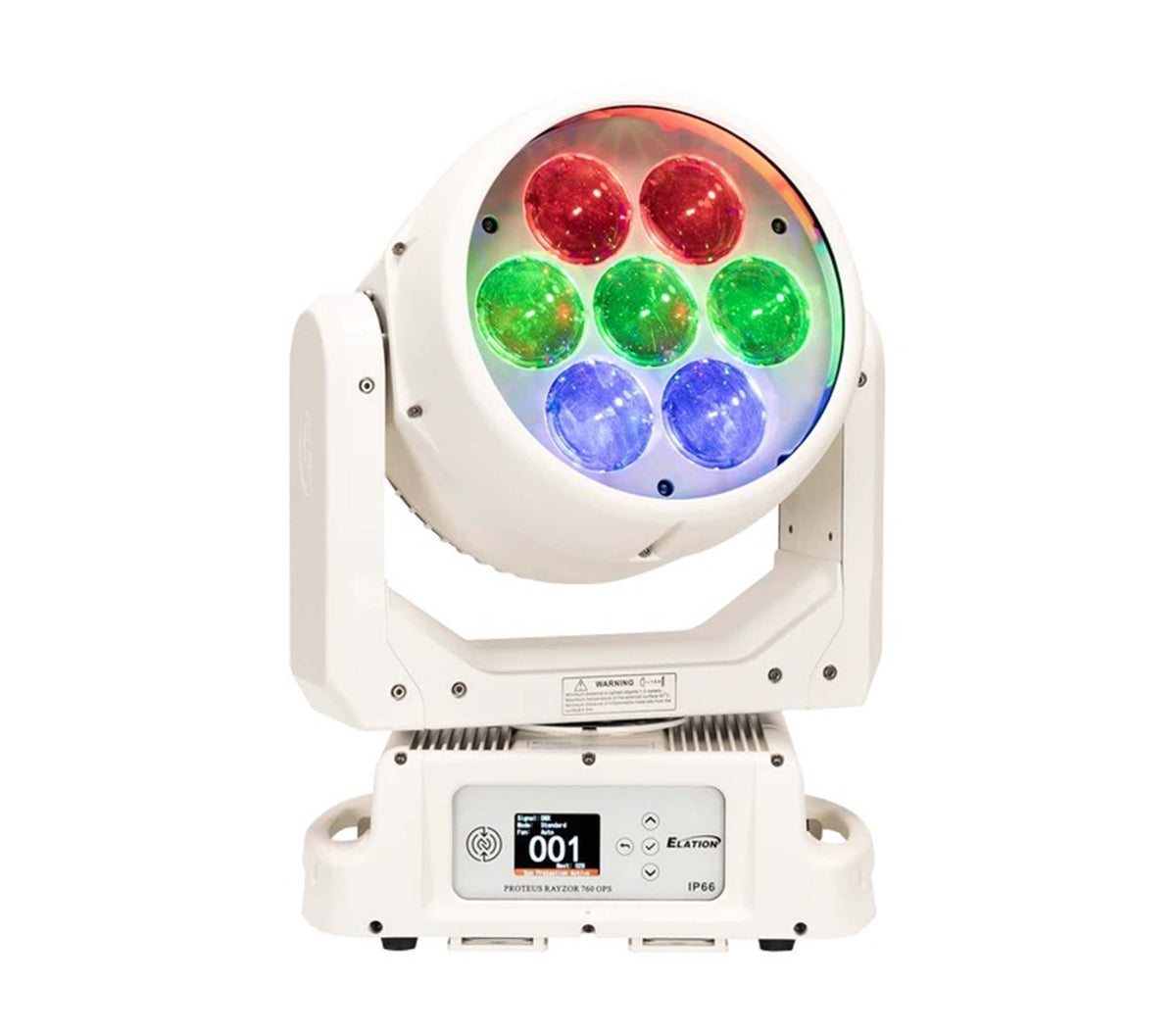

The fixture uses seven independently controlled 60W OSRAM RGBW LEDs to produce more than 7,200 lumens of output. Its 5°, 77° zoom range allows the Rayzor 760 OPS to transition from concentrated mid-air beams to broad and even stage washes, giving lighting designers flexibility across a wide range of applications.

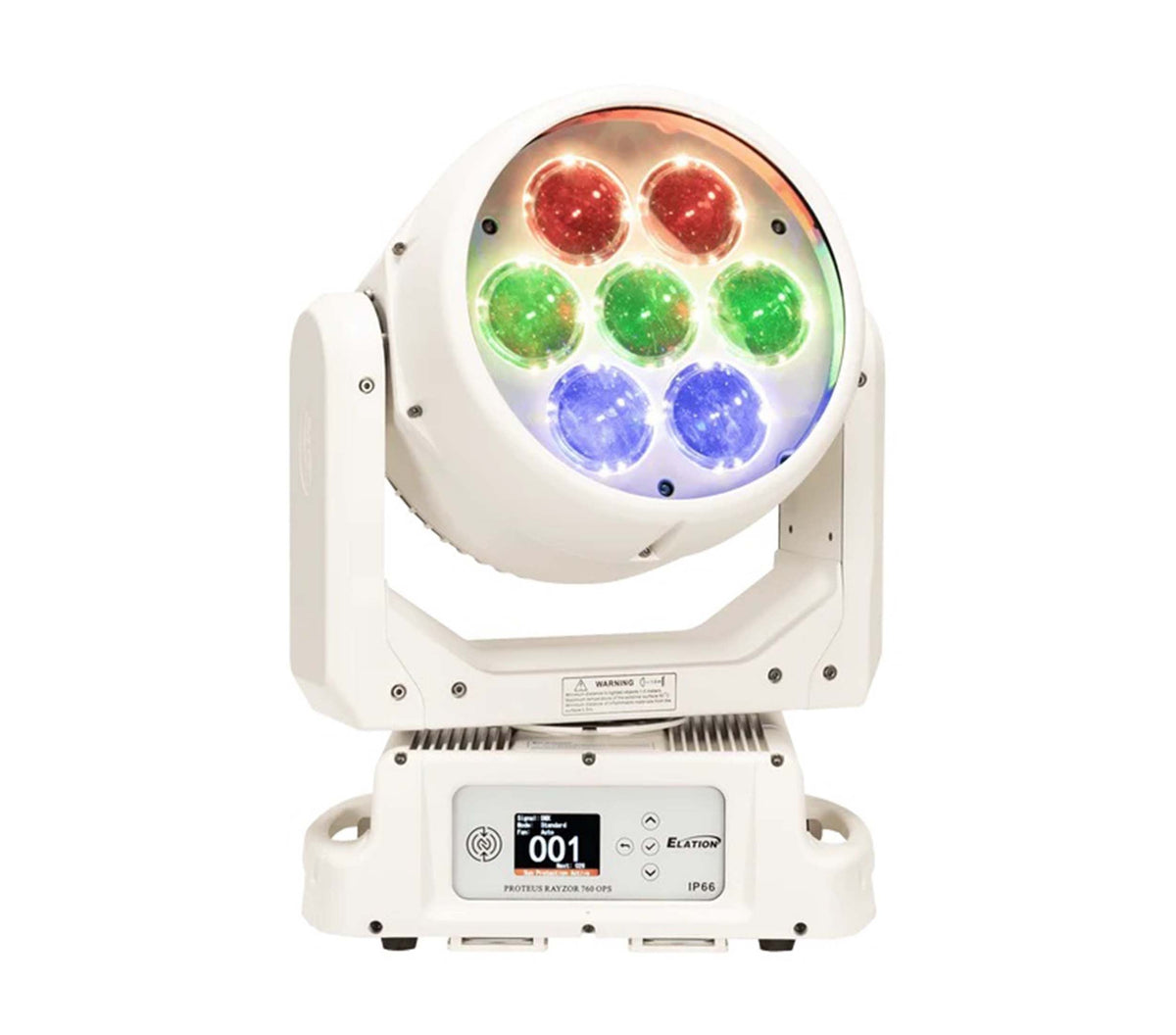

Elation's SparkLED™ system adds an additional visual layer through 28 individually controlled 2W white LEDs positioned within the large front lenses. These LEDs can be controlled through the lighting console or used with internal FX patterns to create distinctive pixel-based lens effects and additional visual depth.
Product Specifications:
Product Type: LED Wash Effects Fixture
IP Rating: IP66
Light Source: 7 × 60W OSRAM RGBW LEDs
SparkLED™ Source: 28 × 2W White LEDs
LED Life: 50,000 hours average
Total LED Power: 420W
Total Lumen Output: 7,200 lumens
CRI: 80
Zoom Range: 5°, 77°
Beam Angle: 5.4°, 56.4°
Field Angle: 8.1°, 74°
Color Mixing: RGBW with Pixel Control
Color Temperature Presets: 2000K, 10000K
Pan: 540° / 630°
Tilt: 270° / 360°
Movement: 360° Continuous Pan and Tilt
DMX Modes: 25 / 52 / 80 channels
Control Protocols: DMX and RDM
DMX Refresh Rate: 900-25000 Hz
Display: Full-color 180° reversible LCD
Control Panel: 6-button touch control panel
NFC: Supported
Power: AC 100-240V, 50/60Hz
Maximum Power Consumption: 700W
Thermal Output: 2387 BTU/hr ±10%
Ambient Temperature: -4°F to 113°F
Exterior Finish: RAL9016
Coating: CX Extreme Marine Grade Coating
Fasteners: Stainless Steel 316
Country/Application: Designed for permanent outdoor installations
