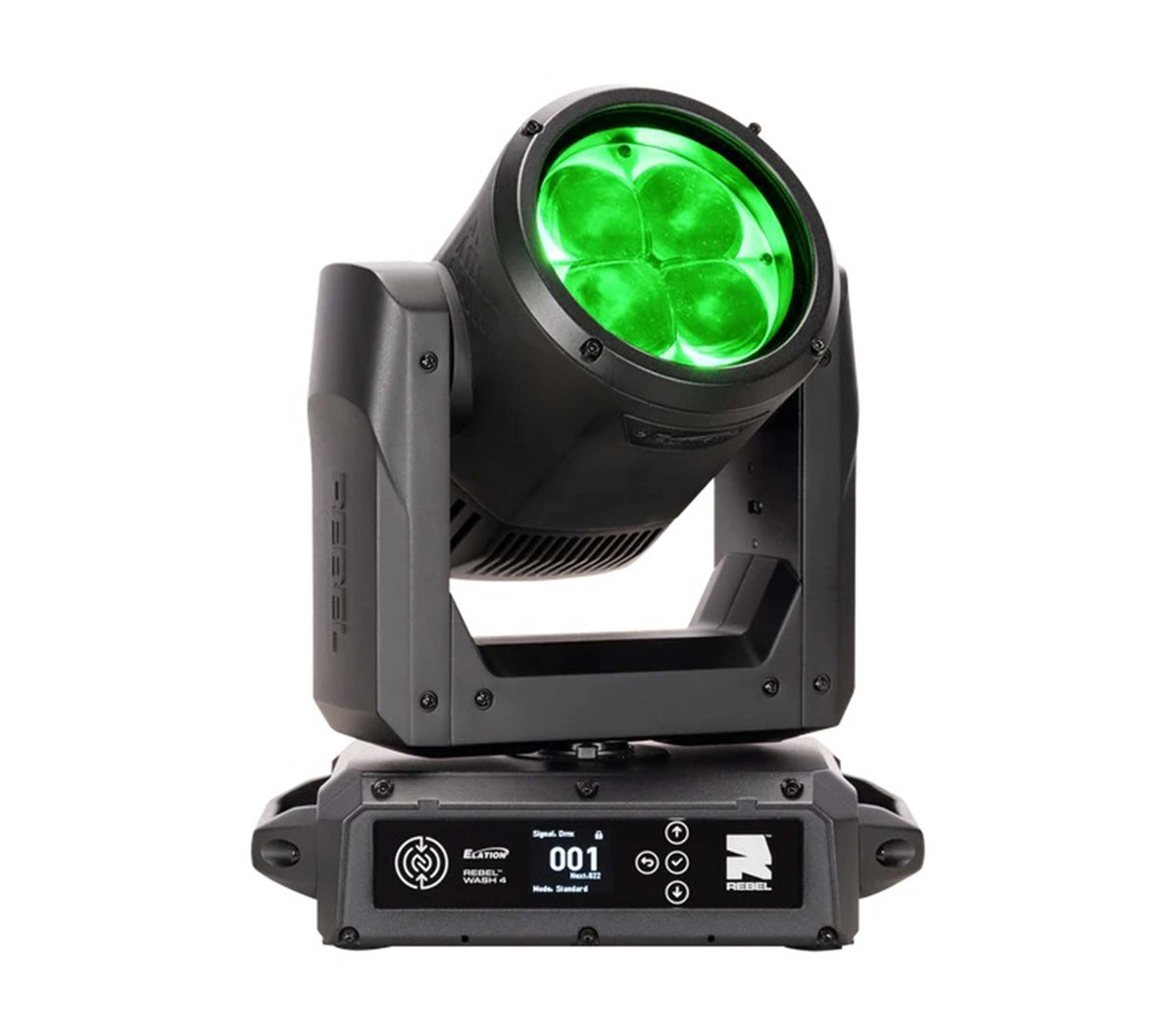

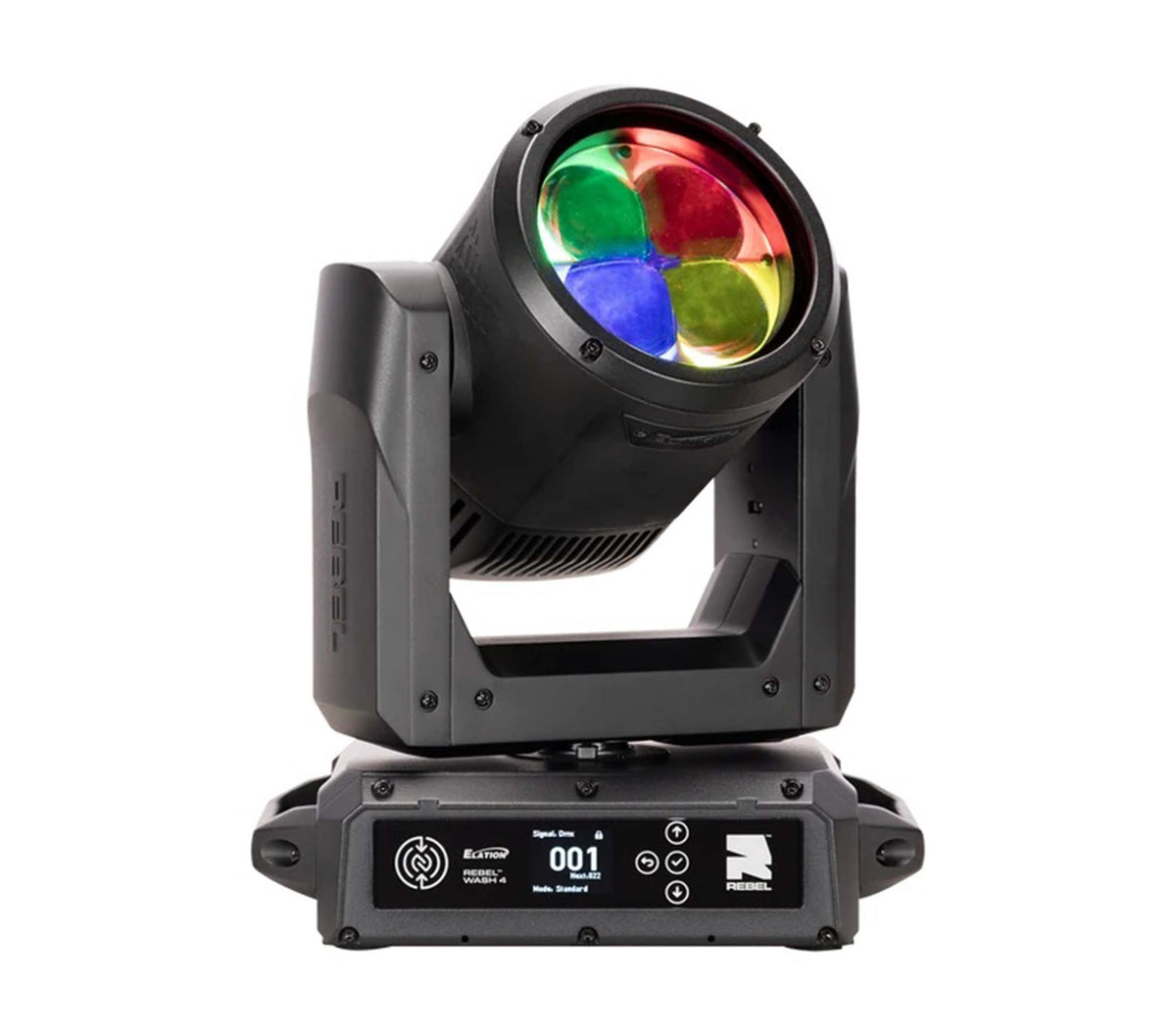

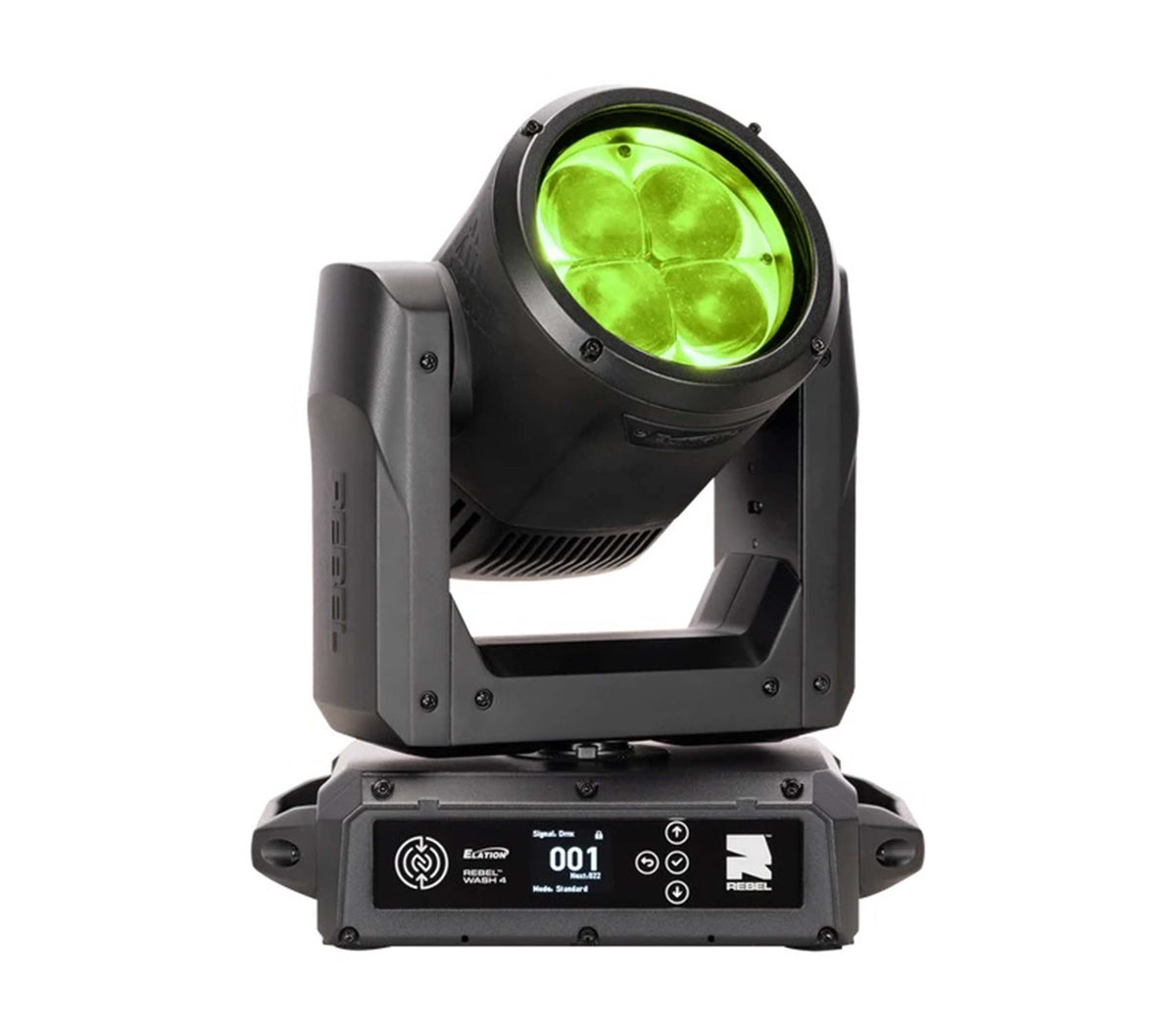

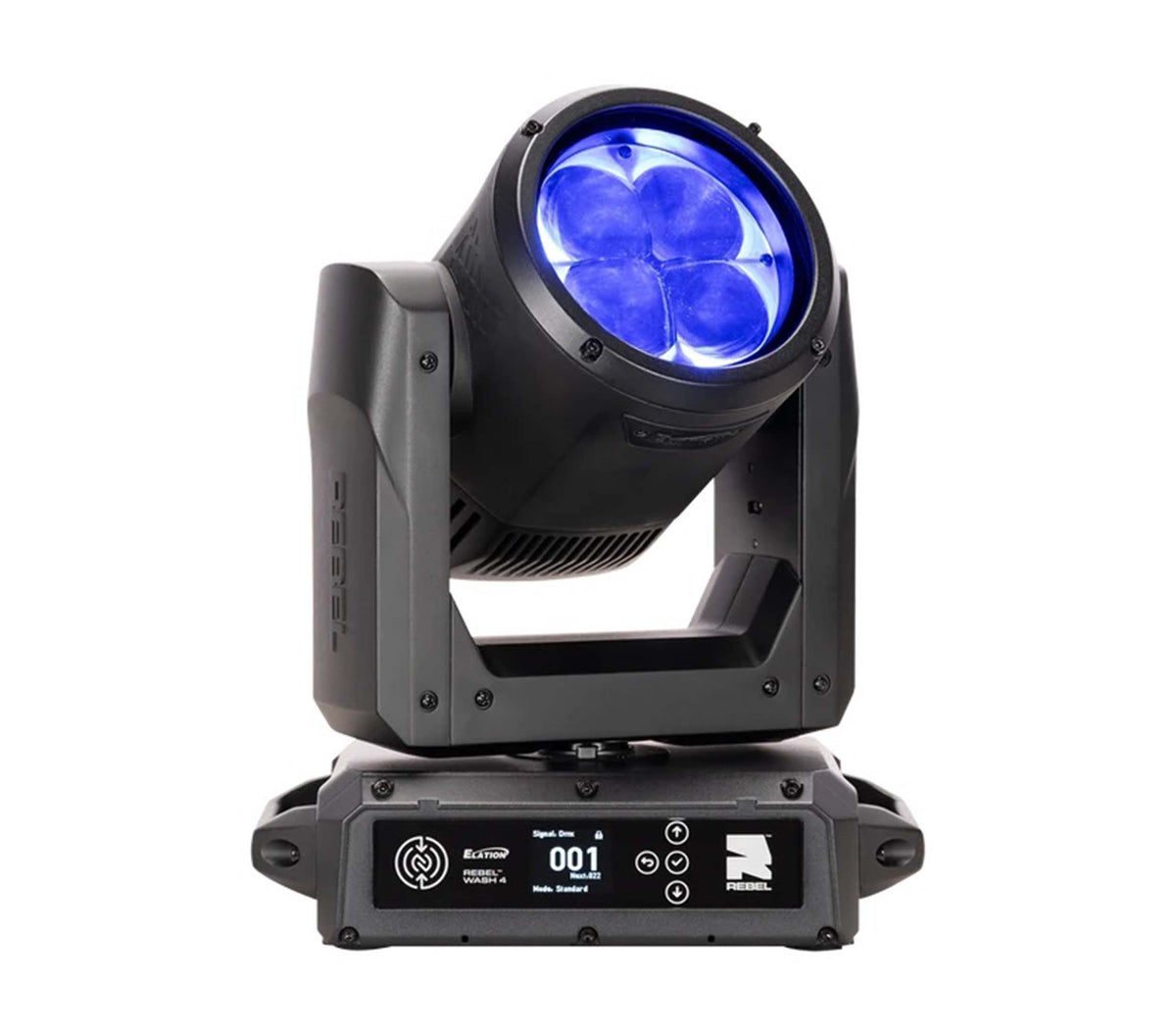

The Elation REB104 REBEL WASH 4™ is a compact, high-output IP65 LED wash fixture designed for demanding indoor and temporary outdoor applications. Its four 60W RGBL emitters deliver up to 4,000 lumens with vibrant colors, quality white output, high CRI, and calibrated color temperatures.
Featuring pixel control, variable CCT adjustment, and a fast 5°, 40° motorized zoom, the REBEL WASH 4 provides the flexibility to create everything from powerful beams to broad washes. Variable 16-bit dimming, electronic strobe, and controllable LED refresh rates further expand its creative capabilities.
With continuous 360° Pan and Tilt rotation and a fully sealed IP65-rated housing, the REBEL WASH 4 is built for versatile show and event applications. Its compact design, wireless management, NFC configuration, reversible LCD display, and included Omega brackets make it a practical choice for professional lighting setups.
Product Specifications:
Product Type: LED Wash Fixture
IP Rating: IP65
LED Source: 4 × 60W RGBL LED
LED Life: 30,000 hours
Total Fixture Output: 4,000 lumens
CRI: 83.4
TLCI: 67
Zoom Range: 5°, 40°
Beam Angle: 5°, 40°
Field Angle: 8.5°, 56.5°
Color System: RGBL
CCT Range: 2400K, 8500K
Pixel Control: Yes
Dimming: Variable 16-bit
Strobe: High-speed electronic shutter and strobe
Pan: 360° / 540°
Tilt: 360° / 270°
Movement: Continuous 360° Pan & Tilt
DMX Modes: 3
Protocols: DMX, RDM, Art-Net, sACN
Control Panel: 4-button touch control

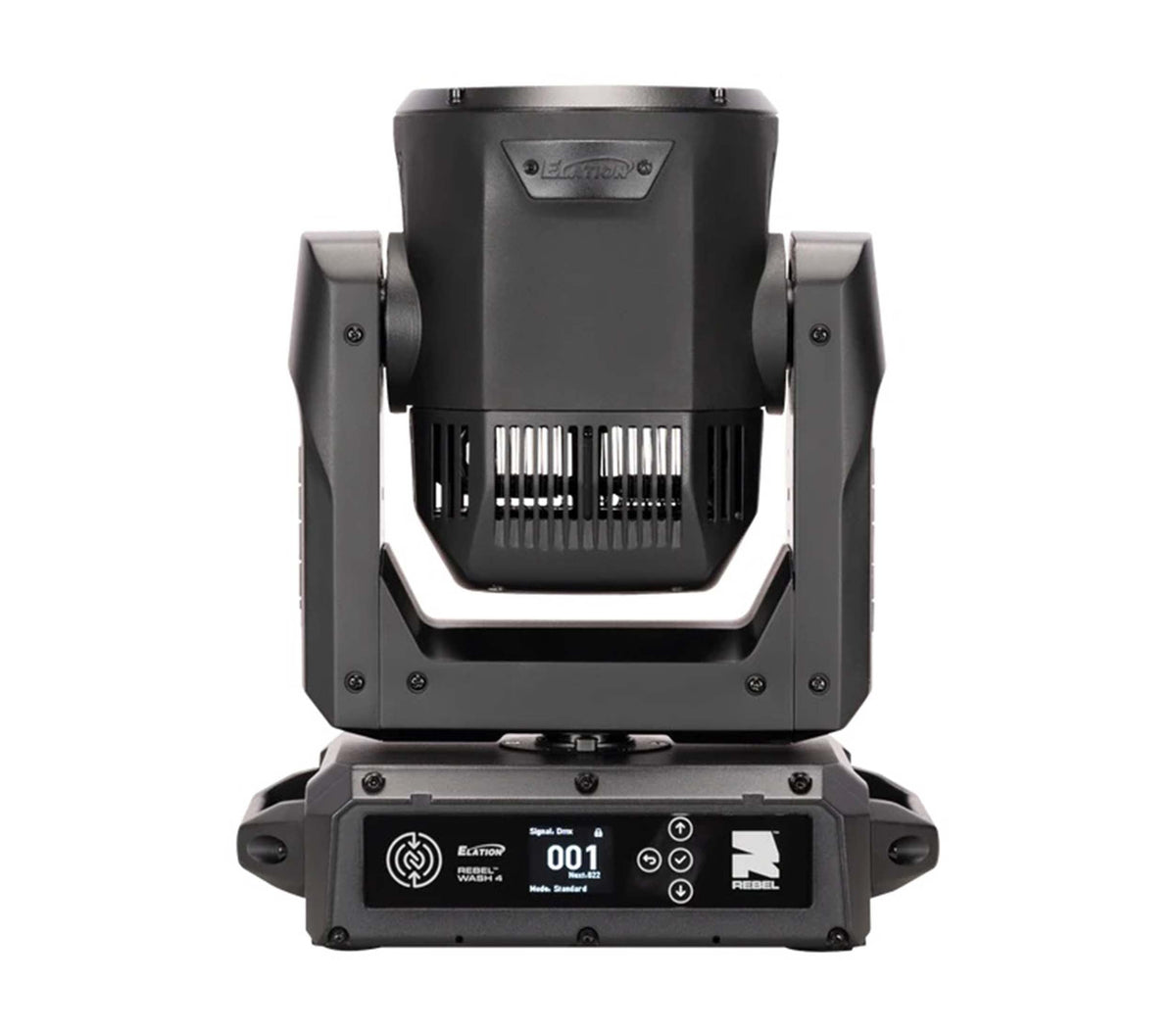

Display: Full-color 180° reversible LCD
Wireless Management: Aria x2
Configuration: NFC
Hibernation Mode: Yes

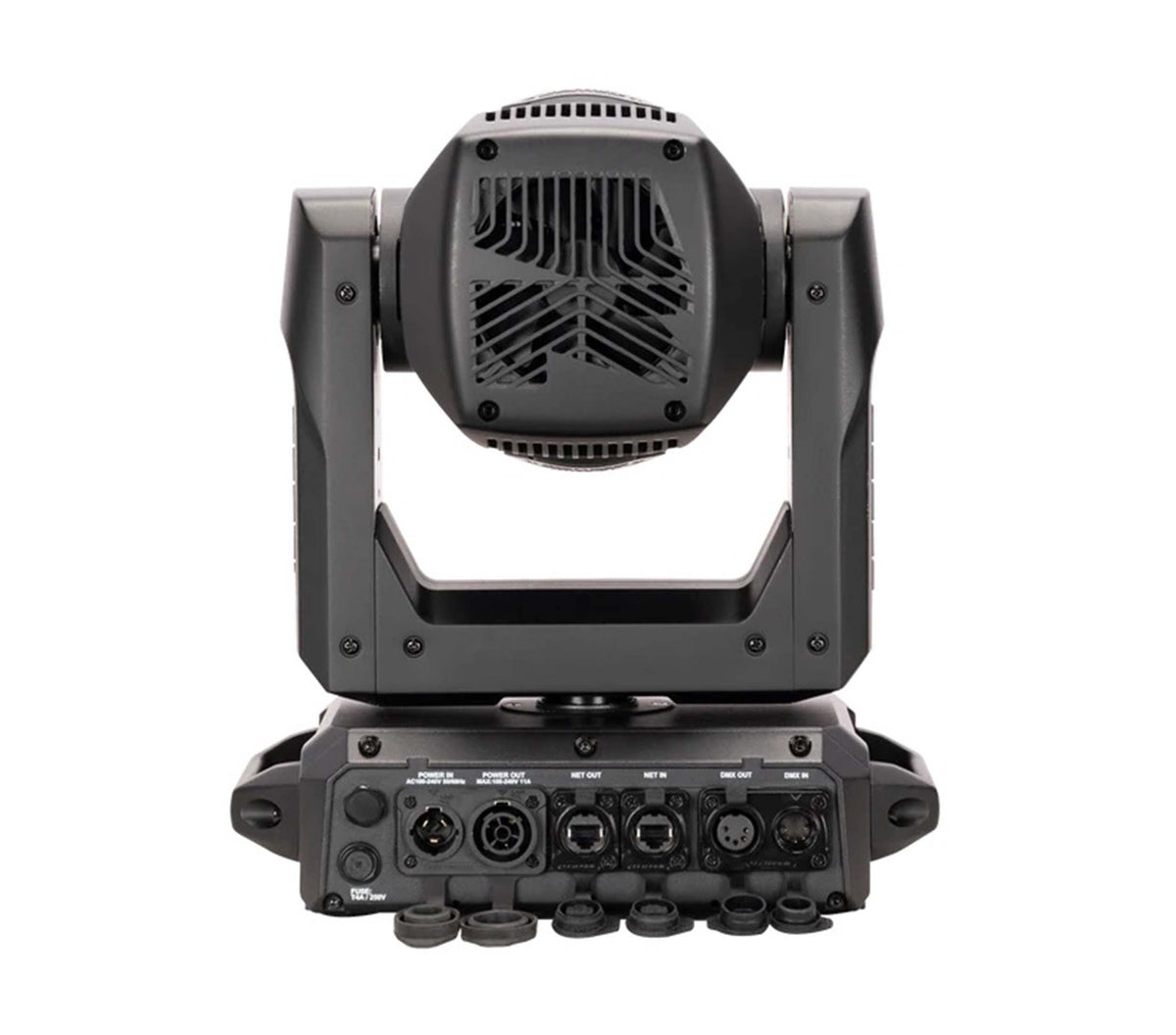

DMX Connector: IP65 locking 5-pin XLR In/Out
Ethernet Connector: IP65 locking RJ45 In/Out
Power Connector: IP65 locking power In/Thru
Input Voltage: AC 100-240V, 50/60Hz
Maximum Power Consumption: 340W
Power Thru Capacity: 8A
Operating Temperature: -20°C to 45°C
Heat Output: 1159.4 BTU/hr ±10%
Included Accessories: 2 Omega brackets, safety cable, IP65-rated locking power cable
Approvals/Ratings: CE, cETLus, FCC, UKCA, IP65
Product Weight: 19 lbs
Product Dimensions: 14 H × 8 W × 11 L
