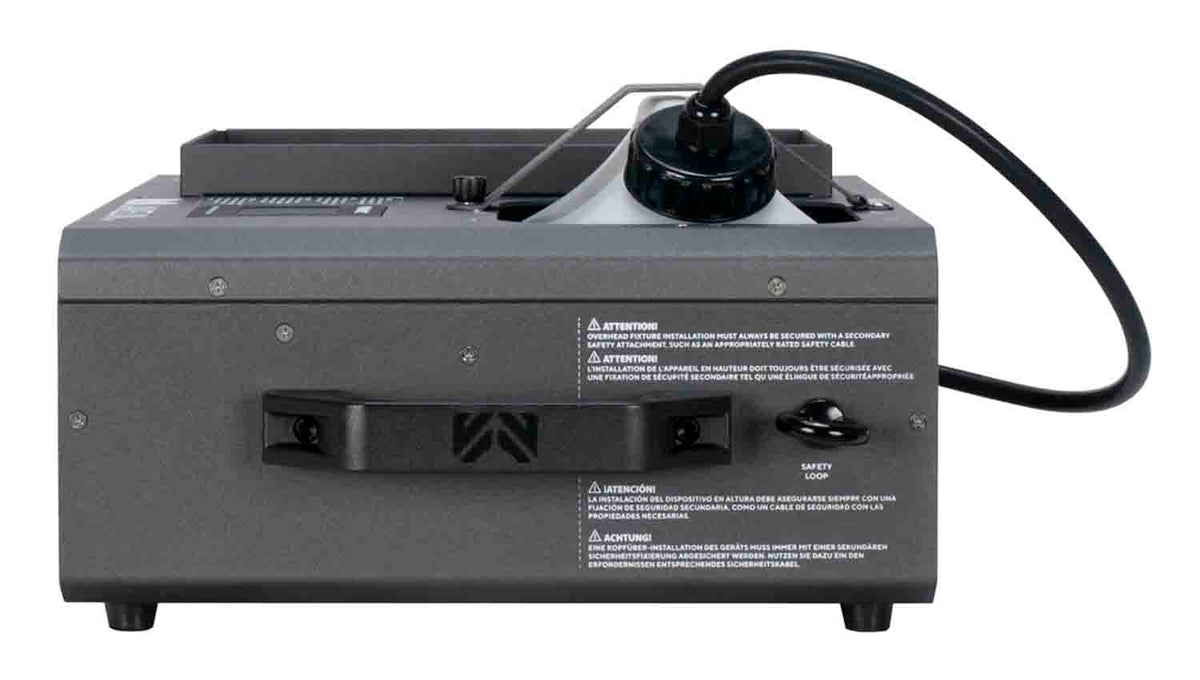

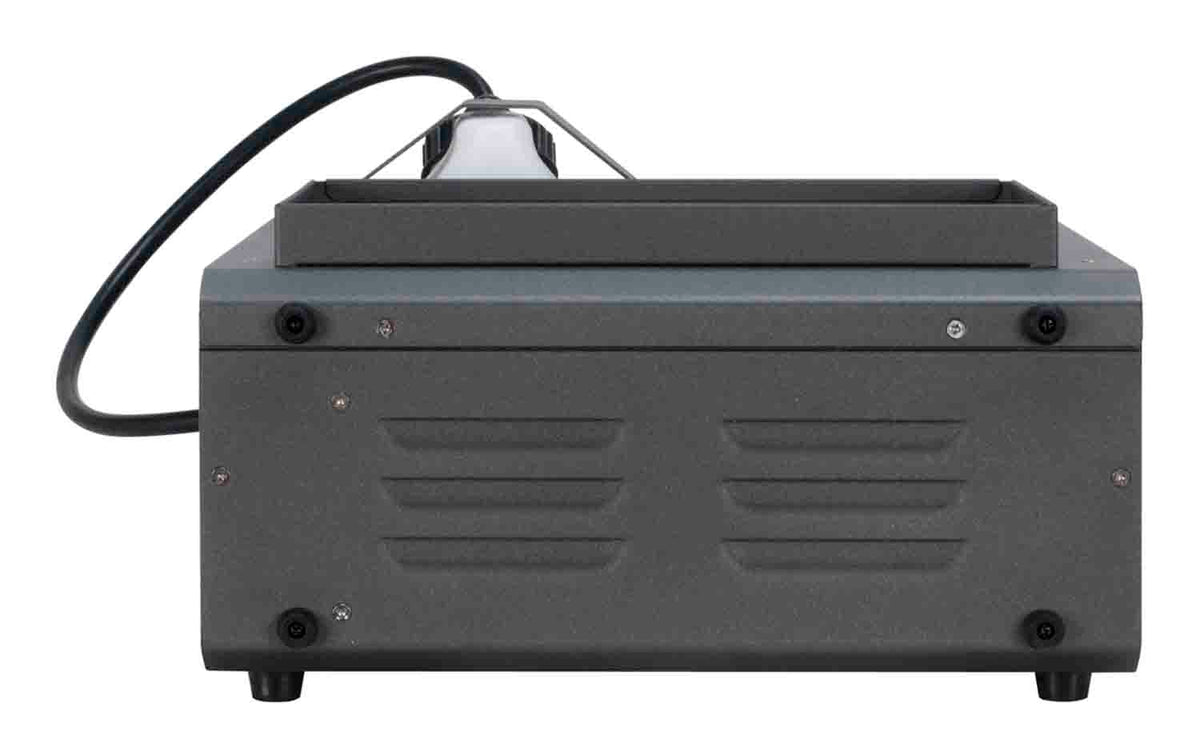

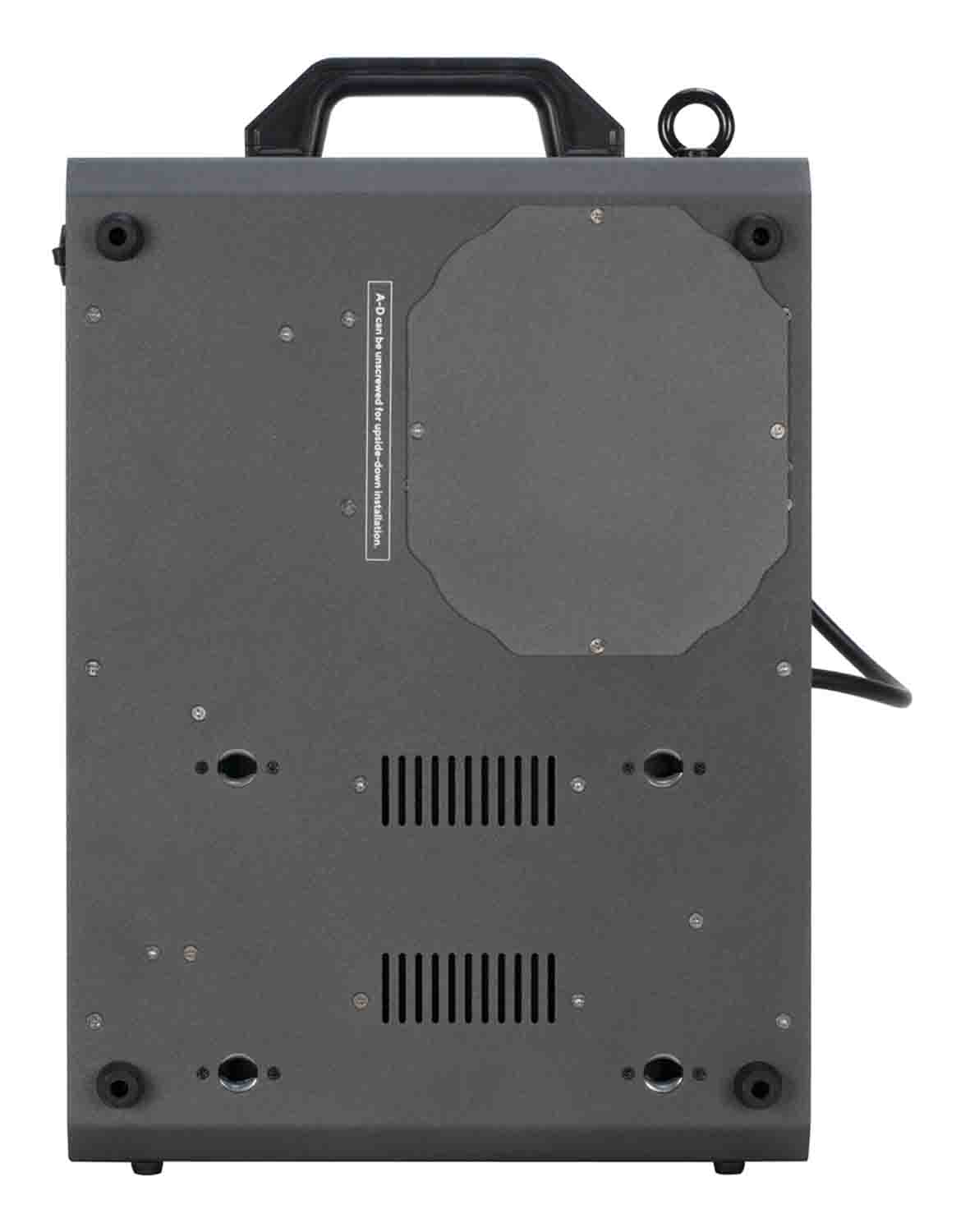

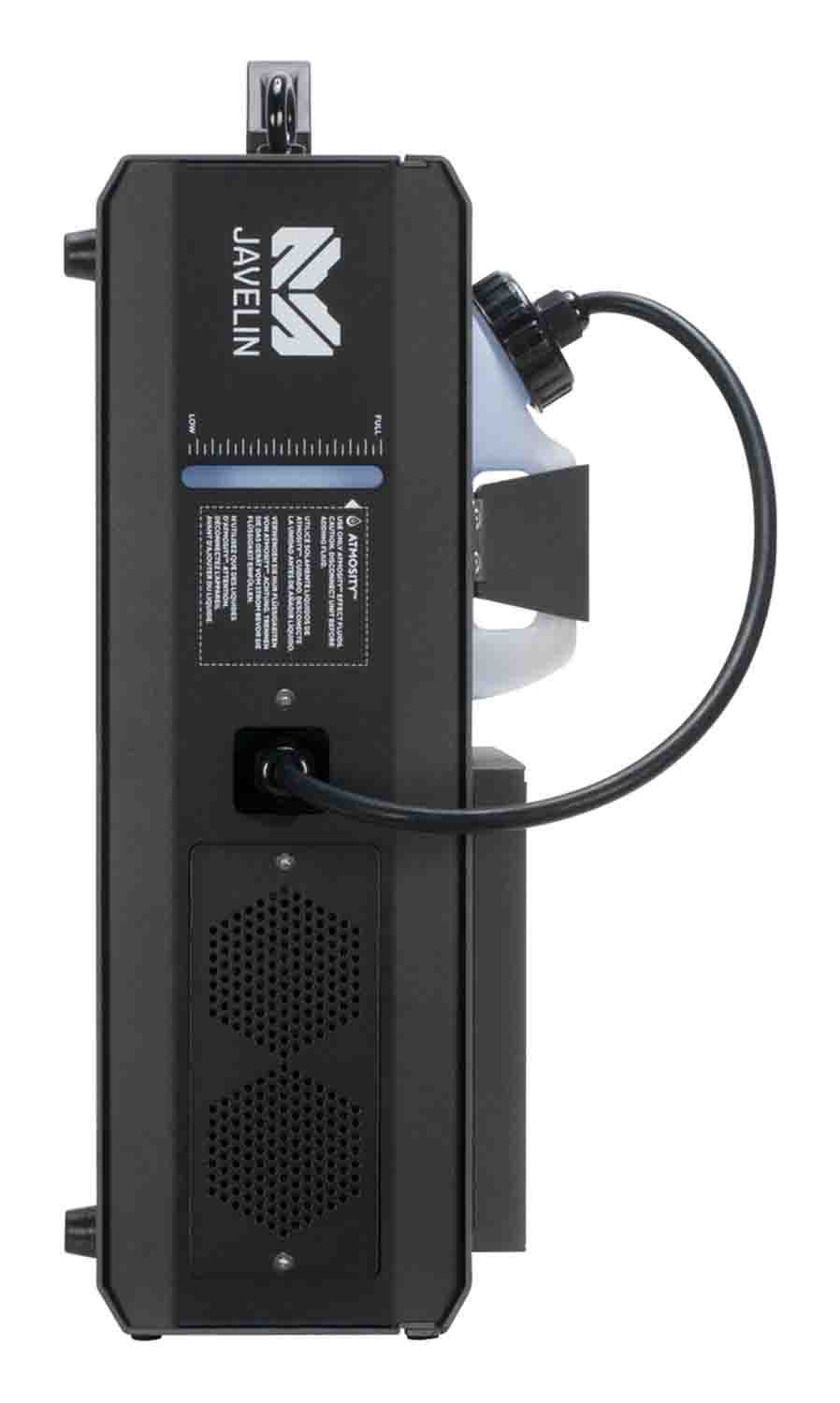

Elation RSJ150 Professional Javelin Fog Machine

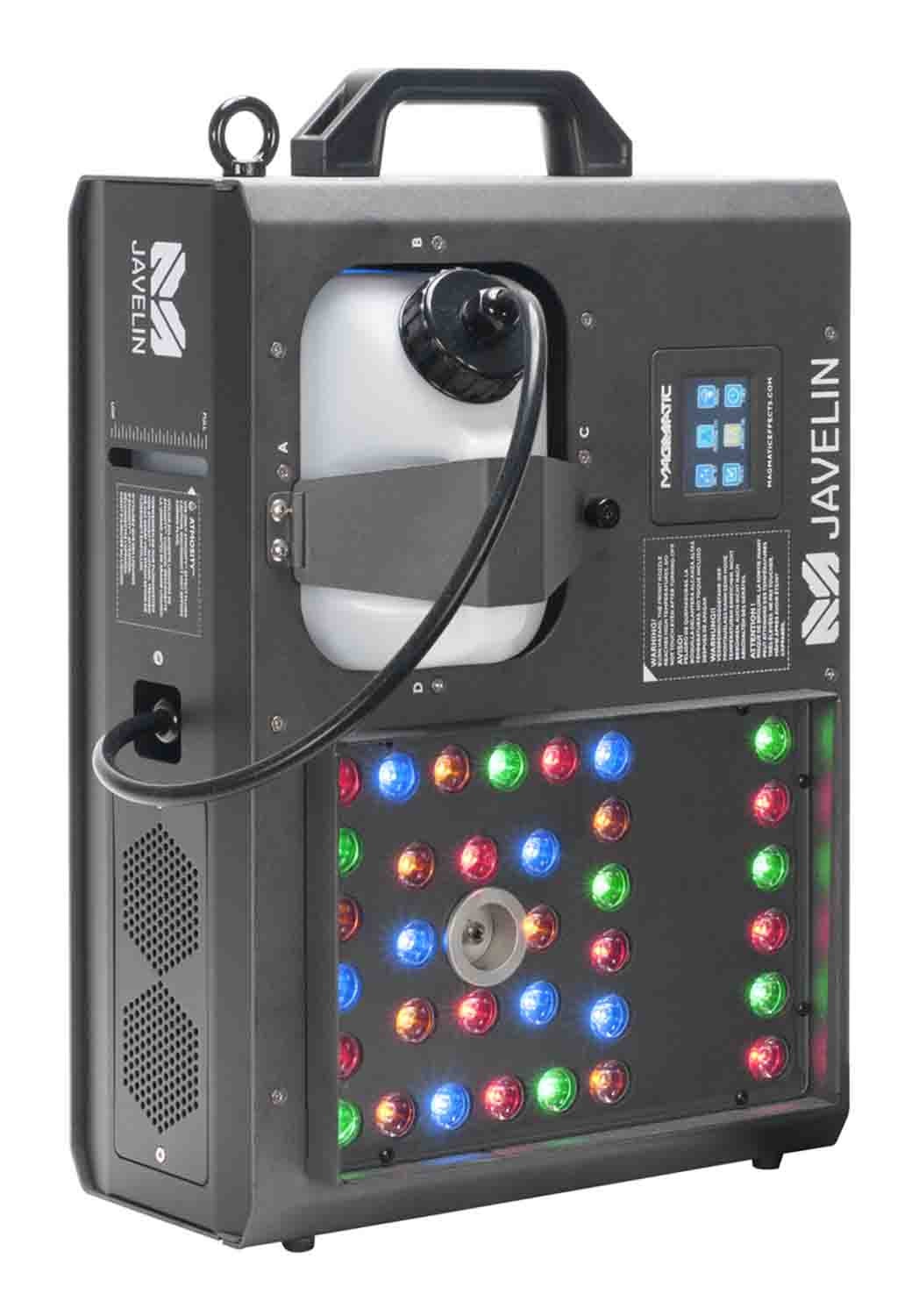

The Elation RSJ150 Professional Javelin Fog Machine is a high-velocity CO2 simulator fog machine for high-impact moments. Featuring 34 x 2-watt RGBA LEDs for throws of dynamic colored effect, the Javelin can rotate 90-degrees for horizontal or vertical bursts of fog. Wrapped in a durable aluminum housing, the Javelin is intuitively controllable via DMX-512 and RDM and houses an easy-to-use onboard LCD touch screen control panel. Wired and wireless remote-control options are available.

Product Specifications:

Performance

Rated Power: 1450W

Max Output: 50,000 CFM (cu ft/min.)

Fog Burst (Distance): 5-6m / 3 sec.

Ready Time: Initial = 9 Minutes

Fluid Capacity: 0.66 gallons (2.5 liters)

Fluid Consumption: 6.09 oz/min (180 ml/min) approximate

Max Continuous Output Duration: 8 Seconds

Compatible Fluid

Atmosity Flash Fog Fluid (AFF-4L)

Atmosity Extreme Filtered Fog Fluid (AEF-4L)

Construction

Thermally Protected Heat Exchanger

Advanced HPA (high pressure air) Pump Technology

Energy Saving Mode with Auto-Clean Process

Sealed Fluid Reservoir

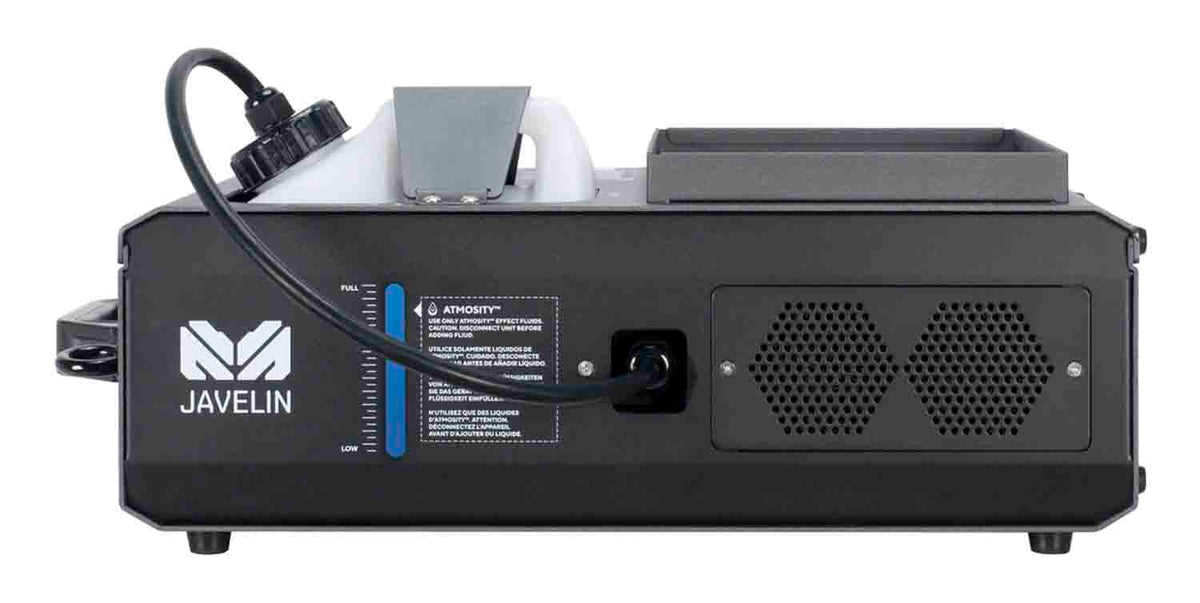

External Visual Fluid Level Detection

Compact Light Weight Mobile Design

Control

4 DMX Channel Modes (1 / 4 / 7 / 12)

Onboard LCD Touch Control Panel

DMX-512 and RDM Protocol Support

Optional Magfly Wireless Module (See Accessories)

Optional RF Wireless Module and Remote (See Accessories)

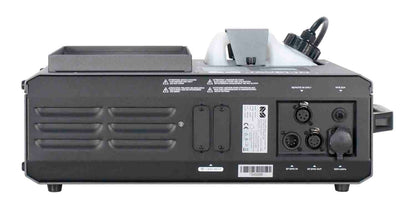

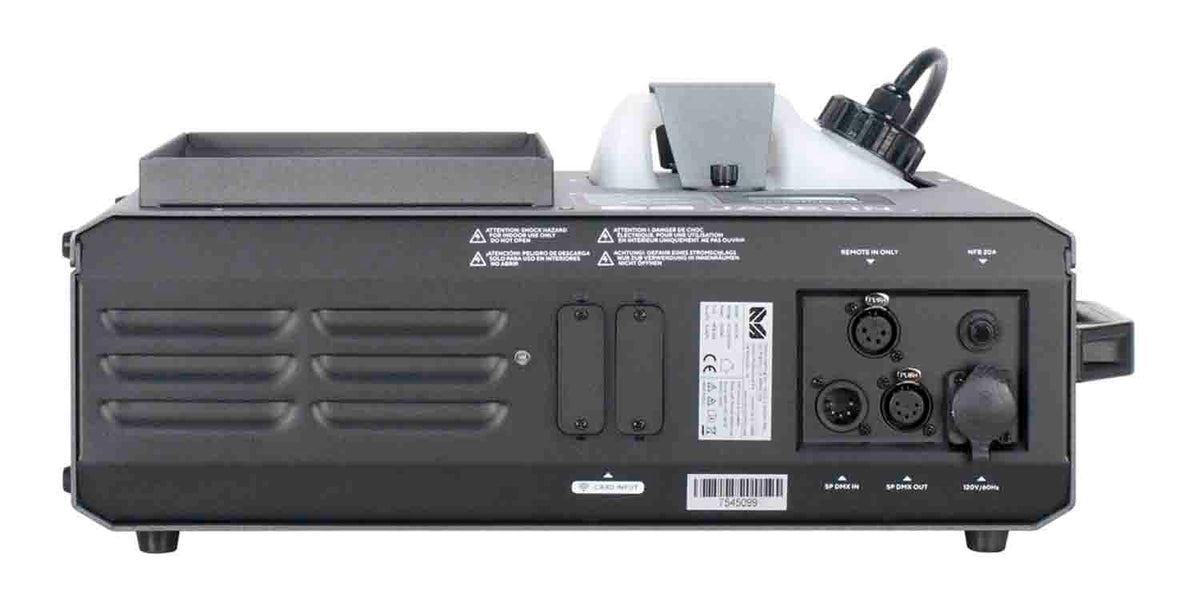

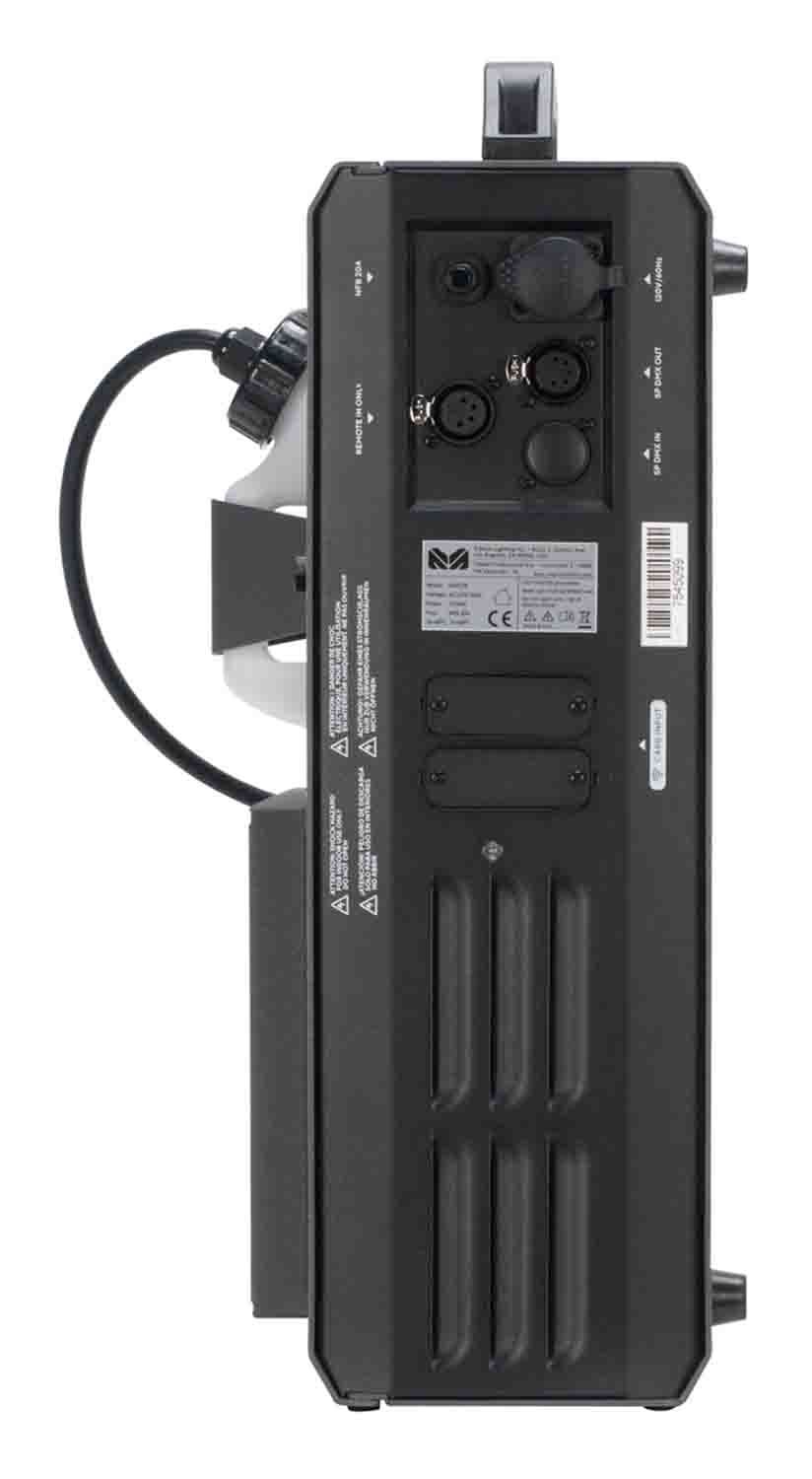

Connections

Locking 5pin XLR Connector In/Out

IP65 Locking Power Connector In

With Wired Digital Communication Network

Package Weight

Dimensions: 20.14 x 16 x 8"

Weight: 30.70 lb
