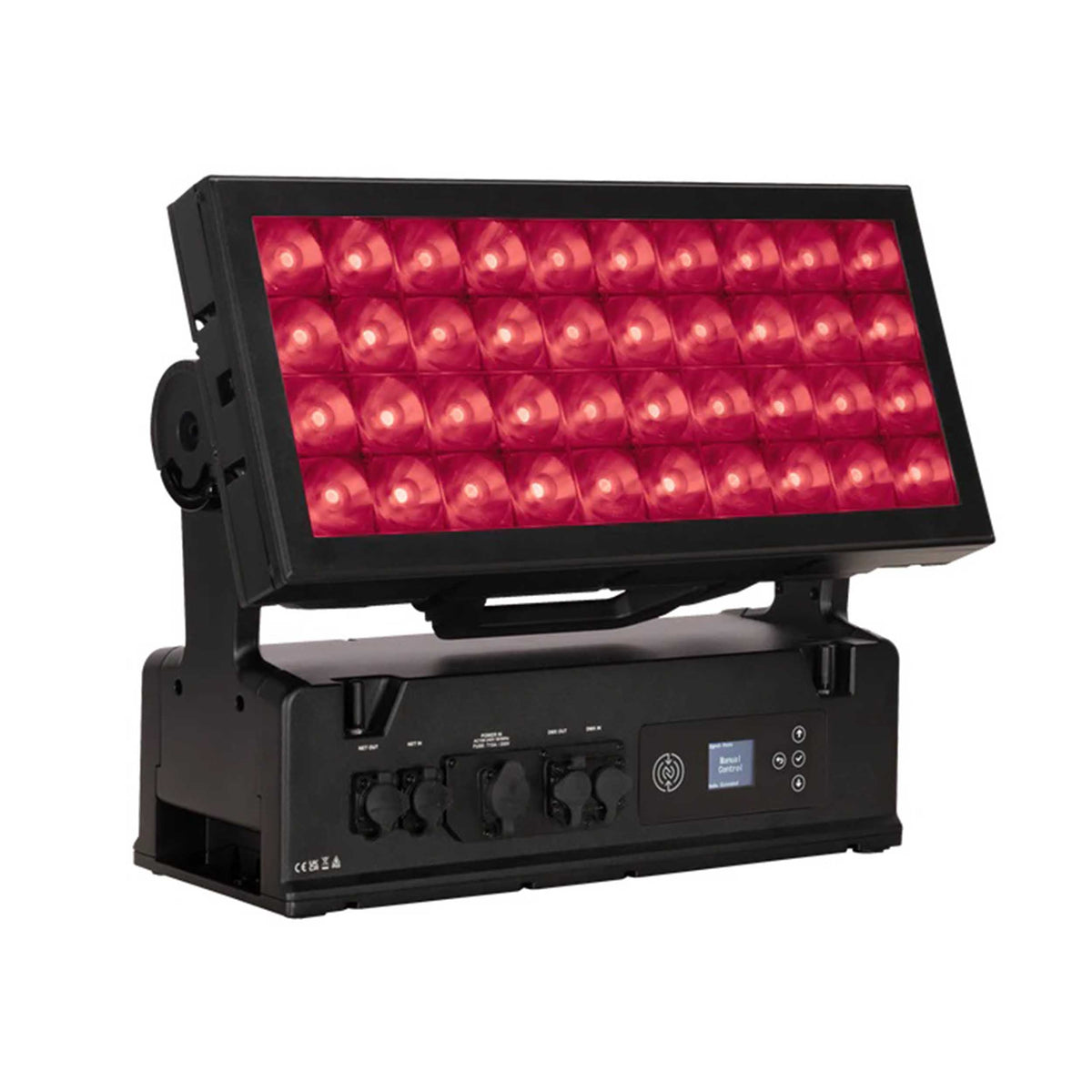

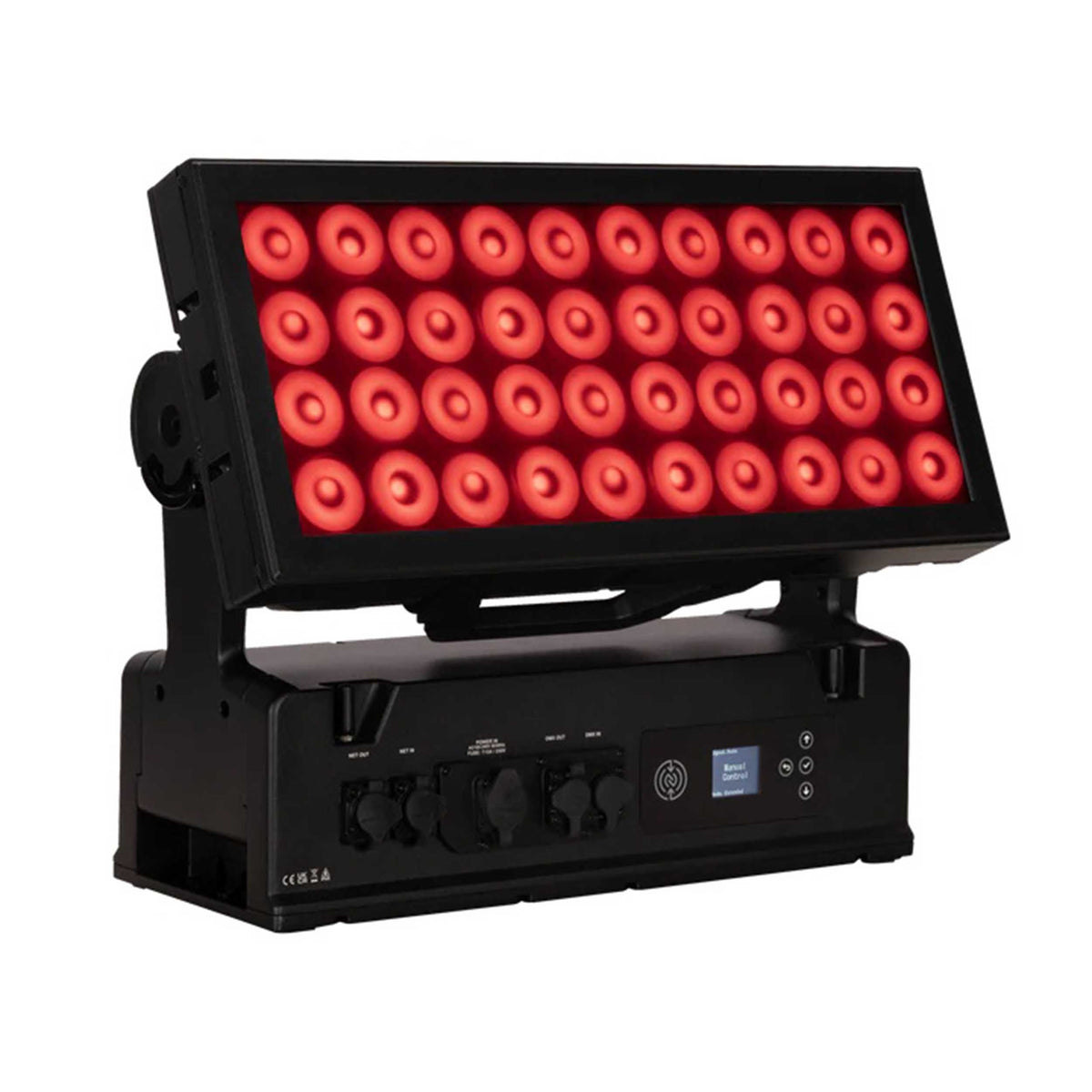

Elation SIX+ PANEL 20W RGBLA+UV LED Wash Light - IP65
Elation SIX+ PANEL 20W RGBLA+UV LED Wash Light - IP65
Model / SKU: H-ELAT-SIX501
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The SIX+ PANEL is a powerful LED wash fixture designed to deliver bright output, smooth color mixing, and creative lighting effects for stages, concerts, television studios, and live events. Its sixteen RGBLA+UV LEDs produce rich colors, accurate white light, and even wash coverage.
This fixture features full pixel control, allowing designers to create dynamic chases, animated patterns, and custom lighting effects. Adjustable color temperature from 2400K to 8500K, high CRI performance, and flicker-free operation make it suitable for live productions, theater, and broadcast applications.
Built with an IP65-rated housing, the SIX+ PANEL is designed for dependable indoor and outdoor use. Advanced control options, durable construction, and flexible mounting make it an excellent choice for touring productions, permanent installations, festivals, and architectural lighting projects.
Product Specifications:
Light Source: 16 x 20W RGBLA+UV LEDs
Color Mixing: RGBLA+UV (Red, Green, Blue, Lime, Amber, UV)
Color Temperature: 2400K to 8500K Variable
CRI: Up to 92
TLCI: Up to 93
Beam Angle: 110°
Field Angle: 150°
Pixel Control: Individual Pixel Control (16 Pixels)
Dimming: 0-100% 16-Bit Electronic Dimming
Dimming Curves: Selectable Dimming Curve Modes
Strobe: Variable Electronic Strobe and Pulse Effects
Refresh Rate: Flicker-Free Operation for Broadcast and Film
Control Protocols: DMX512, RDM, Art-Net, sACN
Wireless Control: Aria x2 Wireless Device Management with NFC
DMX Channel Modes: Multiple DMX Personalities
Display: Full-Color LCD Display
IP Rating: IP65
Power Input: 100-240V AC, 50/60Hz
Maximum Power Consumption: 370W
Power Connections: IP65 Locking Power In/Out
Data Connections: IP65 5-Pin DMX In/Out and RJ45 Ethernet
Cooling System: Intelligent Low-Noise Fan Cooling
Housing Material: Die-Cast Aluminum
Mounting: Adjustable Yoke with Multiple Mounting Options
Operating Position: Any Safe Operating Position
Application: Indoor and Outdoor Professional Wash Lighting
Product Weight: 28.7 lbs.
Product Dimensions (L x W x H): 18.4 x 5.7 x 11.2 in
Shipping Weight: 32 lbs.
Shipping Dimensions (L × W × H): 21 x 9 x 14 in
