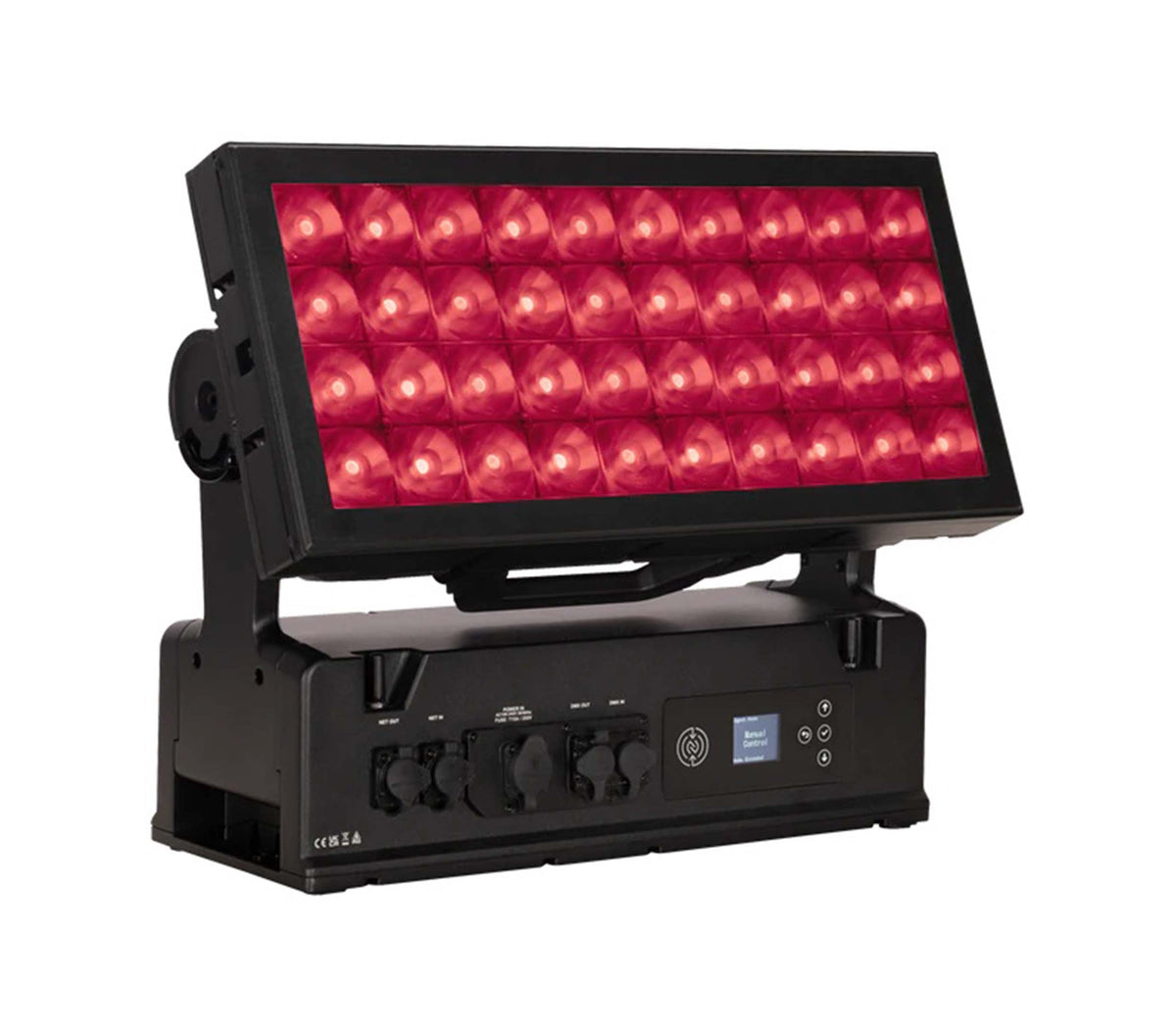

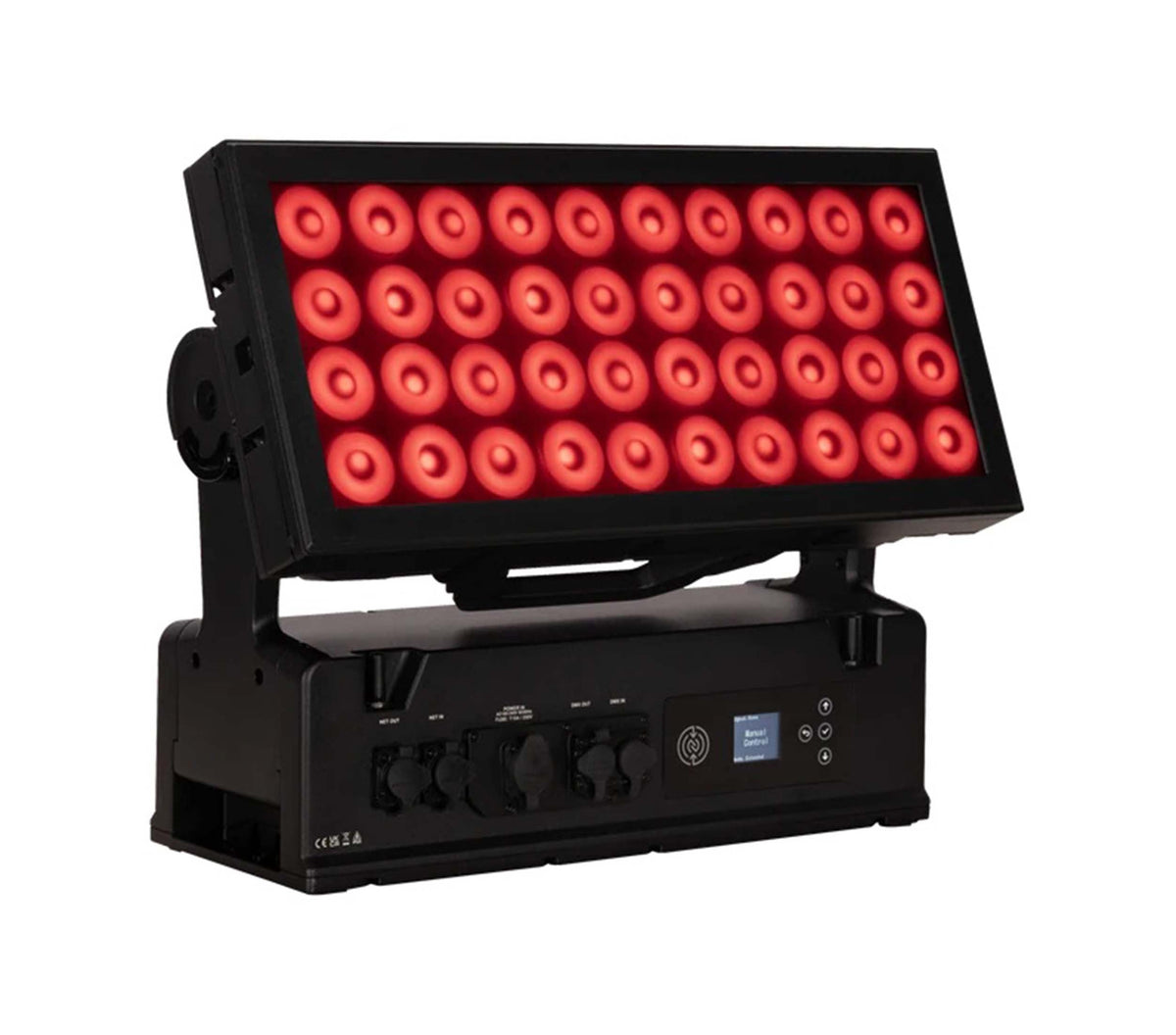

Elation SIX+ PANEL LED Panel Wash Fixture with 40x 40W RGBLA+UV LEDs
Elation SIX+ PANEL LED Panel Wash Fixture with 40x 40W RGBLA+UV LEDs
Model / SKU: H-ELAT-SIX525
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The Elation SIX+ PANEL is a high-output professional LED panel built on the SIX+ Series dynamic color platform. Its 40 × 40W RGBLA+UV six-color LED engine produces up to 46,625 lumens with a high CRI of 92.3, delivering clean, accurate color across cameras, stages, and mixed-lighting environments.
Featuring 2 × 5-cell pixel control, the SIX+ PANEL can produce gradients, pixel-style effects, dynamic sequences, and textured looks while also functioning as a smooth unified wash. Variable CCT from 2400K to 8500K, CMY emulation, Dim-to-Warm fading, and a virtual gel swatch book provide extensive creative color control.
Designed for demanding production environments, the SIX+ PANEL features rugged IP65-rated construction, a 15° native beam, and optional lenses for expanded coverage. Flexible DMX, Art-Net, sACN, RDM, Aria X2 wireless management, and NFC configuration simplify system integration, while the optional dual V-Mount battery plate enables cable-free operation with more than 8 hours of maximum battery runtime.
Note: Battery and optional battery plate are not included.
Product Specifications:
LED Source: 40 × 40W RGBLA+UV LEDs
LED Life: 30,000 hours
IP Rating: IP65
Total Fixture Output: 46,625 lumens
CRI: 92.3
TLCI: 83
Beam Angle: 15°
Field Angle: 25°
Pixel Control: 2 × 5 cells
Effects: Prebuilt custom standalone effect sequences
Dimming: Variable 16-bit dimming modes and curves
Strobe: Electronic dimmer and strobe
Color System: RGBLA+UV
CCT Range: 2400K, 8500K
Color Mixing: CMY Emulation
Dim-to-Warm: Yes
Color Presets: Virtual Gel Swatch Book
DMX Modes: 19
Control Panel: 4-button control panel with LED display
Display: Full-color 180° reversible LCD
Protocols: DMX, RDM, Art-Net, sACN
Wireless Management: Aria X2
Configuration: NFC
Ethernet: IP65 locking RJ45 In/Out
DMX Connection: IP65 5-pin DMX In/Out
Power Connection: IP65 locking power cable In
Input Voltage: AC 100-240V, 50/60Hz
Optional DC Input: 14.4V
Maximum Power Consumption: 1300W
Operating Temperature: -15°C to 45°C
Heat Output: 4433 BTU/hr ±10%
Optional Battery System: Dual V-Mount battery plate
Battery Voltage: 14.4V
Maximum Battery Runtime: More than 8 hours
Battery Plate: SIX+ PANEL BATTERY PLATE (SIXBP2)
Battery Included: No
Included Accessories: Barndoor, safety cable, IP65 locking power cable
Product Weight: 45 lbs
Product Dimensions: 15 H × 20 W × 9 L
