Elation TVL SOFTLIGHT DW, Variable White LED Softlight for TV and Film
Elation TVL SOFTLIGHT DW, Variable White LED Softlight for TV and Film
Model / SKU: H-ELAT-TVLSOFTLIGHTDW
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

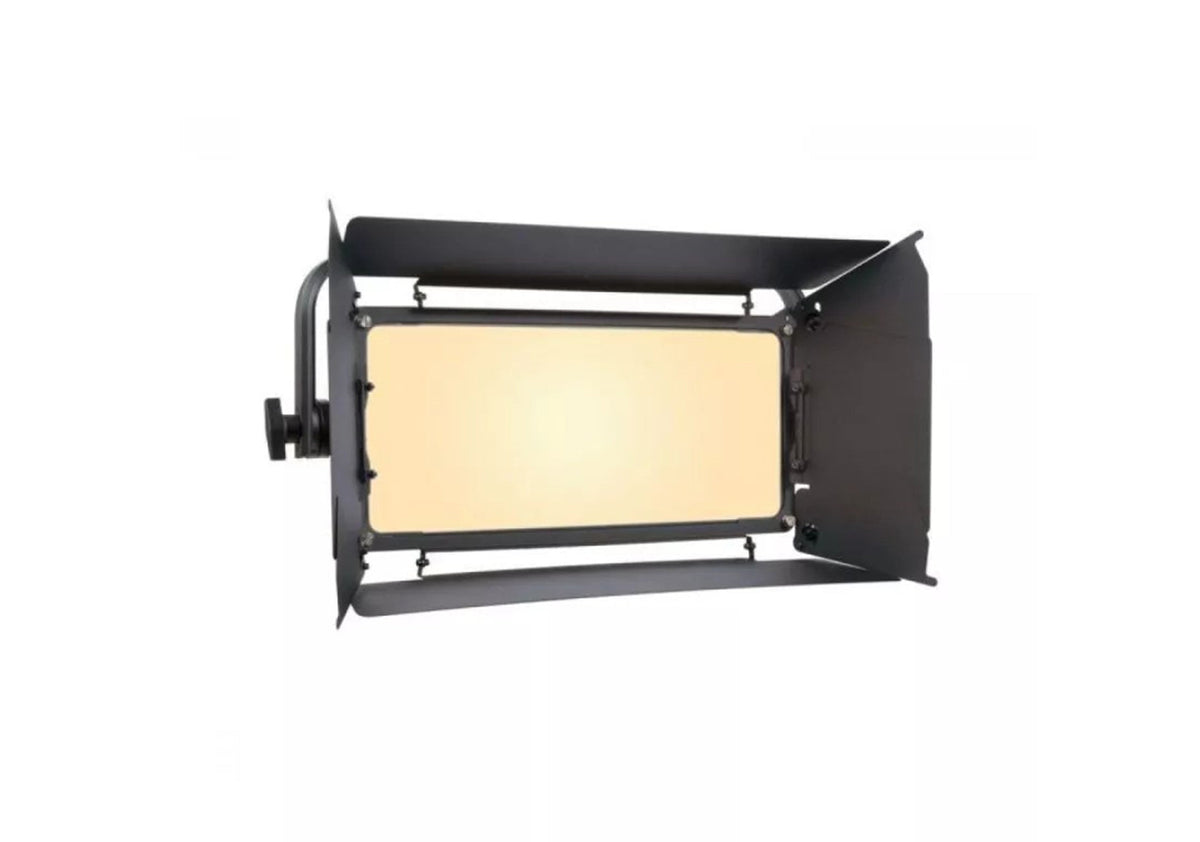

The Elation TVL SOFTLIGHT DW is a professional-grade softlight luminaire engineered for broadcast, film, and studio applications. Featuring 240 Cool White and 240 Warm White LEDs, it delivers a broad 115° beam angle and a smooth linear color temperature range from 3,200K to 5,600K. With flicker-free 16-bit dimming, adjustable LED refresh rates, and gamma correction, it's optimized for camera use. The fixture includes 8-leaf barn doors for beam shaping, DMX and Art-Net control, locking IP65 power connections, and intuitive onboard controls. A 40° SNAPGRID is available for further beam control.
Product Specifications:
LEDs: 240 Cool White + 240 Warm White
Beam Angle: 115°
Color Temperature Range: 3,200K to 5,600K (variable white)
Dimming: 16-bit, smooth dimming curve
Control:
5-Pin DMX
RJ45 Ethernet (Art-Net)

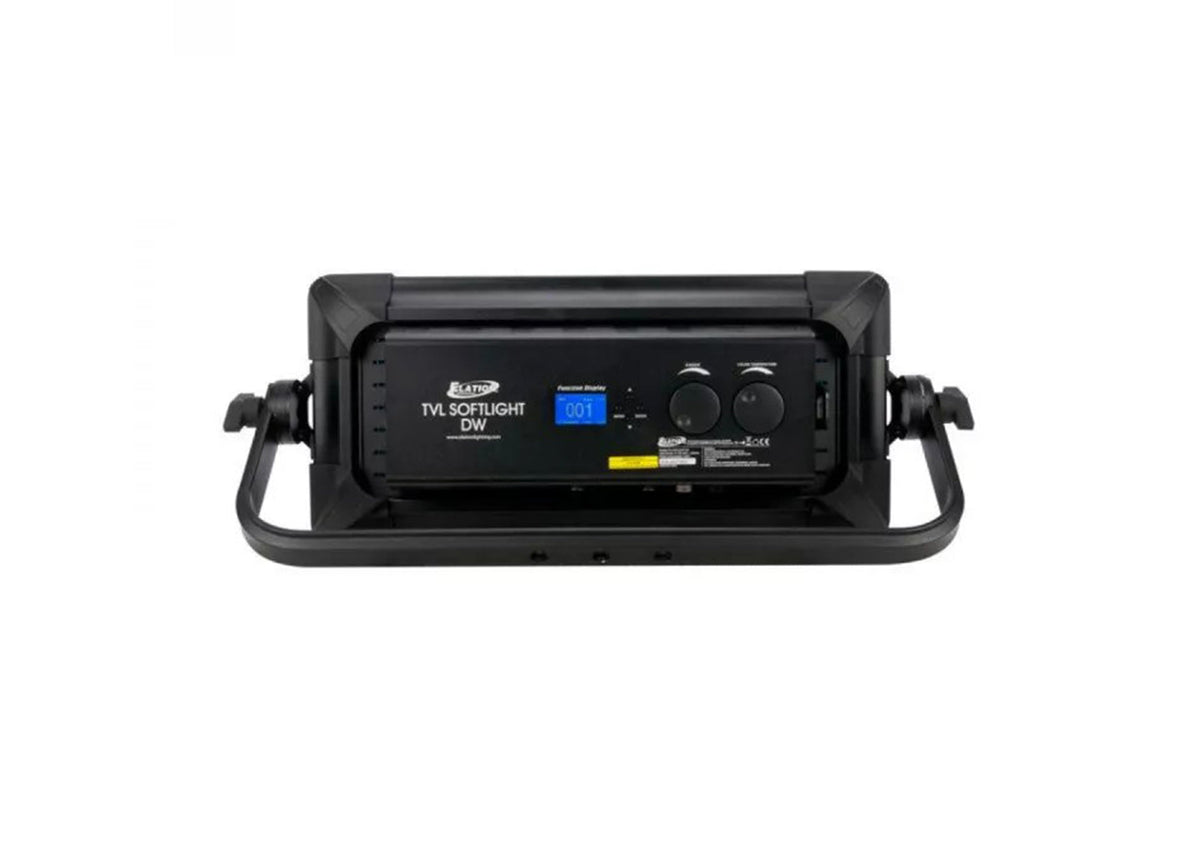

Manual via dials and menu panel
Display: 180° reversible LCD
Barn Doors: 8-leaf adjustable, removable
Power Input: Locking IP65 connector
Power Supply: Auto-switching 100-240V AC, 50/60Hz
Refresh Rate: Adjustable
Gamma Brightness: Adjustable
Accessory (optional): 40° SNAPGRID
Shipping Weight: 19 lbs. (8.6 kg)
Shipping Dimensions: 24" x 16" x 8"
