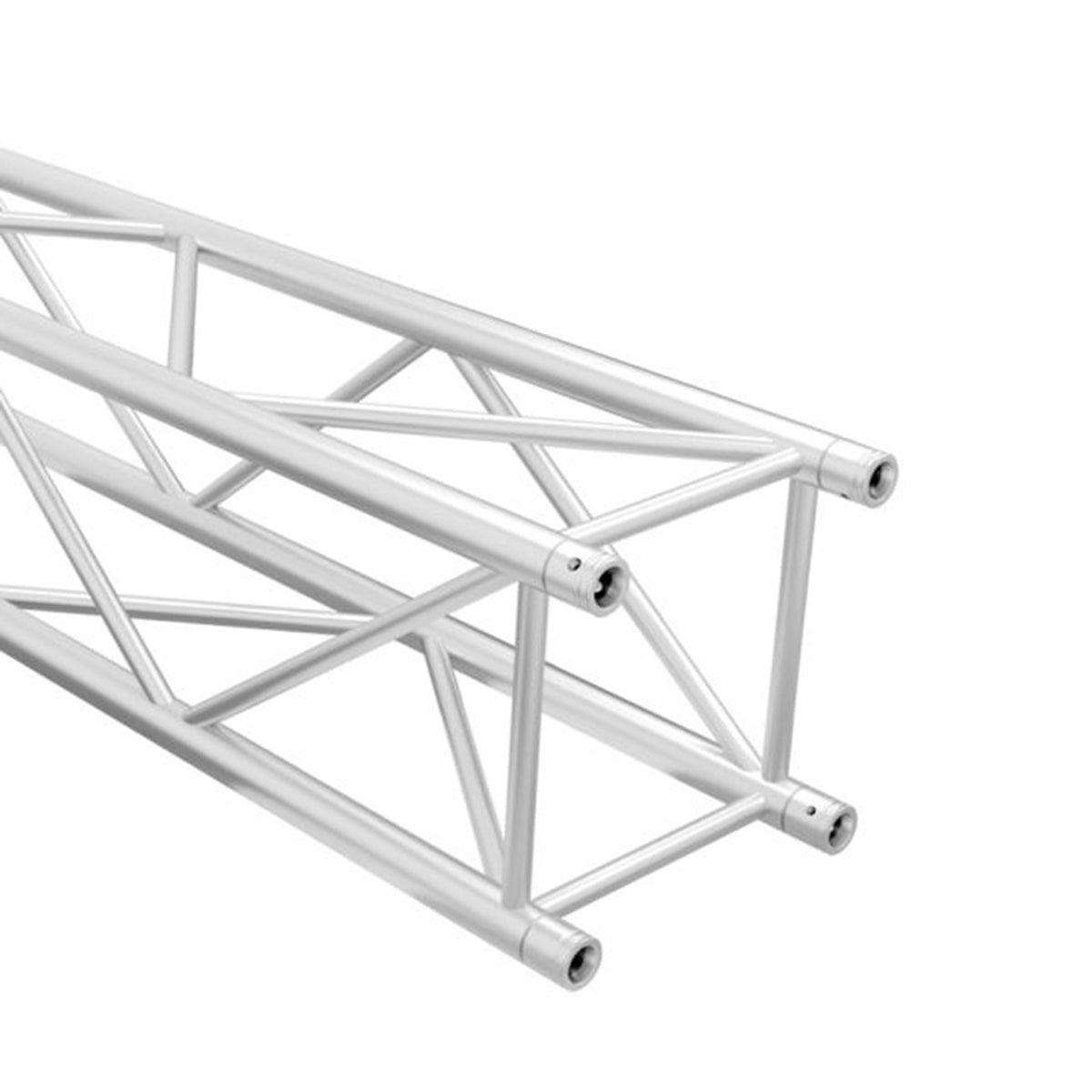

Global Truss DT-4170P, Aluminum Straight Box Truss Segment - 15.75"
Global Truss DT-4170P, Aluminum Straight Box Truss Segment - 15.75"
Model / SKU: H-GLOB-DT4170P
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The Global Truss DT-4170P is a 16.40 ft (5 m) straight box truss segment designed for professional event production, staging, lighting, and structural applications. Its 15 3/4 inch (400 mm) box truss profile provides a substantial framework for building modular truss structures while maintaining the practical characteristics required for professional installation and touring environments.
The DT-4170P features 2 inch (50 mm) outer diameter tubing and 1 inch (25.4 mm) diagonal bracing, creating a rigid and dependable structural configuration. The 0.12 inch (3 mm) wall thickness provides durable construction suitable for demanding production environments, repeated setup and breakdown, and long-term use in compatible modular truss systems.
For convenient installation, the truss segment includes 4 couplers, 8 pins, and 8 clips, allowing it to be integrated with compatible truss components. With a 97 lb (44.04 kg) unit weight and a 5 m overall length, the DT-4170P is well suited for large-scale lighting rigs, stages, exhibitions, concerts, corporate events, trade shows, and professional entertainment structures.
Product Specifications:
Product Type: Straight Box Truss Segment
Truss Series: DT Series
Overall Length: 16.40 ft (5 m)
Overall Width: 15 3/4 Inches (400 mm)
Truss Configuration: Box Truss
Profile Size: 15.75 x 15.75 Inches (400 x 400 mm)
Tubing Outer Diameter: 2 Inches (50 mm)
Diagonal Bracing Diameter: 1 Inch (25.4 mm)
Wall Thickness: 0.12 Inches (3 mm)
Construction: Aluminum Truss
Design: Straight Segment
Connection System: Modular Conical Truss Connection
Included Couplers: 4
Included Pins: 8
Included Clips: 8
Connection Hardware: Couplers, Pins, and Clips
Application: Stage Production, Lighting Rigs, Events, Exhibitions, Trade Shows, and Entertainment Installations
Use: Lighting Structures, Stage Systems, Event Structures, Displays, Exhibits, and Professional Production Rigs.
Product Weight: 97 lbs.
Product Dimensions (L x W x H): 196.85" x 15.75" x 15.75"
