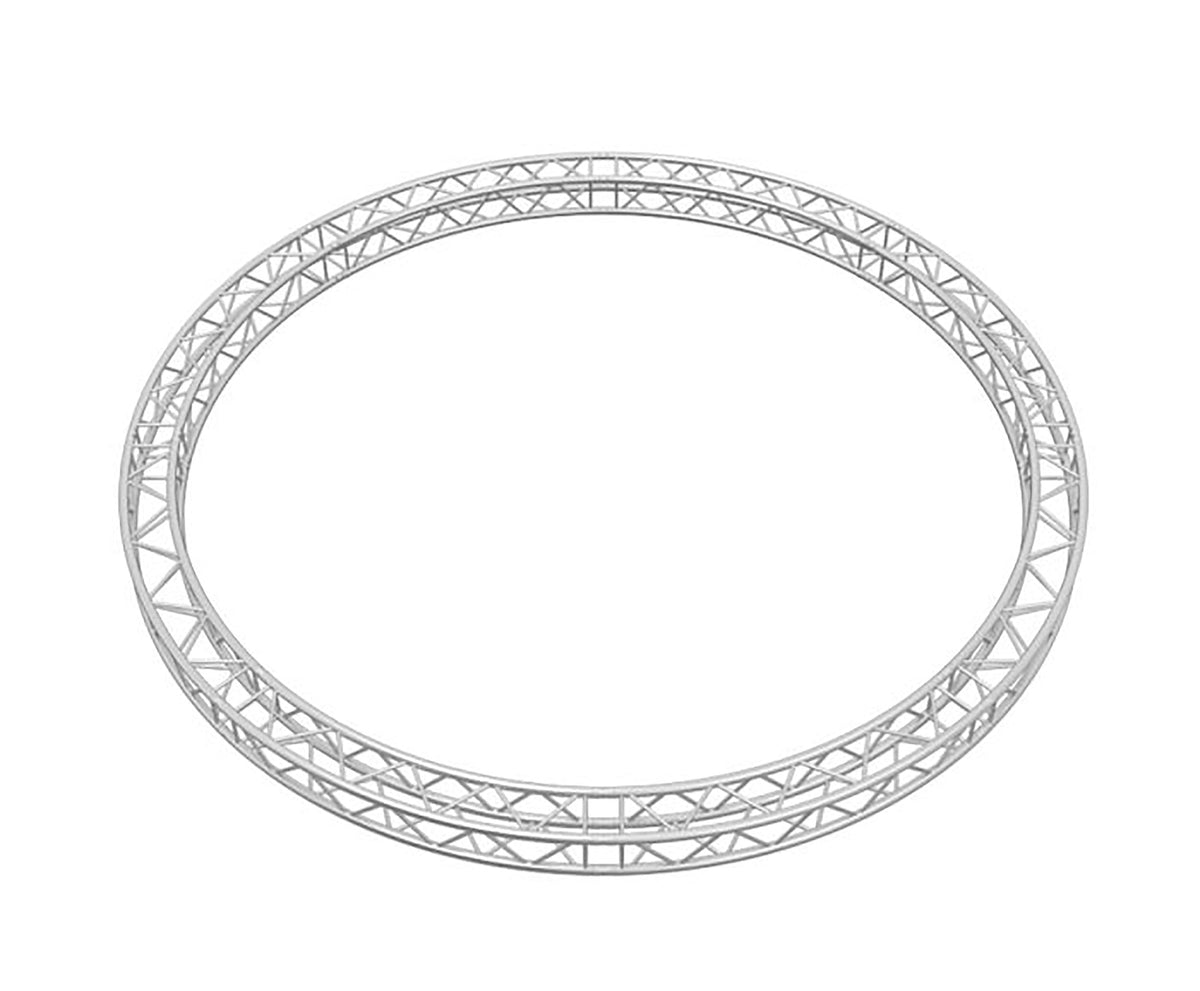

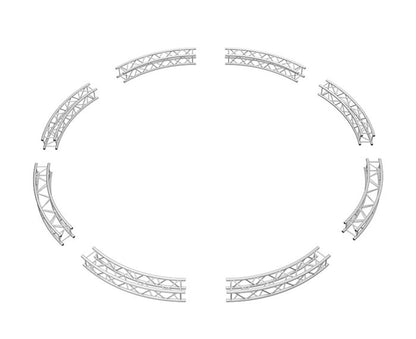

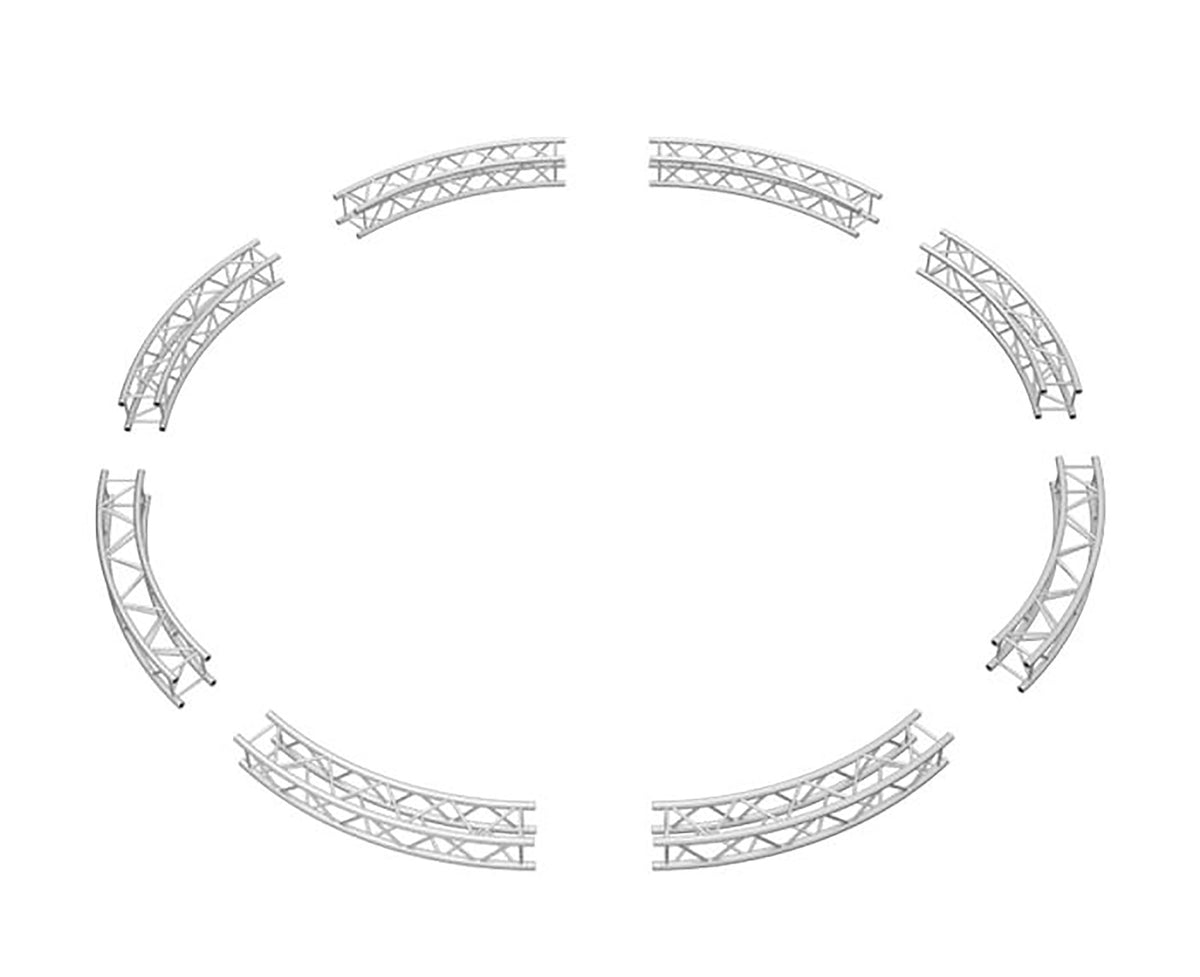

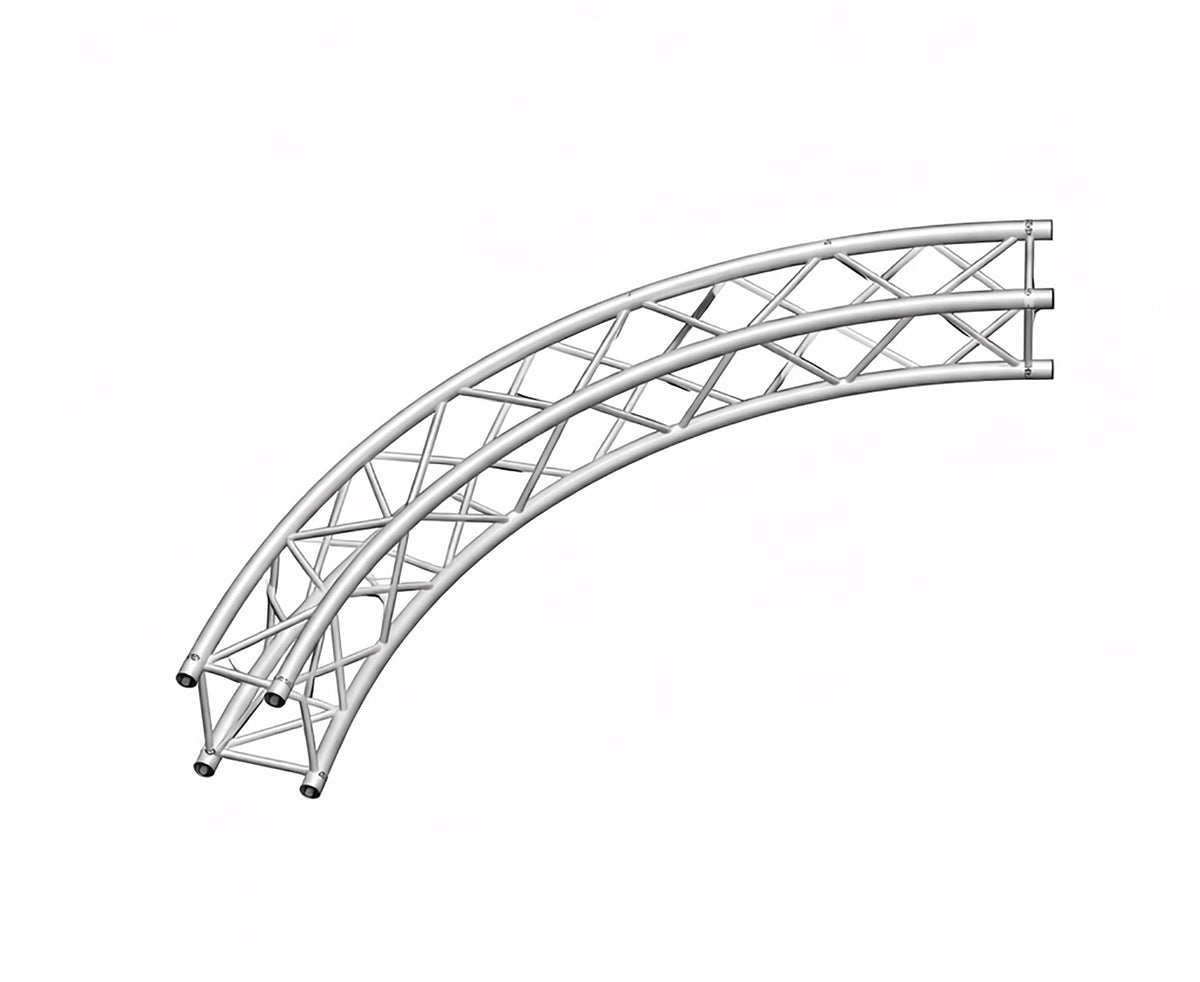

The Global Truss SQ-C7-ARC45 is a single 45° arc segment designed as one of eight sections required to assemble a complete SQ-C7 circular truss system. It’s intended as one of eight identical arc sections that combine to form a full 22.96 ft (7 m) diameter circular truss. Manufactured from durable aluminum with standard F33 triangular truss geometry, this arc section provides a reliable, lightweight structural component for staging, lighting rigs, exhibits, and architectural displays. It features sturdy diagonal bracing and precise fabrication for secure connections with other truss components.
Product Specifications:
Single Arc Section
Segment Angle: 45° (one-eighth of full circle)
Compatible Full Circle Diameter (Outside): 22.96 ft (7.0 m)
Compatible Full Circle Diameter (Inside): 21.06 ft
Overall Width: 11 7/16 in (290 mm)
Main Tube Outer Diameter: 2 in (50 mm)
Diagonal Bracing Diameter: 3/4 in (20 mm)
Wall Thickness (Tubing & Bracing): 0.08 in (2 mm)
Material: Aluminum alloy (F33 Series)
Finish: Standard industrial (anodized or raw aluminum)
Connection Type: Standard F33 conical/coupler style (for use with matching truss)
