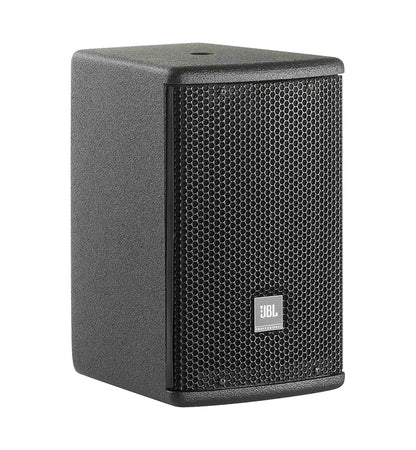

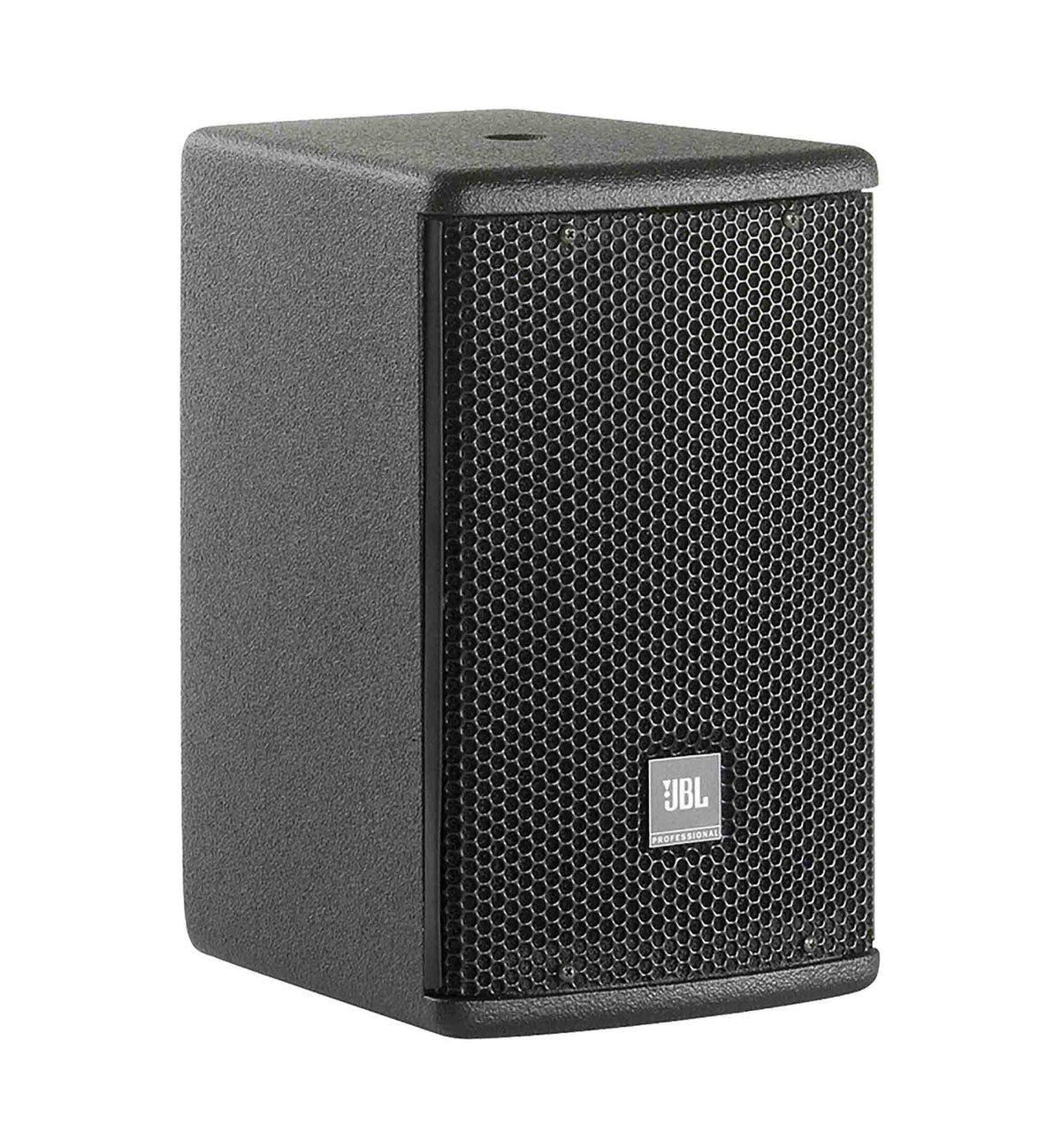

JBL AC15, Ultra Compact 2-Way Loudspeaker with 1 x 5.25" LF in Black - Pair

The JBL AC15 Pair includes two ultra-compact 2-way loudspeakers designed to deliver high-quality sound in professional audio environments. Each loudspeaker combines a 5.25-inch low-frequency transducer with a 1-inch dome tweeter and provides 90° x 90° coverage for broad and consistent sound distribution. The compact enclosure makes the pair suitable for installations and applications where efficient use of space is important.

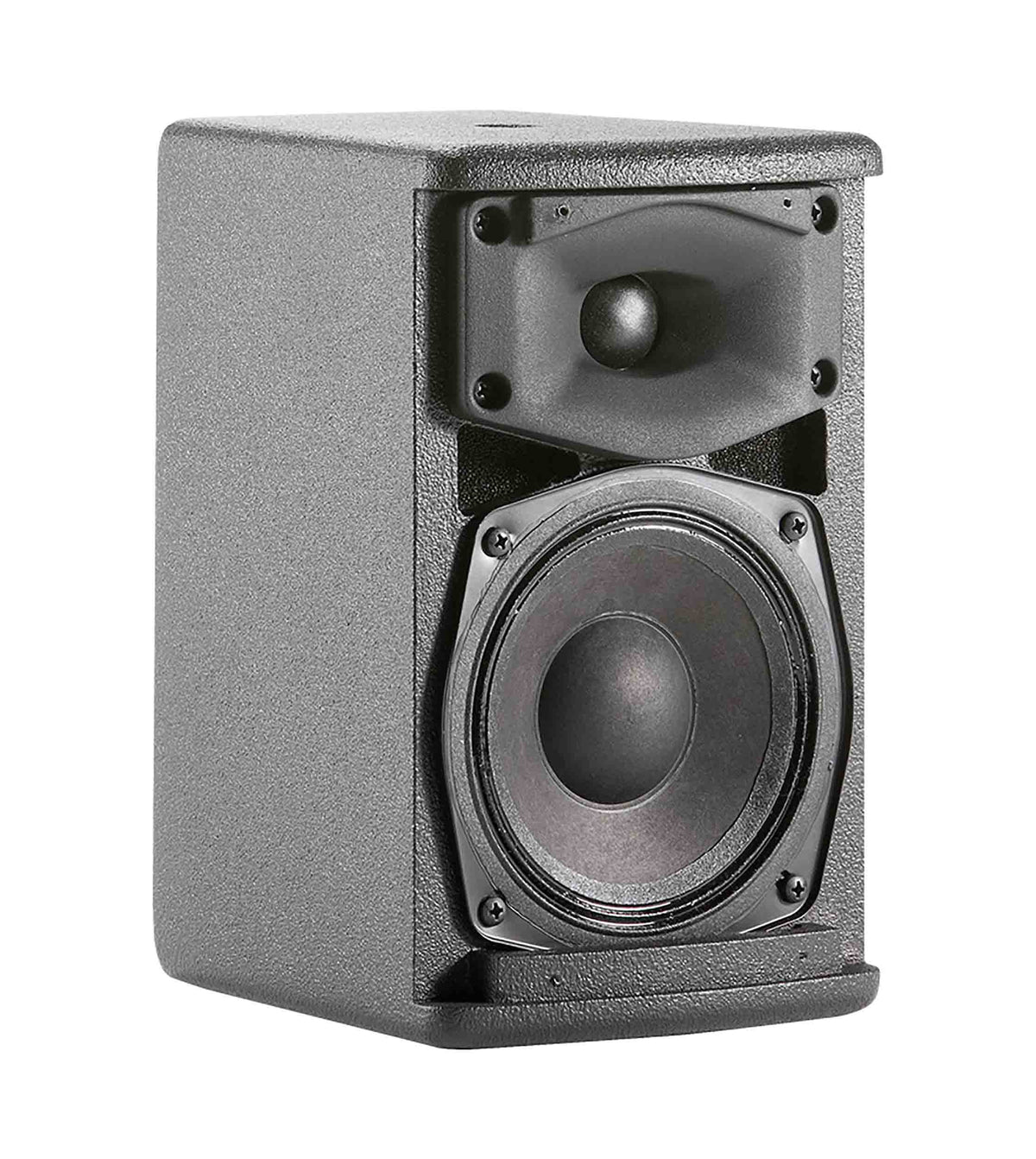

Each AC15 features a JBL 225J 135 mm (5.25-inch) SFG low-frequency driver with a 38 mm (1.5-inch) edge-wound voice coil, paired with a JBL 201J 25 mm (1-inch) voice coil dome tweeter. Each loudspeaker is rated at 225W AES, 300W program, and 600W peak power, with a 16-ohm impedance, 86 dB sensitivity, and maximum SPL of 108 dB at 1 meter. The passive crossover design provides straightforward system integration.

Both loudspeakers use 12 mm exterior-grade multi-ply hardwood plywood enclosures and feature four M8 suspension points, along with two M6 bottom points for compatible mounting hardware. Dual Neutrik NL4 connectors and a screw terminal provide flexible connection options on each unit. The pair is well suited for performing arts facilities, theatrical sound systems, auditoriums, worship facilities, live clubs, sports facilities, and themed entertainment venues.

Product Specifications:

Product Type: Ultra-Compact 2-Way Loudspeaker Pair

Quantity: 2 Loudspeakers

Color: Black

Frequency Range (-10 dB): 80 Hz - 20 kHz

Frequency Response (±3 dB): 90 Hz - 18 kHz

System Power Rating: 225W AES / 150W Continuous / 300W Program / 600W Peak per Loudspeaker

Impedance: 16 ohms per Loudspeaker

Coverage Pattern: 90° x 90° per Loudspeaker

Crossover Mode: Passive

Maximum SPL (1m): 108 dB per Loudspeaker

System Sensitivity: 86 dB SPL (1W @ 1m) per Loudspeaker

LF Driver: 1 x JBL 225J, 135 mm (5.25 in.) SFG Driver per Loudspeaker

LF Voice Coil: 38 mm (1.5 in.) Edge-Wound per Loudspeaker

Nominal LF Driver Impedance: 16 ohms per Loudspeaker

HF Driver: 1 x JBL 201J, 25 mm (1 in.) Voice Coil Dome Tweeter per Loudspeaker

Enclosure Material: 12 mm Exterior-Grade Multi-Ply Hardwood Plywood

Input Connectors: 2 x Neutrik NL4 Connectors plus Screw Terminal per Loudspeaker

Suspension Points: 4 x M8 and 2 x M6 Bottom per Loudspeaker

Mounting Compatibility: OmniMount 20.5 / MultiMount MM-008-BT

Environmental Rating: Mil-Std 810 / IPx3 per IEC529

Application: Performing Arts, Theatrical Sound, Auditoriums, Worship, Live Clubs, Sports Facilities, Themed Entertainment

Product Weight: 21 lbs. per Pair

Product Dimensions (L x W x H): 7.0 x 5.9 x 9.5 in. per Loudspeaker
