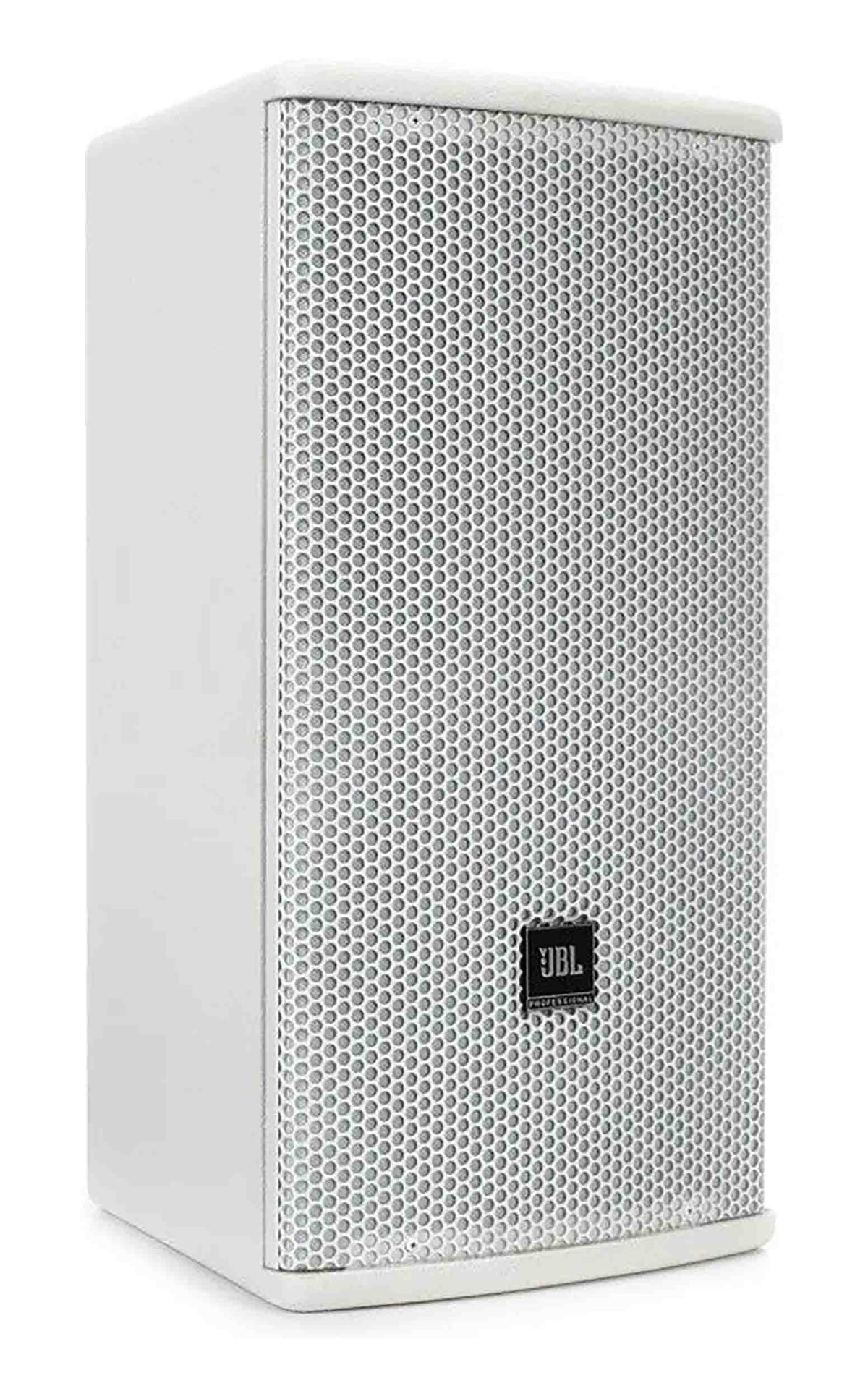

JBL AC18/26-WH, Compact 2-Way Loudspeaker with 1 x 8" LF - White

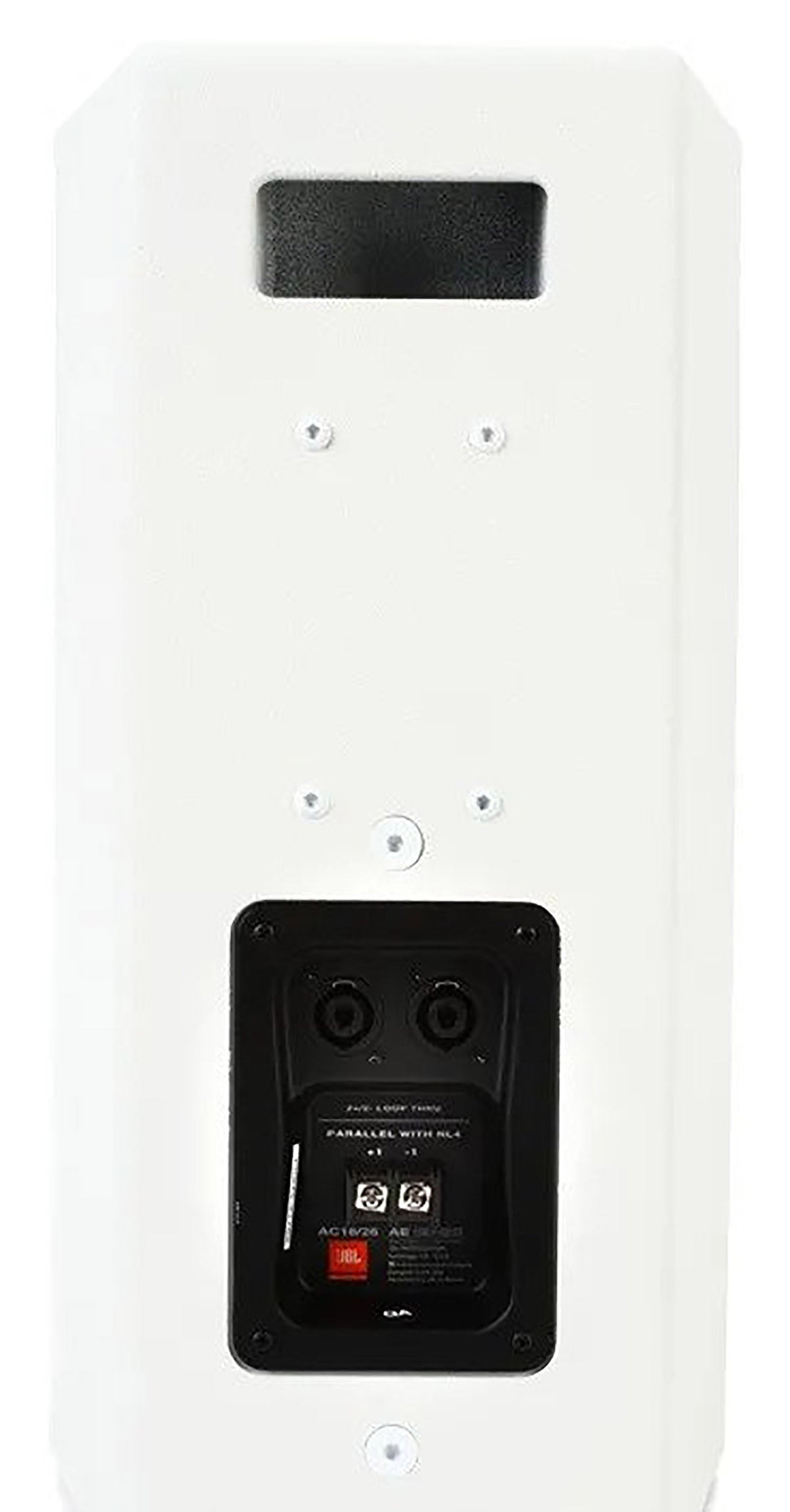

The JBL AC18/26-WH is a 2-Way loudspeaker with a 8" LF driver ideal for use in performing arts facilities, theatrical sound design, auditoriums, houses of worship, clubs, and themed entertainment venues. This speaker can handle up to 500W of program power and has a 1" HF driver with field rotatable 120 x 60° Coverage PT Waveguide. Dual Neutrik NL4 connectors plus screw terminals make it simple to add this speaker to your system. The AC18/26 B has attachment points for the optional U-bracket or OmniMount.

Product Specification:

Frequency Range (-10dB): 52 Hz - 20 kHz

Frequency Response (±3 dB): 63 Hz, 19 kHz

System Power Rating: 375 W (AES rated)

250 W / 500 W / 1000 W (Continuous/Program/Peak) (IEC rated)

Impedance: 8 ohms

Coverage Pattern: /26: 120° x 60°/95: 90° x 50°

Dimensions (H x W x D): 469.9 x 237.5 x 254.0 mm (18.5 x 9.4 x 10.0 in)

Net Weight (each): 12.8 kg (28.2 lb)

Crossover Modes: Passive

Maximum SPL (1m): 116 dB

System Sensitivity (1w @ 1m): 92 dB SPL

LF Driver: 1 x JBL 228H, 205 mm (8 in) SFG driver with 64 mm (2.5 in) edge wound voice coil

Nominal LF Driver Impedance: 8 Ohms

HF Driver: 1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil

Enclosure: 12 mm and 15 mm exterior grade multi-ply hardwood plywood

Environmental: Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
