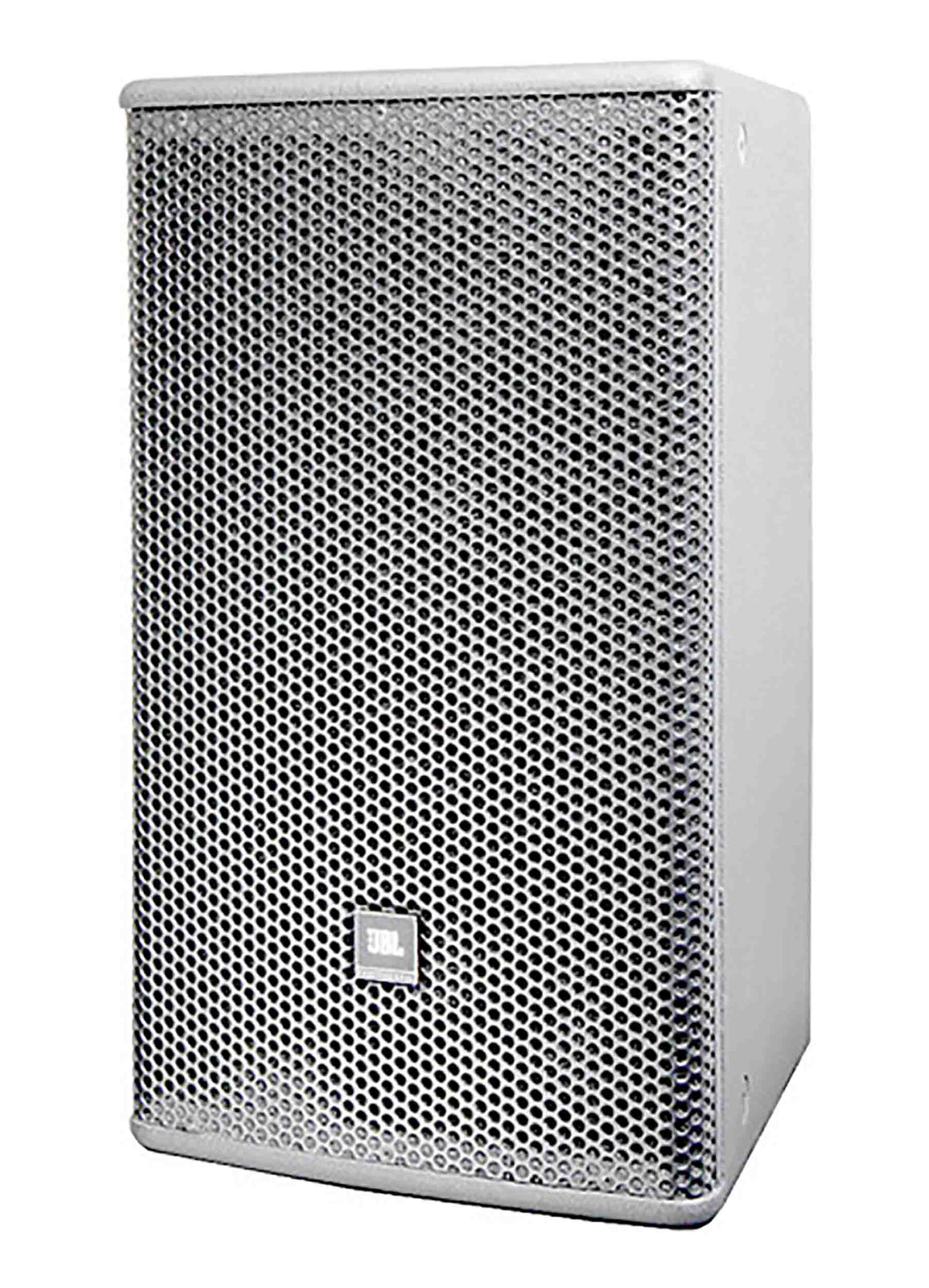

JBL AC195-WH, Two-Way Full Range Loudspeaker with 1 x 10" LF - White

The JBL AC195-WH is a compact 2-way full-range loudspeaker system comprised of one 258 mm (10 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The rotatable PT Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount or similar type mounting. AC195 is part of JBL’s AE Application Engineered Series, a versatil e family of loudspeakers for a wide variety of fixed installation applications

Product Specification:

Frequency Range (-10dB): 68 Hz - 20 kHz

Frequency Response (±3 dB): 85 Hz - 18kHz

System Sensitivity (1w @ 1m): 95 dB

Nominal Impedance: 8 ohms

Maximum SPL (1m): 118 dB (124 dB peak)

System Power Rating: 300W (1200W peak), 2 hrs (AES rated)

Coverage Pattern: 90° x 50° (H x V)

Crossover: 1.8 kHz

LF Driver: 1 x 10" woofer (P/N: 5050692), 258 mm (10 in) driver with 66 mm (2.5 in) voice-coil

HF Driver: 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil

Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals

Enclosure: 15 mm multi-ply hardwood plywood

Grille: Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing

Finish: Textured black paint finish. White (-WH) available.

Dimensions (H x W x D): 535 mm x 310 mm x 329 mm 21.0 in x 12.2 in x 12.9 in

Weight: 13.1 kg (28.8 lbs)

Nominal LF Driver Impedance: 8 ohms

Nominal HF Driver Impedance: 8 ohms
