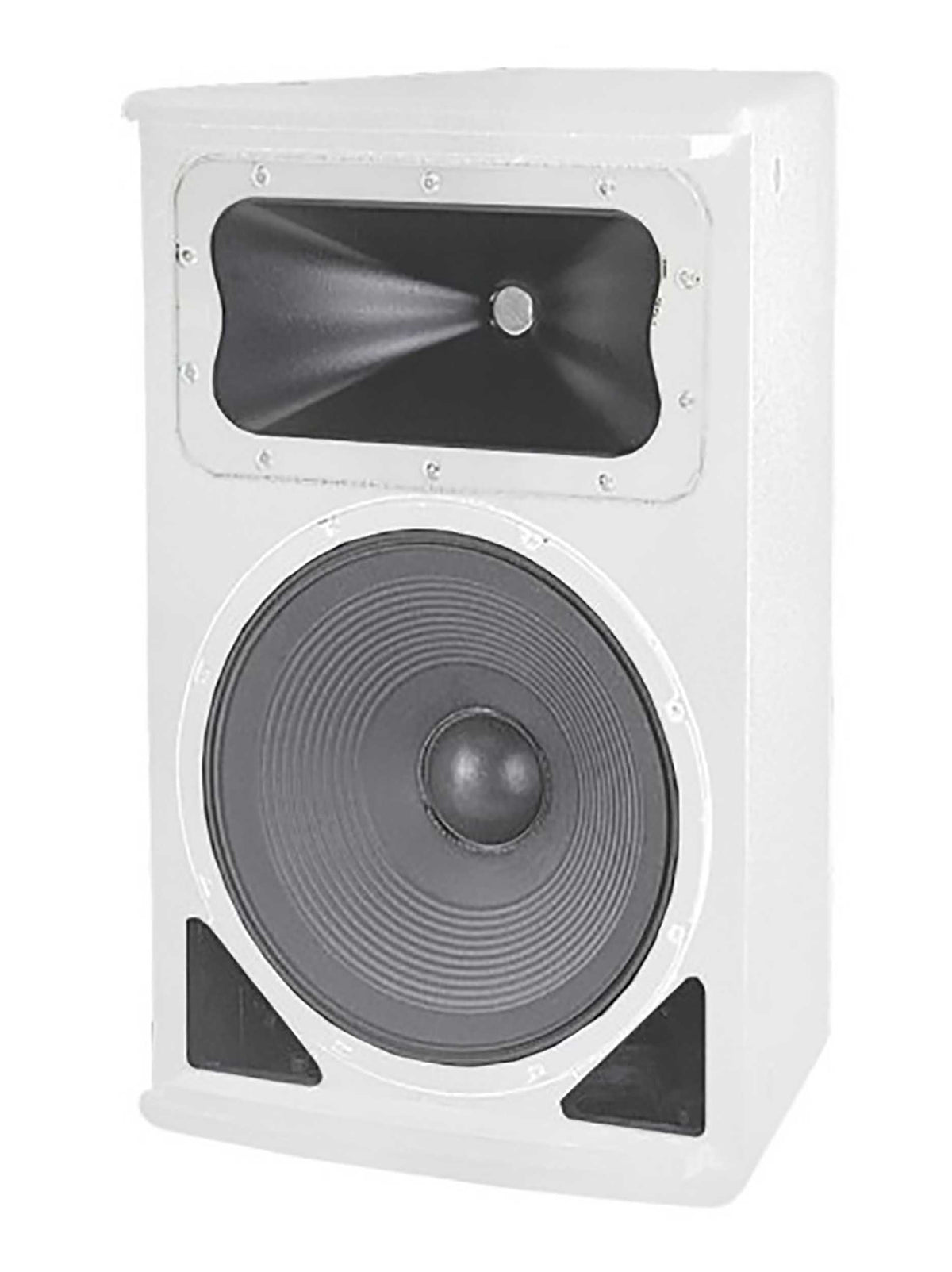

JBL AC2212/00-WH, Compact 2-Way Loudspeaker with 1 x 12" LF - White
JBL AC2212/00-WH, Compact 2-Way Loudspeaker with 1 x 12" LF - White
Model / SKU: H-JBL-AC221200WH
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The JBL AC2212/00-WH speakers are compact 2-way full range loudspeaker systems comprised of one 300 mm (12 in) low frequency driver and one voice-coil compression driver. Also offers versatile mounting options and consistent coverage. With a 12" woofer and a horn-loaded compression driver in a ported birch plywood cabinet, the AC2212/00 delivers a 55 Hz to 17 kHz frequency response and a long-term power rating of 250W RMS (1000W peak). The Progressive Transition waveguide yields a coverage pattern of 100° by 100° while keeping distortion low.
Product Specifications:
Frequency Range: 50 Hz - 19 kHz (-10 dB)
Frequency Response: 55 Hz - 17 kHz ( ± 3 dB)
Coverage Pattern: /64: 60°x 40°/95: 90°x 50°/00: 100°x 100°
Directivity Factor (Q): 7.1
Directivity Index (DI): 8.5 dB
Crossover Modes: Bi-amp/Passive switchable
Passive Crossover Slopes: 4th order (24 dB/oct) Transitional HP & LP, 1.3 kHz
System Power Rating: Passive mode: 250 W (1000 W peak), 100 hrs
System Sensitivity: Passive mode: 95 dB SPL (1W @ 1m)
