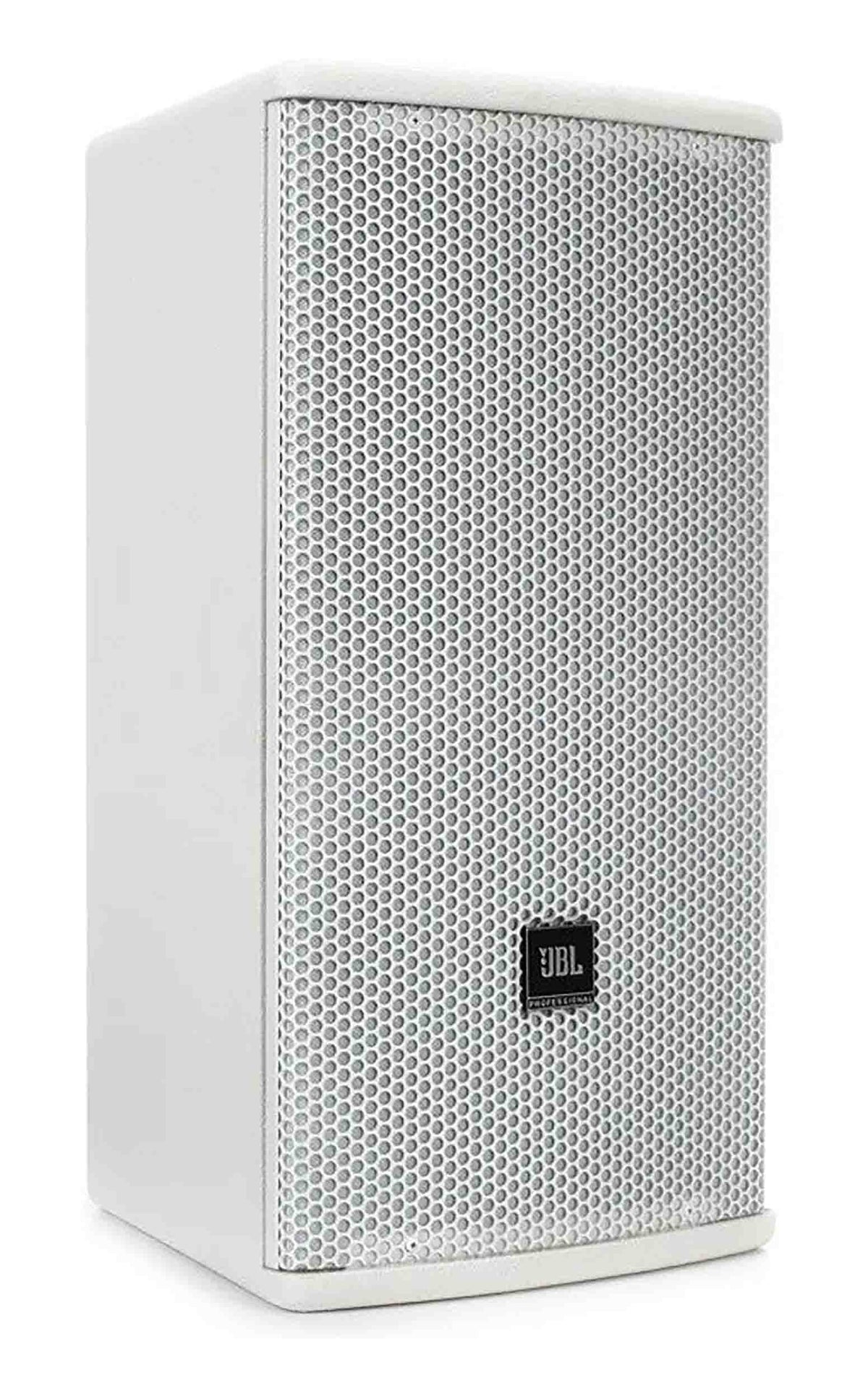

JBL AC25-WH, Ultra Compact 2-Way Loudspeaker with 2 x 5.25" LF - White

The JBL AC25-WH is a 2-Way loudspeaker with dual 5.25" LF drivers. These speakers have broad dispersion angles making them easy to set up appropriately and are ideal for use in performing arts facilities, theatrical sound design, auditoriums, houses of worship, clubs, and themed entertainment venues. This speaker can handle up to 450W of program power and has 90x90° bandwidth. Dual Neutrik NL4 connectors plus screw terminals make it simple to add this speaker to your system. The AC25 B has attachment points for the optional U-bracket.

Product Specification:

Frequency Range (-10dB): 80 Hz -20 kHz

Frequency Response (±3 dB): 90 Hz -18 kHz

System Power Rating: 300 W (AES rated)

225 W / 450 W / 900 W (Continuous/Program/Peak) (IEC rated)

Impedance: 16 ohms

Coverage Pattern: 90° x 90°

Dimensions (H x W x D): 377.8 x 150.3 x 177.8mm (14.9 x 5.9 x 7.0in)

Net Weight (each): 7.5 kg (16.5 lb)

Crossover Modes: Passive

Maximum SPL (1m): 115 dB

System Sensitivity (1w @ 1m): 91 dB SPL

LF Driver: 2 x JBL 225H, 135 mm (5.25 in) SFG driver with 38 mm (1.5 in) edge wound voice coil

Nominal LF Driver Impedance: 16 Ohms

HF Driver: 1 x JBL 201J, 25mm (1 in) voice coil dome tweeter

Enclosure: 12 mm exterior grade multi-ply hardwood plywood

Environmental: Mil-Std 810; IPx3 per IEC529
