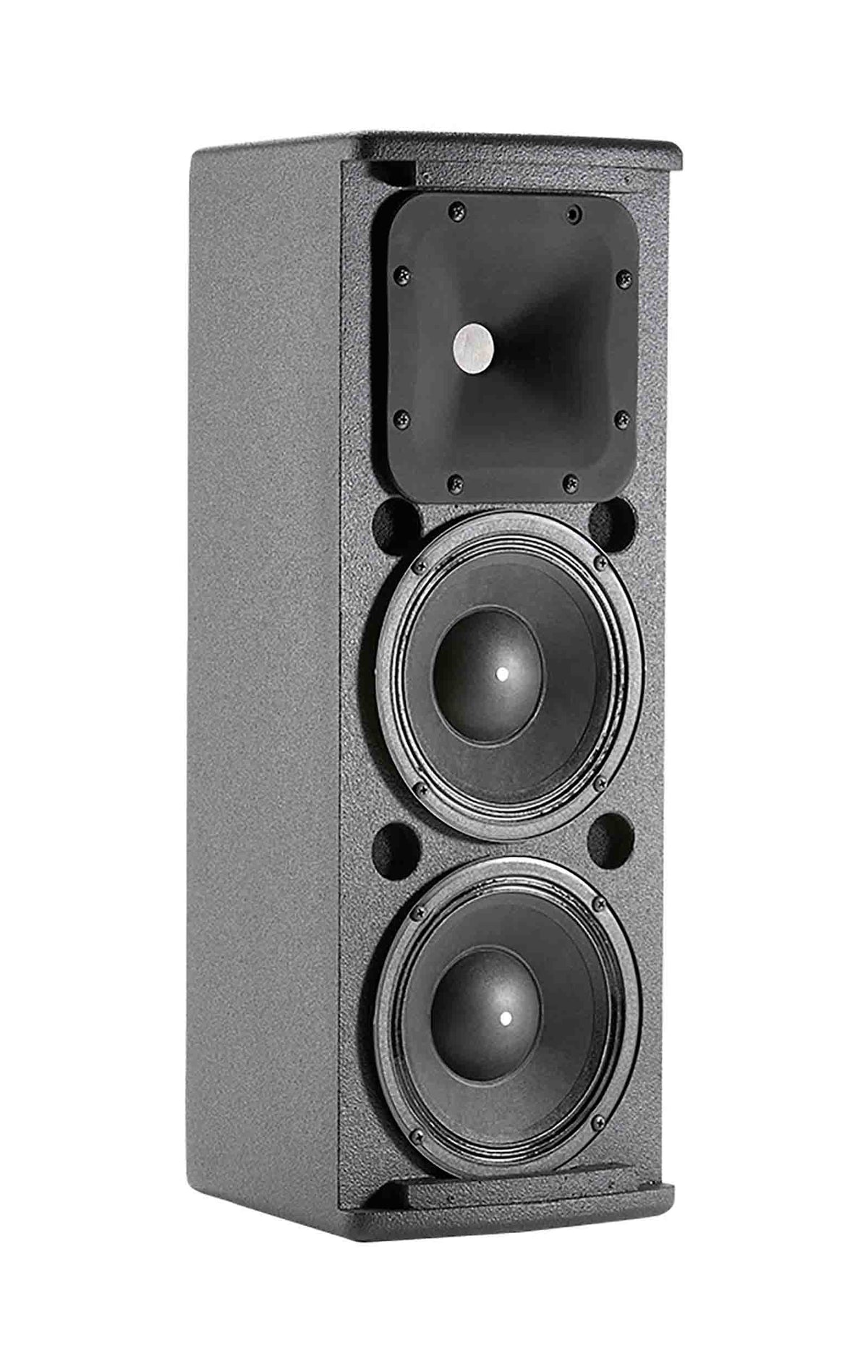

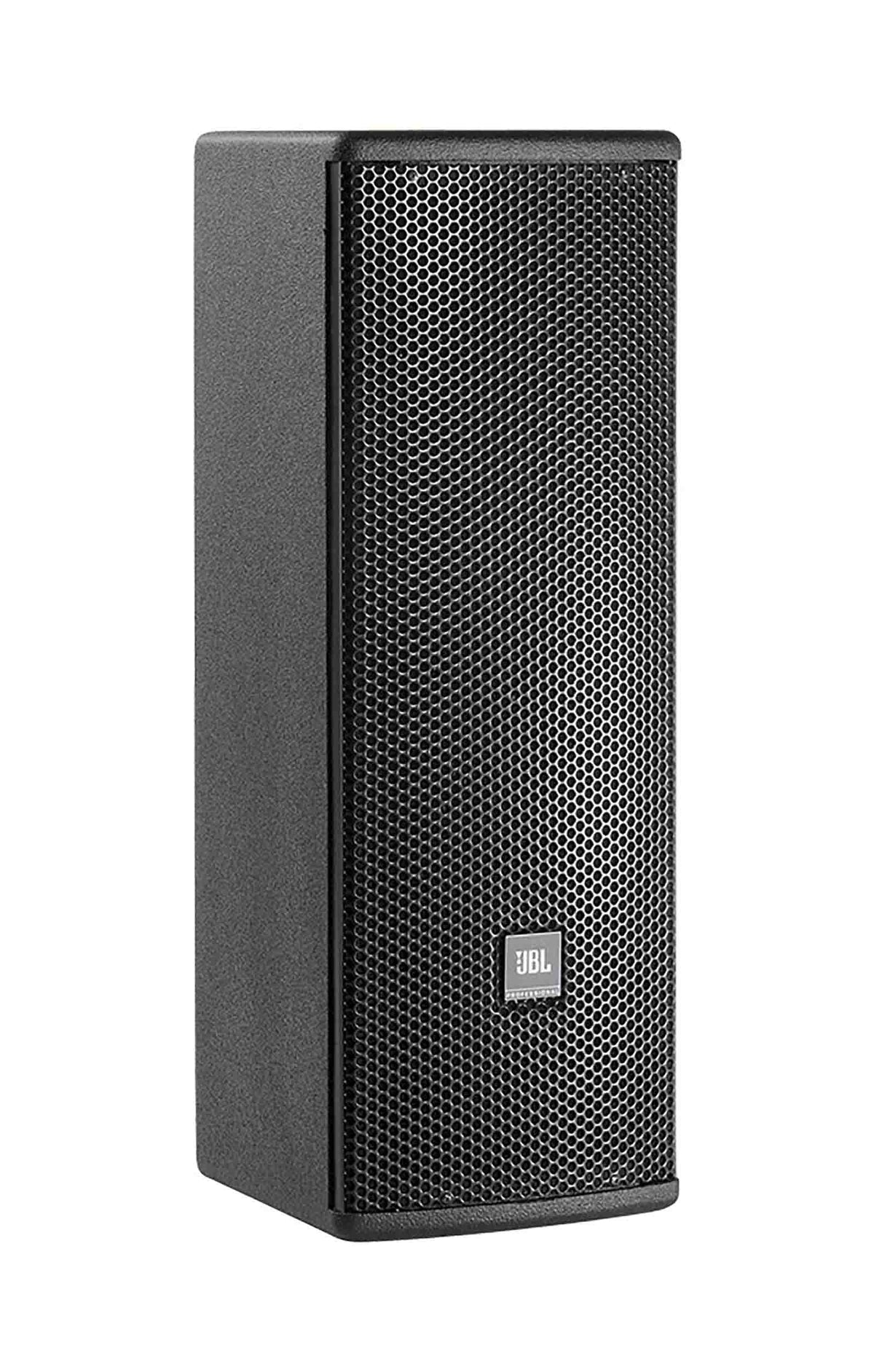

JBL AC26, Ultra Compact 2-Way Loudspeaker with 2 x 6.5 LF - Black

The JBL AC26 is a 2-Way loudspeaker with dual 6.5" LF drivers. These speakers have broad dispersion angles making them easy to set up appropriately and are ideal for use in performing arts facilities, theatrical sound design, auditoriums, houses of worship, clubs, and themed entertainment venues. This speaker can handle up to 600W of program power and has 90x90° bandwidth. Dual Neutrik NL4 connectors plus screw terminals make it simple to add this speaker to your system. The AC26 B has attachment points for the optional U-bracket or OmniMount.

Product Specification:

Frequency Range (-10dB): 55 Hz -20 kHz

Frequency Response (±3 dB): 70 Hz -18 kHz

Impedance: 8 ohms

Coverage Pattern: 90° x 90°

Dimensions (H x W x D): 539.8 x 199.4 x 226.1mm (21.3 x 7.8 x 8.9in)

Net Weight (each): 11.0 kg (24.3 lb)

Maximum SPL (1m): 117 dB

System Sensitivity (1w @ 1m): 92 dB SPL

LF Driver: 2 x JBL 226J, 165 mm (6.5 in) SFG driver with 50 mm (2 in) edge wound voice coil

Nominal LF Driver Impedance: 8 Ohms

HF Driver: 1 x 2414H 25 mm (1 in) exit compression driver, 25 mm (1 in) voice coil

Enclosure: 12 mm and 15 mm exterior grade multi-ply hardwood plywood

Environmental: Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
