JBL AC28/95 Compact 2-way Loudspeaker with 2 x 8"LF
JBL AC28/95 Compact 2-way Loudspeaker with 2 x 8"LF
Model / SKU: H-JBL-AC2895
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

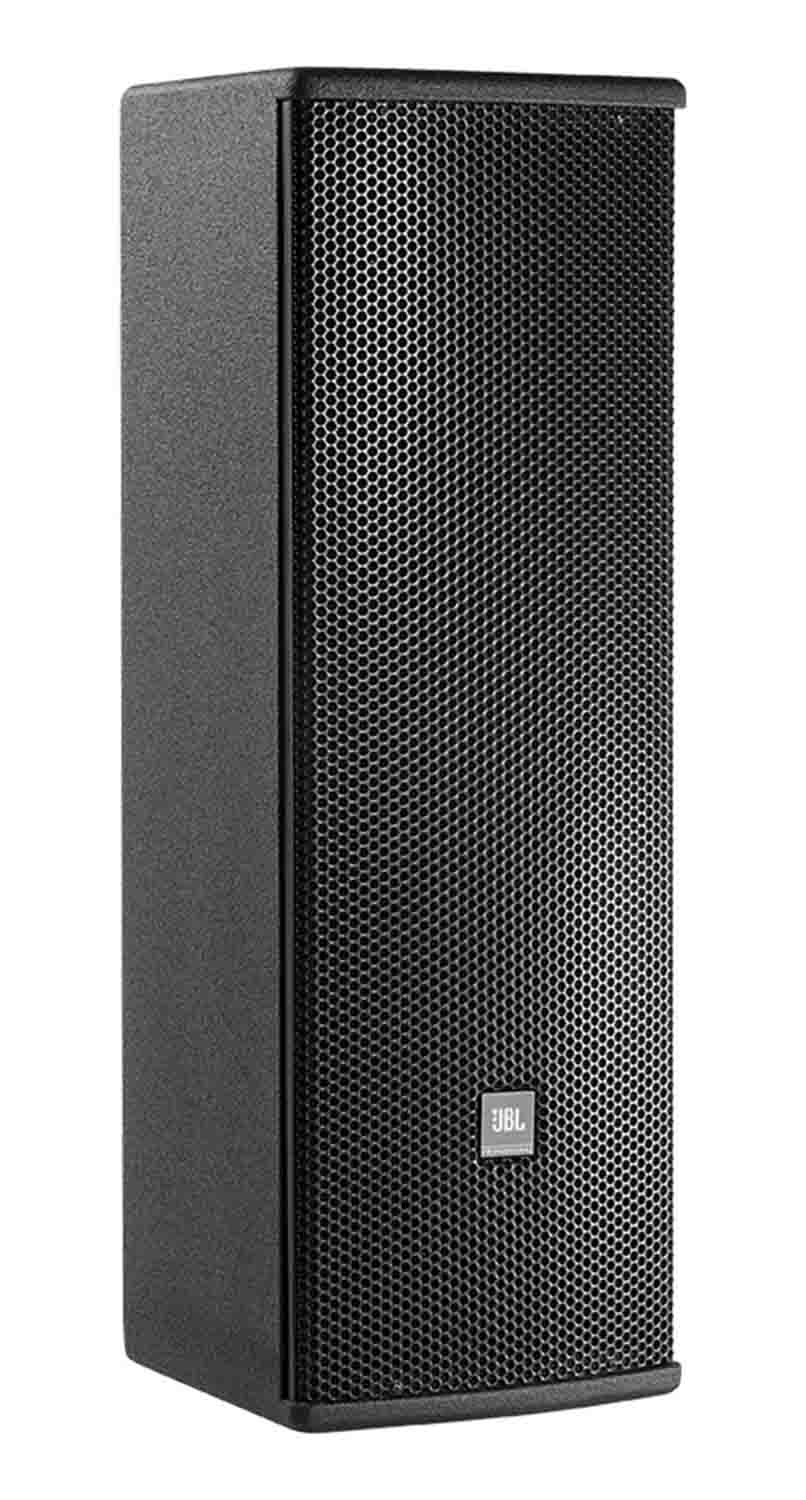

The JBL AC28/95 is a Compact 2-way Loudspeaker with 2 x 8"LF High output, 2-way loudspeaker systems combining flexibility with high fidelity.
Product Specifications:
Frequency Range (-10dB): 53 Hz - 20 kHz
Frequency Response (±3 dB): 65 Hz, 20 kHz
System Power Rating: 700 W (AES rated)
375 W / 750 W / 1500 W (Continuous/Program/Peak) (IEC rated)
Impedance: 8 ohms
Coverage Pattern: /26: 120° x 60°/95: 90° x 50°
Dimensions (H x W x D): 679.5 x 237.5 x 254.0 mm (26.8 x 9.4 x 10.0 in)
Net Weight (each): 18.6 kg (40.9 lb)
Crossover Modes: Passive
Maximum SPL (1m): 120 dB
System Sensitivity (1w @ 1m): 94 dB SPL

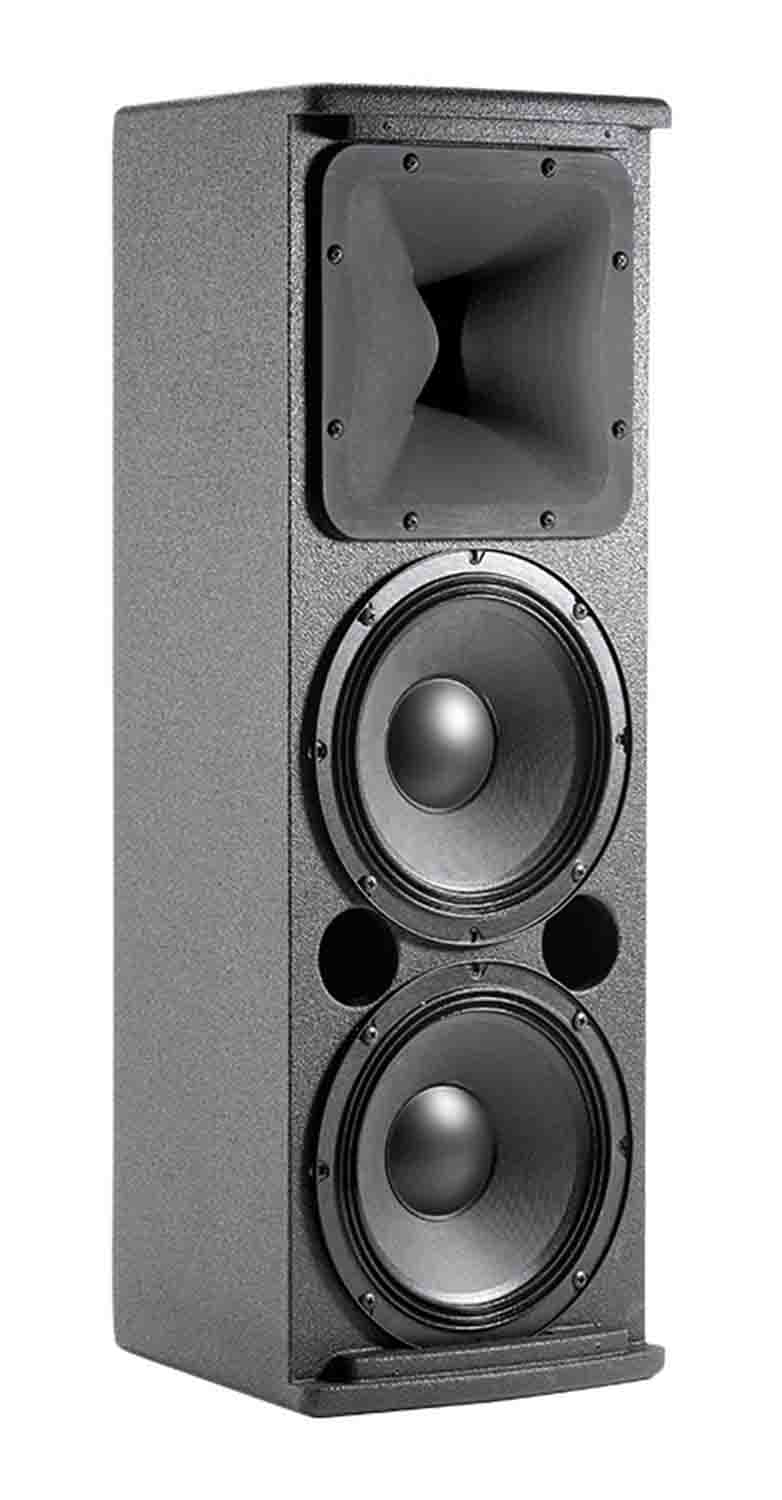

LF Driver: 2 x JBL 228J, 205 mm (8 in) SFG driver with 64 mm (2.5 in) edge wound voice coil
Nominal LF Driver Impedance: 8 Ohm
