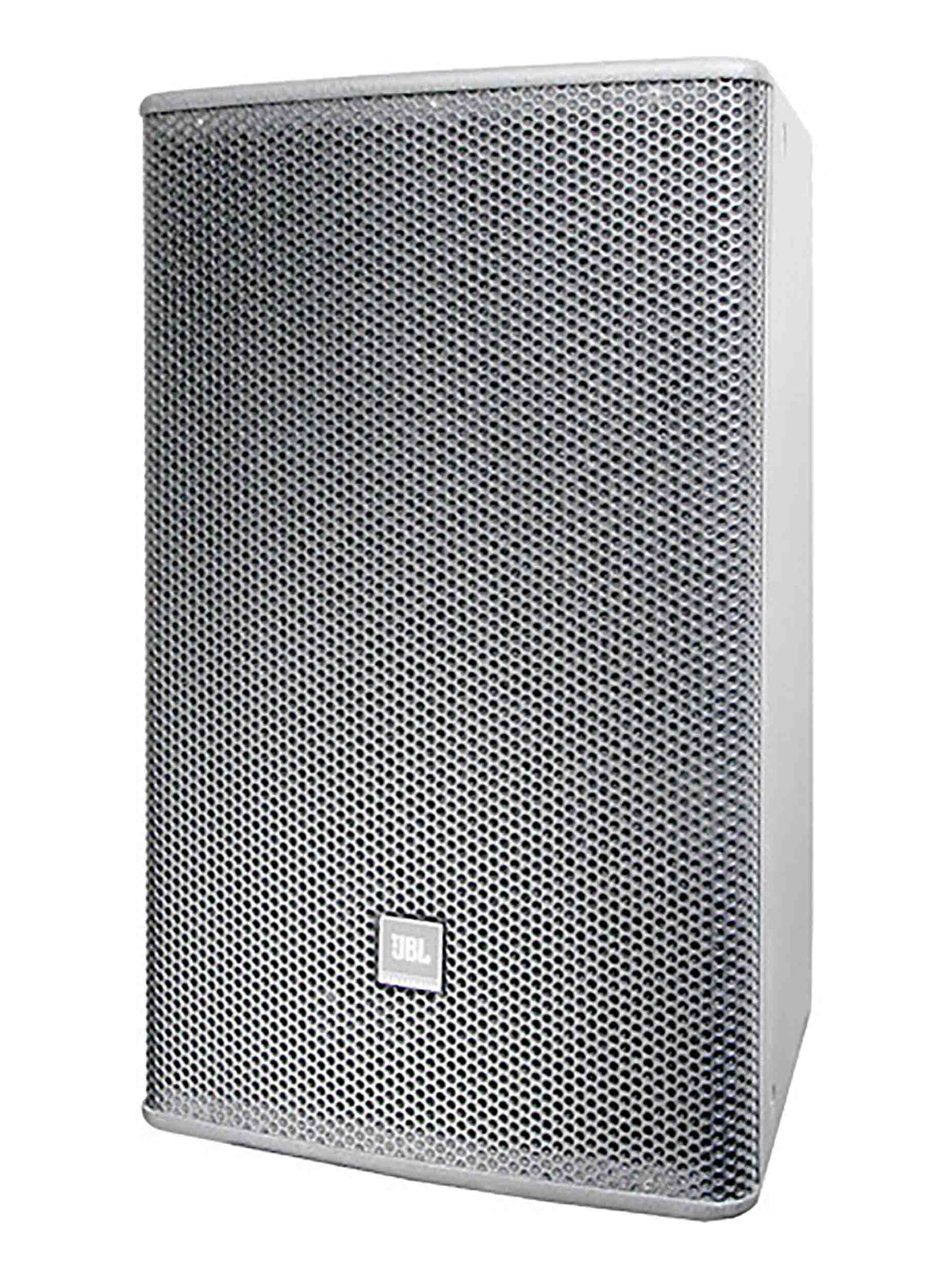

JBL AC599-WH Two-Way Full Range Speaker System- White System 15" LF

The JBL AC599-WH is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 90° by 90° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount or similar type mounting. AC599 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications

Product Specification:

Frequency Range (-10dB): 60 Hz - 20 kHz

Frequency Response (±3 dB): 75 Hz - 18 kHz

System Sensitivity (1w @ 1m): 98 dB

Nominal Impedance: 8 ohms

Maximum SPL (1m): 122 dB (128 dB peak)

Coverage Pattern: 90° x 90° (H x V)

Crossover: 1.5 kHz

LF Driver: 1 x 15" woofer (P/N: 5053935), 384 mm (15 in) driver with 66 mm (2.5 in) voice-coil

HF Driver: 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil

Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals

Enclosure: 15 mm multi-ply hardwood plywood

Grille: Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing

Finish: Textured White paint finish.

Suspension Attachment: 14 x M10 and 4 x M10 for Wall Mount Bracket.

Crossover Modes: Passive

Nominal LF Driver Impedance: 8 ohms

Nominal HF Driver Impedance: 8 ohms

Weight: 19.7 kg (43.4lbs)
