JBL AC895, Two-Way Full Range Loudspeaker with 1 x 8" LF - Black

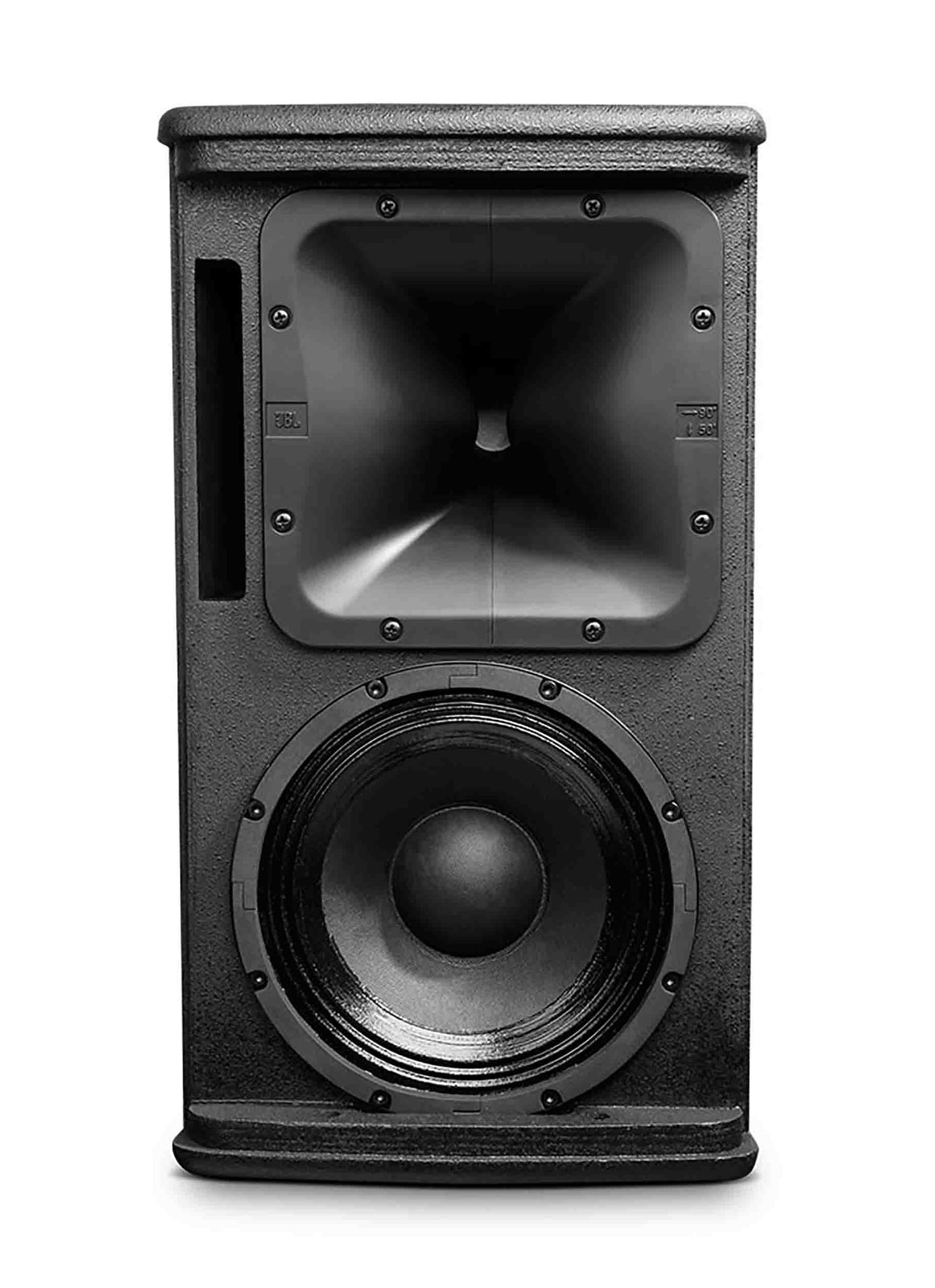

The JBL AC895 is a compact 2-way full-range loudspeaker system comprised of one 209 mm (8 in) low frequency driver and one 25 mm (1 in) exit/25 mm (1 in) voice-coil compression driver. The rotatable PT Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount or similar type mounting. AC895 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications

Product Specification:

Frequency Range (-10dB): 70 Hz - 20 kHz

Frequency Response (±3 dB): 90 Hz - 18 kHz

System Sensitivity (1w @ 1m): 94 dB

Nominal Impedance: 8 ohms

Maximum SPL (1m): 116 dB (122 dB peak)

Coverage Pattern: 90° x 50° (H x V)

Crossover: 2 kHz

LF Driver: 1 x 8" woofer (P/N: 5055470), 209 mm (8 in) driver with 50 mm (2 in) voice-coil

HF Driver: 1 x 2414H-C driver with 25 mm (1 in) exit/25 mm (1 in) voice-coil

Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals

Enclosure: 15 mm multi-ply hardwood plywood

Grille: Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing

Finish: Textured black paint finish.

Suspension Attachment: 14 x M10 and 4 x M10 for Wall Mount Bracket.

Dimensions (H x W x D): 470 mm x 265 mm x 254 mm 18.5 in x 10.4 in x 10.0 in

Weight: 10.2 kg (22.4 lbs)

Crossover Modes: Passive

Nominal LF Driver Impedance: 8 ohms

Nominal HF Driver Impedance: 8 ohms
