JBL AM5212/64, 2-Way Loudspeaker System with 1 x 12" LF - Black
JBL AM5212/64, 2-Way Loudspeaker System with 1 x 12" LF - Black
Model / SKU: H-JBL-AM521264BL
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

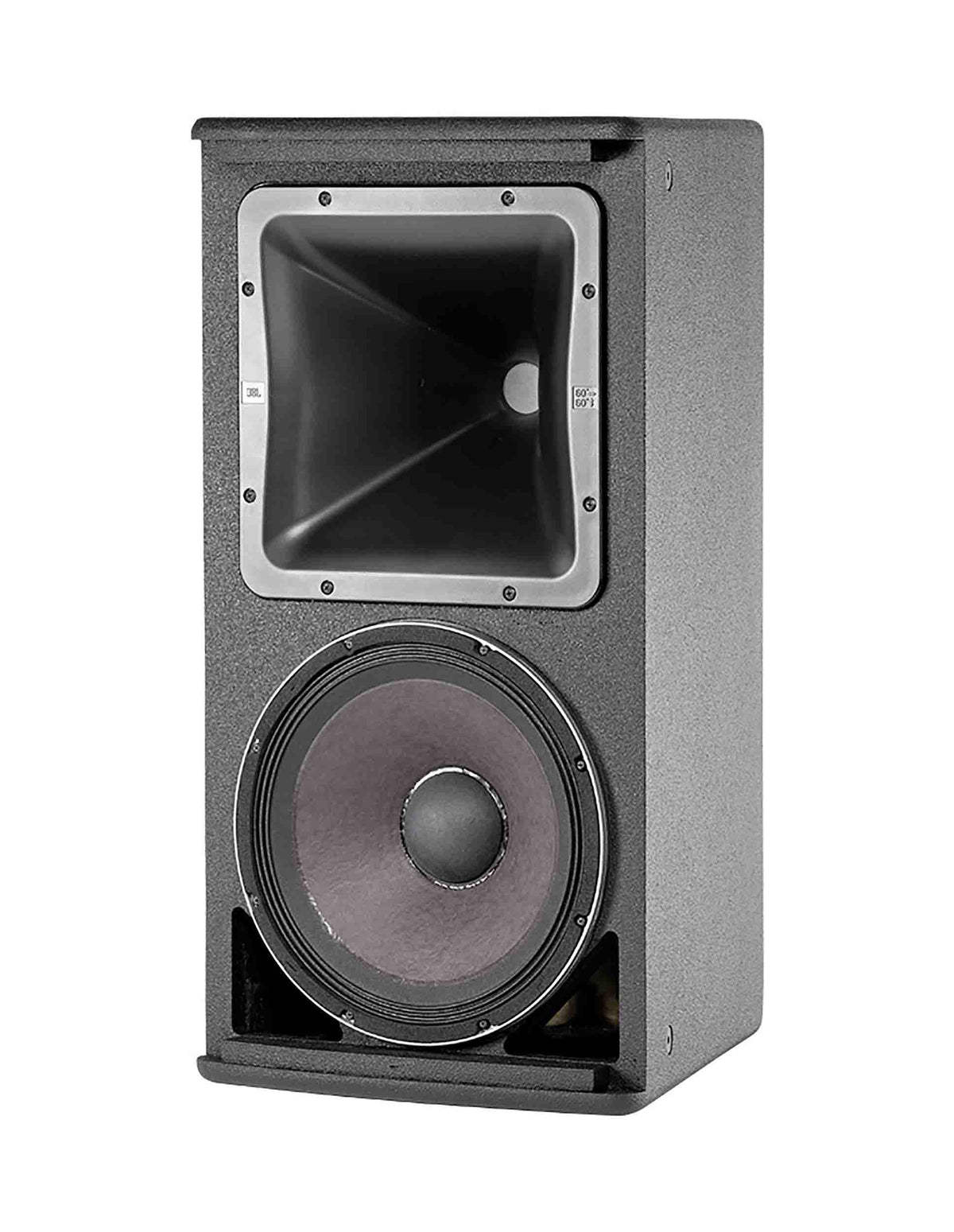

The JBL AM5212/64 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 262H-1 300 mm (12 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT Progressive Transition waveguide provides excellent 60° x 40° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
Product Specifications:
Frequency Range (-10dB): 37 Hz, 20 kHz
Frequency Response (±3 dB): 43 Hz, 18 kHz
Coverage Pattern: /64: 60° x 40°/66: 60° x 60°/95: 90° x 50°/00: 100° x 100°/26: 120° x 60°
Crossover Modes: Bi-amp/Passive switchable
Passive Crossover Frequency: 1.5 kHz
System Power Rating: Passive mode: 300 W (1200 W peak), 100 hrs
Maximum SPL (1m): Bi-amp mode: LF: 122 dB HF: 131 dB
System Sensitivity (1w @ 1m): Passive mode: 96 dB SPL
LF Driver: 1 x JBL 262H-1 300 mm (12 in ) driver with 50.8 mm (2 in) dual voice coil
Nominal Impedance: 8 ohms
Sensitivity (1W @ 1m, within operational band): 97 dB SPL
HF Driver: JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
Sensitivity: 113 dB SPL
Waveguide: PT-H126HF-1
Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish: Black DuraFlex finish.

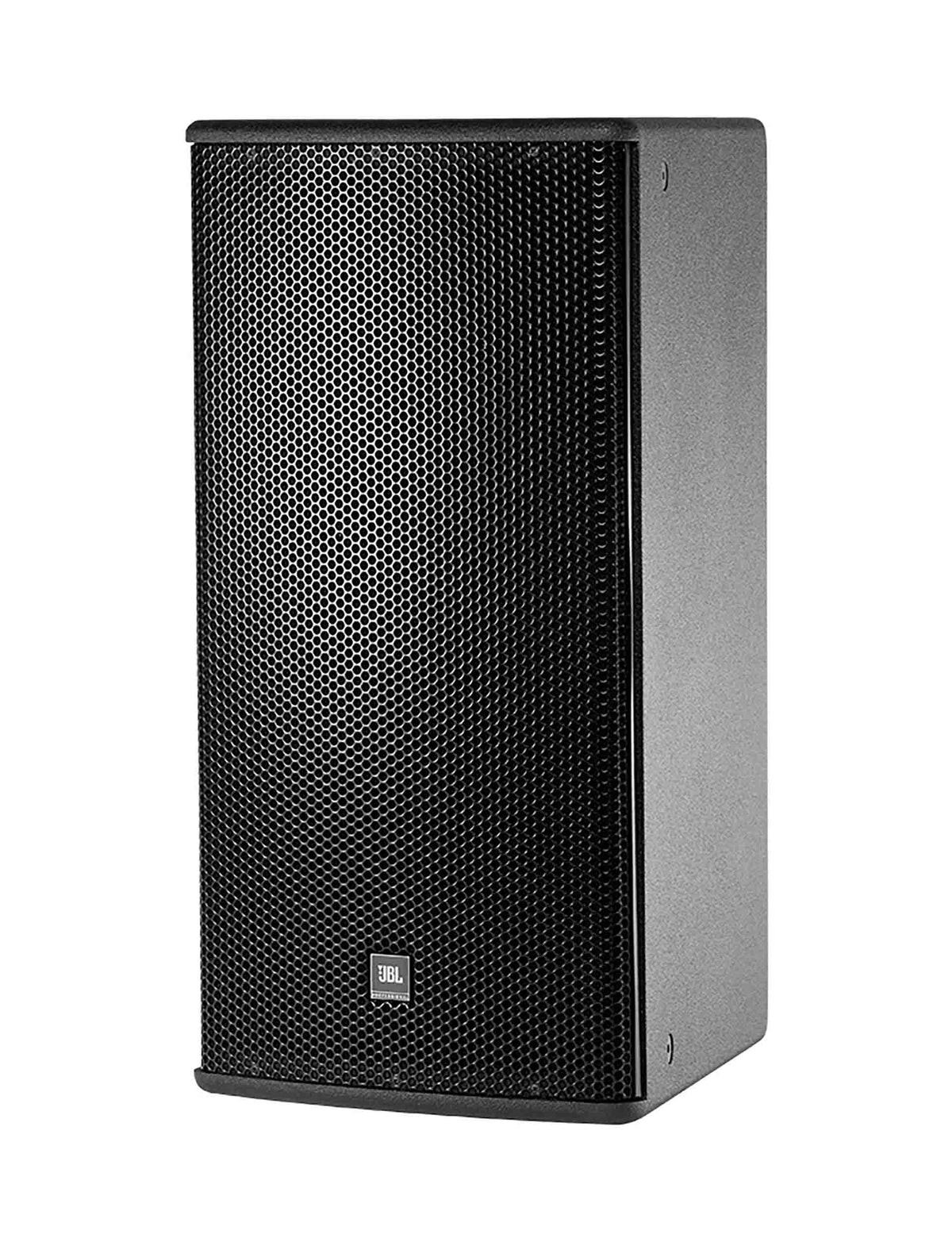

Grille: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Environmental: Mil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D in vertical orientation): 713 x 371 x 458 mm(28.06 x 14.6 x 18.1 in)
Net Weight (each): 20.2 kg (45 lb)
Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-3
System Power Rating: Passive mode: 300 W (1200 W peak), 100 hrs (IEC rated)
Nominal LF Driver Impedance: 8 ohms
Nominal HF Driver Impedance: 8 ohms
