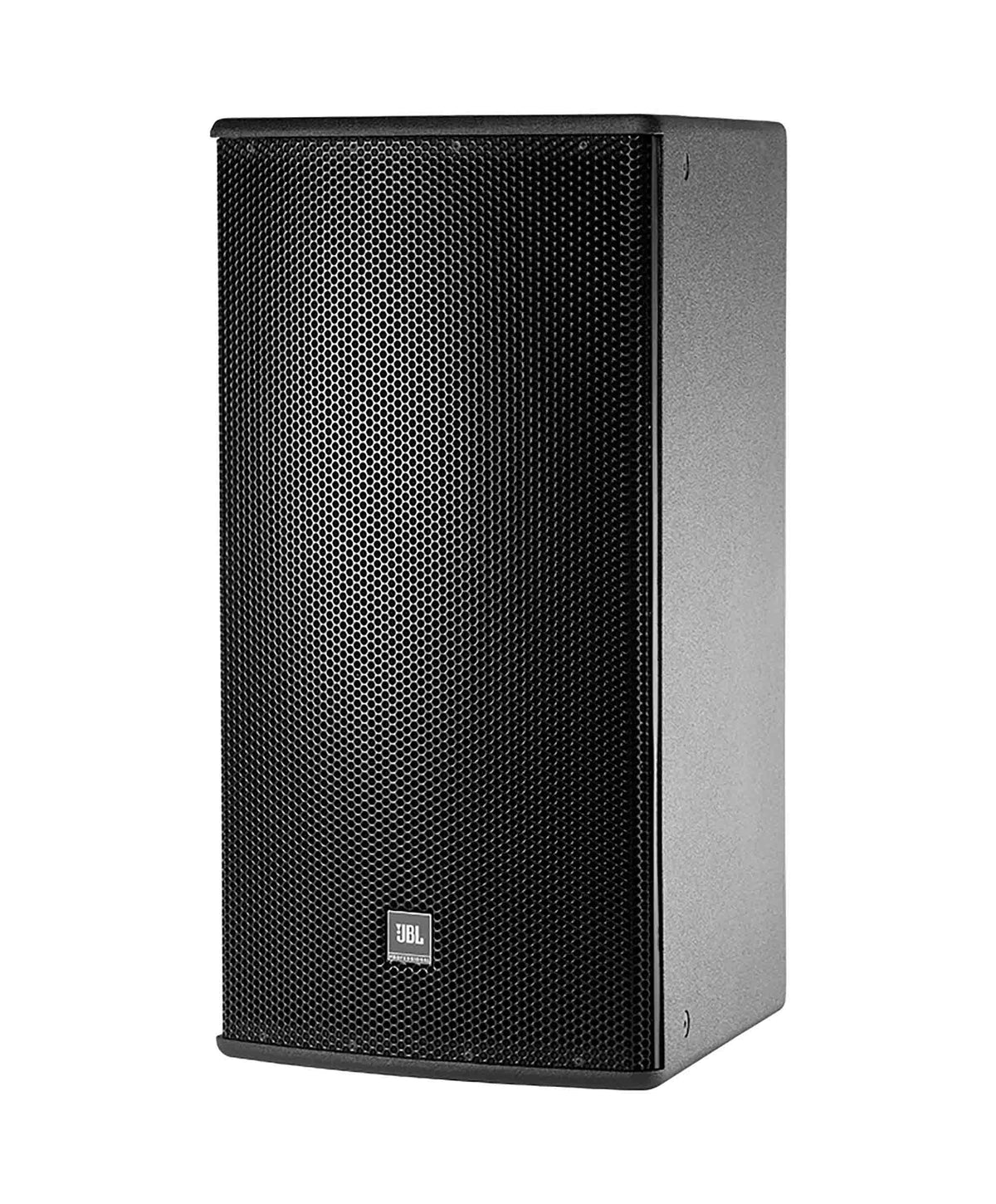

JBL AM5215/95, 2-Way Loudspeaker System with 1 x 15" LF - Black

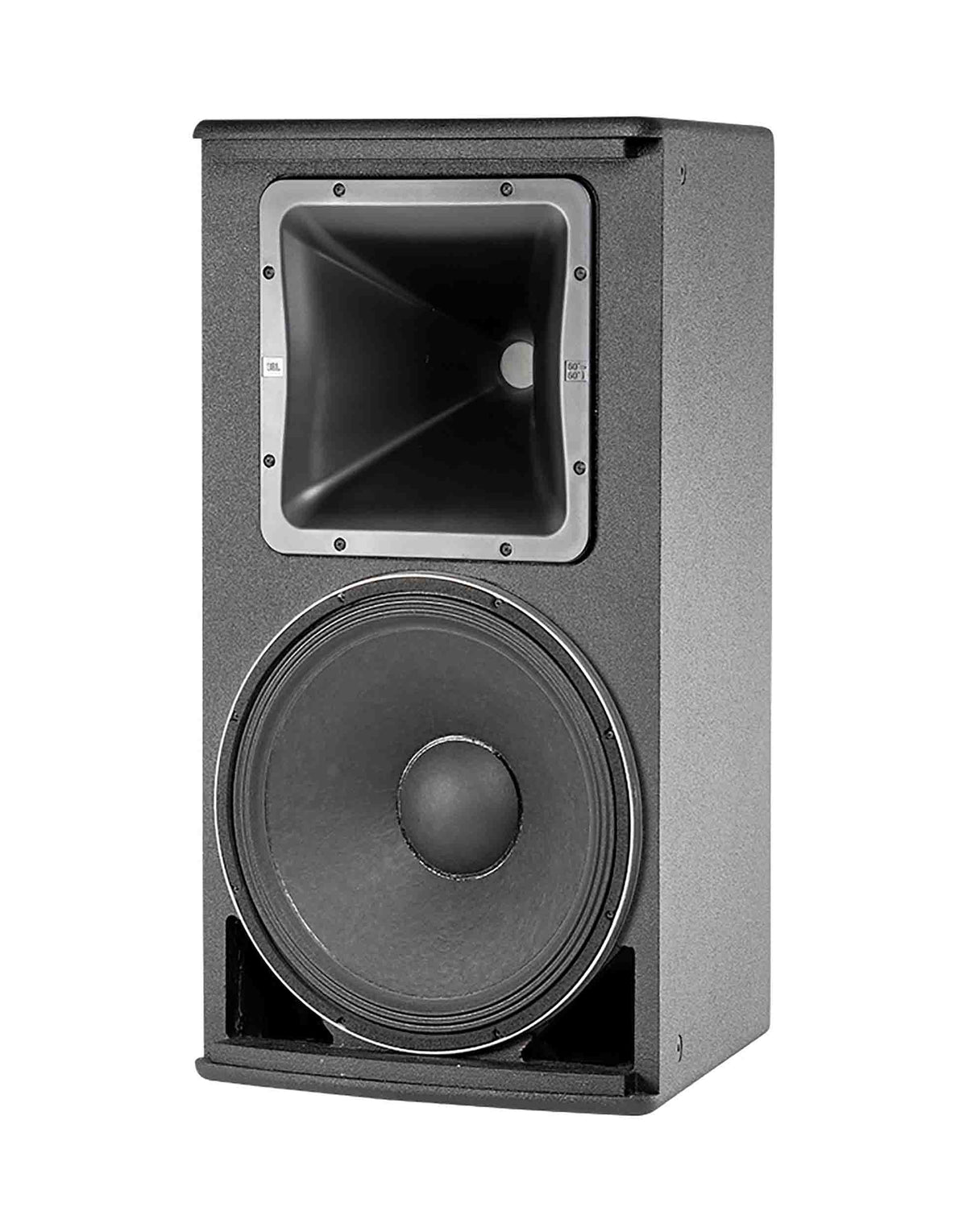

The JBL AM5215/95 Passive 2-Way 15" Loudspeaker System is a versatile, medium-power speaker well suited for professional installations such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live music venues, night clubs, sports facilities, and theme parks. The AM5215/95 is comprised of the JBL Differential Drive, dual-voice coil and dual-magnetic gap 265H-1 15" low-frequency driver, and 2408H-1 high-frequency 1.5" exit, 1.5" voice-coil compression driver. The large format PT Progressive Transition waveguide provides a 90 x 50° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability. The AM5215/95 will perform as either a bi-amped or passive cabinet, at the flick of a switch.

Product Specifications:

Frequency Range (-10dB): 35 Hz - 20 kHz

Frequency Response (±3 dB): 41 Hz, 18 kHz

Coverage Pattern: /64: 60° x 40°/66: 60° x 60°/95: 90° x 50° /26: 120° x 60°

Directivity Factor (Q): 14.5

Directivity Index (DI): 11.6 dB

Crossover Modes: Bi-amp/Passive switchable

Passive Crossover Frequency: 2 kHz

System Power Rating: Passive mode: 350 W (1400 W peak), 100 hrs

Maximum SPL (1m): Bi-amp mode:LF: 125 dB-SPL cont avgHF: 131 dB-SPL cont avg.

System Sensitivity (1w @ 1m): Passive mode: 98 dB SPL

LF Driver: 1 x JBL 265H-1 380 mm (15 in) driver with 50.8 mm (2 in) dual voice coil

Nominal Impedance: 8 ohms

Sensitivity (1W @ 1m, within operational band): 99 dB SPL

HF Driver: JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil

Sensitivity: 115 dB SPL

Waveguide: PT-H66HF-1

Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood

Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware

Finish: Black DuraFlex finish.

Grille: Powder coated 14 gauge perforated steel.

Environmental: Mil-Std 810; IP-x3 per IEC529.

Dimensions (H x W x D in vertical): 783 x 422 x 504 mm(30.8 x 16.6 x 19.85 in)

Weight: 25.0 kg (55 lb)

Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-1

System Power Rating: Passive mode: 350 W (1400 W peak), 100 hrs (IEC rated)

Nominal LF Driver Impedance: 8 ohms

Nominal HF Driver Impedance: 8 ohms
