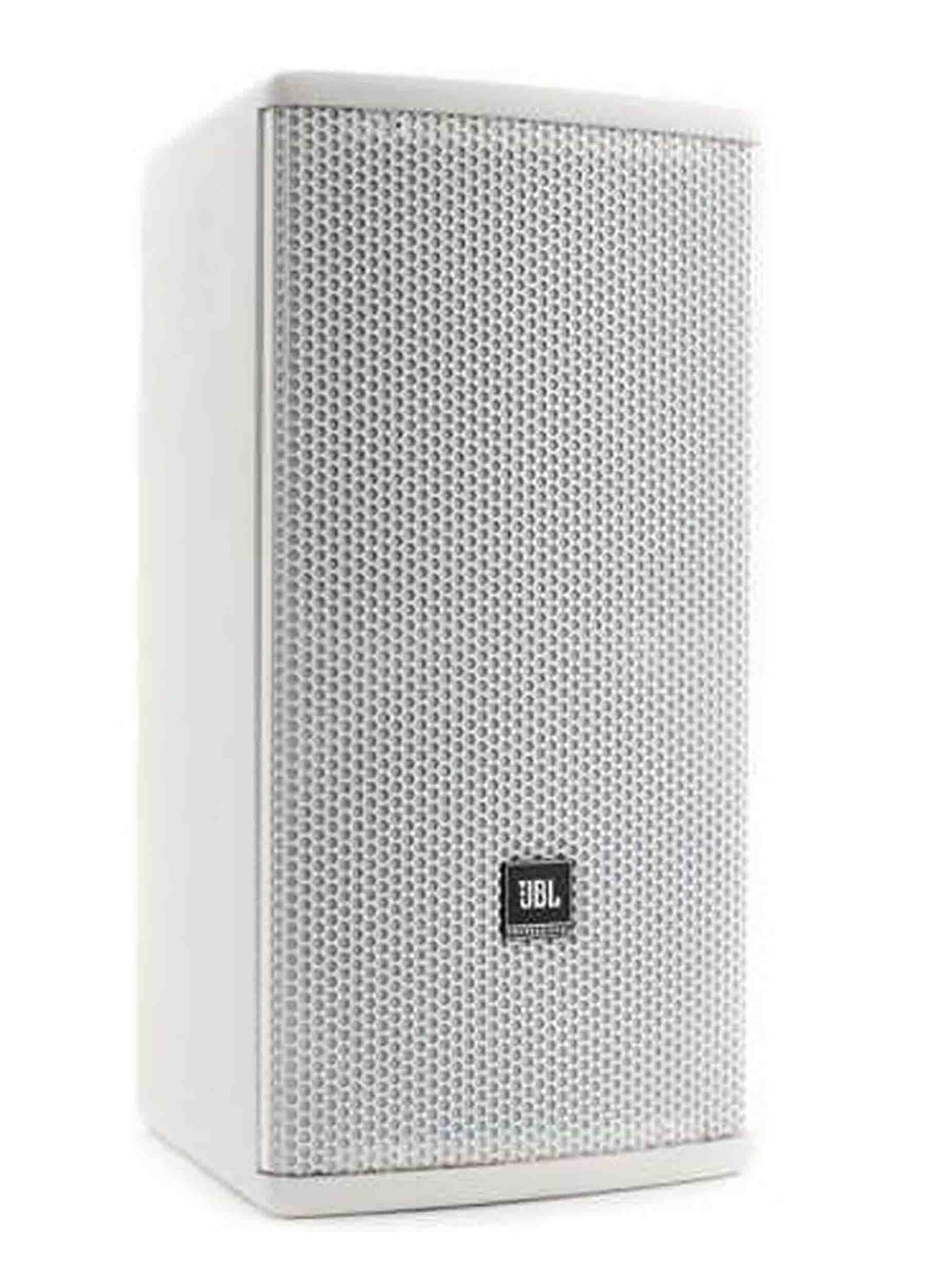

JBL AM7212/64-WH 2-Way Speaker- White Speaker 12" LF Rotatable Horn

The JBL AM7212/64-WH is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Product Specifications:

Frequency Range (-10dB): 36 Hz - 20 kHz

Frequency Response (±3 dB): 42 Hz - 18 kHz

Coverage: /64: 60° x 40°/66: 60° x 60°/95: 90° x 50°/00: 100° x 100°/26: 120° x 60°

LF Driver: 1 x JBL 2262H 300 mm (12 in) Differential Drive driver with 75 mm (3 in) dual voice coil

HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil

System Type: 12" Two - Way, High Power, Full - Range

Dimensions (H x W x D): 711 x 369 x 458 mm (28 x 14.5 x 18 in)

Weight: 23.1 kg (51 lb)

Crossover Modes: Bi-amp/Passive switchable

Passive Crossover Frequency: 1.8 kHz

System Power Rating: Passive mode: 600 W (2400 W peak), 100 hrs

System Sensitivity (1w @ 1m): Passive mode: 95 dB SPL

Nominal Impedance: 8 ohms

Nominal LF Driver Impedance: 8 ohms

Nominal HF Driver Impedance: 8 ohms

Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood

Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware

Environmental: Mil-Std 810; IP-x3 per IEC529.
