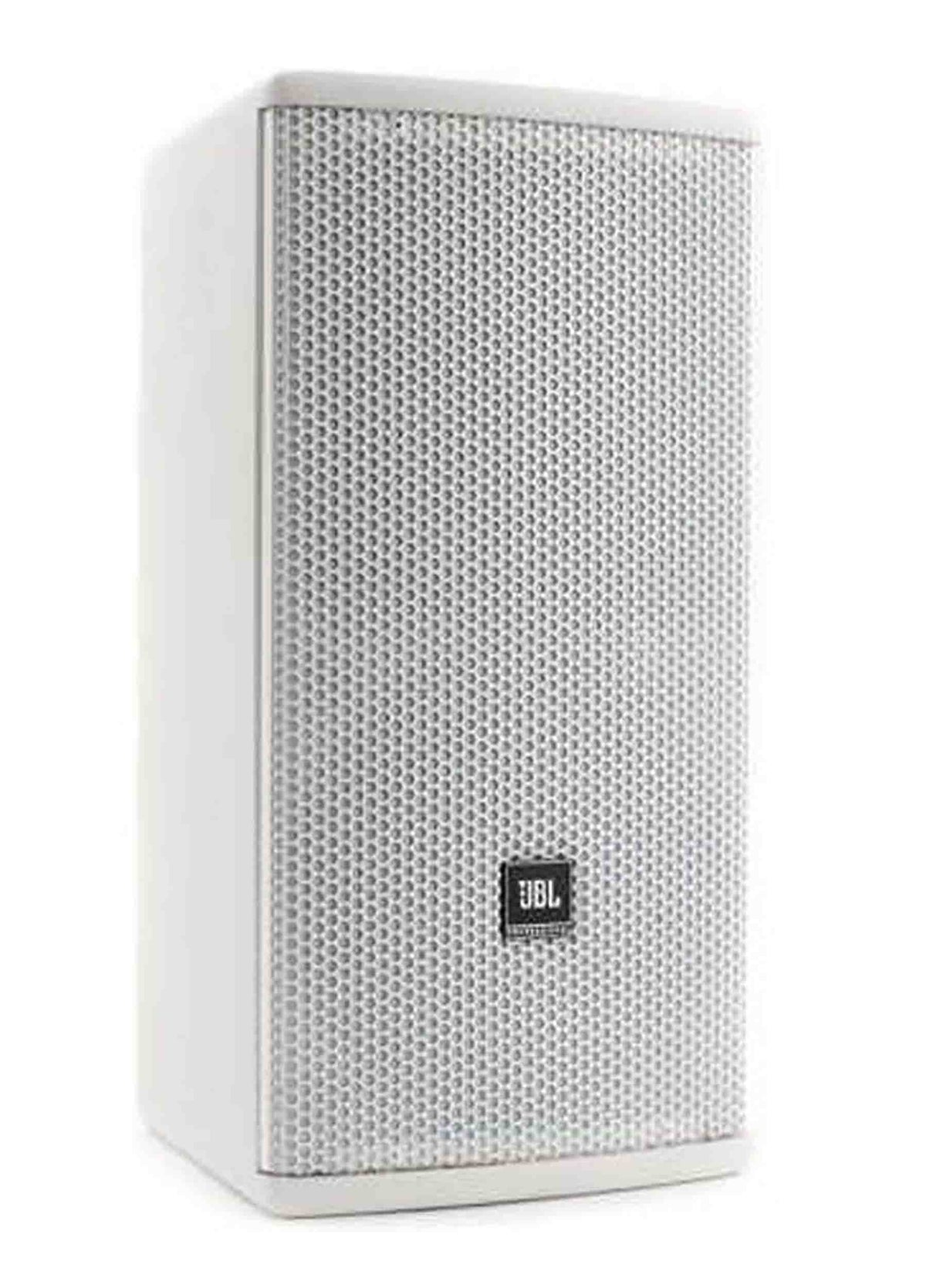

JBL AM7215/95-WH 2-Way Speaker- White Speaker 15" LF Rotatable Horn

The JBL AM7215/95 2-Way 15" Loudspeaker System from JBL is a high-power, lightweight, 2-way, full range loudspeaker. It is comprised of the JBL Differential Drive, dual voice coil and dual magnetic gap 2265H (15") low frequency driver, and 2432H high frequency 1.5" exit, 3" voice-coil compression driver. The large format Progressive Transition (PT) waveguide provides a 90 x 50° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

The enclosure is constructed of multi-ply birch coated in JBL's DuraFlex finish and is heavily braced to maximize low-frequency performance. The trapezoid enclosure is fitted with fifteen M10 threaded attachment points and utilizes a 14-gauge steel grille internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance. The AM7215/95, a member of the AM7215 family, will perform as either a bi-amped or passive cabinet, at the flick of a switch, making it versatile for many sound amplification applications, such as: performing arts facilities,theatrical sound design, auditoriums, worship facilities, live clubs, dance clubs, sports facilities, and themed entertainment venues.

Product Specifications:

Frequency Range (-10dB): 34 Hz - 20 kHz

Frequency Response (±3 dB): 40 Hz - 18 kHz

Coverage: /64: 60° x 40°/66: 60° x 60° /95: 90° x 50° /26: 120° x 60°

LF Driver: 1 x JBL 2265H 380 mm (15 in) Differential Drive driver with 75 mm (3 in) dual voice coil

HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil

System Type: 15" Two - Way, High Power, Full - Range

Dimensions (H x W x D): 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in)

Weight: 27.2 kg (60 lb)

Crossover Modes: Bi-amp/Passive switchable

Passive Crossover Frequency: 1.8 kHz

System Power Rating: Passive mode: 600 W (2400 W peak), 100 hrs

System Sensitivity (1w @ 1m): Passive mode: 96 dB SPL

Nominal Impedance: 8 ohms

System Power Rating: Passive mode: 600 W (2400 W peak), 100 hrs (IEC rated)

Nominal LF Driver Impedance: 8 ohms

Nominal HF Driver Impedance: 8 ohms

Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware

Environmental: Mil-Std 810; IP-x3 per IEC529.
