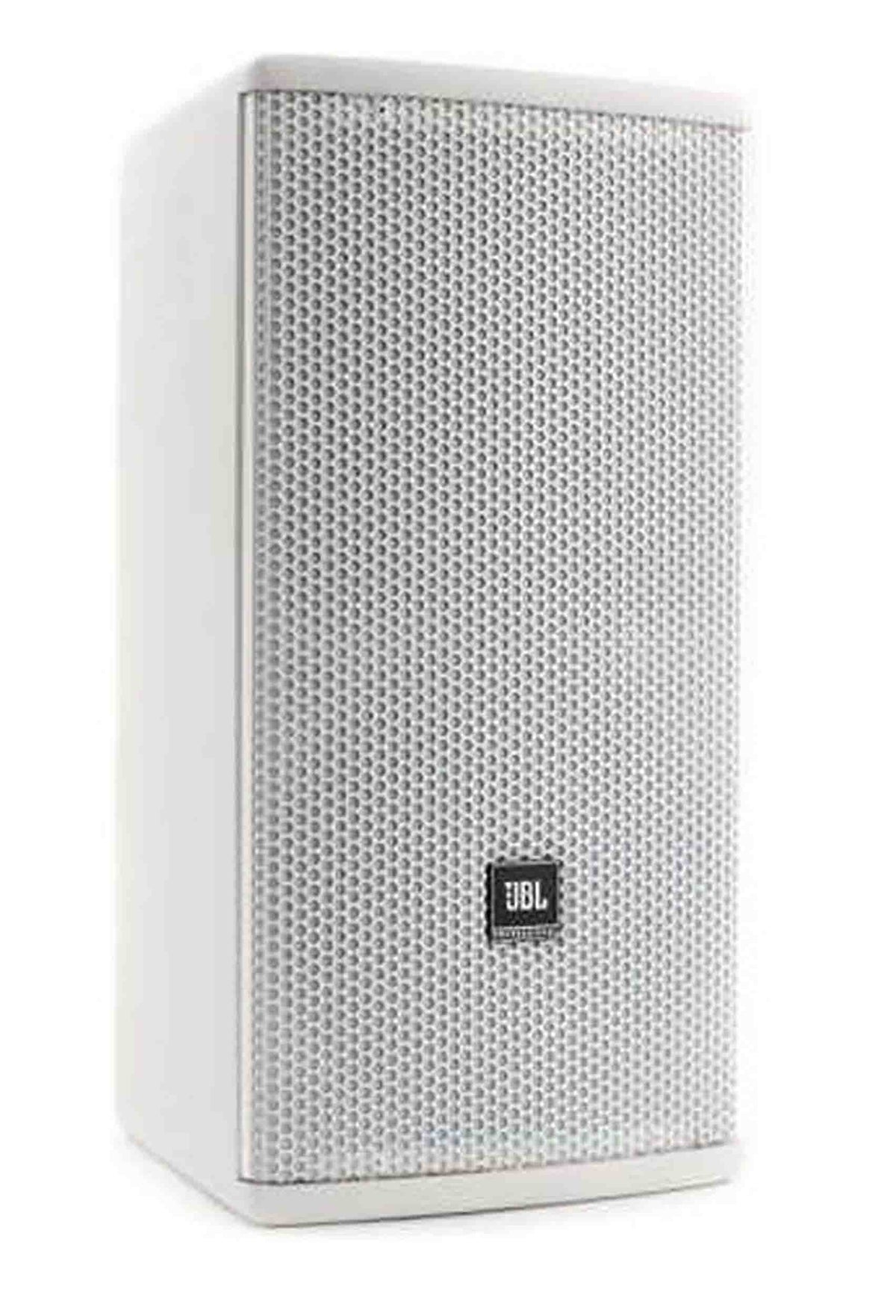

JBL AM7315/64-WH, High Power 3-Way Loudspeaker - White
JBL AM7315/64-WH, High Power 3-Way Loudspeaker - White
Model / SKU: H-JBL-AM731564WH
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The JBL AM7315/64-WH speakers are high power 3-way full-range loudspeaker systems comprised of one 380 mm (15 in) Differential Drive low frequency driver, one 200 mm (8 in) CMCD Cone Midrange Compression Driver, and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. AM7315 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
Product Specifications:
Frequency Range (-10dB): 38 Hz, 20 kHz
Frequency Response (±3 dB): 45 Hz, 18 kHz
Coverage Pattern: /64: 60° x 40°, rotatable waveguide/95: 90° x 50°, rotatable waveguide
Directivity Index (DI): 13 dB
Crossover Modes: Tri-amp/Bi-amp switchable
Crossover Frequencies: 300 Hz and 2.3 kHz
System Power Rating: LF: 600 W (2400 W peak), 100 hrsMF/HF: 200 W (800 W peak), 100 hrs
System Sensitivity of Passive Sections (1W @ 1m): MF/HF Section in Bi-amp mode: 108 dB SPL
Nominal Impedance: 8 ohms
LF Driver: 1 x JBL 2265H 380 mm (15 in ) Differential Drive driver with 75 mm (3 in)
Sensitivity (1W @ 1m) (Low Frequency): 97 dB SPL
Sensitivity (1W @ 1m) (Midrange): 108 dB SPL
HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Sensitivity (1W @ 1m)(High Frequency): 115 dB SPL
Suspension Attachment: 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish: White DuraFlex finish.
Grille: Powder coated 14 gauge perforated steel
Environmental: Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D): 967 x 561 x 657 mm (38.1 x 22.1 x 25.9 in)
Weight: 45.8 kg (101 lb)
Nominal LF Driver Impedance: 8 ohms
Nominal MF Driver Impedance: 8 ohms
Nominal HF Driver Impedance: 8 ohms
