JBL ASB6112-WH, Compact High Power Single 12" Subwoofer - White
JBL ASB6112-WH, Compact High Power Single 12" Subwoofer - White
Model / SKU: H-JBL-ASB6112WH
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

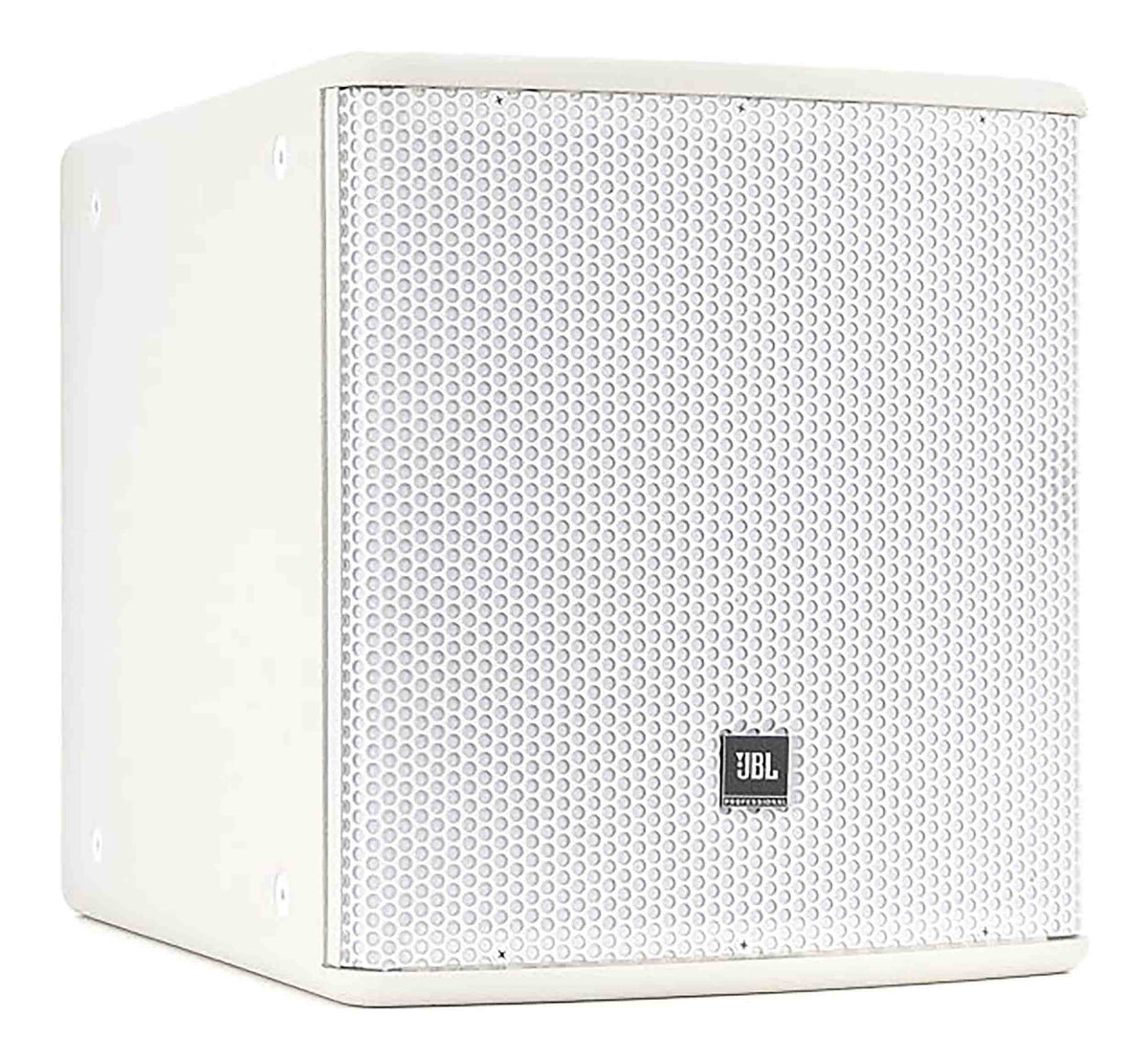

The JBL ASB6112-WH is a 12" Compact High Power Single Subwoofer enclosure housing JBL’s 2263H Differential Drive dual coil dual gap 12" woofer. This woofer features neodymium magnet and ultra-robust cone for extra-long life.
Product Specifications:
Frequency Range (-10dB): 35 Hz, 1 kHz
Frequency Response (±3 dB): 43 Hz, 1 kHz
Transducer Power Rating (AES): 1000 W (4000 W peak), 2 hrs.
System Power Rating: 700 W (2800 W peak), 100 hrs.
Maximum SPL (1m): 40 Hz - 300 Hz: 126 dB-SPL cont avg (132 dB peak)
System Sensitivity: 40 Hz - 300 Hz: 96 dB-SPL,1W (2.83V) @ 1m
Nominal Impedance: 8 ohms
LF Driver: 1 x 2263H, 305 mm (12 in) dia., 75 mm (3 in) Dual Coil Dual Gap
Grille: Powder coated 14-gauge perforated steel, with acoustically transparent black foam backing.
Environmental: Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D): 406 x 369 x 483 mm(16.0 x 14.5 x 19.0 in)
Net Weight (each): 16.3 kg (36.0 lb)
Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers.
