JBL ASB6115, High Power Single 15" Subwoofer
JBL ASB6115, High Power Single 15" Subwoofer
Model / SKU: H-JBL-ASB6115BL
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

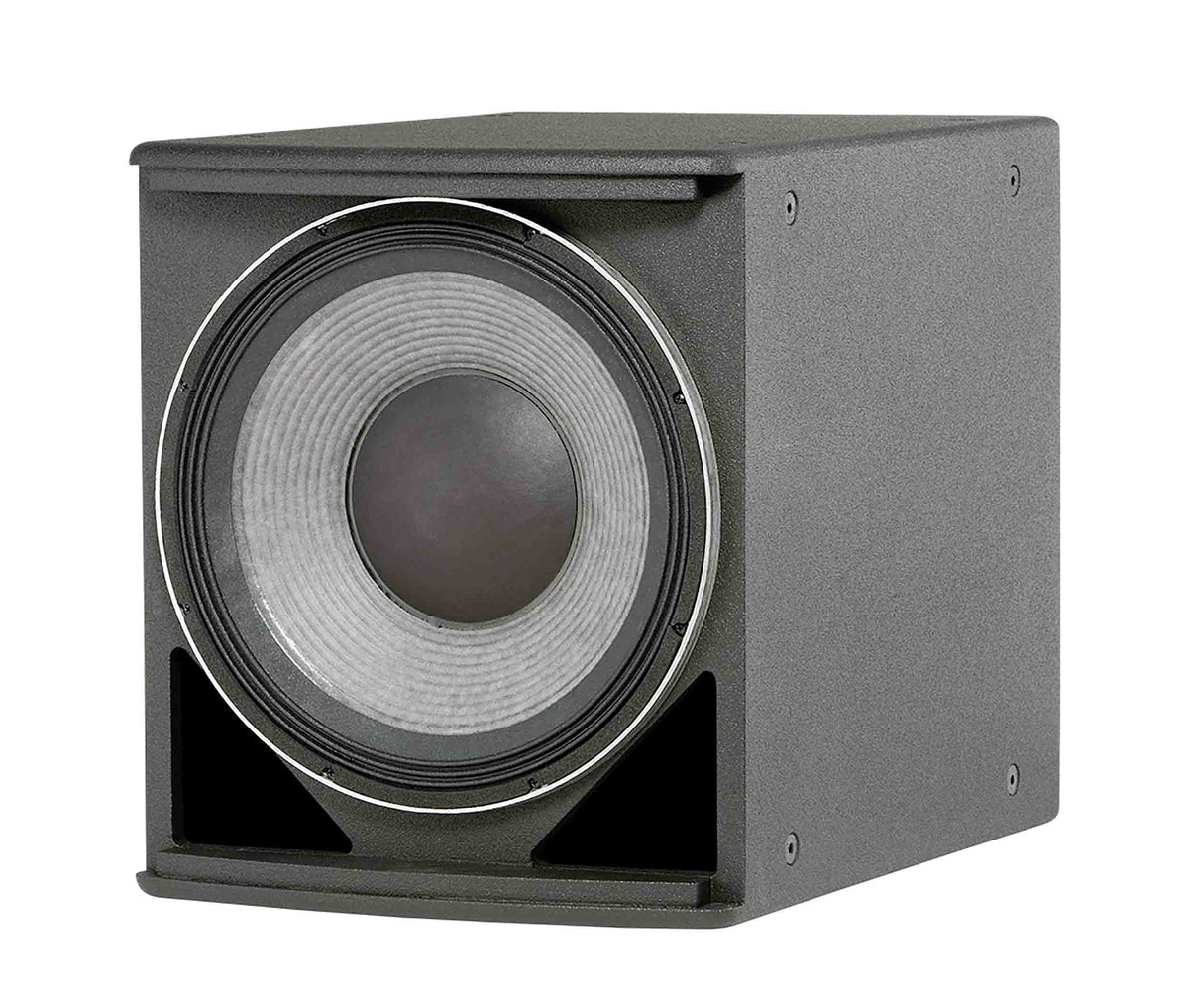

The JBL ASB6115 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2265H-1 Differential Drive dual voice coil dual gap 15" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.
Product Specifications:
Frequency Range (-10dB): 32 Hz - 1 kHz
Frequency Response (±3 dB): 42 Hz - 1 kHz
Transducer Power Rating (AES): 800 W (3200 W peak), 2 hrs.
System Power Rating: 675 W (2700 W peak), 100 hrs.
Maximum SPL (1m): 35 Hz - 400 Hz: 126 dB-SPL cont avg (132 dB peak)
System Sensitivity: 35 Hz - 400 Hz: 97 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance: 8 ohms
Enclosure: Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment: 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
Finish: Black DuraFlex finish.
Grille: Powder coated 14 gauge perforated steel.
Environmental: Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D): 483 x 419 x 597 mm(19.0 x 16.5 x 23.5 in)
Weight: 20.6 kg (45.5 lb)
Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers.
Nominal LF Driver Impedance: 8 ohms
