JBL ASB6118, 18" 1200-Watt Suspension Ready PA Subwoofer
JBL ASB6118, 18" 1200-Watt Suspension Ready PA Subwoofer
Model / SKU: H-JBL-ASB6118BL
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

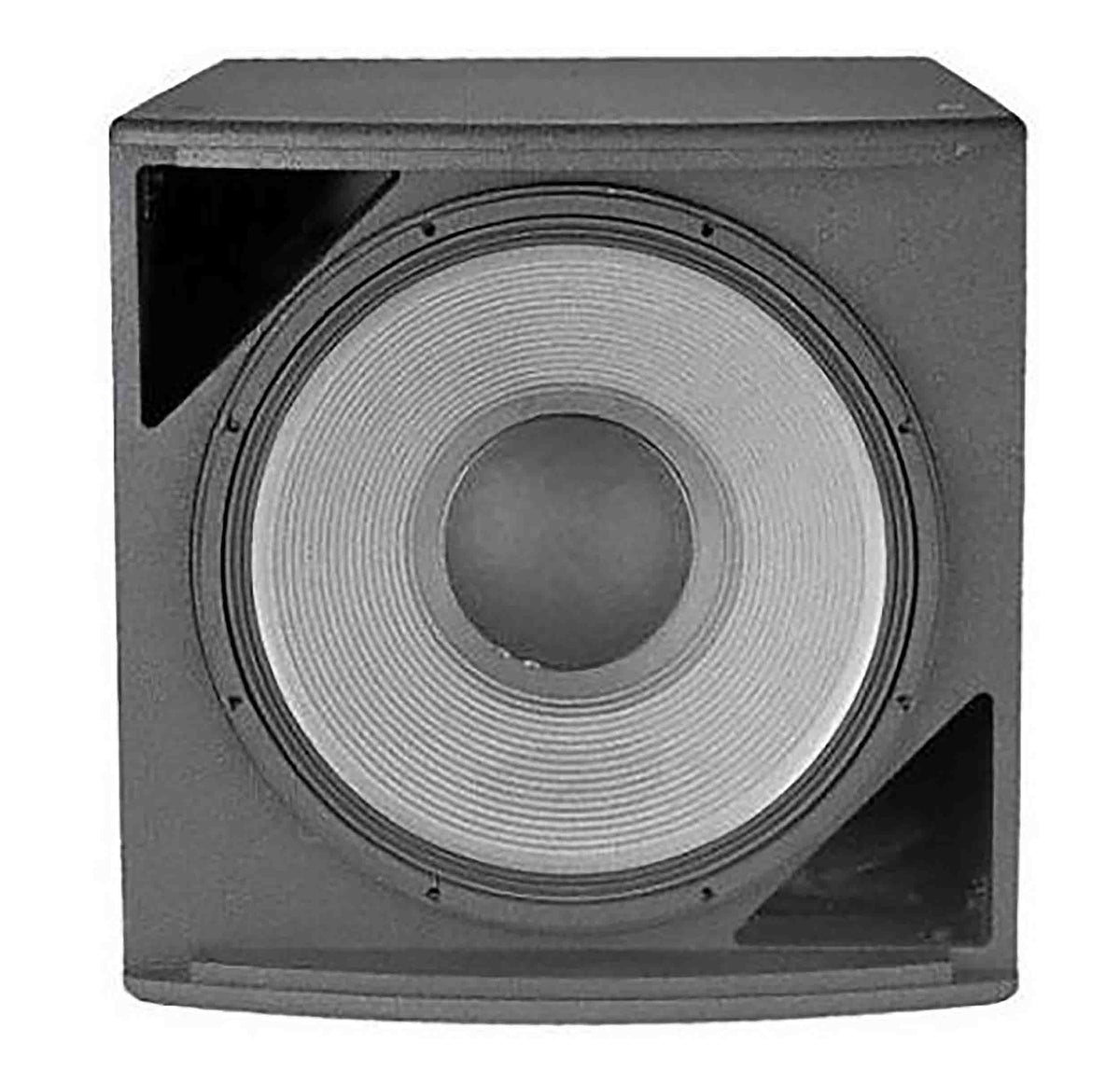

The JBL ASB6118 is a high power subwoofer system comprised of one 460 mm (18 in) SVG Super Vented Gap low frequency driver in a vented, front-loaded configuration for extended bandwidth.
Product Specifications:
Frequency Range (-10dB): 28 Hz, 1 kHz
Frequency Response (±3 dB): 35 Hz, 1 kHz
Transducer Power Rating (AES): 1200 W (4800 W peak), 2 hrs
System Power Rating: 800 W (3200 W peak), 100 hrs
System Sensitivity (1w @ 1m): 30 Hz, 100 Hz: 98 dB100 Hz, 500 Hz: 98 dB
Nominal Impedance: 8 ohms
LF Driver: 1 x JBL 2242H 460 mm (18 in) SVG driver with 100 mm (4 in) voice coil
Nominal LF Driver Impedance: 8 ohms
Enclosure: Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply Finish birch plywood
Suspension Attachment: 12 points (3 top, 3 bottom, 3 each side, 2 rear), M10 threaded hardware
Environmental: Mil-Std 810; IP-x3 per IEC529.
Weight: 98 lbs. (44.5 kgs)
