JBL ASB6128, High Power Dual 18" 2400W Subwoofer
JBL ASB6128, High Power Dual 18" 2400W Subwoofer
Model / SKU: H-JBL-ASB6128BL
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

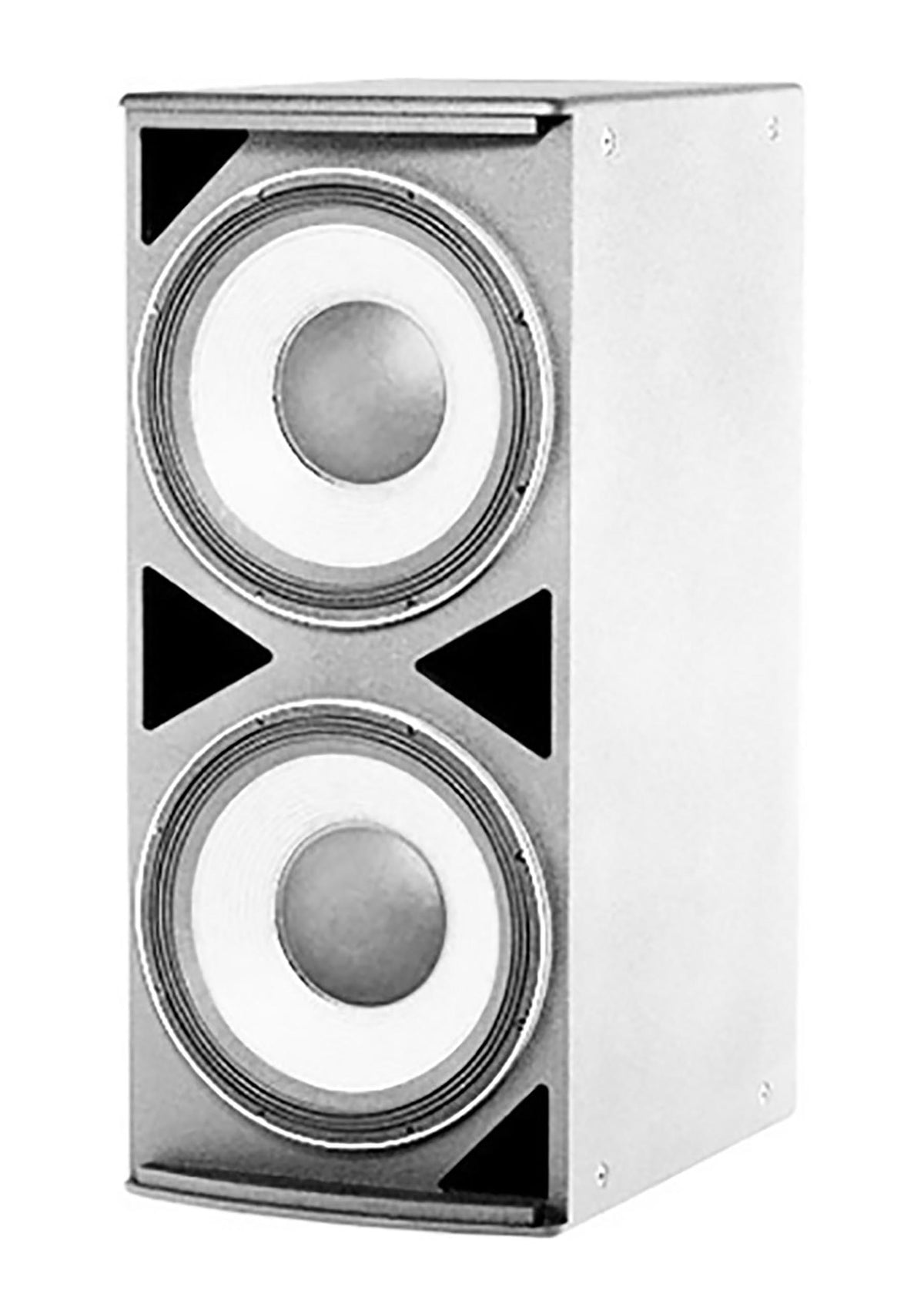

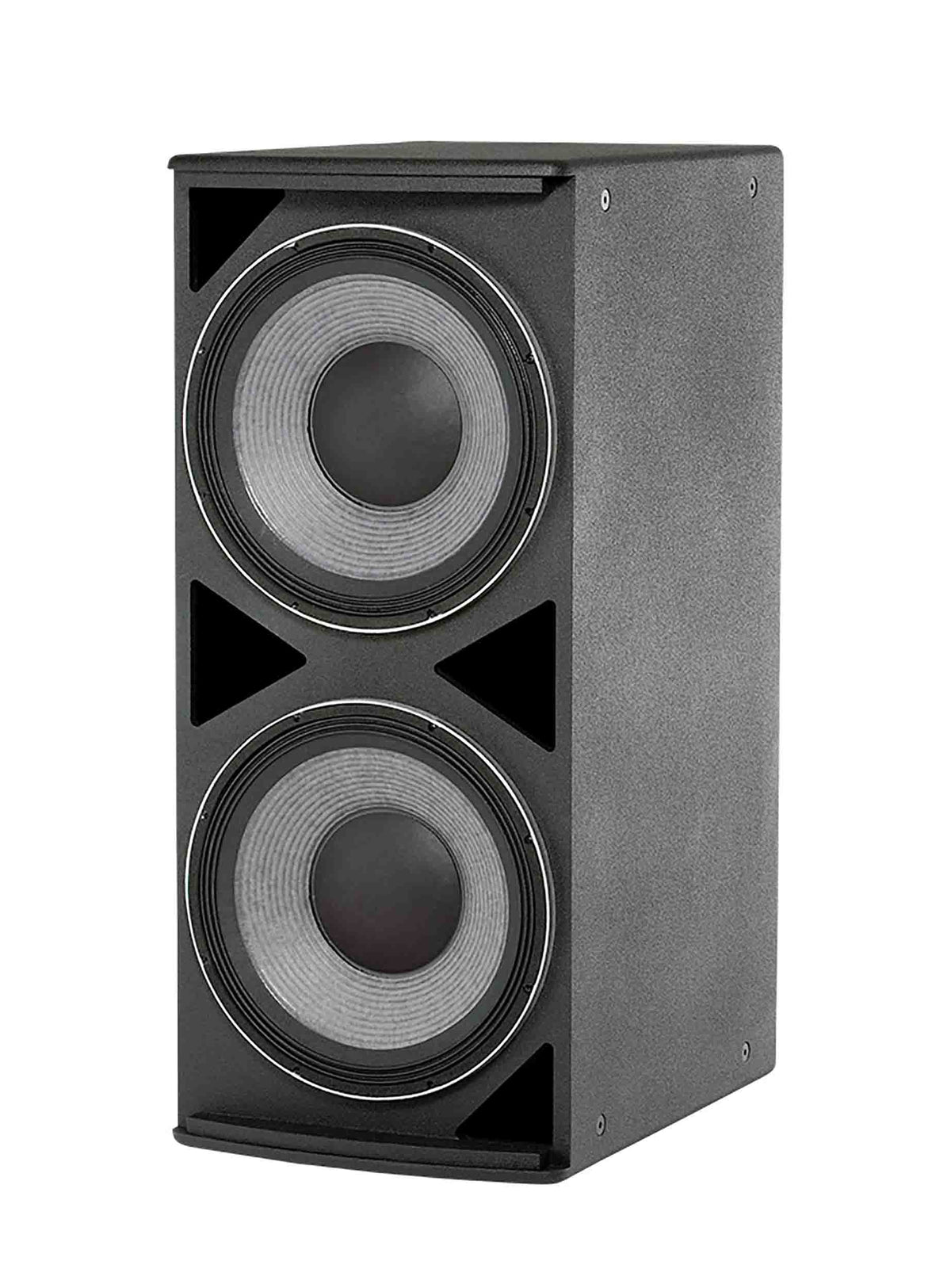

The JBL ASB6128 is a high power subwoofer system comprised of two 460 mm (18 in) SVG Super Vented Gap low frequency drivers in a front-loaded, vented configuration.
Product Specifications:
Frequency Range (-10dB): 28 Hz, 1 kHz
Frequency Response (±3 dB): 35 Hz, 1 kHz
Input Modes: Drivers Parallel / Drivers Discrete
Transducer Power Rating (AES): 2400 W (9600 W peak), 2 hrs
System Power Rating: 1600 W (6400 W peak), 100 hrs
System Sensitivity (1w @ 1m): 30 Hz, 100 Hz: 102 dB 100 Hz, 500 Hz: 102 dB
Nominal Impedance: 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
LF Driver: 2 x JBL 2242H 460 mm (18 in) SVG drivers with 100 mm (4 in) voice coil
Nominal LF Driver Impedance: 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
Enclosure: Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment: 12 points (3 top, 3 bottom, 3 each side, 2 rear), M10 threaded hardware
Environmental: Mil-Std 810; IP-x3 per IEC529.
Weight: 161 lbs. (73 kgs)
