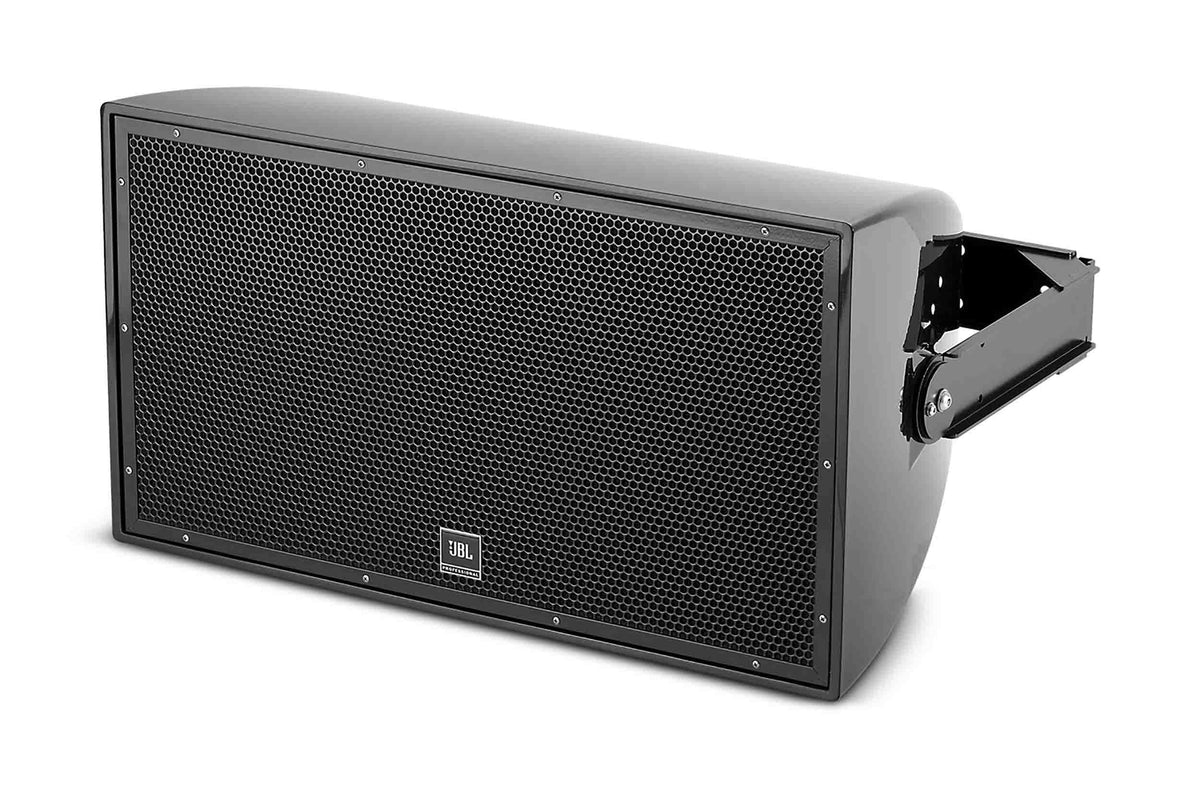

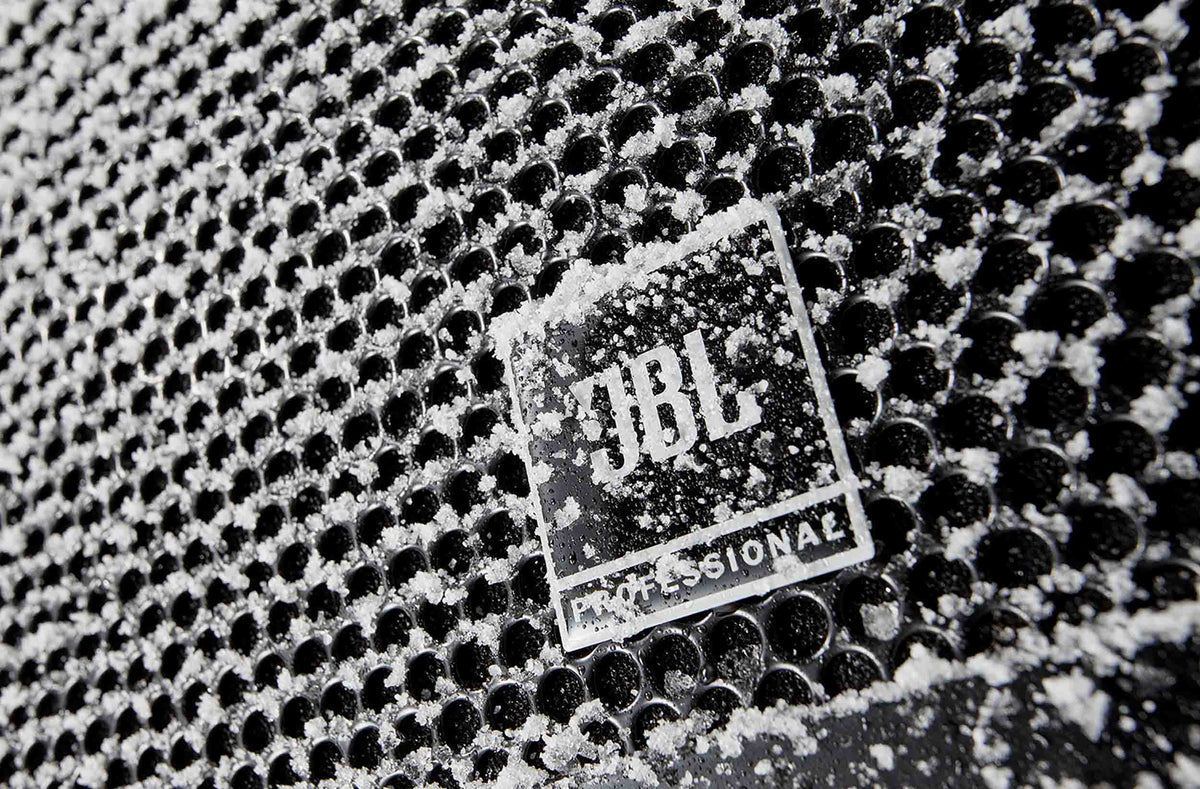

The JBL AW266-BK is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100V transformer. A heavy-duty weather treated U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The AW266 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.
Product Specification:
Frequency Range (-10dB): 40 Hz, 20 kHz
Frequency Response (±3 dB): 51 Hz, 18 kHz
Coverage Pattern: 60° x 60° waveguide
Directivity Factor (Q): 15.8
Directivity Index (DI): 12 dB
Crossover Frequency: 1.1 kHz
System Power Rating: 500 W (2000 W peak) 100 hrs
Maximum SPL (1m): 126 dB SPL (132 dB peak)
System Sensitivity (1w @ 1m): 98 dB
Transformer Taps: 70V: 400 W, 200 W, 100W100V: 400W, 200W
LF Driver: 1 x JBL 2262H 300 mm (12 in) Differential Drive driver with 75 mm (3 in) dual voice coil
Nominal LF Driver Impedance: 8 ohms
LFD Sensitivity (1W @ 1m, within operational band): 96 dB SPL
HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Nominal HF Driver Impedance: 8 ohms
HFD Sensitivity (1W @ 1m): 113 dB SPL
Waveguide: PT-H66HF-1
Enclosure: Hand-Laminated Fiberglass, black
Environmental: IP55C per IEC529
Dimensions (H x W x D in horizontal cabinet orientation): 409 x 732 x 452 mm(16.1 x 28.8 x 17.8 in)
Weight : 25.2 kg (55.5 lb)
