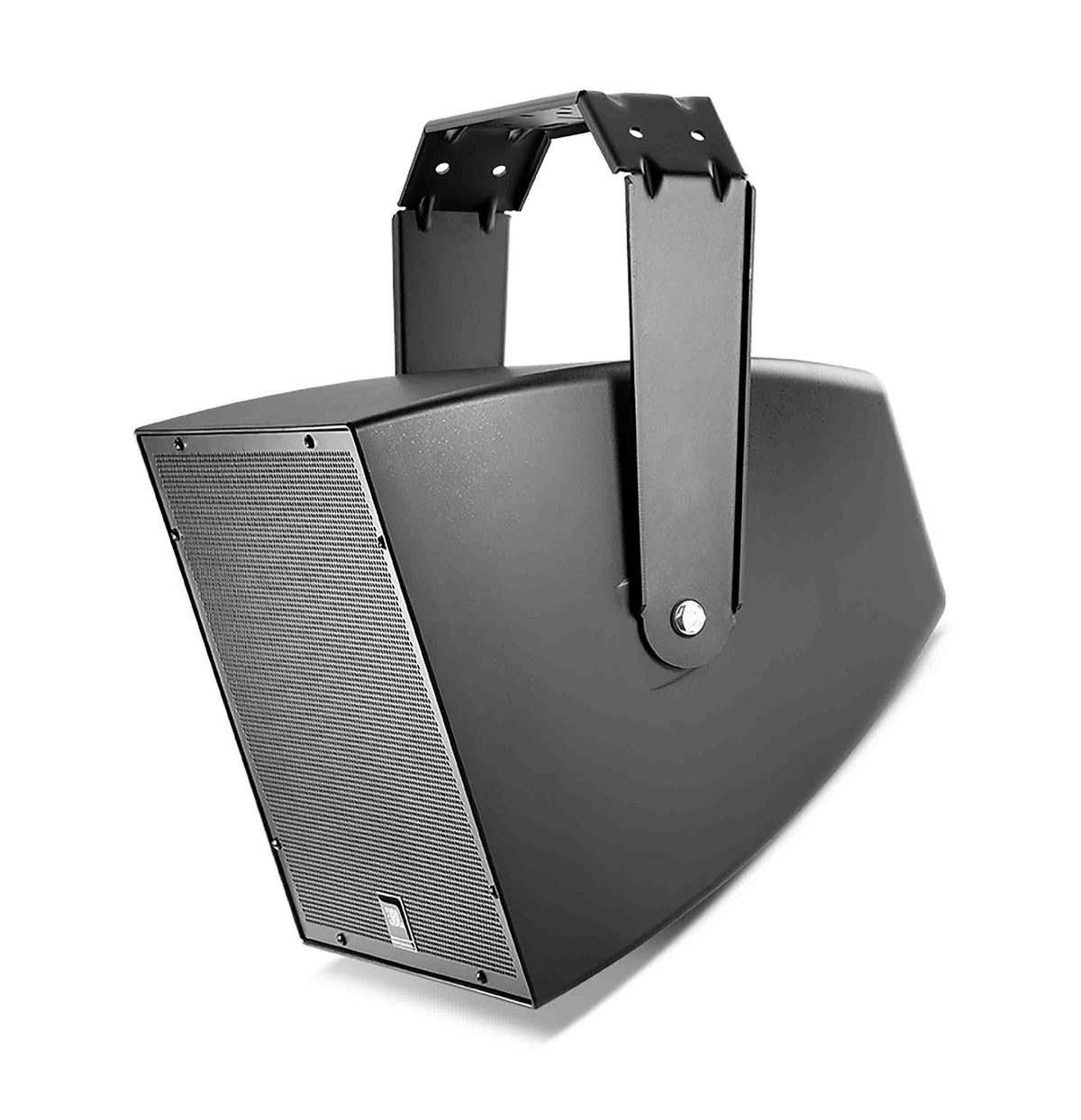

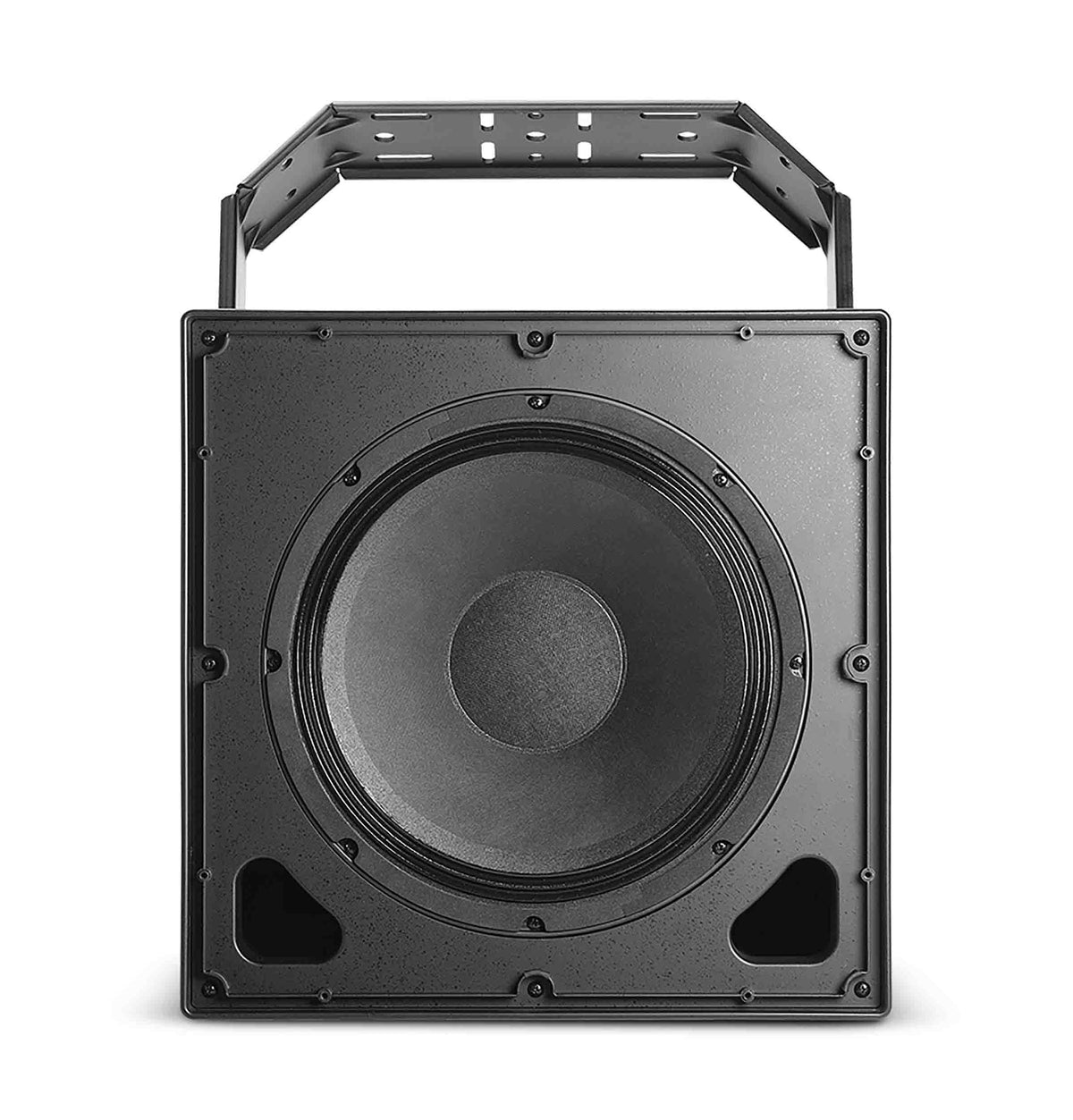

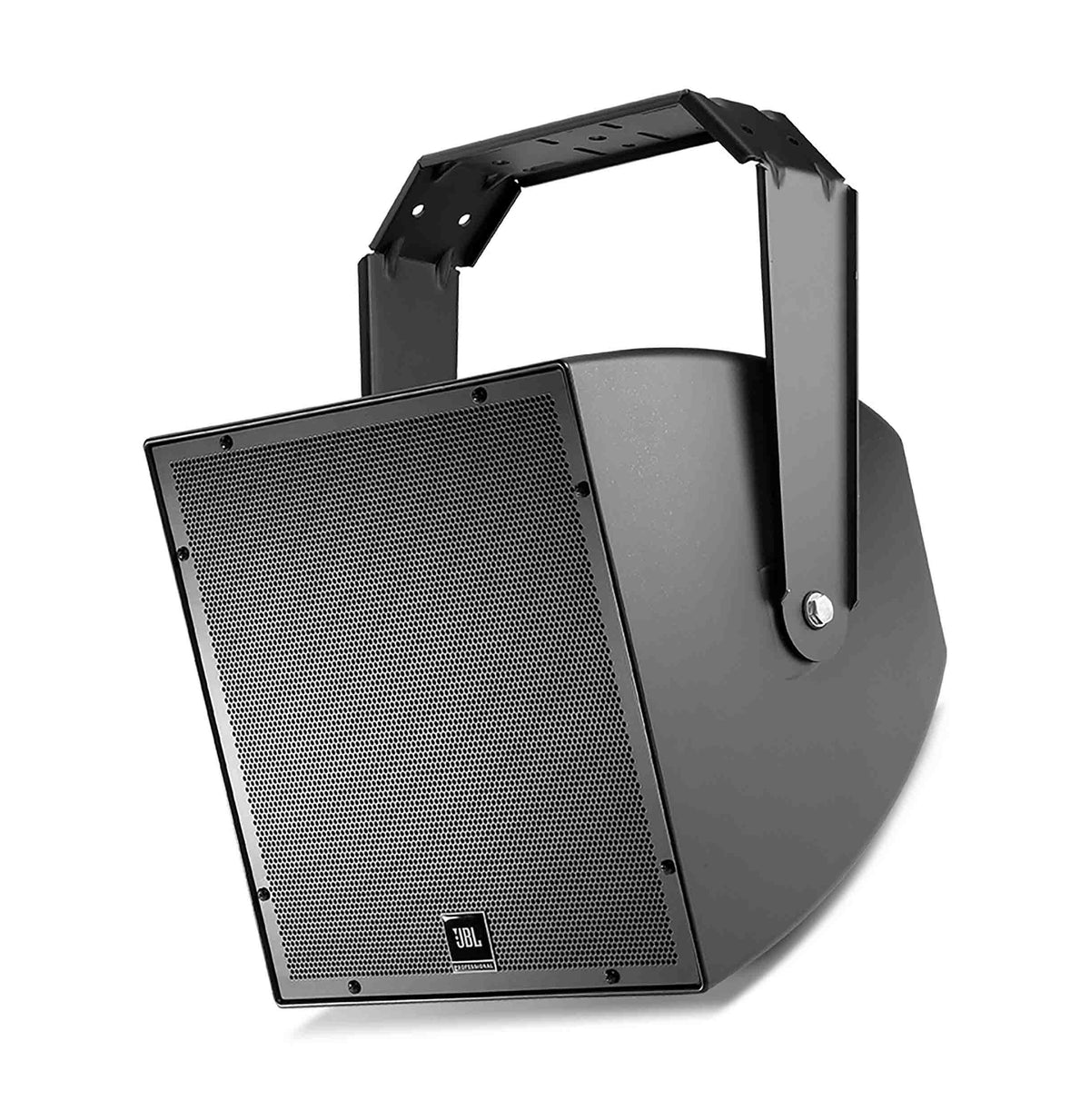

JBL AWC159-BK All-Weather Compact Two-Way Coaxial Speaker w/ 15" LF

The JBL AWC159-BK is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

Product Specifications:

Frequency Range (-10dB): 52 Hz, 20 kHz

Frequency Response (±3 dB): 80 Hz, 20 kHz

Coverage Pattern: 90° x 90°

Directivity Factor (Q): 11.1 (1 kHz, 16 kHz)

Directivity Index (DI): 9.7 dB (1 kHz, 16 kHz)

System Power Rating: 500 W (2000 W peak), 2 hrs. 300 W (1200 W peak), 100 hrs

Sensitivity (2.83V @ 1m): 98 dB (Ave. 80 Hz, 20 kHz)

Maximum SPL (1m): Direct 8Ω: 125 dB (peaks of 131 dB) 300 W Tap: 123 dB (peaks of 129 dB)

Crossover Network: 1.5 kHz, 4th order (24 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF

Nominal Impedance: 8 ohms

Transformer Taps: 70V: 300W, 150W, 75W, 38W 100V: 300W, 150W, 75W

LF Driver: Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil.

Enclosure: ABS with Glass enclosure, heavily braced

Dimensions: 486 x 486 x 479 mm (19.1 x 19.1 x 18.8), cabinet 507 mm (19.9 in)

Colors: Black (-BK)

Crossover Modes: Passive

Nominal LF Driver Impedance: 8 ohms

Net Weight (each): 20.6 kgs. (45.5 lbs.)
