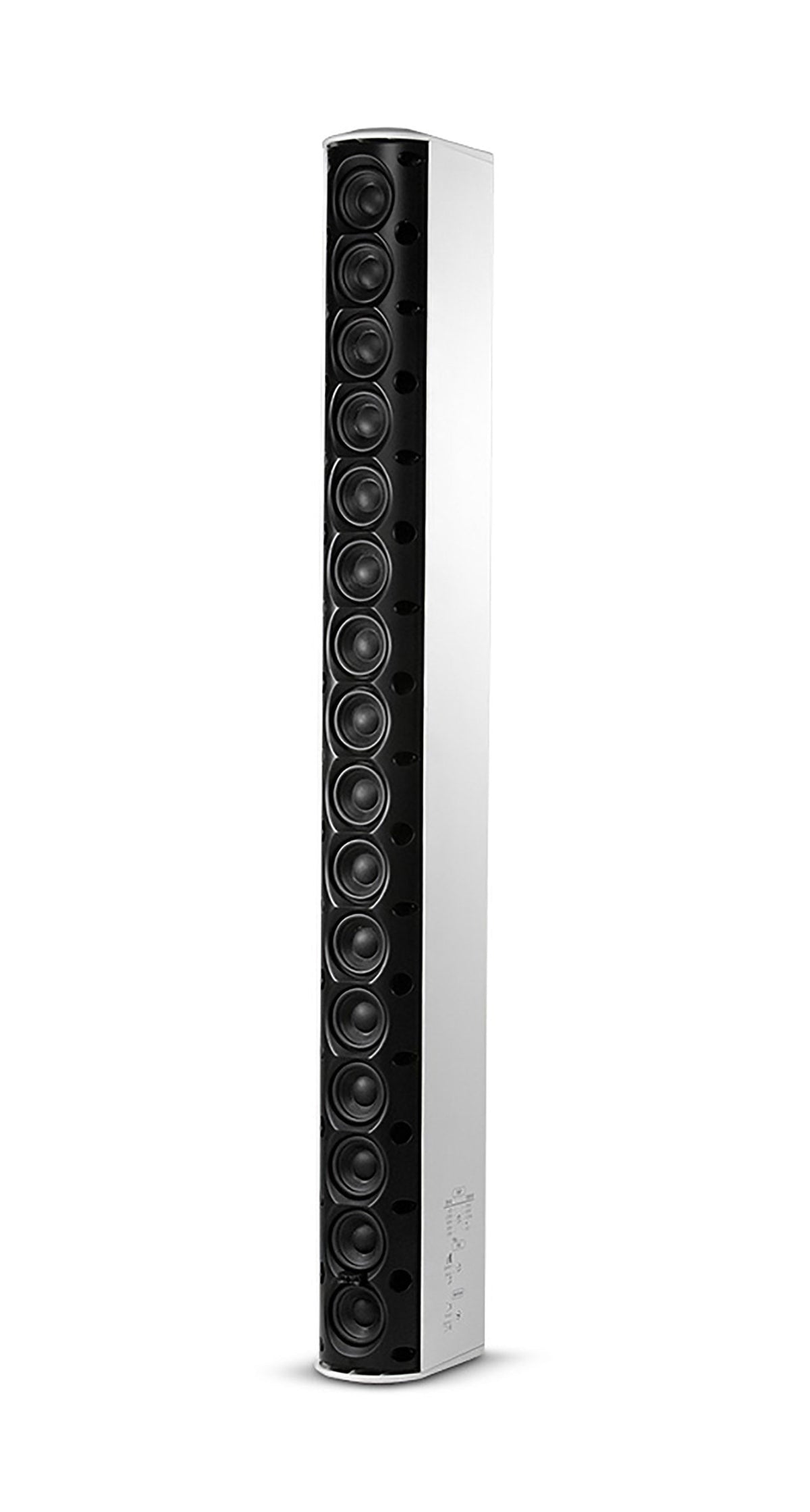

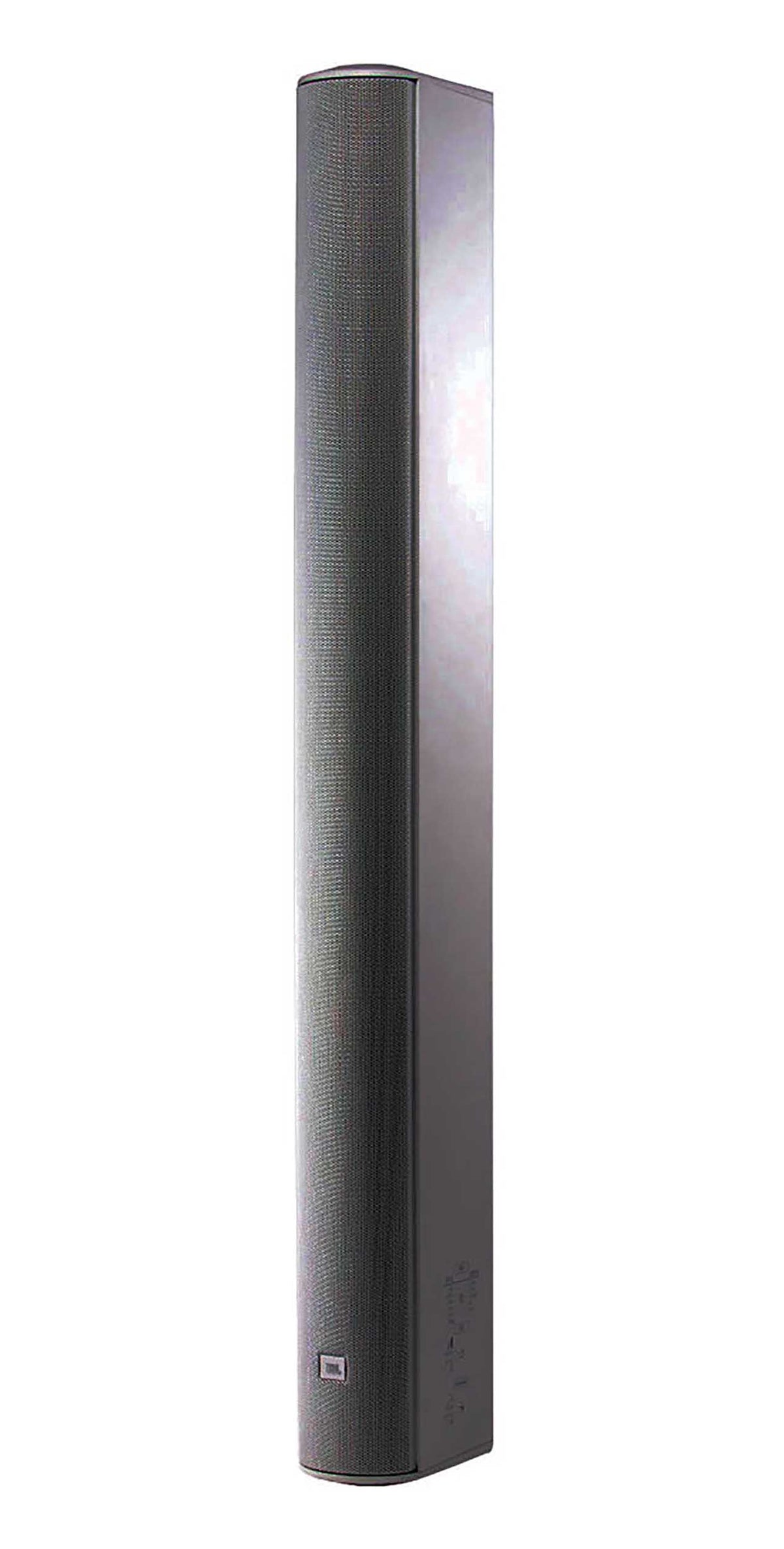

JBL CBT 100LA-1 Constant Beamwidth Technology Line Array Column
JBL CBT 100LA-1 Constant Beamwidth Technology Line Array Column
Model / SKU: H-JBL-CBT100LA1BK
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The JBL CBT 100LA-1 is a Constant Beamwidth Technology Line Array Column Loudspeaker represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.
Product Specifications:
Drivers: Sixteen 50 mm (2 in) Full-Range
Frequency Range (-10dB): 80 Hz, 20 kHz
Impedance: 8 ohms (in Thru mode)
Insert Points: 18 M6 insert points on back panel.
Dimensions (H x W x D): (39.4 in x 3.8 in x 6.0 in)
Net Weight: 7.2 kg (15.8 lb)
Included Accessories: Swivel (pan) / tilt wall bracket
