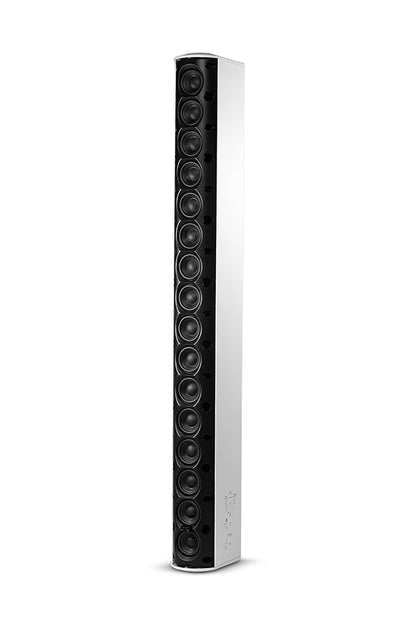

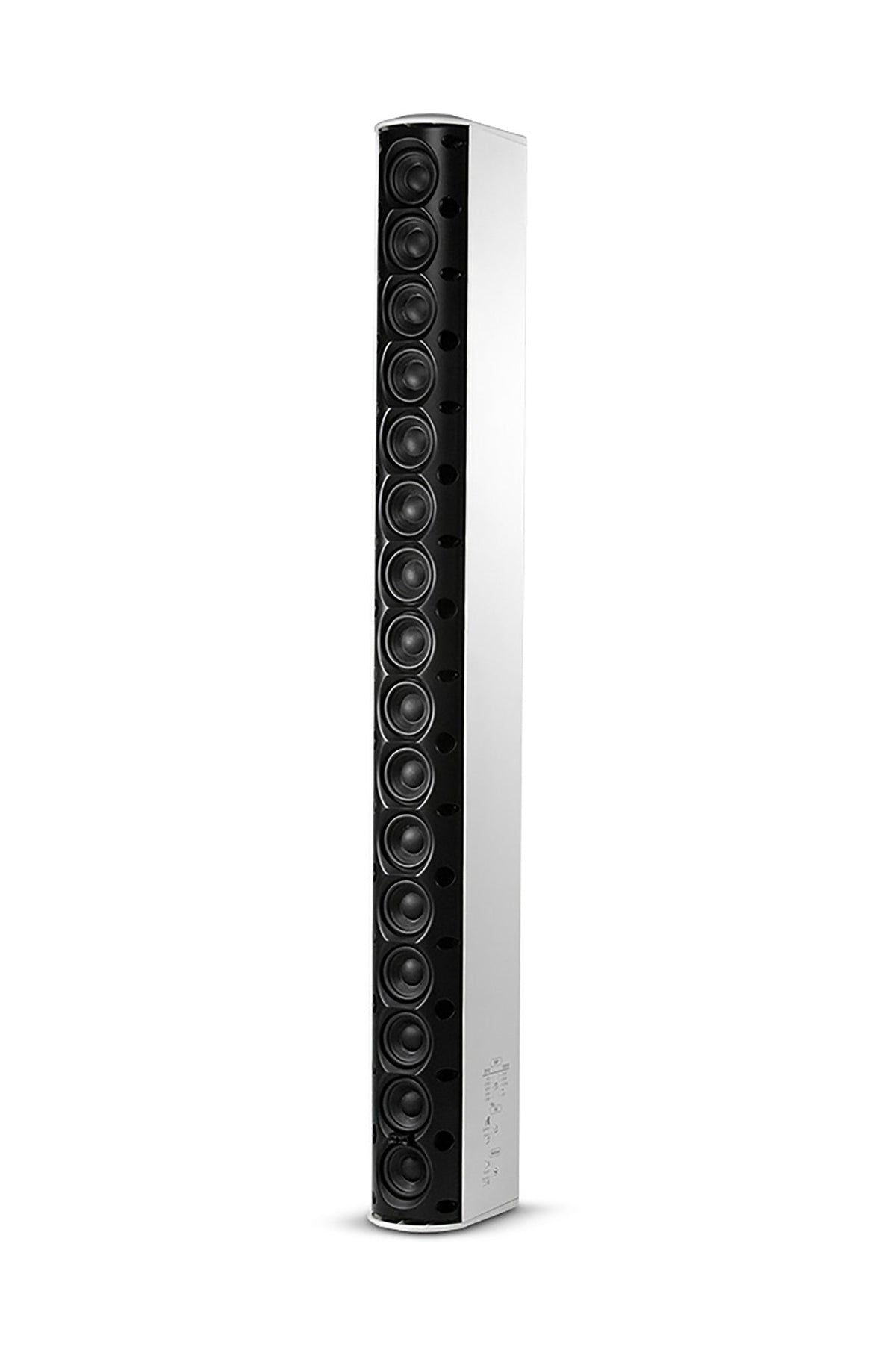

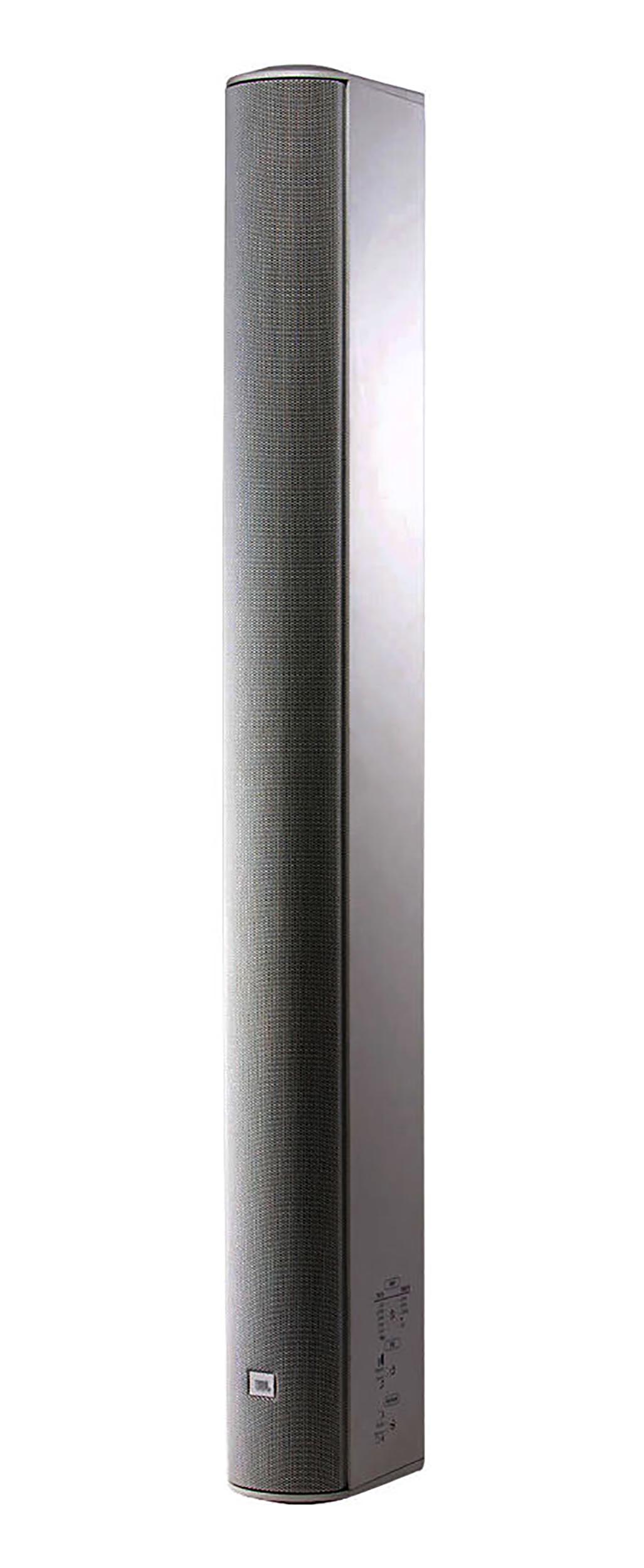

JBL CBT 100LA-LS Line Array Column Speaker w/ Sixteen 50 mm Drivers
JBL CBT 100LA-LS Line Array Column Speaker w/ Sixteen 50 mm Drivers
Model / SKU: H-JBL-CBT100LALSBK
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The JBL CBT 100LA-LS, with Constant Beamwidth Technology, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers. This loudspeaker is EN 54-24 Compliant for life safety applications.
Product Specifications:
Drivers: Sixteen 50 mm (2 in) Full-Range
Frequency Range (-10dB): 120 Hz, 20 kHz
Sensitivity: Narrow: (speech mode) 96 dB (2 kHz - 14 kHz ) (music mode) 93 dB (300 Hz - 18 kHz)
Broad: (speech mode) 93 dB (2 kHz - 14 kHz) (music mode) 90 dB (300 Hz - 18 kHz)
EN54 Max SPL (@ 4m): 92 dB (per EN54:24 spectrum and measurement conditions, at 4 meters)
Transformer Taps: 120W, 60W, 30W, (15W at 70V only), and 8 thru, via switch
Enclosure: Fiberglass reinforced ABS cabinet with UL94-5VB flammability rating, painted aluminum grille
Color: Black
Insert Points: 18 M6 insert points on back panel.
Dimensions (H x W x D): 1000 x 98.5 x 153 (39.4 in x 3.8 in x 6.0 in)
Net Weight: 7.2 kg (15.8 lb)
Included Accessories: Swivel (pan) / tilt wall bracket MTC-PC2 terminal panel cover
